Abstract

The utility model discloses a decompression type mask wearing device, belonging to the field of protective gear. The mask wearing device comprises a main body located at the back of a user's head and a fixing part located at the end of the main body and used for fixing a mask strap; The main body is an elongated structure that can be bent under force; a plurality of the fixing parts are arranged in total, and the plurality of the fixing parts are evenly distributed at both ends of the main body 1 . The decompression type mask wearing device can complete the wearing of the mask according to the needs of different users; at the same time, it can effectively protect the user's ears and avoid damage to the ears caused by wearing the mask for a long time.

Description

A decompression mask wearing device

technical field

The utility model belongs to the technical field of protective gear, in particular to a decompression type mask wearing device.

Background technique

A mask is a sanitary product, generally refers to a device worn on the mouth and nose to filter the air entering the mouth and nose to prevent harmful gases, odors, and droplets from entering and leaving the wearer's mouth and nose. It is made of gauze or paper. Masks have a certain filtering effect on the air entering the lungs. Wearing masks has a very good effect when working in a polluted environment such as dust when respiratory infectious diseases are prevalent.

The auricles are one on the left and one on the left, forming an angle of about 30 degrees with the skull. They are attached to both sides of the skull by ligaments, muscles, cartilage and skin. Except for the earlobe, which is composed of fat and connective tissue without cartilage, the rest of the earlobe is composed of cartilage, which is covered with perichondrium and skin. Once pressure injury occurs, it can be classified as stage 4 pressure injury. Medical surgical masks, KN94 and N95 masks have better airtightness, and the pressure on the mask fixing belt is high, which is more likely to cause damage.

Utility model content

The purpose of this utility model is to provide a decompression type mask wearing device to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

A decompression type mask wearing device, the mask wearing device comprises a main body located at the back of the user's head and a fixing part located at the end of the main body for fixing a mask strap;

The main body is an elongated structure that can be bent under force;

There are several fixed parts in total, and the fixed parts can adjust the tightness of the mask fixing belt according to the size, comfort and pressure bearing capacity of an individual's head. Several fixed parts are evenly distributed on both ends of the main body.

The utility model also has the following technical features:

Both the main body and the fixing part are made of plastic or rubber material.

The main body and the fixing part are integrally formed.

The fixing part includes a connecting part located on the main body and an arc-shaped part located at one end of the connecting part, and the inner side of the arc-shaped part faces the central position of the main body.

Compared with the prior art, the beneficial effects of the present utility model are:

The pressure relief type mask wearing device has a simple structure and low manufacturing cost, and can complete the wearing of the mask according to the needs of different users; at the same time, it can effectively protect the user's ears, avoid the damage to the ears caused by wearing the mask for a long time, and increase wearing Comfort and safety of masks.

Description of drawings

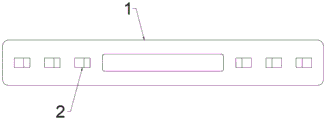

Fig. 1 is the structural representation of a kind of decompression mask wearing device;

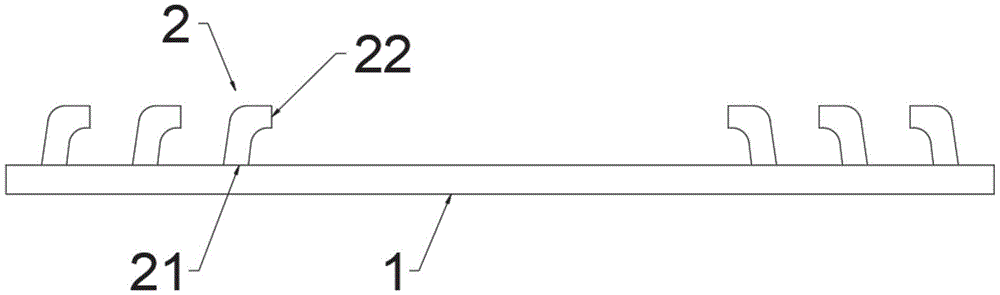

Fig. 2 is a top view structural schematic diagram of a decompression type mask wearing device.

Detailed ways

The present utility model will be further described below in conjunction with the embodiments.

The following examples are used to illustrate the present utility model, but cannot be used to limit the protection scope of the present utility model. Conditions in the examples can be further adjusted according to specific conditions, and simple improvements to the method of the present invention under the concept of the present invention all belong to the scope of protection of the present invention.

As shown in Figures 1-2, the present invention provides a decompression type mask wearing device, the mask wearing device includes a main body 1 located on the back of the user's head and a fixing part located at the end of the main body 1 for fixing the mask straps 2;

The main body 1 is an elongated structure that can be bent under force;

There are several fixed parts 2 , and the several fixed parts 2 are evenly distributed on both ends of the main body 1 .

When in use, fasten the strap at one end of the mask to the main body 1, and make the fixing part 2 face away from the back of the user's head, and then pass the main body 1 around the back of the user's head; The other side of the mask is extended, and then the other strap on the mask is fastened to the fixing part 2 at the other end, so as to complete the wearing of the mask. When wearing, the user can adjust the two straps at both ends of the mask as needed, so that the mask can be worn on the patient's face and is suitable for all groups of people.

The main body 1 and the fixing part 2 are made of plastic or rubber material in order to make the main body 1 adapt to the shape of the user's head so that the main body 1 can be appropriately bent.

Among them, in order to make the mask wearing device more convenient to manufacture and further reduce the cost of the mask wearing device, the main body 1 and the fixing part 2 are integrally formed.

In addition, in order to effectively fix the straps on the mask, the fixing portion 2 includes a connecting portion 21 located on the main body 1 and an arc-shaped portion 22 located at one end of the connecting portion 21, and the inner side of the arc-shaped portion 22 faces the center of the main body 1. place.

By adopting the mask wearing device, the strap of the mask is not directly buckled on the user's ear, and the existing wearing method is changed through the mask wearing device, so as to protect the user's ear and avoid long-term wearing of the mask to the patient's ear. Guaranteed comfort and safety.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. A decompression type mask wearing device, characterized in that: the mask wearing device comprises a main body positioned at the back of the user's head and a fixing portion positioned at the end of the main body for fixing a mask strap; The main body is an elongated structure that can be bent under force; There are several fixed parts in total, and the several fixed parts are evenly distributed on both ends of the main body. 2 . The decompression mask wearing device according to claim 1 , wherein the main body and the fixing part are made of plastic or rubber material. 3 . 3 . The decompression type mask wearing device according to claim 2 , wherein the main body and the fixing part are integrally formed. 4 . 4 . The decompression type mask wearing device according to claim 3 , wherein the fixing part comprises a connecting part located on the main body and an arc-shaped part located at one end of the connecting part, and the arc-shaped part The inner side faces the center of the main body.
