Abstract
The utility model discloses a roller slot type ironer, including the processing platform, the roller slot type is provided with the ironing cylinder in the groove, and the ironing cylinder is provided with adjusting device, and the processing platform is connected with the relative backup pad that sets up, sets up collection device in the backup pad, and processing platform lateral wall fixedly connected with L template is provided with the collection motor on the L template, collects the motor output and is connected with and comes and goes the device. The utility model discloses a set up the height that driving motor was adjusted with the support column to the board of raising of driving motor bottom, to carrying out the water injection and changing the weight of ironing flat section of thick bamboo in the ironing flat section of thick bamboo, the ironing flat section of thick bamboo that buffer spring is connected with the arcuation board removes, adjust and roll the clearance in groove, thereby the cloth that realizes handling different materials carries out different pressures and irons, lead to at the movable block, the draw runner, make the sliding block seat reciprocate under the effect of rectangle frame, restrict the cloth through setting up restriction strip in the round hole, make the cloth neatly fold at processing bench top, place the fold, realize collecting.
Description
Technical Field
The utility model relates to a roller slot type ironer technical field especially relates to a roller slot type ironer.
Background
The ironing machine is one kind of washing machine, belongs to the laundry ironing equipment, and its main component is generally single, multiple roller, and the roller is rotated through hand cranking or electric power, reaches certain temperature, and after the wet clothing passes between two rollers, can remove a large amount of moisture, and reach the effect of ironing, extensively be used for the flattening process of sheet, tablecloth, cloth etc..
When the existing ironing machine is used, the distance between the roller and the roller groove cannot be adjusted, so that when cloth with different thicknesses is machined, the cloth cannot be adjusted according to the thickness, the ironing effect is poor, moreover, after some large cloth is machined, the cloth cannot be directly collected, a worker is required to fold, and the worker is inconvenient to easily cause new wrinkles to be generated on the ironed cloth when operating, so that the machining effect is influenced.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the collection difficulty of big and small cloth and easily cause the fold after processing the cloth of the current ironer, and a roller slot type ironer that provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a roller slot type ironer, includes the processing platform, the roller groove has been seted up in the processing platform, the processing mouth has been seted up to roller groove lateral wall, is located processing mouth department processing platform lateral wall fixedly connected with workstation, the discharge gate has been seted up to roller groove top, the roller inslot is provided with the ironing press section of thick bamboo, be provided with adjusting device in the ironing press section of thick bamboo, the relative backup pad that sets up of processing platform top fixedly connected with, set up collection device in the backup pad, processing platform lateral wall fixedly connected with L template, be provided with the collection motor on the L template, it is connected with the come and go device to collect the motor output.
Preferably, adjusting device includes the supporting shoe of fixed connection at the processing platform lateral wall, the supporting shoe is connected with driving motor through height-adjusting plate, ironing cylinder both ends all are connected with the fixed axle, the round mouth has been seted up to the processing mouth lateral wall, the round mouth inside wall is connected with the arcuation board through buffer spring, the arcuation board inside wall rotates with the fixed axle to be connected, the driving motor output is connected with the fixed axle of ironing cylinder one end, the water storage chamber has been seted up in the ironing cylinder, water storage chamber lateral wall is provided with the heating tube layer, water storage chamber lateral wall is provided with the connector.
Preferably, the height adjusting plate comprises a lifting plate and a supporting column, a threaded hole is formed in the supporting block, one end of the supporting column is rotatably connected with the lifting plate, and the other end of the supporting column is in threaded connection with the threaded hole.
Preferably, the reciprocating device comprises two chain wheels connected with the side wall of the supporting plate through a connecting shaft, the two chain wheels are connected through a chain, a moving block is fixedly connected to the chain, the moving block is connected with a rectangular frame through a sliding strip, the output end of the collecting motor is fixedly connected with one of the chain wheels, a rectangular sliding opening is formed in the supporting plate, a sliding block is slidably connected to the rectangular sliding opening, and the sliding block located on one side of the chain is connected with the rectangular frame.
Preferably, the collecting device comprises a plurality of round holes formed in the supporting plate, limiting strips are arranged in the round holes in a sliding mode, the two moving blocks are connected with a reciprocating shaft together, a collecting roller is fixedly connected to the reciprocating shaft, a connecting groove is formed in the top of the collecting roller, fastening grooves are formed in two sides of the connecting groove, and clamping strips are connected in the fastening grooves through a plurality of clamping springs.
Preferably, the processing opening and the discharge opening side wall are both fixedly connected with two guide shafts, and the guide shafts are rotatably connected with guide rollers.
The utility model discloses well beneficial effect does:
1. the height of the driving motor is adjusted through the lifting plate and the supporting column which are arranged at the bottom of the driving motor, the weight of the ironing barrel is changed by injecting water into the ironing barrel, so that the ironing barrel connected with the arc-shaped plate through the buffer spring is moved, the gap between the adjusting roller and the rolling roller groove is adjusted, and therefore the cloth which is used for dealing with different materials is ironed under different pressures.
2. Through setting up the backup pad at processing bench top, set up collection motor and sprocket in the backup pad, rotatory through the chain, make the slider seat reciprocate under the effect of movable block, draw runner, rectangle frame, restrict the cloth through setting up restriction strip in the round hole at the tip for the cloth is neatly stacked at processing bench top, places and appears the fold, realizes collecting.
Drawings

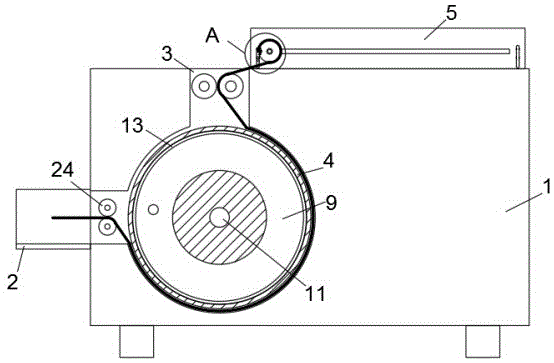

Fig. 1 is a schematic structural view of a roller-groove type ironing machine provided by the present invention;
FIG. 2 is an enlarged view of the structure at A in FIG. 1;
fig. 3 is a schematic front structural view of a roller-groove type ironing machine provided by the present invention;
FIG. 4 is an enlarged view of the structure at B in FIG. 3;
fig. 5 is a schematic top view of the roller-and-groove type ironing machine according to the present invention;
fig. 6 is a schematic view of a back structure of the roller-groove type ironing machine of the present invention.
In the figure: the device comprises a processing table 1, a workbench 2, a discharge port 3, an ironing cylinder 4, a supporting plate 5, a template 6L, a collecting motor 7, a supporting block 8, a water storage cavity 9, a driving motor 10, a fixed shaft 11, an arc plate 12, a heating tube layer 13, a lifting plate 14, a supporting column 15, a chain wheel 16, a moving block 17, a sliding strip 18, a rectangular frame 19, a sliding block 20, a limiting strip 21, a collecting roller 22, a clamping strip 23 and a guide roller 24.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-6, a roller slot type ironing machine comprises a processing table 1, a roller slot is arranged in the processing table 1, a processing opening is arranged on the side wall of the roller slot, a workbench 2 is fixedly connected to the side wall of the processing table 1 at the processing opening, a discharge opening 3 is arranged at the top of the roller slot, an ironing cylinder 4 is arranged in the roller slot, an adjusting device is arranged in the ironing cylinder 4, further, the adjusting device comprises a supporting block 8 fixedly connected to the side wall of the processing table 1, the supporting block 8 is connected with a driving motor 10 through a height adjusting plate, fixed shafts 11 are connected to two ends of the ironing cylinder 4, a round opening is arranged on the side wall of the processing opening, the inner side wall of the round opening is connected with an arc plate 12 through a buffer spring, the arc plate 12 is connected with the outer side wall of the fixed shaft 11 through a bearing, the inner side wall of the arc plate 12 is rotatably connected, a water storage cavity 9 is formed in the ironing cylinder 4, a heating tube layer 13 is arranged on the side wall of the water storage cavity 9, and a connecting port is formed in the side wall of the water storage cavity 9.
Still further, the height adjusting plate comprises a lifting plate 14 and a supporting column 15, a threaded hole is formed in the supporting block 8, one end of the supporting column 15 is rotatably connected with the lifting plate 14, the other end of the supporting column is in threaded connection with the threaded hole, the axis level of the driving motor 10 and the axis level of the fixed shaft 11 are controlled through the height adjusting plate, and transmission is guaranteed.
The relative backup pad 5 that sets up of 1 top fixedly connected with of processing platform, set up collection device on the backup pad 5, furtherly, collection device is including seting up a plurality of round holes in backup pad 5, it has restriction strip 21 to slide in the round hole, when carrying out the cloth folding, carry out folding department to the cloth in needs, locate in the middle of inserting the cloth with restriction strip 21, realize the removal of restriction cloth, thereby realize the folding to the cloth, two movable block 17 are connected with the axle that comes and goes jointly, come and go epaxial fixedly connected with and collect roller 22, the spread groove has been seted up at collection roller 22 top, the fastening groove has been seted up to the spread groove both sides, there is clamping strip 23 through a plurality of centre gripping spring coupling in the fastening groove, clamping strip 23 both ends are provided with the pull rod.
The side wall of the processing table 1 is fixedly connected with an L-shaped plate 6, the L-shaped plate 6 is provided with a collecting motor 7, the output end of the collecting motor 7 is connected with a reciprocating device, further, the reciprocating device comprises two chain wheels 16 connected with the side wall of a supporting plate 5 through a connecting shaft, the two chain wheels 16 are connected through a chain, a moving block 17 is fixedly connected on the chain, the moving block 17 is connected with a rectangular frame 19 through a sliding strip 18, the output end of the collecting motor 7 is fixedly connected with one of the chain wheels 16, the supporting plate 5 is provided with a rectangular sliding opening, a sliding block 20 is connected in the rectangular sliding opening in a sliding manner, the sliding block 20 positioned on one side of the chain is connected with the rectangular frame 19, the inner side wall of the rectangular frame 19 is provided with a vertical groove, the sliding strip is connected with the vertical groove in a sliding manner, when the moving block 17 needs, thereby enabling the rectangular frame 19 to be turned.
Further, two guiding axles of the equal fixedly connected with of processing mouth and 3 lateral walls of discharge gate, the rotation is connected with guide roller 24 on the guiding axle, changes the removal angle of cloth through guide roller 24, prevents that the lateral wall from causing the damage to the cloth.
In the utility model
When the ironing machine is used, when the pressure of the ironing cylinder 4 is adjusted according to different cloth materials, water is injected into a water storage cavity 9 in the ironing cylinder 4, the weight of the ironing cylinder 4 is increased, the fixed shafts 11 on two sides of the ironing cylinder 4 are enabled to be abutted against arc-shaped plates 12 which are rotatably connected with the fixed shafts to move downwards, the arc-shaped plates 12 are abutted against buffer springs, so that the gap between the ironing cylinder 4 and a roller groove is reduced, meanwhile, the distance between supporting blocks 8 connected with driving motors 10 and lifting plates 14 is adjusted to adjust the driving motors 10 and the fixed shafts 11 to be horizontal, the water storage cavity is arranged in the ironing cylinder 4 to change the pressure of the ironing cylinder 4 on the cloth materials, so that different materials can be ironed under different pressures, adjustable ironing is realized, heat preservation can be carried out through water energy of the water storage cavity 9 in the ironing cylinder 4, and electric power is saved;
when the large-sized cloth needs to be finished and stored after being ironed to prevent wrinkles from being generated, the clamping strips 23 are pressed to generate a gap between the two clamping strips 23, the end part of the cloth is placed in the gap, clamping is realized through the clamping strip 23, the collection motor 7 is started, the chain wheel 16 connected with the collection motor 7 drives the chain to rotate, the moving block 17 positioned on the chain moves, when moving the moving block 17, the rectangular frame 19 connected slidably by the slide bar 18 is reciprocated, the collecting roller 22 connected to the rectangular frame 19 via the sliding block 20 drives the cloth to move back and forth, when the cloth is moved to one end of the supporting plate 5, the restriction strip 21 disposed in the circular hole is inserted into the inside of the cloth, the cloth is limited by the limiting strips 21, so that the cloth is folded and collected at two ends of the supporting plate 5, and wrinkles of the ironed cloth are effectively prevented.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a roller slot type ironer, includes processing platform (1), its characterized in that, set up the roller groove in processing platform (1), the processing mouth has been seted up to roller groove lateral wall, is located processing mouth department processing platform (1) lateral wall fixedly connected with workstation (2), discharge gate (3) have been seted up at roller groove top, the roller inslot is provided with ironing cylinder (4), be provided with adjusting device in ironing cylinder (4), backup pad (5) that processing platform (1) top fixedly connected with set up relatively, set up collection device on backup pad (5), processing platform (1) lateral wall fixedly connected with L template (6), be provided with on L template (6) and collect motor (7), it is connected with the device that comes and goes to collect motor (7) output.
2. The roller slot type ironing machine according to claim 1, wherein the adjusting device comprises a supporting block (8) fixedly connected to a side wall of the processing table (1), the supporting block (8) is connected with a driving motor (10) through a height adjusting plate, two ends of the ironing cylinder (4) are connected with fixed shafts (11), a round opening is formed in the side wall of the processing opening, an arc-shaped plate (12) is connected to the inner side wall of the round opening through a buffer spring, the inner side wall of the arc-shaped plate (12) is rotatably connected with the fixed shafts (11), the output end of the driving motor (10) is connected with the fixed shaft (11) at one end of the ironing cylinder (4), a water storage cavity (9) is formed in the ironing cylinder (4), a heating pipe layer (13) is arranged on the side wall of the water storage cavity (9), and a connecting port is arranged on the side.
3. The roller slot type ironer according to claim 2, wherein the height adjustment plate comprises a raised plate (14) and a support pillar (15), a threaded hole is formed in the support block (8), one end of the support pillar (15) is rotatably connected with the raised plate (14), and the other end of the support pillar is in threaded connection with the threaded hole.
4. The roller slot type ironer according to claim 1, characterized in that the reciprocating device comprises two chain wheels (16) connected with the side walls of the supporting plate (5) through connecting shafts, the two chain wheels (16) are connected through a chain, a moving block (17) is fixedly connected to the chain, the moving block (17) is connected with a rectangular frame (19) through a sliding strip (18), the output end of the collecting motor (7) is fixedly connected with one of the chain wheels (16), a rectangular sliding opening is formed in the supporting plate (5), a sliding block (20) is slidably connected in the rectangular sliding opening, and the sliding block (20) on one side of the chain is connected with the rectangular frame (19).
5. The roller slot type ironer according to claim 4, wherein the collecting device comprises a plurality of round holes formed in a supporting plate (5), a limiting strip (21) is arranged in each round hole, two moving blocks (17) are connected with a reciprocating shaft together, a collecting roller (22) is fixedly connected to each reciprocating shaft, a connecting groove is formed in the top of each collecting roller (22), fastening grooves are formed in two sides of each connecting groove, and a clamping strip (23) is connected to each fastening groove through a plurality of clamping springs.
6. The roller slot type ironer according to claim 1, characterized in that two guiding shafts are fixedly connected to the side walls of the processing opening and the discharge opening (3), and a guiding roller (24) is rotatably connected to the guiding shafts.
