Abstract

The utility model discloses an imperial chrysanthemum cleaning device, comprising a cleaning box, a partition plate is arranged in the cleaning box, and the cleaning box is divided into a dipping area and a rinsing area, and a feeding hopper is installed on the outer wall of the cleaning box. Two belt conveyors are installed obliquely in the vertical direction in the dipping area, and several conveying partitions are evenly installed on the belt of each belt conveyor. The driving roller is located in the washing area, and the driven roller is located in the dipping area; a bracket is installed above the washing area, a spray pipe is fixedly connected to the bracket, and a number of spray heads are evenly installed on the spray pipe. above the machine. Through the setting of the device, the imperial chrysanthemum is dipped in the dipping area, and the vibration of the vibration motor makes the water in the dipping area vibrate, which can quickly clean the imperial chrysanthemum, thereby avoiding the damage to the imperial chrysanthemum caused by the stirring rod; The washing area can wash the sewage on the surface of the Huangju to improve the cleaning quality.

Description

A kind of imperial chrysanthemum cleaning device

technical field

The utility model relates to the technical field of imperial chrysanthemum processing, in particular to an imperial chrysanthemum cleaning device.

Background technique

Royal chrysanthemum can be used to make tea, which has the functions of clearing away heat and detoxification, relaxing muscles and promoting blood circulation, protecting liver and improving eyesight, and enhancing human immune function. When preparing dried tea, the fresh surface is first cleaned to remove dust and pesticides in the imperial chrysanthemum. , and then place the imperial chrysanthemum in the drying machine to shake off the water in the imperial chrysanthemum, and finally prepare it into dry tea by drying equipment. When cleaning the imperial chrysanthemum, generally pour the imperial chrysanthemum into the cleaning pool, and use the pulsator to stir and clean it or use the spray pipe to rinse. Vigorous stirring will occur in the cleaning pool. This cleaning method will cause some mature imperial chrysanthemum petals to fall off, affecting the quality of the imperial chrysanthemum; use the spray pipe to rinse, and the water dripping from the spray pipe can only wash the imperial chrysanthemum floating on the water surface. , the cleaning is not clean.

Utility model content

The utility model provides an imperial chrysanthemum cleaning device precisely aiming at the shortcomings of the prior art.

An imperial chrysanthemum cleaning device, comprising a cleaning box, a partition plate is arranged in the cleaning box, and the cleaning box is divided into a dipping area and a rinsing area, a feeding hopper is installed on the outer wall of the cleaning box, and the feeding hopper and the dipping area are installed Connected. Two belt conveyors are installed obliquely in the vertical direction in the dipping area, and several conveying partitions are evenly installed on the belt of each belt conveyor for immersing the chrysanthemum in water. A mesh belt conveyor is installed in the cleaning box, the driving roller of the mesh belt conveyor is located in the washing area, and the driven roller is located in the soaking area, which is used to transport the soaked daisy from the soaking area to the washing area. . A bracket is installed above the flushing area, a spray pipe is fixedly connected to the bracket, a number of spray heads are evenly installed on the spray pipe, and the spray heads are located above the mesh belt conveyor and are used for washing the imperial chrysanthemum.

Further, two bearing rollers are installed on the cleaning box, one bearing roller is located between the endless mesh belts of the mesh belt conveyor, and the other bearing roller is located below the endless mesh belt of the mesh belt conveyor.

Further, a filter box is arranged on the ground below the cleaning box, and the soaking area and the flushing area are respectively connected to the water inlet of the filter box through pipes.

Further, the left and right sides of the filter box are respectively provided with a first water pump and a second water pump, the suction end of the first water pump is connected to the water outlet of the filter box through a pipeline, and the water outlet end is connected to the immersion area through a pipeline, and the second water pump is connected. The water suction end is connected with the water outlet of the filter box through the pipeline, and the water outlet end is connected with the spray pipe through the pipeline.

Further, the filter box includes a filter box body, a first filter screen is arranged in the filter box box, a second filter screen is arranged on the right side of the first filter screen, and the mesh of the first filter screen is The aperture is larger than the mesh aperture of the second filter screen.

Further, a vibration motor is installed on the outer wall of the cleaning box.

Compared with the prior art, the beneficial effects of the utility model are as follows: the utility model has a simple structure and a reasonable design; The water vibration can quickly clean the imperial chrysanthemum, thus avoiding the damage to the imperial chrysanthemum caused by the stirring rod; the washing area can wash the sewage on the surface of the imperial chrysanthemum to improve the cleaning quality.

Description of drawings

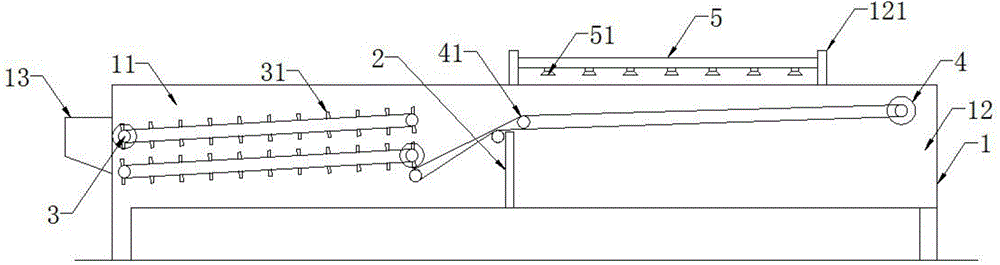

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the filter box in the utility model;

FIG. 3 is a schematic structural diagram of a cleaning device with a filter box.

In the figure: cleaning box 1, dipping area 11, washing area 12, bracket 121, feeding hopper 13, partition 2, belt conveyor 3, conveying partition 31, mesh belt conveyor 4, bearing roller 41, spray pipe 5. The spray head 51 , the filter box 6 , the filter box body 61 , the first filter screen 62 , the second filter screen 63 , the first water pump 7 , the second water pump 8 , and the vibration motor 9 .

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to Figures 1 to 3, a cleaning device for imperial chrysanthemum includes a cleaning box 1, and a partition 2 is arranged in the cleaning box 1 to separate the cleaning box 1 into a dipping area 11 and a rinsing area 12. The cleaning box 1 A feeding hopper 13 is installed on the outer wall, and the feeding hopper 13 communicates with the soaking area 11 . Two belt conveyors 3 are installed obliquely in the vertical direction in the dipping area 11 , and several conveying partitions 31 are evenly installed on the belt of each belt conveyor 3 for immersing the chrysanthemum in water. A mesh belt conveyor 4 is installed in the cleaning box 1. The driving roller of the mesh belt conveyor 4 is located in the washing area 12, and the driven roller is located in the soaking area 11, which is used to remove the soaked imperial chrysanthemum from the soaking area. Zone 11 is conveyed to flush zone 12 . Two bearing rollers 41 are installed on the cleaning box 1 , one bearing roller 41 is located between the endless mesh belts of the mesh belt conveyor 4 , and the other bearing roller 41 is located below the endless mesh belt of the mesh belt conveyor 4 . A bracket 121 is installed above the flushing area 12 , a spray pipe 5 is fixedly connected to the bracket 121 , and a plurality of spray heads 51 are evenly installed on the spray pipe 5 . A vibration motor 9 is installed on the outer wall of the cleaning box 1 .

A filter box 6 is arranged on the ground below the cleaning box 1 , and the soaking area 11 and the flushing area 12 are respectively connected to the water inlet of the filter box 6 through pipes. The left and right sides of the filter box 6 are respectively provided with a first water pump 7 and a second water pump 8. The suction end of the first water pump 7 is connected to the water outlet of the filter box 6 through a pipeline, and the water outlet end is connected to the immersion area 11 through a pipeline. The suction end of the second water pump 8 is connected to the water outlet of the filter box 6 through a pipeline, and the water outlet end is connected to the spray pipe 5 through a pipeline. The filter box 6 includes a filter box body 61, a first filter screen 62 is arranged in the filter box box 61, and a second filter screen 63 is arranged on the right side of the first filter screen 62. The mesh aperture of the mesh 62 is larger than the mesh aperture of the second filter screen 63 .

When in use, power on the device first, start the two belt conveyors 3, mesh belt conveyors 4, first water pump 7, second water pump 8, vibration motor 9, immersion area 11 and rinse area 12. After the water is filtered by the filter box 6, the first water pump 7 and the second water pump 8 supply water to the dipping area 11 and the spray pipe 5 respectively to form a water cycle. The driving roller of the lower belt conveyor 3 rotates clockwise. The imperial chrysanthemum is added from the feeding hopper 13, and the imperial chrysanthemum enters the dipping area 11. The vibration motor 9 works to drive the water in the dipping area 11 to vibrate to clean the imperial chrysanthemum. The belt conveyor 3 works, and the conveying partition 31 removes the The chrysanthemum is transported in the direction of the flushing area 12, the imperial chrysanthemum is transported to the mesh belt conveyor 4, and the mesh belt conveyor 4 transports the imperial chrysanthemum into the washing area 12, and the nozzle 51 washes the imperial chrysanthemum. The worker collects the chrysanthemums on the mesh belt conveyor 4 into the container for subsequent processing.

Claims (6)

1. The utility model provides a chrysanthemum morifolium belt cleaning device, includes washs case (1), its characterized in that: a partition plate (2) is arranged in the cleaning box (1) to divide the cleaning box (1) into an immersion cleaning area (11) and a washing area (12), a feeding hopper (13) is mounted on the outer wall of the cleaning box (1), and the feeding hopper (13) is communicated with the immersion cleaning area (11); two belt conveyors (3) are obliquely arranged in the soaking and washing area (11) along the vertical direction, and a plurality of conveying partition plates (31) are uniformly arranged on the belt of each belt conveyor (3) and used for soaking the chrysanthemum morifolium; a mesh belt conveyor (4) is installed in the cleaning box (1), a driving roller of the mesh belt conveyor (4) is located in the washing area (12), and a driven roller is located in the soaking area (11) and used for conveying soaked chrysanthemums from the soaking area (11) to the washing area (12); a support (121) is installed above the washing area (12), a spraying pipe (5) is fixedly connected to the support (121), a plurality of spray heads (51) are evenly installed on the spraying pipe (5), and the spray heads (51) are located above the mesh belt conveyor (4) and used for washing the chrysanthemum morifolium.

2. A royal chrysanthemum washing device as defined in claim 1, which is characterized by the following: two bearing rollers (41) are installed on the cleaning box (1), one bearing roller (41) is positioned between the annular mesh belts of the mesh belt conveyor (4), and the other bearing roller (41) is positioned below the annular mesh belts of the mesh belt conveyor (4).

3. A royal chrysanthemum washing device as defined in claim 1, which is characterized by the following: the washing device is characterized in that a filter box (6) is arranged on the ground below the washing box (1), and the soaking area (11) and the washing area (12) are respectively connected with a water inlet of the filter box (6) through pipelines.

4. A royal chrysanthemum washing device as defined in claim 3, which is characterized by the following: the left side and the right side of the filter box (6) are respectively provided with a first water pump (7) and a second water pump (8), the water absorbing end of the first water pump (7) is connected with the water outlet of the filter box (6) through a pipeline, the water outlet end of the first water pump is connected with the pickling area (11) through a pipeline, the water absorbing end of the second water pump (8) is connected with the water outlet of the filter box (6) through a pipeline, and the water outlet end of the second water pump is connected with the spray pipe (5) through a pipeline.

5. A royal chrysanthemum washing device as defined in claim 3, which is characterized by the following: filter tank (6) includes filter tank box (61), be equipped with first filter screen (62) in filter tank box (61), first filter screen (62) right side is equipped with second filter screen (63), first filter screen (62) mesh aperture is greater than second filter screen (63) mesh aperture.

6. A royal chrysanthemum washing device as defined in claim 1, which is characterized by the following: and a vibration motor (9) is arranged on the outer wall of the cleaning box (1).
