A multi-part protection device for patient's limbs during ultraviolet disinfection of ward

technical field

The utility model relates to an ultraviolet shielding and protecting device, in particular to a protecting device for multiple parts of a patient's limbs during ultraviolet disinfection of a ward.

Background technique

As a medical institution, a hospital is very necessary for disinfection. Generally, a ceiling-mounted ultraviolet lamp is used in the general hospital area. The personnel are emptied in advance, and then the lamp is turned on for 30 to 60 minutes to achieve the purpose of disinfection. However, for some special areas, such as ICU, due to the serious condition of the patient, it is inconvenient to get out of bed and move, but at the same time, ultraviolet rays can also harm the human body to a certain extent, so how to ensure the safety of the patient and disinfect the ward at the same time, has been It has always been a headache for healthcare workers.

According to the above, although some methods such as quilts are used to cover the patient's body in clinical practice to avoid ultraviolet radiation to the patient, there are still many problems; 1. Because they are all temporarily borrowed, such covering items cannot be used according to needs. Targeted and effective all-round protection of the patient's body may easily cause the patient's limbs to be exposed or the cover to slip off; 2. The use effect is very poor, such as directly covering the patient's head, it will not only bring discomfort to the patient, but also affect the patient's breathing. For the above problems, it is necessary to design a multi-part protection device for the patient's limbs during ultraviolet disinfection of the ward.

Utility model content

The technical problem to be solved by the utility model is to provide a device for protecting multiple parts of a patient's limbs during ultraviolet disinfection of a ward, so as to solve the problems raised by the background technology.

In order to solve the above-mentioned technical problems, the technical scheme of the present utility model is: a multi-part protection device for patient's limbs during ultraviolet disinfection of a ward, comprising a head cover, a handle, an A placement slot, a body cover, a B placement slot, a cloth, and a C placement slot. Slot, limb cover, the handle is fixed on the top of the head cover, the handle and the head cover are integrally formed, the A placement slot is located at the top of the inner wall of the head cover, and the A placement slot is a rectangular concave Slot, the body cover is located inside the A placement slot, the top of the body cover is connected with the inner wall of the A placement slot by adhesive, the B placement slot is located at the front and rear ends of the head cover, and the B placement slot is A rectangular groove, the covering cloth is located inside the B placement slot, the head end of the covering cloth and the B placement slot are connected by adhesive, the C placement slot is located on the left and right sides of the inside of the head cover, and the C placement slot is For the groove, the limb cover is located inside the C placement groove, and the bottom of the limb cover and the C placement groove are connected by adhesive.

Further, the four sides of the top of the described head cover are also fixed with I Velcro, the I Velcro and the head cover are connected by adhesive, and the left and right sides of the described head cover are also fixed with I straps, so The I strap and the head cover are connected by adhesive.

Further, an elastic band is fixed at the middle end of the bottom of the A placement slot, and both ends of the elastic band are connected with the A placement slot by adhesive.

Further, the lower end of the B placement groove is also fixed with a blocking cloth, the blocking cloth and the B placing groove are connected by adhesive, and the middle end of the outer wall of the blocking cloth is also fixed with II straps, and the II binding The belt and the blocking cloth are connected by stitching, the I strap and the outer port of the II strap are fixed with II velcro, and the II velcro is respectively connected with the I strap and the II strap by stitching. The lower side of the blocking cloth is also provided with an avoidance groove, and the avoidance groove is a semicircular groove.

Compared with the prior art, the device for protecting multiple parts of the patient's limbs during ultraviolet sterilization in a ward can block the body of the patient during ultraviolet sterilization and disinfection in the ward with the help of the patented design, so as to avoid ultraviolet rays from irradiating the human body. At the same time, due to the use of a combined multi-area design, it can also realize the switching and sharing of different body parts of the patient and the two states of the sleeping seat, which ultimately greatly expands the clinical practicability and is conducive to popularization and application.

Description of drawings

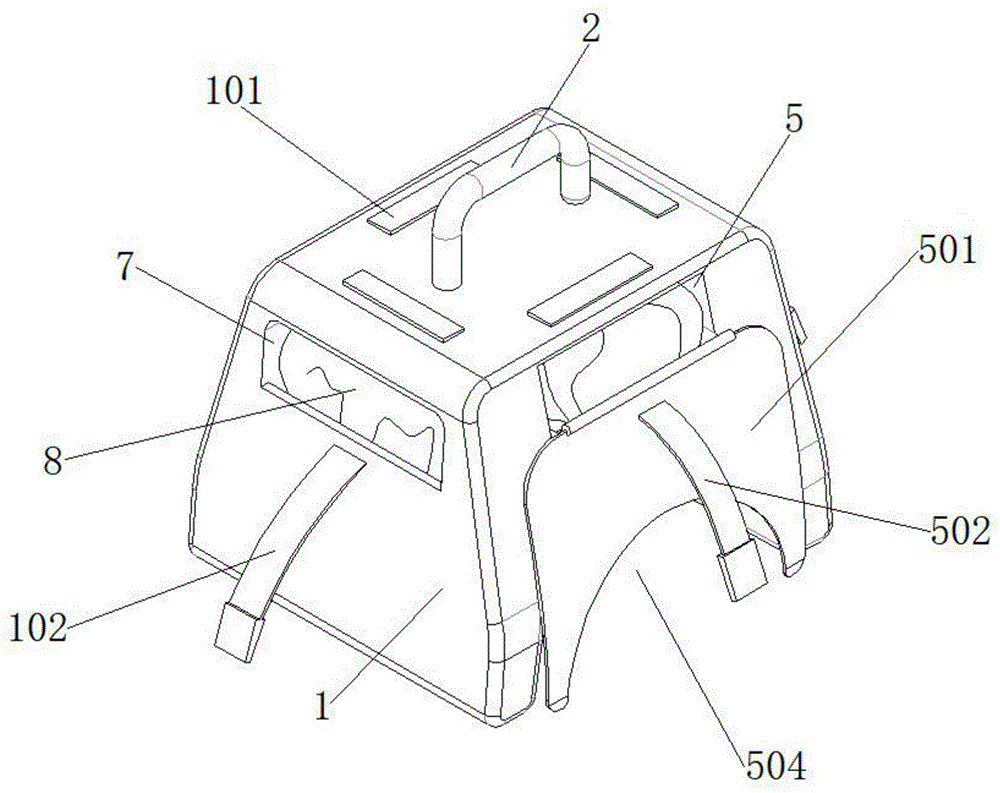

1 is a perspective view 1 of a multi-part protection device for patient limbs during ultraviolet disinfection of a ward;

Figure 2 is a front view of a multi-part protection device for patient limbs during ultraviolet disinfection of a ward;

Figure 3 is a perspective view 2 of a multi-part protection device for a patient's limbs during ultraviolet disinfection of a ward:

Fig. 4 is a top view of a multi-part protection device for patient's limbs during ultraviolet disinfection of a ward;

5 is a cross-sectional view of a multi-part protection device for a patient's limbs during ultraviolet disinfection of a ward;

Fig. 6 is a use state diagram 1 of a multi-part protection device for patient's limbs during ultraviolet disinfection of a ward;

FIG. 7 is a state diagram 2 of a multi-portion protection device for patient limbs during ultraviolet disinfection of a ward.

Head cover 1, handle 2, A placement slot 3, body cover 4, B placement slot 5, cloth 6, C placement slot 7, limb cover 8, I Velcro 101, I strap 102, elastic band 301, stopper Cloth 501 , II straps 502 , II Velcro 503 , and avoidance grooves 504 .

The following specific embodiments will be further described with reference to the above drawings.

Detailed ways

In the following, various specific details are set forth in order to provide a thorough understanding of the concepts underlying the described embodiments, however, it will be apparent to those skilled in the art that the described embodiments may be described without these specific details In some or all cases, well-known process steps are not described in detail.

As shown in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, a multi-part protection device for patient's limbs during ultraviolet disinfection of a ward, including a head cover 1, a handle 2, and a placement slot 3 , body cover 4, B placement slot 5, cloth 6, C placement slot 7, limb cover 8, the handle 2 is fixed on the top of the head cover 1, the handle 2 and the head cover 1 are integrally formed, The A placement groove 3 is located at the top of the inner wall of the head cover 1, the A placement groove 3 is a rectangular groove, the body cover 4 is located inside the A placement groove 3, and the top of the body cover 4 is placed with the A. The inner wall of the groove 3 is connected by an adhesive, the B placement groove 5 is located at the front and rear ends of the head cover 1, the B placement groove 5 is a rectangular groove, and the covering cloth 6 is located inside the B placement groove 5, so the The head end of the cloth cover 6 is connected with the B placement groove 5 by adhesive, the C placement groove 7 is located on the left and right sides of the inside of the head cover 1, the C placement groove 7 is a groove, and the limb cover 8 Located inside the C placement slot 7, the bottom of the limb cover 8 is connected with the C placement slot 7 by adhesive;

It should be noted that when ultraviolet disinfection is required, the head of the patient who is inconvenient to get out of bed needs to be protected, and the head cover 1 can be directly placed on the patient's head. Shielding effect, when the patient's body is not covered, and the patient's whole body needs to be shielded, the covering cloth 6 can be pulled out from the B placement slot 5, and then the covering cloth 6 is opened, and then the covering cloth 6 covers the patient's body and limbs. At this time, through the above, the whole body protection of the patient is achieved. When the patient with inconvenience gets out of bed and sits on the seat, the medical staff only needs to hang the handle 2 on the head cover 1 on the infusion solution on the side of the existing seat. On the rack, then pull out the body cover 4 inside the A placement slot 3 and put it on the outside of the patient's body. At this time, the covering effect of the body cover 4 is used to shield the sitting patient from ultraviolet rays. The upper limbs or lower limbs of active patients are covered to prevent the patients from unconsciously moving, causing the limbs to be exposed to ultraviolet rays. Finally, through the above, while realizing the ultraviolet disinfection of the ward, it can also effectively protect the patients in the ward;

The top four sides of the described head cover 1 are also fixed with an I Velcro 101, and the I Velcro 101 is connected with the head cover 1 by using an adhesive, and the left and right sides of the described head cover 1 are also fixed with an I tie. Belt 102, the I strap 102 is connected with the head cover 1 by adhesive, the middle end of the bottom of the A placement slot 3 is also fixed with an elastic band 301, and the two ends of the elastic band 301 are connected to the A placement slot 3. Adhesive is used to connect, the lower end of the B placement slot 5 is also fixed with a blocking cloth 501, the blocking cloth 501 and the B placement slot 5 are connected by adhesive, and the middle end of the outer wall of the blocking cloth 501 is also fixed with II binding The strap 502, the II strap 502 and the blocking cloth 501 are connected by stitching, and the II velcro 503 is fixed at the outer port of the I strap 102 and the II strap 502, and the II velcro 503 is respectively It is connected with the I strap 102 and the II strap 502 by sewing, and the lower side of the blocking cloth 501 is also provided with an escape groove 504, and the escape groove 504 is a semicircular groove;

It should be noted that the I strap 102 and the II strap 502 can be pulled open or through the pasting action of the I Velcro 101 and the II Velcro 503, so as to constrain the covering cloth 6 and the limb cover 8 to avoid slipping out when not in use The elastic band 301 can also restrain and fix the body cover 4, the blocking cloth 501 is to shield the front and rear of the head cover 1 to prevent ultraviolet rays from entering the head cover 1, and the avoidance groove 504 is to avoid the neck of the patient.
