Abstract

The utility model belongs to the technical field of battery string typesetting, in particular to a typesetting machine self-cleaning and correcting device, comprising a bottom plate, two symmetrically arranged support plates are fixedly connected to the top of the bottom plate, and the tops of the two support plates are both The mounting seat is fixedly connected, the mounting seat is provided with a cavity, one end of the mounting seat is fixedly connected to the motor, the output shaft of the motor is fixedly connected with a screw rod, and one end of the screw rod penetrates the outer wall of the mounting seat and is Extending into the cavity, the extended end of the screw is connected in rotation with the inner wall of the cavity, and the end of the screw away from the motor is threadedly sleeved with a threaded block. Reduce cleaning time and staff work, and avoid safety accidents. By designing a dust suction groove at the bottom of the normalizing plate, dust and foreign matter splashing during the automatic cleaning process can be avoided, which will affect product quality and workshop environment.

Description

A typesetting machine self-cleaning and correcting device

technical field

The utility model belongs to the technical field of battery string typesetting, in particular to a self-cleaning and correcting device of a typesetting machine.

Background technique

With the depletion of traditional energy sources and human attention to environmental issues, in order to achieve sustainable development of energy and the environment, solar power generation as a clean energy has developed tremendously. , battery string layout has been completely replaced by equipment.

At present, the typesetting of battery strings is done by a typesetting machine. During the string-arranging process of the typesetting machine, there is a normalizing device, which is easy to accumulate dust and battery chips.

Utility model content

The purpose of the utility model is to solve the problems in the prior art, and proposes a typesetting machine self-cleaning and correcting device.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A self-cleaning and correcting device for a typesetting machine, comprising a bottom plate, the top of the bottom plate is fixedly connected with two symmetrically arranged support plates, and the tops of the two support plates are fixedly connected by a mounting seat, and the mounting seat is internally provided. There is a cavity, one end of the mounting seat is fixedly connected with a motor, the output shaft of the motor is fixedly connected with a screw rod, one end of the screw rod penetrates the outer wall of the mounting seat and extends into the cavity, and one end of the screw rod extends It is rotatably connected with the inner wall of the cavity, the end of the screw rod away from the motor is threadedly sleeved with a threaded block, the bottom of the threaded block is fixedly connected with a connecting rod, and one end of the connecting rod penetrates the inner bottom of the cavity and extends downward. , the mounting seat is provided with a chute corresponding to the connecting rod, the bottom of the connecting rod is fixedly connected with an air pump, the output end of the air pump is fixedly connected with a hollow plate, and the bottom of the hollow plate is fixedly connected with a plurality of The air blowing nozzle, the tops of the two supporting plates are fixedly connected to the tops of the opposite sides, and the top of the bottom plate is provided with a dust suction groove, and the bottom of the dust suction groove is fixedly connected with an air induction pipe. An exhaust fan is installed on the air duct, a collection box is fixedly connected to one end of the air duct away from the dust suction groove, and a discharge pipe is fixedly connected to the bottom of the collection box.

Preferably, a plurality of fixing rods are fixedly connected to the bottom of the bottom plate, and a supporting seat is fixedly connected to the bottoms of the plurality of fixing rods.

Preferably, a sliding rod is fixedly connected to the bottom of the threaded block in the cavity of the mounting seat, the connecting rod is provided with a sliding port corresponding to the sliding rod, the sliding port is provided with a groove, and the concave A plurality of steel balls are slidably connected in the groove, and the edges of the steel balls are in contact with the sliding rod.

Preferably, a discharge valve is installed on the discharge pipe.

Preferably, the dust suction groove is a groove with a funnel-shaped structure.

Preferably, the number of the blowing nozzles is multiple, and the multiple blowing nozzles are arranged at equal distances.

Beneficial effects:

1. In the present utility model, the motor and the air pump are started to work by an external power supply, the screw is driven to rotate by the motor, and the screw block is driven to reciprocate during the rotation process, thereby driving the air blowing nozzle to use the air blowing method to realize the opposite direction. The purpose of cleaning the dust and battery chips and other foreign objects on the front plate.

2. In the present utility model, by setting the dust suction groove at the bottom of the normalizing plate, the foreign objects such as dust and battery chips on the normalizing plate are sucked into the collection box through the air duct for storage by the exhaust fan during the working process. , to avoid dust and foreign matter splashing in the process of automatic cleaning, thereby affecting product quality and workshop environment.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

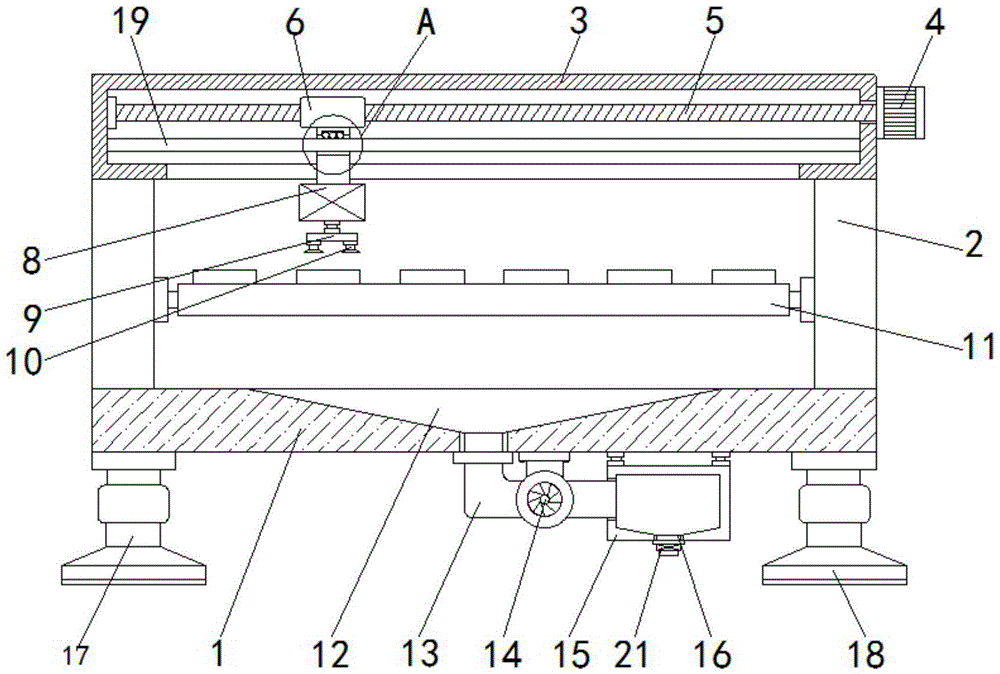

Fig. 1 is the structural representation of a kind of typesetting machine self-cleaning and correcting device;

Fig. 2 is a kind of structural representation at the blowing nozzle of the typesetting machine self-cleaning and correcting device;

FIG. 3 is an enlarged schematic view of the structure at A in the figure.

In the picture: 1-base plate, 2-support plate, 3-mounting seat, 4-motor, 5-screw, 6-thread block, 7-connecting rod, 8-air pump, 9-hollow plate, 10-air nozzle, 11-rectification plate, 12-dust trough, 13-air duct, 14-exhaust fan, 15-collection box, 16-discharge pipe, 17-fixed rod, 18-support base, 19-slide rod, 20 -Steel ball, 21-Drain valve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, a typesetting machine self-cleaning and correcting device, including a bottom plate 1, the top of the bottom plate 1 is fixedly connected with two symmetrically arranged support plates 2, the tops of the two support plates 2 are installed by The seat 3 is fixedly connected, the mounting seat 3 is provided with a cavity, one end of the mounting seat 3 is fixedly connected with a motor 4, which is used to drive the screw 5 to rotate, and the output shaft of the motor 4 is fixedly connected with a screw 5, It is used to drive the threaded block 6 to reciprocate. One end of the screw 5 penetrates the outer wall of the mounting seat 3 and extends into the cavity. The extended end of the screw 5 is rotatably connected to the inner wall of the cavity, and the screw 5 is away from the motor. One end of 4 is threadedly sleeved with a threaded block 6 for supporting the connecting rod 7, the bottom of the threaded block 6 is fixedly connected with a connecting rod 7 for supporting the air pump 8, and one end of the connecting rod 7 penetrates the interior of the cavity. The bottom extends downward, the mounting base 3 is provided with a chute corresponding to the connecting rod 7, and the bottom of the connecting rod 7 is fixedly connected with an air pump 8, which is used to blow air and dust off the normalizing plate. The output end of the air pump 8 is fixedly connected with a hollow plate 9 for supporting the air blowing nozzles 10. The bottom of the hollow plate 9 is fixedly connected with a plurality of air blowing nozzles 10. The top is fixedly connected with a normalizing plate 11, the top of the bottom plate 1 is provided with a dust suction groove 12, and the bottom of the dust suction groove 12 is fixedly connected with an air induction pipe 13 for introducing the dust and impurities in the dust suction groove. In the collection box 15, a suction fan 14 is installed on the air duct 13 for sucking dust and impurities into the air duct 13, and the end of the air duct 13 away from the dust suction groove 12 is fixedly connected to the collection box 15. , for storing dust and impurities, the bottom of the collection box 15 is fixedly connected with a discharge pipe 16 for discharging the dust and impurities in the collection box 15 .

In this embodiment, a plurality of fixing rods 17 are fixedly connected to the bottom of the bottom plate 1 , and a supporting seat 18 is fixedly connected to the bottoms of the plurality of fixing rods 17 .

In this embodiment, a sliding rod 19 is fixedly connected to the bottom of the threaded block 6 in the cavity of the mounting seat 1 , so that the threaded block 6 always maintains a parallel movement state during the reciprocating motion. There is a sliding port corresponding to the sliding rod 19, a groove is provided in the sliding port, and a plurality of steel balls 20 are slidably connected in the groove, and the edge of the steel ball 20 is in contact with the sliding rod 19 for reducing The friction between the small connecting rod 7 and the sliding rod 19.

In this embodiment, a discharge valve 21 is installed on the discharge pipe 16 to control the connection and cutoff of the discharge pipe 16 .

In this embodiment, the dust suction groove 12 is a groove with a funnel-shaped structure, which is convenient for collecting dust.

In this embodiment, the number of the blowing nozzles 10 is multiple, and the multiple blowing nozzles 10 are arranged at equal distances.

Working principle: The motor 4 and the air pump 8 are started to work through the external power supply, the screw 5 is driven by the motor 4 to rotate, and the screw 5 is driven to reciprocate the threaded block 6 during the rotation process, thereby driving the air blowing nozzle 10 to adopt the air blowing method The purpose of reciprocating cleaning of foreign objects such as dust and battery chips on the normalizing plate 11 is realized. At the same time, by setting the dust suction groove 12 at the bottom of the normalizing plate, the exhaust fan 14 will remove the dust on the normalizing plate during the working process. Foreign objects such as dust and cell fragments are sucked into the collection box 15 through the air duct 13 for storage, so as to avoid dust and foreign objects splashing during the automatic cleaning process, thereby affecting the product quality and the workshop environment.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A typesetting machine self-cleaning and correcting device, comprising a bottom plate (1), characterized in that: the top of the bottom plate (1) is fixedly connected with two supporting plates (2) arranged symmetrically, and the two supporting plates are The tops of (2) are fixedly connected by the mounting seat (3), the mounting seat (3) is provided with a cavity, and one end of the mounting seat (3) is fixedly connected with the motor (4), and the motor (4) ) output shaft is fixedly connected with a screw (5), one end of the screw (5) penetrates the outer wall of the mounting seat (3) and extends into the cavity, and the extended end of the screw (5) is connected to the inner wall of the cavity Rotating connection, one end of the screw (5) away from the motor (4) is threadedly sleeved with a threaded block (6), the bottom of the threaded block (6) is fixedly connected with a connecting rod (7), the connecting rod (7) ) penetrates through the inner bottom of the cavity and extends downward, the mounting seat (3) is provided with a chute corresponding to the connecting rod (7), and the bottom of the connecting rod (7) is fixedly connected with an air pump (8). ), the output end of the air pump (8) is fixedly connected with a hollow plate (9), the bottom of the hollow plate (9) is fixedly connected with a plurality of air blowing nozzles (10), and the two support plates (2) The top of the opposite side is fixedly connected with a normalizing plate (11), the top of the bottom plate (1) is provided with a dust suction groove (12), and the bottom of the dust suction groove (12) is fixedly connected with an air induction pipe (13). ), an exhaust fan (14) is installed on the air duct (13), and a collection box (15) is fixedly communicated with one end of the air duct (13) away from the dust suction groove (12), and the collection box ( The bottom of 15) is fixedly connected with a discharge pipe (16). 2. A typesetting machine self-cleaning and correcting device according to claim 1, characterized in that: the bottom of the bottom plate (1) is fixedly connected with a plurality of fixing rods (17), a plurality of the fixing rods (17) ) are fixedly connected with a support seat (18) at the bottom. 3. A typesetting machine self-cleaning and correcting device according to claim 1, characterized in that: a sliding rod (19) is fixedly connected to the bottom of the threaded block (6) in the cavity of the mounting seat (3) , the connecting rod (7) is provided with a sliding port corresponding to the sliding rod (19), the sliding port is provided with a groove, and a plurality of steel balls (20) are slidably connected in the groove, and the steel balls The edge of (20) is in contact with the slide bar (19). 4. The typesetting machine self-cleaning and correcting device according to claim 1, wherein a discharge valve (21) is installed on the discharge pipe (16). 5. A typesetting machine self-cleaning and correcting device according to claim 1, characterized in that: the dust suction groove (12) is a groove with a funnel-shaped structure. 6. A typesetting machine self-cleaning and correcting device according to claim 1, characterized in that: the number of the air blowing nozzles (10) is plural, and the plurality of air blowing nozzles (10) are arranged at equal distances .
