Abstract

The utility model relates to a concrete construction device, in particular to a hand-held self-elevating concrete slurry and surface collecting device. Solve the problems of high labor intensity and low efficiency in the operation of concrete grouting and surface removal, including the horizontally arranged support frame, with chute on both sides of the support frame, the chute opening is inward, the chute is provided with a sliding rod, and the lower end of the sliding rod Connecting the pulping surface, a troweling plate is arranged at the front of the support frame, an L-shaped handle is arranged on the upper part of the chute, a pressing handle is arranged on the L-shaped handle, and a pulling wire is arranged on the pressing handle, and the other end of the pulling wire is connected to the sliding rod , the pulling wire passes through the inside of the opposite L-shaped armrest. During construction, in an environment where it is necessary to manually lift and close the concrete surface, place the device on the concrete surface, and then the construction personnel hold the handle with their hands, and then continuously squeeze and press the handle to make the lifting surface beat up and down to achieve the effect of slurry lifting. , and drag the device while beating to complete the smoothing process through the smoothing plate.

Description

Hand-held self-elevating concrete grouting and finishing device

technical field

The utility model relates to a concrete construction device, in particular to a hand-held self-elevating concrete slurry and surface collecting device.

Background technique

In the process of pouring concrete for a building, the final stage requires lifting and troweling of the concrete surface. The purpose is to make the cement slurry accumulate on the concrete surface through the vibration of the concrete, which is beneficial to improve the internal and apparent quality of the concrete. Generally, workers use trowels for pulping and smoothing work. The operating surface is small, and workers must squat for construction. The work efficiency is low and time-consuming and laborious. In the prior art, some auxiliary tools have also been developed. For example, the authorized announcement number CN201908444 U discloses a concrete grouting racket, which includes a racket body, and is characterized in that: a bracket is fixed on the racket body, and a bracket is fixed on the racket body. A spherical hinge is installed on the upper end, and a handle is connected to the spherical hinge.

CN201228438Y discloses a concrete grouting device. And the application publication number CN 103821368 is a concrete grouting tool, both of which can reduce the problem of low efficiency caused by workers' squatting to a certain extent by lengthening the handle.

Authorization announcement number CN 202450419 U discloses a concrete top surface slurrying and leveling machine, including a vibration leveling mechanism and a traveling mechanism, and the vibration leveling mechanism includes a beam and a vibrator; CN 208815359 U discloses a high-speed rail ballastless track base An integrated machine for automatic paving, slurrying, and finishing of slab concrete. This kind of scheme achieves the purpose of pulping through the vibration of the motor. The structure is complex and is suitable for specific occasions or open plane occasions, but it is difficult to apply to ordinary buildings.

SUMMARY OF THE INVENTION

In order to solve the problems of high labor intensity and low efficiency in the operation of concrete raising and finishing, the utility model provides a hand-held self-elevating concrete raising and finishing device.

The technical scheme of the utility model is a hand-held self-elevating concrete grouting and surface-receiving device, which comprises a horizontally arranged support frame, and two sides of the support frame are provided with chute, the opening of the chute is inward, and the inside of the chute is provided with There is a sliding rod, the lower end of the sliding rod is connected to the pulping surface, a troweling plate is arranged at the front of the support frame, an L-shaped handle is arranged on the upper part of the chute, and a pressure handle is arranged on the L-shaped handle, and the pressure handle passes through the bracket and the L-shaped handle. The handle is connected, and the pressure handle is hinged on the bracket, the end of the pressure handle is connected to the pull wire, the support wire is provided with a pull wire hole, the pull wire passes through the pull wire hole, the other end of the pull wire is connected to the sliding rod, and the pull wire passes through the opposite L-shaped Inside the handle.

During construction, in an environment where it is necessary to manually lift and close the concrete surface, place the device on the concrete surface, and then the construction personnel hold the handle with their hands, and then continuously squeeze and press the handle to make the lifting surface beat up and down to achieve the effect of slurry lifting. , and drag the device while beating to complete the smoothing process through the smoothing plate.

The device is especially suitable for use in occasions requiring manual operation, with reasonable structural design, ergonomic, light weight, easy operation, low labor intensity, low cost, convenient transportation and transfer, and reduced construction costs.

Description of drawings

Fig. 1 is the structural representation of the utility model

Figure 2 is a schematic diagram of the connection structure of the L-shaped handle and the sliding rod

Figure 3 is a schematic diagram of the structure of the brake system

Figure 4 is a schematic diagram of the connection structure between the support frame and the troweling plate

Figure 5 is a side view of the troweling plate

Figure 6 is a schematic diagram of the support skeleton structure

Figure 7 is a schematic diagram of the structure of the pulping surface

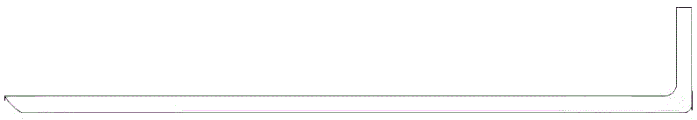

Figure 8 is the connection structure diagram of the chute and the sliding rod

In the picture: 1-support frame, 2-face frame, 3-steel mesh, 4-chute, 5-slide rod, 6-L-shaped handle, 7-press handle, 8-card slot, 9-troweling plate, 10-pull wire, 11-positioning bar, 12-connecting bolt, 13-bracket, 14-protective sleeve, 15-pulley.

Detailed ways

A hand-held self-elevating concrete slurry and surface removal device, as shown in Figures 1, 2 and 3, comprises a horizontally arranged support frame 1, and a chute 4 is provided on both sides of the support frame 1, and the chute 4 is open Inwardly, there is a sliding rod 5 in the chute 4, the lower end of the sliding rod 5 is connected to the pulping surface, a troweling plate 9 is provided at the front of the support frame 1, and an L-shaped handle 6 is provided on the upper part of the sliding groove 4, and the L-shaped handle There is a pressure handle 7 on the 6, the pressure handle 7 is connected with the L-shaped handle 6 through the bracket 13, and the pressure handle 7 is hinged on the bracket 13, the end of the pressure handle 7 is connected to the pull wire 10, and the bracket 13 is provided with a pull wire hole, The pull wire 10 passes through the pull wire hole, the other end of the pull wire 10 is connected to the sliding rod 5 , and the pull wire 10 passes through the opposite L-shaped handlebar 6 .

The chute and the plane of the support frame 1 are at an angle of 70°-80°.

Press the handle 7 down and rotate with the bracket 13 as the axis to drive the pulling wire 10 to move. The pulling wire 10 finally drives the sliding rod 5 to move up and down along the chute 4, so that the slurry surface continuously beats the concrete.

As shown in FIGS. 4 and 5 , the front end of the support frame 1 is provided with a card slot 8 , and the rear side of the troweling plate 9 is provided with a vertical card, which is locked in the card slot 8 . The connection between the support frame 1 and the troweling plate 9 is realized.

The outer corners at the corners of the troweling plate 9 are arc-shaped. Prevent the phenomenon of smearing during the smoothing process, ensure smooth smoothing movement, and ensure the surface quality.

As shown in FIGS. 6 and 7 , the support frame 1 is welded with four angle steels to form a rectangular frame structure, and the pulping surface includes a face frame 2 and a steel mesh 3 inside the face frame 2 .

The length of the outer long side a1 of the support frame 1 is 1000mm-1200mm, and the length of the outer wide side b2 is 500mm-600mm, which provides sufficient contact area for pulping, but does not exceed the operator's body capacity.

In particular, the inner long side a4 of the face frame 2 < the inner long side a2 of the supporting frame 1 < the outer long side a3 of the face frame 2 < the outer long side a1 of the supporting frame 1, the inner wide side b4 of the face frame 2 < the inner wide side b2 of the supporting frame 1 < the face The outer broadside b3 of the frame 2 < the outer broadside b1 of the support frame 1 . In this way, it can be ensured that the face frame 2 is inserted into the supporting frame 1 without passing through the supporting frame 1 . Limit the range of motion to a range.

The mesh of the steel wire mesh 3 is a 10X10mm diamond wire mesh, which can ensure that the steel wire presses the concrete stones down, and the floating slurry in the concrete floats up, so as to achieve the effect of slurry lifting.

As shown in FIG. 8 , a pulley 15 is provided in the chute 4 , and the pulley 15 is inserted into the sliding rod 5 . Make the sliding rod 5 move up and down in the chute 4 more smoothly.

Positioning bars 11 are arranged between the sliding rods 5 on both sides to ensure that the position between the two sliding rods 5 is fixed and will not fall off from the chute.

The pull wire 10 is provided with a protective sleeve 14 on the outer sleeve. Prevent concrete from contaminating the surface of the cable 10.

Claims (10)

1. A hand-held self-elevating concrete grouting and surface collecting device, characterized in that it comprises a horizontally arranged support frame (1), and a chute (4) is provided on both sides of the support frame (1). (4) The opening is inward, a sliding rod (5) is arranged in the chute (4), and the lower end of the sliding rod (5) is connected to the pulping surface. (4) The upper part is provided with an L-shaped handle (6), the L-shaped handle (6) is provided with a pressure handle (7), and the pressure handle (7) is connected with the L-shaped handle (6) through the bracket (13), And the pressure handle (7) is hinged on the bracket (13), the end of the pressure handle (7) is connected to the pull wire (10), the support (13) is provided with a pull wire hole, the pull wire (10) passes through the pull wire hole, and the pull wire (10) ) is connected to the sliding rod (5), and the pulling wire (10) passes through the opposite L-shaped handlebars (6). 2 . The hand-held self-elevating concrete grouting surface collecting device according to claim 1 , wherein the chute ( 4 ) and the plane of the support frame ( 1 ) are at an angle of 70°-80°. 3 . 3. The hand-held self-elevating concrete grouting and surface finishing device according to claim 1, characterized in that: the front end of the support frame (1) is provided with a slot (8), and the troweling plate (9) The rear side is provided with a vertical card, which is locked in the card slot (8). 4. The hand-holding and self-elevating concrete pulping and surface collecting device according to claim 1, characterized in that: the support frame (1) is made of four angle steel welded to form a rectangular frame structure, and the pulping surface includes a surface Frame (2) and wire mesh (3) inside the face frame (2). 5. The hand-held self-elevating concrete grouting and surface-refining device according to claim 4, characterized in that: the length of the outer long side a1 of the support frame (1) is 1000mm-1200mm, and the length of the outer wide side b2 is 500mm-600mm, Face frame (2) inner long side a4 < support frame (1) inner long side a2 < face frame (2) outer long side a3 < support frame (1) outer long side a1, face frame (2) inner wide side b4 < support frame (1) Inner broadside b2 < face frame (2) outer broadside b3 <support frame (1) outer broadside b1. 6 . The hand-held self-elevating concrete pulping and surface-refining device according to claim 4 , wherein the grid of the steel wire mesh ( 3 ) is a 10×10 mm diamond wire mesh. 7 . 7. The hand-held self-elevating concrete grouting and surface finishing device according to claim 1, characterized in that: a pulley (15) is provided in the chute (4), and a pulley (15) and a sliding rod (5) are provided in the chute (4) plugged in. 8 . The hand-held self-elevating concrete grouting and surface removing device according to claim 1 , wherein a positioning cross bar ( 11 ) is provided between the sliding rods ( 5 ) on both sides. 9 . 9 . The hand-held self-elevating concrete grouting and surface-refining device according to claim 1 , characterized in that: a protective sleeve ( 14 ) is provided on the outer sleeve of the pulling wire ( 10 ). 10 . 10 . The hand-held self-elevating concrete slurry and surface finishing device according to claim 1 or 3, characterized in that: the outer corners of the corners of the troweling plate (9) are arc-shaped.
