Abstract

The utility model discloses a building thermal insulation decorative board which is convenient for construction, comprising a first thermal insulation decorative board body and a second thermal insulation decorative board body. The top of the connecting block is fixedly connected with a semicircular block, the inner cavity of the semicircular block is movably connected with a rotating rod through a pin shaft, and the inner cavity of the rotating rod is threadedly connected with a bolt. The utility model adopts the first heat preservation decorative board body, the second heat preservation decorative board body, the connecting block, the semicircular block, the rotating rod, the bolt, the clamping block, the clamping groove, the first installation block, the first installation hole, the second installation block and the The use of the second installation hole has the advantage of being easy to install, and solves the problem that the common building thermal insulation decorative panels are not easy to install. During the installation process, it is not only time-consuming and laborious, but also increases the labor intensity of workers, which brings great difficulty to the construction. , which brings great inconvenience to the installation work.

Description

An easy-to-construct building thermal insulation decorative board

technical field

The utility model relates to the technical field of building decoration, in particular to a building thermal insulation decorative board which is convenient for construction.

Background technique

Thermal insulation decorative board is also called energy-saving thermal insulation decoration integrated board, which is composed of adhesive layer, thermal insulation decorative finished board, anchors, sealing materials, etc. The rigid foam board is made of polystyrene resin as raw material plus other raw materials and auxiliary materials and polymer content, and is injected with catalyst by heating and mixing, and then extruded and extruded. The thickness of the outer protective structure of the building increases the indoor usable area. There are many construction schemes, which are not only suitable for the external wall insulation and decoration of new buildings, but also for the energy saving and decoration renovation of old buildings; it is suitable for all kinds of public buildings. It is suitable for the external insulation of the exterior walls of residential buildings; it is not only suitable for the buildings in the cold regions of the north, but also for the buildings in the hot regions of the south. , The effect of energy saving and heat preservation is good, and the common building thermal insulation decorative panels are not easy to install. During the installation process, it is not only time-consuming and laborious, but also increases the labor intensity of workers, which brings great difficulty to the construction and brings great inconvenience to the installation work. .

Utility model content

The purpose of the utility model is to provide a building thermal insulation decorative panel that is easy to construct, which has the advantages of being easy to install, and solves the problem that the common architectural thermal insulation decorative panel is not easy to install. During the installation process, it not only takes time and effort, but also increases the labor intensity of workers , brings great difficulty to the construction and brings great inconvenience to the installation work.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a construction thermal insulation decorative board, comprising a first thermal insulation decorative board body and a second thermal insulation decorative board body, the first thermal insulation decorative board body on the top right The side is fixedly connected with a connecting block, the top of the connecting block is fixedly connected with a semi-circular block, the inner cavity of the semi-circular block is movably connected with a rotating rod through a pin shaft, and the inner cavity of the rotating rod is threadedly connected with a bolt, the bolt The bottom extends to the inner cavity of the second thermal insulation decorative board body, the top and bottom of the right side of the first thermal insulation decorative board body are fixedly connected with clips, and the left side of the inner cavity of the second thermal insulation decorative board body is provided with With the card slot used for the card block, a first installation block is fixedly connected to the shaft center of the top and bottom of the first thermal insulation decorative board body, and the inner cavity of the first installation block has a first installation hole at the beginning. A second mounting block is fixedly connected to the axial center of the top and bottom of the second thermal insulation decorative board body, and the inner cavity of the second mounting block is initially provided with a second mounting hole.

Preferably, the body of the first thermal insulation decorative board includes a base layer, the top of the base layer is fixedly connected with the thermal insulation layer, the top of the thermal insulation layer is fixedly connected with the upper surface layer, and the bottom of the base layer is fixedly connected with the fireproof layer, so The bottom of the fireproof layer is fixedly connected with a lower surface layer.

Preferably, the base layer is a polytetrafluoroethylene composite board, and the thermal insulation layer is a polyvinyl alcohol-modified phenolic foam board.

Preferably, the upper surface layer and the lower surface layer are both melamine boards, and the fireproof layer is a foamed ceramic thermal insulation board.

Preferably, the bottom of the rotating rod is provided with a sealing gasket, and the inner cavity of the sealing gasket is initially provided with through holes for use with bolts.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model adopts the first thermal insulation decorative board body, the second thermal insulation decorative board body, the connecting block, the semicircular block, the rotating rod, the bolt, the clamping block, the clamping slot, the first installation block, the first installation hole, the second installation The combination of the block and the second installation hole has the advantage of being easy to install, and solves the problem that the common building thermal insulation decorative panels are not easy to install. It is very difficult and brings great inconvenience to the installation work.

2. The utility model can improve the thermal insulation performance of the first thermal insulation decorative board body by setting the thermal insulation layer, and bring a comfortable experience to the user. The material is more secure, and the sealing performance of the bolt can be improved by setting the gasket.

Description of drawings

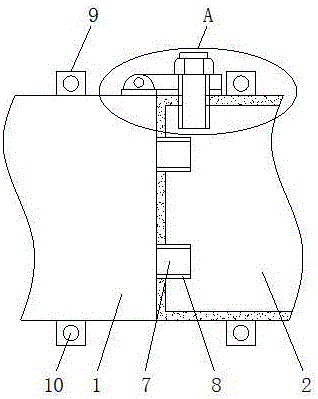

Fig. 1 is the structural representation of the utility model;

2 is a sectional view of the utility model structure;

FIG. 3 is an enlarged view of A in FIG. 1 of the present utility model.

In the figure: 1. The first thermal insulation decorative board body; 2. The second thermal insulation decorative board body; 3. The connecting block; 4. The semicircular block; 5. The rotating rod; 6. The bolt; 9. The first mounting block; 10. The first mounting hole; 11. The second mounting block; 12. The second mounting hole; 13. The base layer; 14. The thermal insulation layer; 15. The upper surface layer; Lower surface layer; 18. Gasket.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-3, a building thermal insulation decorative panel that is convenient for construction, including a first thermal insulation decorative panel body 1 and a second thermal insulation decorative panel body 2, the top right side of the first thermal insulation decorative panel body 1 is fixedly connected with a connection Block 3, the top of the connecting block 3 is fixedly connected with a semicircular block 4, the inner cavity of the semicircular block 4 is movably connected with a rotating rod 5 through a pin, and the inner cavity of the rotating rod 5 is threadedly connected with a bolt 6, and the bottom of the bolt 6 extends to the first The inner cavity of the second thermal insulation decorative board body 2, the top and bottom of the right side of the first thermal insulation decorative board body 1 are fixedly connected with a clamping block 7, and the left side of the inner cavity of the second thermal insulation decorative board body 2 is provided with a matching clip 7 for use A first installation block 9 is fixedly connected to the shaft center of the top and bottom of the first thermal insulation decorative board body 1. The inner cavity of the first installation block 9 has a first installation hole 10 at the beginning, and the second thermal insulation decorative board A second mounting block 11 is fixedly connected to the shaft center of the top and bottom of the main body 2, and the inner cavity of the second mounting block 11 starts with a second mounting hole 12. The first thermal insulation decorative board body 1 includes a base layer 13. The thermal insulation layer 14 is fixedly connected, and by arranging the thermal insulation layer 14, the thermal insulation of the first thermal insulation decorative panel body 1 can be improved, bringing a comfortable experience to the user. The top of the thermal insulation layer 14 is fixedly connected with the upper surface layer 15, the base layer 13 The bottom of the fireproof layer 16 is fixedly connected with a fireproof layer 16. By setting the fireproof layer 16, the fire resistance of the first thermal insulation decorative board body 1 can be improved, making the building more secure. The bottom of the fireproof layer 16 is fixedly connected with the lower surface layer 17, the base layer 13 It is a polytetrafluoroethylene composite board, the insulation layer 14 is a polyvinyl alcohol-modified phenolic foam material board, the upper surface layer 15 and the lower surface layer 17 are melamine boards, and the fireproof layer 16 is a foamed ceramic insulation board. A sealing gasket 18 is provided at the bottom. By setting the sealing gasket 18, the sealing performance of the bolts 6 can be improved. The inner cavity of the sealing gasket 18 has through holes for use with the bolts 6. Board body 2, connecting block 3, semicircular block 4, rotating rod 5, bolt 6, clamping block 7, clamping slot 8, first mounting block 9, first mounting hole 10, second mounting block 11 and second mounting hole 12 It has the advantage of being easy to install and solves the problem that the common building thermal insulation decorative panels are not easy to install. During the installation process, it is not only time-consuming and laborious, but also increases the labor intensity of workers, which brings great difficulty to the construction and makes the installation work. cause great inconvenience.

During use and installation, the rotating rod 5 is rotated to drive the rotating rod 5 to the top of the second thermal insulation decorative board body 2, and the first thermal insulation decorative board body 1 and the second thermal insulation decorative board body 2 are spliced by bolts 6. , the clamping block 7 is matched with the clamping slot 8, and the splicing of the thermal insulation decorative board can be completed, so as to facilitate the construction.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A building thermal insulation decorative board that is convenient for construction, comprising a first thermal insulation decorative board body (1) and a second thermal insulation decorative board body (2), characterized in that: the top of the first thermal insulation decorative board body (1) A connecting block (3) is fixedly connected to the right side of the connecting block (3), a semi-circular block (4) is fixedly connected to the top of the connecting block (3), and a rotating rod (5) is movably connected to the inner cavity of the semi-circular block (4) through a pin shaft. ), the inner cavity of the rotating rod (5) is threadedly connected with a bolt (6), the bottom of the bolt (6) extends to the inner cavity of the second thermal insulation decorative board body (2), the first thermal insulation decorative board The top and bottom of the right side of the main body (1) are fixedly connected with a clamping block (7), and the left side of the inner cavity of the second thermal insulation decorative board body (2) is provided with a clamping slot (8) for use with the clamping block (7). ), a first mounting block (9) is fixedly connected to the axial center of the top and bottom of the first thermal insulation decorative board body (1), and the inner cavity of the first mounting block (9) begins with a first mounting hole (10), a second mounting block (11) is fixedly connected to the axial center of the top and bottom of the second thermal insulation decorative board body (2), and the inner cavity of the second mounting block (11) starts with a second mounting block (11). Mounting holes (12). 2. The construction-friendly building thermal insulation decorative panel according to claim 1, characterized in that: the first thermal insulation decorative panel body (1) comprises a base layer (13), and the top of the base layer (13) is fixedly connected There is a thermal insulation layer (14), an upper surface layer (15) is fixedly connected to the top of the thermal insulation layer (14), a fireproof layer (16) is fixedly connected to the bottom of the base layer (13), and the fireproof layer (16) The bottom is fixedly connected with the lower surface layer (17). 3. The construction-friendly building thermal insulation decorative board according to claim 2, wherein the base layer (13) is a polytetrafluoroethylene composite board, and the thermal insulation layer (14) is modified with polyvinyl alcohol Phenolic foam board. 4. The construction-friendly building thermal insulation decorative board according to claim 1, characterized in that: the upper surface layer (15) and the lower surface layer (17) are both melamine boards, and the fireproof layer (16) Using foamed ceramic insulation board. 5 . The building thermal insulation decorative panel according to claim 1 , wherein a sealing gasket ( 18 ) is arranged at the bottom of the rotating rod ( 5 ), and an inner cavity of the sealing gasket ( 18 ) is provided. 6 . Start with through holes for the bolts (6).
