Abstract

The utility model discloses a light-transmitting and sound-absorbing aluminum plate wall, which comprises a keel, an aluminum plate is fixed on the surface of the keel, the keel comprises a plurality of vertical beams and transverse beams, and the middle part of the vertical beam is fixed on the wall through a connecting rod , the bottom of the vertical beam is fixed on the ground; the beam is horizontally fixed between the vertical beams; the flame-retardant sound-absorbing cotton is fixed between the vertical beam and the beam of the keel; there is also an LED light strip between the aluminum plate and the keel ; The aluminum plate is provided with through holes arranged in a pattern. The utility model aims to provide a light-transmitting and sound-absorbing aluminum plate wall with a fire-resisting and sound-insulating effect which is not affected by a hidden light strip, and has a good lighting effect of the light strip.

Description

A light-transmitting and sound-absorbing aluminum panel wall

technical field

The utility model belongs to the technical field of architectural decoration, in particular to a light-transmitting and sound-absorbing shaped aluminum plate wall.

Background technique

At present, with the increasing progress, the wall decoration is also constantly innovating. From the latex paint of the house to the ceramic tile, stone and wood veneer of the villa, from the establishment of street stalls to the construction of cultural palaces, the requirements for wall art are more and more. high.

At present, the most used dark-installed lighting modeling aluminum plate wall needs to be hollowed out for the decorative surface, and for fire safety, quiet and comfortable living environment, etc., the wall surface of the existing modeling aluminum plate wall is installed with fireproof and sound insulation materials, and the installation is hidden. The light strip needs to hollow out some areas of the fireproof and sound insulation material, and set the light strip in it, which will seriously damage the fireproof and soundproof effect of the wall, which will greatly reduce the fireproof and sound insulation effect of the wall, and the use effect is not ideal.

Utility model content

In order to solve the deficiencies of the prior art, the utility model aims to provide a light-transmitting and sound-absorbing aluminum panel wall with a fire-resistant and sound-insulating effect that is not affected by a hidden light strip, and has a good lighting effect of the light strip.

In order to achieve the above purpose, the technical scheme adopted by the present utility model is:

A light-transmitting and sound-absorbing aluminum plate wall includes a keel, an aluminum plate is fixed on the surface of the keel, the keel includes a plurality of vertical beams and transverse beams, the middle part of the vertical beam is fixed on the wall through a connecting rod, and the bottom of the vertical beam is fixed on the wall. fixed on the ground; the beam is horizontally fixed between the vertical beams; flame-retardant sound-absorbing cotton is fixed between the vertical beam and the beam of the keel; LED light strips are also arranged between the aluminum plate and the keel; the aluminum plate There are through holes arranged in a pattern.

Preferably, the bottom of the vertical beam is fixed on the ground by a fixed plate embedded in the ground.

Preferably, the aluminum plate is fixed on the vertical beam and the cross beam through a fixed angle code.

Preferably, the LED light strip is fixed on the vertical beam; a gap is provided between the aluminum plate and the keel for scattering the light source of the LED light strip.

Preferably, a light-transmitting plate is fixed on the inner surface of the aluminum plate.

Preferably, a plurality of fixing rods are fixed on the outer surface of the aluminum plate.

Preferably, a skirting board is fixed on the ground, and the bottom end of the aluminum plate is clamped in a bayonet on the skirting board.

The beneficial effects that the utility model has are:

1. Compared with the hidden light strip in the prior art, which needs to hollow out the fireproof and sound insulation material and set it in the middle, the LED light strip of the present invention is fixed on the vertical beam, and the flame retardant sound-absorbing cotton and the LED light strip are separately arranged, and the LED light strip of the present invention is installed separately. There is a gap between the aluminum plate and the keel for the scattering of the light source of the LED light strip, which makes the light scattering effect of the LED light strip more ideal, and does not affect the flame retardant and sound insulation effect of the entire wall, and has stronger practicability.

2. The light emitted by the LED strip can pass through the light-transmitting plate and scatter outward through the through holes on the aluminum plate. The pattern and shape of the through holes can create a good artistic effect. At the same time, the light-transmitting plate can effectively prevent external The foreign objects and dust enter the wall through the through holes.

3. The skirting board can provide stable support for the aluminum plate, and at the same time can effectively prevent foreign objects and dust from entering the wall.

Description of drawings

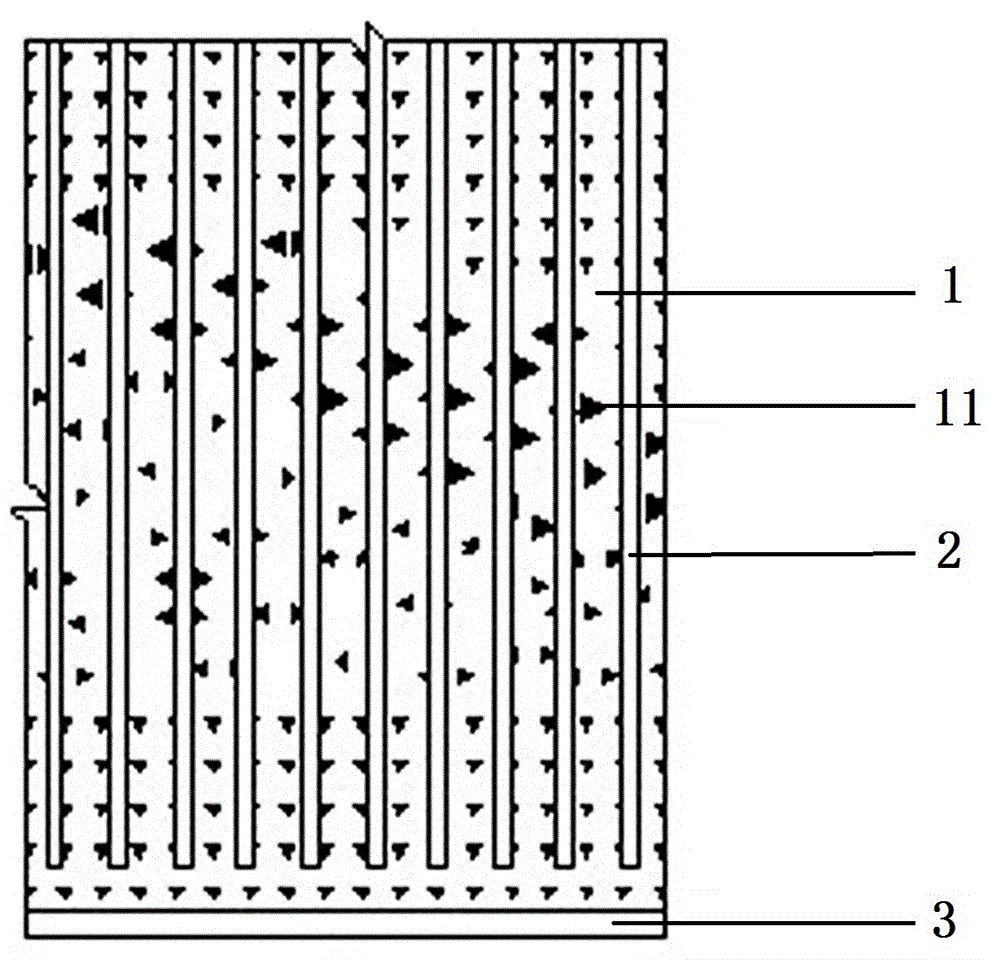

Fig. 1 is the front view of the utility model;

Fig. 2 is the side sectional view of the utility model;

FIG. 3 is an enlarged view of part A in FIG. 2 .

Detailed ways

As shown in Figure 1-3, a light-transmitting and sound-absorbing aluminum plate wall includes a keel 5, and a 2mm thick aluminum plate 1 with perforations is fixed on the surface of the keel 5. The through holes 11 opened on the aluminum plate 1 can be used according to actual needs. It needs to be arranged in a certain pattern. The aluminum plate 1 is fixed on the vertical beam 51 and the cross beam 52 through the fixed angle code 12 . A light-transmitting plate 8 is fixed on the inner surface of the aluminum plate 1, wherein the thickness of the light-transmitting plate 8 can be 2 mm, and the light emitted by the LED light strip 9 can pass through the light-transmitting plate 8 and scatter outward through the through holes 11 on the aluminum plate 1. Combining the patterns and shapes of the through holes 11 can create a good artistic effect, and at the same time, the light-transmitting plate 8 can effectively prevent external foreign matter and dust from entering the interior of the aluminum wall through the through holes 11 . A plurality of fixing rods 2 are fixed on the outer surface of the aluminum plate 1. The fixing rods 2 can effectively reinforce the thin and light aluminum plate 1, and can also create a good artistic effect. The fixing rods 2 can be made of 40mm*40mm aluminum square. Pass. A skirting board 3 is fixed on the ground 42, and the bottom end of the aluminum plate 1 is clamped in a bayonet on the skirting board 3. The skirting board 3 can provide stable support for the aluminum board 1, and can effectively prevent foreign objects at the same time. , Dust enters the aluminum wall, and the skirting board 3 can be made of 80mm high stainless steel.

The keel 5 includes a plurality of vertical beams 51 and beams 52, wherein the material of the vertical beams 51 can be hot-dip galvanized square steel pipes of 40mm*80mm*3mm, the beams 52 can be selected from light steel pipes with a diameter of 50mm, and the interval between each vertical beam 51 can be adjusted. is 800mm. The middle of the vertical beam 51 is fixed on the wall 41 through the connecting rod 61, and the bottom of the vertical beam 51 is fixed on the ground 42 through the fixed plate 62 embedded in the ground 42, which greatly facilitates the construction and installation process, and the fixed plate 62 can be 150mm. *150mm hot-dip galvanized sheet. The transverse beams 52 are fixed horizontally between the vertical beams 51 . Between the vertical beam 51 and the cross beam 52 of the keel 5, a 50mm thick flame-retardant sound-absorbing cotton 7 is fixed, which can play a significant flame-retardant and sound-absorbing effect, and can provide users with a quiet, comfortable and safe living environment. An LED light strip 9 is also provided between the aluminum plate 1 and the keel 5 , and the LED light strip 9 is fixed on the vertical beam 51 ; a gap is provided between the aluminum plate 1 and the keel 5 for the light source scattering of the LED light strip 9 . Compared with the prior art where the hidden light strip needs to be hollowed out of the fireproof and sound insulation material, the LED light strip 9 of the present invention is fixed on the vertical beam 51, and the flame retardant sound-absorbing cotton 7 is set separately from the LED light strip 9, And there is a gap between the aluminum plate 1 and the keel 5 for the light source scattering of the LED light strip 9, so that the light scattering effect of the LED light strip 9 is more ideal, and the flame retardant and sound insulation effect of the entire wall 41 is not affected. Strong practicality.

Claims (7)

1. A light-transmitting and sound-absorbing modeling aluminum plate wall, comprising a keel, and the surface of the keel is fixed with an aluminum plate, it is characterized in that: the keel comprises a plurality of vertical beams and transverse beams, and the middle of the vertical beams is fixed on the wall body by connecting rods The bottom of the vertical beam is fixed on the ground; the horizontal beam is fixed between the vertical beams; the flame-retardant sound-absorbing cotton is fixed between the vertical beam and the beam of the keel; LED lights are also arranged between the aluminum plate and the keel The aluminum plate is provided with through holes arranged in a pattern. 2 . The light-transmitting and sound-absorbing modeling aluminum panel wall according to claim 1 , wherein the bottom of the vertical beam is fixed on the ground by a fixed plate embedded in the ground. 3 . 3 . The light-transmitting and sound-absorbing molding aluminum panel wall according to claim 2 , wherein the aluminum panel is fixed on the vertical beam and the cross beam through a fixed angle code. 4 . 4 . The light-transmitting and sound-absorbing aluminum panel wall according to claim 3 , wherein the LED light strip is fixed on the vertical beam; and a gap is provided between the aluminum panel and the keel for scattering the light source of the LED light strip. 5 . 5 . The light-transmitting and sound-absorbing aluminum panel wall according to claim 4 , wherein a light-transmitting panel is fixed on the inner surface of the aluminum panel. 6 . 6 . The light-transmitting and sound-absorbing aluminum panel wall according to claim 5 , wherein a plurality of fixing rods are fixed on the outer surface of the aluminum panel. 7 . 7 . The light-transmitting and sound-absorbing aluminum plate wall according to claim 6 , wherein a skirting board is fixed on the ground, and the bottom end of the aluminum plate is clamped in a bayonet on the skirting board. 8 . .
