Abstract

The utility model discloses a sorting and conveying device, which relates to the field of conveying devices, comprising a conveying belt, a scanning device and a supporting column. A supporting column is arranged below the conveying belt, and scanning devices are arranged at both ends of the conveying belt. A turning structure is arranged between the third conveyor belts. The turning structure includes a turning flat plate, a turning inclined plate and a rotating shaft. The upper end of the support column is provided with a connecting rod, and the rotating shaft is arranged at the end of the connecting rod away from the supporting column. The other end is provided with a flipping sloping plate, and a support structure for resetting it is also set below the flipping plate, a flipping mechanism is provided, and scanning devices are provided at both ends of the three conveyor belts, so that the six sides of the luggage can be scanned. , without manual turnover, higher sorting efficiency and reduced human resource investment.

Description

A sorting and conveying device

technical field

The utility model relates to the technical field of conveying devices, in particular to a sorting conveying device.

Background technique

Online shopping, that is, online shopping, is to retrieve product information through the Internet, and send a shopping request through an electronic order form, and then fill in the number of a private checking account or credit card. With the development of the Internet, online shopping has become more and more popular among the masses, and the number of users of online shopping in China is increasing. Correspondingly, the development of the logistics industry is also very rapid. The conveyor belt has also been put into use to reduce manpower and improve efficiency, but the existing conveyor devices are not designed with a flip structure, and the side with barcodes is manually placed on the conveyor belt before subsequent sorting. It is beneficial to improve the efficiency of sorting. Therefore, a sorting and conveying device is provided to solve the above problems.

Utility model content

The purpose of the present invention is to provide a sorting and conveying device to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a sorting and conveying device, comprising a conveying belt, a scanning device and a support column, a support column is provided below the conveying belt, and a scanning device is provided at both ends of the conveying belt, The conveyor belt includes a first conveyor belt, a second conveyor belt and a third conveyor belt. The direction of the first conveyor belt is perpendicular to the direction of the second conveyor belt, and its direction is the same as the direction of the third conveyor belt. The directions are parallel, the height of the second conveyor belt is higher than the height of the third conveyor belt, and there is also a flip structure between the two, the flip structure includes a flip flat plate, a flip swash plate and a rotating shaft. The support The upper end of the column is provided with a connecting rod, the rotating shaft is disposed at the end of the connecting rod away from the support column, one end of the flipping plate is hinged on the rotating shaft, and the other end is provided with a flipping inclined plate, and a useful for the support structure to reset it.

As a further solution of the present invention: the support structure includes an upper support rod, a spring and a lower support rod, the upper end of the upper support rod is hinged on the lower surface of the flip plate, and the lower end is sleeved on the lower support rod , the end of the lower support rod away from the upper support rod is connected to the support column, the upper support rod is provided with an upper stop ring, the lower support rod is provided with a lower stop ring, and the upper support rod is provided with a lower stop ring. A spring is arranged between the baffle ring and the lower baffle ring.

As a further solution of the present invention, the outer surface of the lower support rod and the inner surface of the lower retaining ring are both provided with threads.

As a further solution of the present invention, a rectangular blocking strip is provided at one end of the flipping flat plate close to the flipping inclined board, and the surfaces of the flipping flat board and flipping inclined board are smooth, and the surface of the blocking strip is rough.

As a further solution of the present invention, a shielding plate is provided above the third conveyor belt at a position corresponding to the inversion structure.

As a further solution of the present invention: the scanning device is an automatic code scanner.

As a further solution of the present invention: the support structure is a pressure cylinder.

Compared with the prior art, the beneficial effect of the present utility model is that a turning mechanism is provided, and scanning devices are provided at both ends of the three conveyor belts, so that the six sides of the luggage can be scanned without manual turning and sorting. Higher efficiency and reduced human resource investment.

Description of drawings

FIG. 1 is a schematic structural diagram of the layout of the conveyor belt of the sorting and conveying device of the present invention.

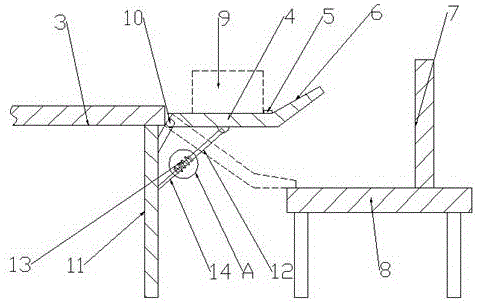

FIG. 2 is a schematic structural diagram of the sorting and conveying device of the present invention.

FIG. 3 is a partial enlarged schematic view of the structure at A in FIG. 2 .

In the figure: 1-first conveyor belt, 2-scanning device, 3-second conveyor belt, 4-turning flat plate, 5-blocking strip, 6-turning inclined plate, 7-shielding plate, 8-third conveying belt, 9-bag, 10-rotating shaft, 11-support column, 12-upper support rod, 13-spring, 14-lower support rod, 15-upper baffle ring, 16-lower baffle ring.

Detailed ways

Below in conjunction with specific embodiment, the technical scheme of this patent is described in further detail:

Example 1

Referring to FIGS. 1-3 , this embodiment provides a sorting and conveying device, including a conveying belt, a scanning device 2 and a support column 11 , a support column 11 is arranged below the conveying belt, and a scanning device is arranged at both ends of the conveying belt 2. The conveyor belt includes a first conveyor belt 1, a second conveyor belt 3 and a third conveyor belt 8. The direction of the first conveyor belt 1 is perpendicular to the direction of the second conveyor belt 3, and its direction is the same as that of the second conveyor belt 3. The direction of the third conveyor belt 8 is parallel, the height of the second conveyor belt 3 is higher than the height of the third conveyor belt 8, and a flip structure is also provided between the two, and the flip structure includes a flip plate 4. Turn over the inclined plate 6 and the rotating shaft 10, the upper end of the support column 11 is provided with a connecting rod, the rotating shaft 10 is arranged at the end of the connecting rod away from the support column 11, and one end of the turning plate 4 is hinged on the rotating shaft 10 The other end is provided with a flipping inclined plate 6, and a supporting structure for resetting the flipping flat plate 4 is also provided below the flipping plate 4.

Specifically, the support structure includes an upper support rod 12 , a spring 13 and a lower support rod 14 , the upper end of the upper support rod 12 is hinged on the lower surface of the flip plate 4 , and the lower end of the upper support rod 12 is sleeved on the lower support rod 14 Above, the end of the lower support rod 14 away from the upper support rod 12 is connected to the support column 11 , the upper support rod 12 is provided with an upper stop ring 15 , and the lower support rod 14 is provided with a lower The baffle ring 16 is provided with a spring 13 between the upper baffle ring 15 and the lower baffle ring 16 , so that the flip plate 4 can be reset by itself.

Specifically, the outer surface of the lower support rod 14 and the inner surface of the lower retaining ring 16 are both provided with threads, so that by adjusting the position of the lower retaining ring 16 on the lower supporting rod 14, the upper supporting rod 12 and the lower supporting rod can be adjusted. The maximum stroke of the rod 14 sliding socket and the tightness of the spring 13.

Specifically, a rectangular blocking strip 5 is provided at one end of the flipping plate 4 close to the inclined flipping plate 6 , and the upper surfaces of the flipping flat plate 4 and the flipping inclined plate 6 are smooth, and the surface of the blocking strip 5 is rough, which can ensure The luggage 9 slides forward on the flipping flat plate 4 and the flipping inclined plate 6 and will not turn over, and the barrier strip 5 with rough surface=rough surface will make the luggage 9 rotate downward around the rotating shaft 10 on the flipping flat plate 4. time to flip once.

Specifically, a shielding plate 7 is provided above the third conveyor belt 8 at a position corresponding to the overturning structure, which can prevent the goods from falling, and at the same time can ensure that the goods will not be overturned multiple times.

Specifically, the scanning device 2 is an automatic code scanner, which can scan the information on the goods and upload them to the control center to sort the goods.

The working principle of the utility model: the first conveyor belt 1 and the second conveyor belt 3 are vertical, and both sides are provided with scanning devices, so that all sides of the luggage 9 can be scanned, and after the overturning structure, The luggage 9 will be turned over once, and its left and right sides on the third conveyor belt 8 correspond to its upper and lower sides on the second conveyor belt 3, and both ends of the third conveyor belt are provided with scanning devices, so, No matter which side of the luggage 9 the barcode on the luggage 9 is on, the scanning device can scan it without manual operation.

Example 2

On the basis of Embodiment 1, the support structure is a pressure cylinder.

It should be noted in particular that although this specification is described in terms of embodiments, not every embodiment only includes an independent technical solution. This description in the description is only for the sake of clarity, and those skilled in the art should take the description as As a whole, the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art. The above-mentioned embodiments only express the preferred implementations of the technical solutions, and the descriptions thereof are more specific and detailed. , but it should not be construed as a limitation on the patent scope of this technical solution. It should be pointed out that for those of ordinary skill in the art, without departing from the concept of the present invention, several modifications, improvements and substitutions can be made, which all belong to the protection scope of the present technical solution. The protection scope of the patent for this technical solution shall be subject to the appended claims.

Claims (6)

1. The utility model provides a sorting conveyor, includes conveyer belt, scanning device (2) and support column (11), the conveyer belt below is provided with support column (11), and its both ends all are provided with scanning device (2), its characterized in that: the conveying belt comprises a first conveying belt (1), a second conveying belt (3) and a third conveying belt (8), the direction of the first conveying belt (1) is vertical to that of the second conveying belt (3), the direction of the first conveying belt is parallel to that of the third conveying belt (8), the height of the second conveying belt (3) is higher than that of the third conveying belt (8), a turnover structure is further arranged between the first conveying belt and the third conveying belt, the turnover structure comprises a turnover flat plate (4), a turnover inclined plate (6) and a rotating shaft (10), a connecting rod is arranged at the upper end of the supporting column (11), the rotating shaft (10) is arranged at one end, far away from the supporting column (11), of the connecting rod, one end of the turnover flat plate (4) is hinged on the rotating shaft (10), the other end of the turnover inclined plate (6) is arranged at the other end, one end, close to the turnover inclined plate (4), is provided with a rectangular blocking strip, and the upper surfaces of the turnover flat plate (4) and the turnover sloping plate (6) are smooth, the surface of the barrier strip (5) is rough, and a supporting structure for resetting the turnover flat plate (4) is also arranged below the turnover flat plate (4).

2. The sorting and conveying device according to claim 1, wherein the supporting structure comprises an upper supporting rod (12), a spring (13) and a lower supporting rod (14), the upper end of the upper supporting rod (12) is hinged to the lower surface of the turnover flat plate (4), the lower end of the upper supporting rod is sleeved on the lower supporting rod (14), one end, away from the upper supporting rod (12), of the lower supporting rod (14) is connected to the supporting rod (11), an upper retaining ring (15) is arranged on the upper supporting rod (12), a lower retaining ring (16) is arranged on the lower supporting rod (14), and the spring (13) is arranged between the upper retaining ring (15) and the lower retaining ring (16).

3. The sortation conveyor of claim 2, wherein said lower support bar (14) outer surface and said lower retainer ring (16) inner surface are each threaded.

4. Sorting conveyor according to claim 1, characterised in that a shutter (7) is arranged above the third conveyor belt (8) in a position corresponding to the turning structure.

5. The sorting conveyor according to claim 1, characterized in that the scanning device (2) is an automatic code scanner.

6. The sortation conveyor of claim 1, wherein said support structure is a pressure cylinder.
