Abstract

The utility model discloses a wooden door vacuum film sticking device with a dust removal device. The bottom is fixedly connected with a vacuum pump. The utility model is provided with a first motor, a first rotating rod, a first pulley, a second pulley, a threaded rod, a threaded sleeve, a fixed block, an equipment box, a second motor, a second rotating rod, a first gear, and a third rotating rod. Rod, second gear, brush, fourth rotating rod, third gear, fan blade, suction pipe, dust inlet pipe, dust storage box, card interface, filter plate, baffle, threaded hole, bolt, suction pipe , fan and air outlet pipe, solve the problem that the existing wooden door vacuum filming device cannot automatically clean the dust on the wooden door surface.

Description

A wooden door vacuum film sticking device with dust removal device

technical field

The utility model relates to the technical field of film sticking for household wooden doors, in particular to a wooden door vacuum film sticking device with a dust removal device.

Background technique

Panel furniture is a disassembly and assembly furniture with man-made panels as the main base material and panels as the basic structure. The furniture made of surface-decorated man-made panels and hardware has the basic characteristics of detachable, changeable shape, fashionable appearance, not easy to deform, stable quality, and affordable price. Panel furniture needs to be filmed during the production process. To improve the aesthetics of the board and increase the effect of moisture and anti-corrosion, the existing board-type furniture film device cannot automatically clean the dust on the surface of the wooden door and collect dust, which will not only cause air pollution but also affect the health of the staff, which is not conducive to people's use.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a wooden door vacuum film sticking device with a dust removal device, which has the advantages of automatically cleaning and collecting dust on the surface of the wooden door, and solves the problem that the existing wooden door vacuum film sticking device cannot automatically clean the dust on the wooden door surface.

In order to achieve the above purpose, the utility model provides the following technical solutions: a wooden door vacuum film sticking device with a dust removal device, comprising a box body, a workbench is fixedly connected to the bottom of the inner cavity of the box, and a suction device is opened on the top of the workbench. an air port, a vacuum pump is fixedly connected to the bottom of the box body, and a suction pipe is connected to the right side of the vacuum pump. The left side of the vacuum pump is connected with an exhaust pipe, the right side of the top of the box is fixedly connected with a first motor, and the right side of the output end of the first motor is fixedly connected with a first rotating rod, the first rotating rod The right side of the box is fixedly connected with a first pulley, the top of the right side of the box is provided with a second pulley, the first pulley and the second pulley are connected by belt drive, and the left side of the second pulley is fixedly connected with threads The right side of the threaded rod penetrates into the inner cavity of the box body and is sleeved with a threaded sleeve, the right side of the threaded rod is movably connected with a fixing block, and the top of the fixing block is fixedly connected with the inner wall of the box body, An equipment box is fixedly connected to the bottom of the threaded sleeve, a second motor is fixedly connected to the top of the inner cavity of the equipment box, and a second rotating rod is fixedly connected to the bottom of the output end of the second motor. The bottom runs through the equipment box and is fixedly connected with a first gear, the left side of the bottom of the equipment box is movably connected with a third rotating rod, the surface of the third rotating rod is sleeved with a second gear, and the third rotating rod is A brush is fixedly connected to the bottom, a fourth rotating rod is movably connected to the right side of the bottom of the equipment box, a third gear is sleeved on the surface of the fourth rotating rod, and a fan is fixedly connected to the bottom of the fourth rotating rod Leaf, the right side of the second gear and the left side of the third gear are meshed with the first gear, the left side of the top of the inner cavity of the box is provided with a suction pipe, and the left side of the bottom of the suction pipe is connected with a The dust inlet pipe, the bottom of the dust inlet pipe is connected with a dust storage box, the left side of the inner cavity of the dust storage box is provided with a card interface, the inner cavity of the dust storage box is provided with a filter plate, and the filter plate is The left side extends to the inner cavity of the card interface, the right side of the filter plate penetrates the dust storage box and is fixedly connected with a baffle plate, the right side of the dust storage box is provided with a threaded hole, and the right side of the baffle plate is provided with a baffle plate. Bolts, the left side of the bolt penetrates the baffle plate and extends to the inner cavity of the threaded hole, the bottom of the dust storage box is connected with a suction pipe, the bottom of the suction pipe is connected with a fan, and the left side of the fan is connected An air outlet pipe is communicated, and the left side of the air outlet pipe penetrates to the outside of the box body.

Preferably, the bottom of the box body is fixedly connected with support legs, the number of the support legs is four, and they are evenly distributed on the bottom of the box body, and the bottom of the support legs is provided with anti-skid pads.

Preferably, a rubber pad is fixedly connected to the top of the worktable, a handle is fixedly connected to the bottom of the right side of the baffle, and an opening for cooperating with a filter plate is opened on the right side of the dust storage box.

Preferably, the connection between the surface of the threaded rod and the box body is movably connected through a first bearing, a slider is fixedly connected to the top of the threaded sleeve, and a slider is provided on the right side of the top of the box cavity for use in cooperation with the slider. the chute.

Preferably, the connections between the tops of the third rotating rod and the fourth rotating rod and the equipment box are all movably connected through the second bearing.

Preferably, a switch is provided at the bottom of the right side of the front surface of the box body, and a heat dissipation port is opened at the top of the right side of the front surface of the box body.

Preferably, a movable door is movably connected to the front surface of the box body, and a handle is fixedly connected to the right side of the front surface of the movable door.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model is equipped with the first motor, the first rotating rod, the first pulley, the second pulley, the threaded rod, the threaded sleeve, the fixed block, the equipment box, the second motor, the second rotating rod, the first gear, the first Three rotating rods, the second gear, the brush, the fourth rotating rod, the third gear, the fan blade, the suction pipe, the dust inlet pipe, the dust storage box, the card interface, the filter plate, the baffle, the threaded hole, the bolt, the suction pipe The air duct, the fan and the air outlet solve the problem that the existing wooden door vacuum filming device cannot automatically clean the dust on the surface of the wooden door.

2. The utility model can evacuate the air between the wooden door and the membrane by setting a vacuum pump, and can limit the moving direction of the threaded sleeve by setting a slider and a chute, and can clean the dust on the surface of the wooden door by setting a brush. Clean, by setting the fan blade, dust can be blown up from the surface of the wooden door, by setting the vacuum pipe, the dust floating in the box can be absorbed, by setting the dust storage box, the dust can be stored, by setting the filter plate, the dust storage can be filtered The dust in the box can be easily put in or taken out of the wooden door and the dust in the dust storage box can be cleaned by setting the movable door.

Description of drawings

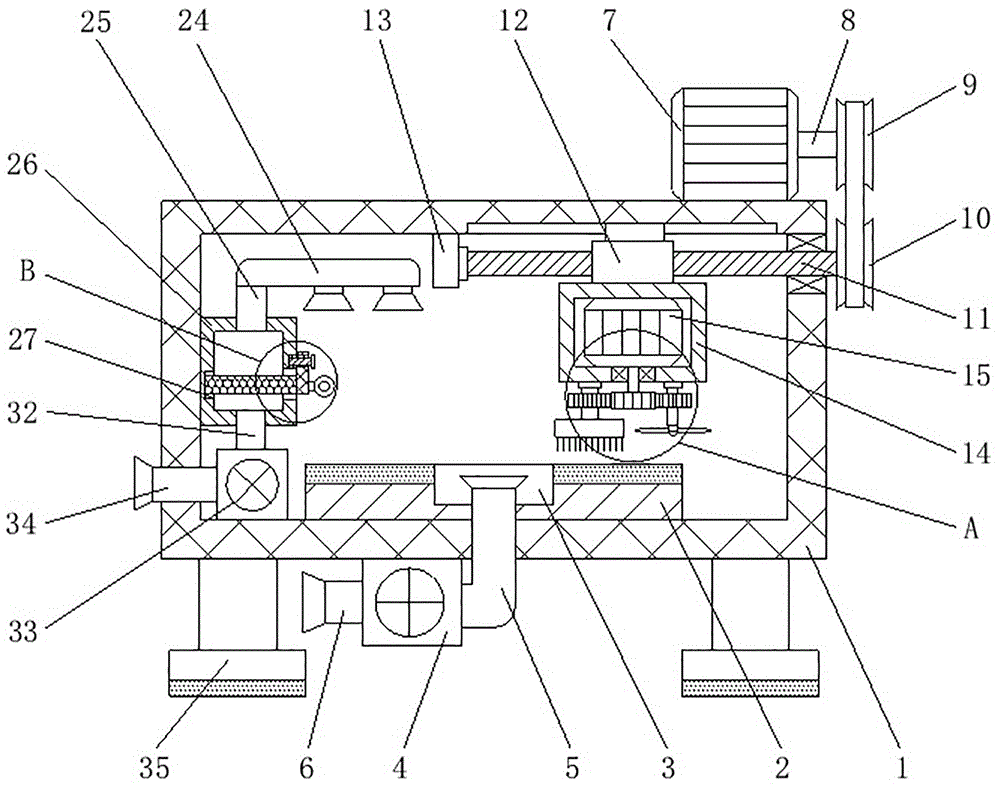

Fig. 1 is the structural representation of the embodiment of the present utility model;

Fig. 2 is the external view of Fig. 1;

Fig. 3 is a partial enlarged view at A in Fig. 1;

FIG. 4 is a partial enlarged view of B in FIG. 1 .

In the figure: 1. Box body; 2. Workbench; 3. Suction port; 4. Vacuum pump; 5. Exhaust pipe; 6. Exhaust pipe; 7. The first motor; 8. The first rotating rod; a pulley; 10, the second pulley; 11, the threaded rod; 12, the threaded sleeve; 13, the fixed block; 14, the equipment box; 15, the second motor; 16, the second rotating rod; 17, the first gear; 18, The third rotating rod; 19, the second gear; 20, the brush; 21, the fourth rotating rod; 22, the third gear; 23, the fan blade; 24, the suction pipe; 25, the dust inlet pipe; 26, the dust storage box; 27, card interface; 28, filter plate; 29, baffle; 30, threaded hole; 31, bolt; 32, suction pipe; 33, fan; 34, outlet pipe; 35, support leg.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Figure 1-4, a wooden door vacuum film sticking device with a dust removal device, including a box body 1, a workbench 2 is fixedly connected to the bottom of the inner cavity of the box body 1, and a suction port 3 is opened on the top of the workbench 2. The bottom of the body 1 is fixedly connected with a vacuum pump 4, and the right side of the vacuum pump 4 is connected with an exhaust pipe 5. The end of the exhaust pipe 5 away from the vacuum pump 4 runs through the box body 1 and the workbench 2 in turn and extends to the inner cavity of the suction port 3. The vacuum pump The left side of 4 is connected with the exhaust pipe 6, the right side of the top of the box 1 is fixedly connected with the first motor 7, the right side of the output end of the first motor 7 is fixedly connected with the first rotating rod 8, and the right side of the first rotating rod 8 is fixedly connected. A first pulley 9 is fixedly connected to the side, a second pulley 10 is provided on the top of the right side of the box 1, the first pulley 9 and the second pulley 10 are connected by belt transmission, and the left side of the second pulley 10 is fixedly connected with a threaded rod 11 , the right side of the threaded rod 11 penetrates into the inner cavity of the box body 1 and is sleeved with a threaded sleeve 12, the right side of the threaded rod 11 is movably connected with a fixing block 13, and the top of the fixing block 13 is fixedly connected with the inner wall of the box body 1, The bottom of the threaded sleeve 12 is fixedly connected with the equipment box 14 , the top of the inner cavity of the equipment box 14 is fixedly connected with the second motor 15 , the bottom of the output end of the second motor 15 is fixedly connected with the second rotating rod 16 , the bottom of the second rotating rod 16 is fixedly connected A first gear 17 is fixedly connected through the equipment box 14 , a third rotating rod 18 is movably connected to the left side of the bottom of the equipment box 14 , and a second gear 19 is sleeved on the surface of the third rotating rod 18 . A brush 20 is fixedly connected to the bottom, a fourth rotating rod 21 is movably connected to the right side of the bottom of the equipment box 14, a third gear 22 is sleeved on the surface of the fourth rotating rod 21, and a fan is fixedly connected to the bottom of the fourth rotating rod 21 The blade 23, the right side of the second gear 19 and the left side of the third gear 22 are all meshed with the first gear 17, the left side of the top of the inner cavity of the box 1 is provided with a suction pipe 24, and the left side of the bottom of the suction pipe 24 A dust inlet pipe 25 is communicated with, the bottom of the dust inlet pipe 25 is communicated with a dust storage box 26, the left side of the inner cavity of the dust storage box 26 is provided with a card interface 27, and the inner cavity of the dust storage box 26 is provided with a filter plate 28, the filter plate The left side of 28 extends to the inner cavity of the card interface 27, the right side of the filter plate 28 penetrates the dust storage box 26 and is fixedly connected with a baffle 29, the right side of the dust storage box 26 is provided with a threaded hole 30, and the right side of the baffle 29 A bolt 31 is provided on the side, and the left side of the bolt 31 penetrates the baffle plate 29 and extends to the inner cavity of the threaded hole 30. The bottom of the dust storage box 26 is connected with a suction pipe 32, and the bottom of the suction pipe 32 is connected with a fan 33. The fan The left side of 33 is connected with the air outlet pipe 34, the left side of the air outlet pipe 34 penetrates to the outside of the box body 1, the bottom of the box body 1 is fixedly connected with support legs 35, the number of support legs 35 is four, and evenly distributed in the box The bottom of the body 1 and the bottom of the support legs 35 are provided with anti-skid pads, the top of the worktable 2 is fixedly connected with a rubber pad, the bottom of the right side of the baffle 29 is fixedly connected with a handle, and the right side of the dust storage box 26 is provided with a filter plate. 28 is used in conjunction with the opening, the connection between the surface of the threaded rod 11 and the box body 1 is movably connected through the first bearing, and the top of the threaded sleeve 12 is fixed. A slider is fixedly connected, and the right side of the top of the inner cavity of the box body 1 is provided with a chute for use with the slider. The bearings are movably connected, a switch is provided at the bottom of the right side of the front surface of the box body 1, a heat dissipation port is opened at the top of the right side of the front surface of the box body 1, a movable door is movably connected to the front surface of the box body 1, and the right side of the front surface of the movable door is A handle is fixedly connected. By setting the vacuum pump 4, the air between the wooden door and the membrane can be evacuated. By setting the slider and the chute, the moving direction of the threaded sleeve 12 can be restricted. By setting the brush 20, the surface of the wooden door can be evacuated. By setting the fan blade 23, the dust can be blown up from the surface of the wooden door; by setting the dust suction pipe 24, the floating dust in the box 1 can be absorbed; by setting the dust storage box 26, the dust can be stored; The filter plate 28 is provided to filter the dust in the dust storage box 26. By setting the movable door, it is convenient to put in or take out the wooden door and clean the dust in the dust storage box 26. , the first pulley 9, the second pulley 10, the threaded rod 11, the threaded sleeve 12, the fixed block 13, the equipment box 14, the second motor 15, the second rotating rod 16, the first gear 17, the third rotating rod 18, the first The second gear 19, the brush 20, the fourth rotating rod 21, the third gear 22, the fan blade 23, the dust suction pipe 24, the dust inlet pipe 25, the dust storage box 26, the card interface 27, the filter plate 28, the baffle plate 29, The threaded hole 30, the bolt 31, the air suction pipe 32, the fan 33 and the air outlet pipe 34 solve the problem that the existing wooden door vacuum filming device cannot automatically clean the dust on the surface of the wooden door. The wooden door vacuum filming device has the ability to automatically clean the dust on the surface of the wooden door And the advantages of collecting dust are worth promoting.

When in use, the user turns on the first motor 7 by placing the wooden door on the workbench 2 in the box 1, the first motor 7 drives the first rotating rod 8 to rotate, and the first rotating rod 8 drives the first pulley 9 to rotate, The first pulley 9 drives the second pulley 10 to rotate through the cooperation of the belt, the second pulley 10 drives the threaded rod 11 to rotate, the threaded rod 11 drives the threaded sleeve 12 to move, the threaded sleeve 12 drives the equipment box 14 to move, and the equipment box 14 moves above the wooden door When the second motor 15 is activated, the second motor 15 drives the second rotating rod 16 to rotate, the second rotating rod 16 drives the first gear 17 to rotate, the first gear 17 drives the second gear 19 and the third gear 22 to rotate, the second The gear 19 and the third gear 22 drive the third rotating rod 18 and the fourth rotating rod 21 to rotate respectively, the third rotating rod 18 and the fourth rotating rod 21 respectively drive the brush 20 and the fan blade 23 to rotate, and the brush 20 cleans the surface of the wooden door The dust on the surface of the wooden door is blown up by the fan blade 23, and the fan 33 is started. The filter plate 28 in the dust storage box 26 filters out the dust. When the dust in the dust storage box 26 needs to be cleaned, the bolt 31 is unscrewed and the handle is pulled down. The handle drives the baffle 29 to move, and the baffle 29 drives the filter plate 28 to move, that is The filter plate 28 can be removed to clean the dust.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a take dust collector's timber vacuum pad pasting device, includes box (1), its characterized in that: the bottom of the inner cavity of the box body (1) is fixedly connected with a workbench (2), an air suction port (3) is formed in the top of the workbench (2), the bottom of the box body (1) is fixedly connected with a vacuum pump (4), the right side of the vacuum pump (4) is communicated with an exhaust pipe (5), one end, away from the vacuum pump (4), of the exhaust pipe (5) sequentially penetrates through the box body (1) and the workbench (2) and extends to the inner cavity of the air suction port (3), the left side of the vacuum pump (4) is communicated with an exhaust pipe (6), the right side of the top of the box body (1) is fixedly connected with a first motor (7), the right side of the output end of the first motor (7) is fixedly connected with a first rotating rod (8), the right side of the first rotating rod (8) is fixedly connected with a first belt pulley (9), and the top of the right, the utility model discloses a belt conveyor, including first belt pulley (9) and second belt pulley (10), the left side fixedly connected with threaded rod (11) of second belt pulley (10), the right side of threaded rod (11) is run through to the inner chamber of box (1) and the cover is equipped with thread bush (12), the right side swing joint of threaded rod (11) has fixed block (13), the top of fixed block (13) and the inner wall fixed connection of box (1), the bottom fixedly connected with equipment box (14) of thread bush (12), the top fixedly connected with second motor (15) of equipment box (14) inner chamber, the bottom fixedly connected with second rotary rod (16) of second motor (15) output, the bottom of second rotary rod (16) runs through equipment box (14) and fixedly connected with first gear (17), the left side swing joint of equipment box (14) bottom has third rotary rod (18), the surface cover of third rotary rod (18) is equipped with second gear (19), the bottom fixedly connected with brush (20) of third rotary rod (18), the right side swing joint of equipment box (14) bottom has fourth rotary rod (21), the surface cover of fourth rotary rod (21) is equipped with third gear (22), the bottom fixedly connected with flabellum (23) of fourth rotary rod (21), the right side of second gear (19) and the left side of third gear (22) all mesh with first gear (17), the left side at box (1) inner chamber top is provided with dust absorption pipe (24), the left side intercommunication of dust absorption pipe (24) bottom has dust inlet pipe (25), the bottom intercommunication of dust inlet pipe (25) has dust storage box (26), joint mouth (27) have been seted up in the left side of dust storage box (26) inner chamber, the inner chamber of dust storage box (26) is provided with filter plate (28), the left side of filter plate (28) extends to the inner chamber of joint mouth (27), the right side of filter plate (28) runs through dust storage box (26) and fixedly connected with baffle (29), threaded hole (30) are seted up on the right side of dust storage box (26), the right side of baffle (29) is provided with bolt (31), the left side of bolt (31) runs through baffle (29) and extends to the inner chamber of threaded hole (30), the bottom intercommunication of dust storage box (26) has aspiration channel (32), the bottom intercommunication of aspiration channel (32) has fan (33), the left side intercommunication of fan (33) has outlet duct (34), the outside of box (1) is run through to the left side of outlet duct (34).

2. The wooden door vacuum film pasting device with the dust removal device as claimed in claim 1, characterized in that: the bottom fixedly connected with supporting leg (35) of box (1), the quantity of supporting leg (35) is four, and evenly distributed in the bottom of box (1), the bottom of supporting leg (35) is provided with the slipmat.

3. The wooden door vacuum film pasting device with the dust removal device as claimed in claim 1, characterized in that: the top of the workbench (2) is fixedly connected with a rubber pad, the bottom of the right side of the baffle plate (29) is fixedly connected with a handle, and the right side of the dust storage box (26) is provided with an opening matched with the filter plate (28) for use.

4. The wooden door vacuum film pasting device with the dust removal device as claimed in claim 1, characterized in that: the connecting part of the surface of the threaded rod (11) and the box body (1) is movably connected through a first bearing, a sliding block is fixedly connected to the top of the threaded sleeve (12), and a sliding groove matched with the sliding block for use is formed in the right side of the top of the inner cavity of the box body (1).

5. The wooden door vacuum film pasting device with the dust removal device as claimed in claim 1, characterized in that: the tops of the third rotating rod (18) and the fourth rotating rod (21) are movably connected with the connection part of the equipment box (14) through a second bearing.

6. The wooden door vacuum film pasting device with the dust removal device as claimed in claim 1, characterized in that: the bottom on the right side of the front surface of the box body (1) is provided with a switch, and the top on the right side of the front surface of the box body (1) is provided with a heat dissipation opening.

7. The wooden door vacuum film pasting device with the dust removal device as claimed in claim 1, characterized in that: the front surface of the box body (1) is movably connected with a movable door, and the right side of the front surface of the movable door is fixedly connected with a handle.
