A cleaning and drying device for eye care

technical field

The utility model relates to the field of medical instruments, in particular to a cleaning and drying device for eye care.

Background technique

When performing ophthalmic medical treatment, many ophthalmic medical tools need to be used. Most of the ophthalmic medical tools are more precise tools. At the same time, most tools cannot be cleaned and dried by more extreme means. These ophthalmic medical tools Efficient cleaning and rapid drying of tools play a vital role in ophthalmic treatment. If these ophthalmic medical tools are not thoroughly cleaned, it will not only affect the progress of ophthalmic medical care, but also affect the health of patients.

However, most of the cleaning and drying operations for ophthalmic surgical instruments on the market are done separately, which easily leads to secondary pollution of the instruments during the transfer process. Therefore, those skilled in the art provide a cleaning and drying device for eye care to solve the problems raised in the above background art.

Utility model content

The purpose of the present invention is to provide a cleaning and drying device for eye care, so as to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

A cleaning and drying device for eye care includes a cleaning box, a cleaning liquid tank is installed on the upper surface of the cleaning box, and a water tank is installed on one side of the cleaning liquid tank on the upper surface of the cleaning box. The outer side of the liquid tank is provided with a scale scale, a soaking tank is installed inside the cleaning box, and a chute is arranged on the inner side wall of the cleaning box, and a hook plate is installed inside the chute, and the cleaning tank, The lower end of the water tank is located inside the cleaning box and is connected with a flushing nozzle. Both sides of the flushing nozzle are located inside the cleaning box and are equipped with UV lamps. One side of the cleaning box is installed with a fan. The rear surface of the cleaning box is installed. A fluid reservoir is installed.

As a further solution of the present invention, a heating wire is arranged inside the water tank, a sealing door panel is installed on the front surface of the cleaning box, and a control panel is installed on the front surface of the cleaning box on one side of the sealing door panel.

As a further solution of the present invention, a hinge is installed at the connection between the sealing door panel and the cleaning box, an observation window is arranged in the middle of the sealing door panel, and a lifting motor is installed on one side of the cleaning box.

As a further solution of the present invention, the observation window is made of a tempered glass material, the sealed door panel and the cleaning box are rotatably connected through hinges, and the lifting motor is electrically connected with the cleaning box.

As a further solution of the present invention, the control panel is electrically connected with the heating wire, and a sealing gasket is installed on the inner side wall of the sealing door panel.

As a further solution of the present invention, the flushing nozzle is connected through the water tank and the cleaning liquid tank, and the soaking tank is connected with the liquid accumulation tank through a pipeline.

As a further solution of the present invention, the hook plate is slidably connected to the chute, the UV lamp is connected to a power supply, and the fan is connected to a fan.

Compared with the prior art, the beneficial effects of the present utility model are: the main body of the cleaning box of this design can sterilize and dry the equipment at the same time, the lifting motor is used to control the hook plate to slide on the chute, and the equipment is placed in the immersion tank. Soak one end of the tank for a period of time to ensure the effect of cleaning and sterilization. After the sterilization is completed, the control panel is used to control the cleaning liquid tank, and the cleaning liquid, such as alcohol and other special disinfection liquids, are sprayed from the flushing nozzle to refresh the equipment for the second time. For disinfection, continue to use the lifting motor to control the hook plate to slide on the chute, which ensures the complete sterilization of the disinfection mold. At the same time, after the disinfection is completed, the external fan is used to control the effect of drying the instrument, so that the entire instrument is sterilized and dried. The process is carried out inside the cleaning box, to avoid the need to transfer the instruments in the traditional two-step process of disinfection and drying, which will cause secondary pollution during the transfer process. , the internal liquid situation can be observed in daily use, and it is convenient to add liquid. At the same time, the UV lamp tube set inside the cleaning box can use ultraviolet rays to sterilize the equipment, thereby ensuring the effect of disinfection and sterilization. The area outside the soaking tank is The liquid tank can recycle the cleaned liquid, so as to avoid the direct random discharge of the liquid.

Description of drawings

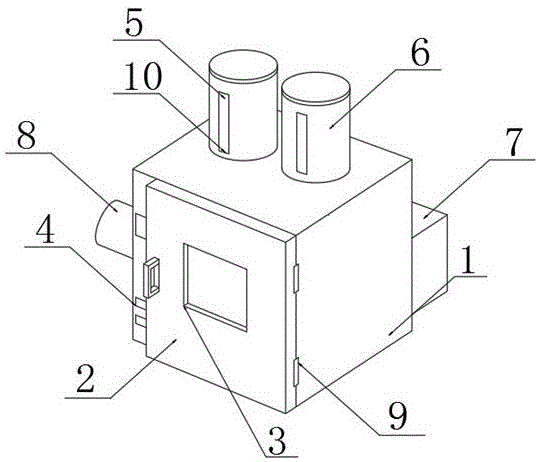

1 is a schematic structural diagram of a cleaning and drying device for ophthalmic care;

2 is a schematic diagram of the internal structure of a cleaning box in a cleaning and drying device for ophthalmic care;

3 is a cross-sectional view of the entire cleaning box in a cleaning and drying device for eye care.

In the figure: 1. Cleaning box; 2. Sealed door panel; 3. Observation window; 4. Control panel; 5. Cleaning liquid tank; 6. Water tank; 7. Liquid accumulation tank; 8. Lifting motor; 9. Hinge; 10 , scale ruler; 101, chute; 102, hook plate; 103, soaking tank; 104, UV lamp; 105, fan; 501, flushing nozzle; 601, heating wire.

Detailed ways

Please refer to FIGS. 1 to 3 , in the embodiment of the present invention, a cleaning and drying device for eye care includes a cleaning box 1 , a cleaning liquid tank 5 is installed on the upper surface of the cleaning box 1 , and one side of the cleaning liquid tank 5 is located at A water tank 6 is installed on the upper surface of the cleaning box 1, a scale scale 10 is arranged on the outer sides of the water tank 6 and the cleaning liquid tank 5, a soaking tank 103 is installed inside the cleaning box 1, and a chute is arranged on the inner side wall of the cleaning box 1 101. A hook plate 102 is installed inside the chute 101. The lower ends of the cleaning liquid tank 5 and the water tank 6 are located inside the cleaning box 1 and are connected with a flushing nozzle 501. Both sides of the flushing nozzle 501 are located inside the cleaning box 1. Lamp 104, a fan 105 is installed on one side of the cleaning box 1, and a liquid accumulation tank 7 is installed on the rear surface of the cleaning box 1.

In Figures 1, 2, and 3: a heating wire 601 is provided inside the water tank 6, a sealing door panel 2 is installed on the front surface of the cleaning box 1, and a control panel 4 is installed on the front surface of the cleaning box 1 on one side of the sealing door panel 2. , a hinge 9 is installed at the connection between the sealing door panel 2 and the cleaning box 1, and an observation window 3 is arranged in the middle of the sealing door panel 2, and a lifting motor 8 (model: Y-160L-6) is installed on one side of the cleaning box 1. , the observation window 3 is made of tempered glass material, the sealing door panel 2 and the cleaning box 1 are rotatably connected through the hinge 9, the lift motor 8 is electrically connected with the cleaning box 1, the control panel 4 is electrically connected with the heating wire 601, and the sealing door panel 2 is electrically connected. A sealing gasket is installed on the inner side wall, the flushing nozzle 501 is connected through the water tank 6 and the cleaning liquid tank 5, the soaking tank 103 is connected with the liquid accumulation tank 7 through pipes, the hook plate 102 is slidably connected with the chute 101, and the UV lamp 104 is externally powered , the fan 105 is an external fan.

In Figure 1: the sealing gasket is arranged between the sealing door panel 2 and the cleaning box 1 to ensure the airtightness of the device when the device is working. The classification setting is convenient for the cleaning and disinfection of the equipment, and the scales 10 set on the outer surfaces of the cleaning liquid tank 5 and the water tank 6 can observe the internal liquid situation in daily use, which is convenient for adding liquid and avoids the occurrence of the liquid during use. Insufficient fluids occur.

In Figures 2 and 3: the soaking tank 103 can collect hot water and sterilizing liquid during the sterilization process, so that it can be used. The lifting motor 8 controls the hook plate 102 to slide on the chute 101, and the equipment is placed in the collecting hot water. One end of the soaking tank 103 is soaked for a period of time to ensure the effect of cleaning and sterilization. The UV lamp 104 can use ultraviolet rays to sterilize the instrument, thereby ensuring the effect of disinfection and sterilization.

The working principle of the present utility model is as follows: eyewash cups, dressing forceps, etc. are included in ophthalmic care, hooks or clamps can be connected to the front end of the hook plate 102, and the instruments used in ophthalmic surgery are placed on the hook plate 102. , close the sealed door panel 2, use the control panel 4 to control the heating wire 601 to heat the water inside the water tank 6, when cleaning the metal material, heat the water to boiling, and use the flushing nozzle 501 to first spray the hot water on the under test. When the equipment is installed, the purpose of cleaning and sterilizing the device is achieved first. The rinsed water flows into the soaking tank 103 and is collected. The lifting motor 8 controls the hook plate 102 to slide on the chute 101, and the equipment is placed in the soaking tank for collecting hot water. Soak one end of time in 103 to ensure the effect of cleaning and sterilization. After the sterilization is completed, the water in the soaking tank 103 is drained to the interior of the liquid accumulation tank 7, and then the control panel 4 is used to control the cleaning liquid tank 5 to remove the cleaning liquid, Special disinfection liquid such as alcohol is sprayed from the flushing nozzle 501 to freshen and sterilize the equipment for the second time. Similarly, continue to use the lifting motor 8 to control the hook plate 102 to slide on the chute 101, and place the equipment in the immersion collecting cleaning liquid. One end of the tank 103 is soaked for a period of time. After soaking for a certain period of time, the chute 101 is controlled to rise, and the external fan 105 is used to control the effect of drying the instrument. The sterilization effect of the instruments is ensured to ensure the effect of disinfection and sterilization.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. The technical solution of the utility model and its utility model concept are equivalently replaced or changed, and should be covered within the protection scope of the present utility model.

Claims (7)

1. A cleaning and drying device for eye care, comprising a cleaning box (1), characterized in that a cleaning liquid tank (5) is installed on the upper surface of the cleaning box (1), and the cleaning liquid tank (5) One side of the cleaning box (1) is installed with a water tank (6) on the upper surface, and scales (10) are provided on the outer sides of the water tank (6) and the cleaning liquid tank (5). The cleaning box (1) ) is installed with a soaking tank (103), and the inner side wall of the cleaning box (1) is provided with a chute (101), and a hook plate (102) is installed inside the chute (101). (5) The lower end of the water tank (6) is located inside the cleaning box (1) and is connected with a flushing nozzle (501), and both sides of the flushing nozzle (501) are located inside the cleaning box (1) with UV lamps installed (104), a fan (105) is installed on one side of the cleaning box (1), and a liquid accumulation tank (7) is installed on the rear surface of the cleaning box (1). 2 . The cleaning and drying device for eye care according to claim 1 , wherein a heating wire ( 601 ) is arranged inside the water tank ( 6 ), and a front surface of the cleaning box ( 1 ) is installed on the front surface. 3 . There is a sealing door panel (2), and a control panel (4) is installed on the front surface of the cleaning box (1) on one side of the sealing door panel (2). 3. A cleaning and drying device for eye care according to claim 2, characterized in that a hinge (9) is installed at the connection between the sealing door panel (2) and the cleaning box (1), and the sealing door panel is An observation window (3) is provided in the middle of (2), and a lift motor (8) is installed on one side of the cleaning box (1). 4 . The cleaning and drying device for eye care according to claim 3 , wherein the observation window ( 3 ) is made of tempered glass, and the sealing door ( 2 ) passes through the cleaning box ( 1 ). 5 . The hinge (9) is rotatably connected, and the lift motor (8) is electrically connected with the cleaning box (1). 5 . The cleaning and drying device for eye care according to claim 2 , wherein the control panel ( 4 ) is electrically connected to the heating wire ( 601 ), and the inner side wall of the sealing door panel ( 2 ) is electrically connected. 6 . Gaskets are installed. 6 . The cleaning and drying device for eye care according to claim 1 , wherein the rinsing nozzle ( 501 ) is in a through connection with the water tank ( 6 ) and the cleaning liquid tank ( 5 ), and the soaking tank ( 103) Connect with the fluid accumulation tank (7) through a pipeline. 7. The cleaning and drying device for eye care according to claim 1, wherein the hook plate (102) is slidably connected to the chute (101), and the UV lamp (104) is connected to an external power supply, The fan (105) is connected to an external fan.
