Abstract

The utility model discloses a new-type material bedside frame that is firmly fixed, comprising an installation block, a bedside frame main body and an extension plate. The upper end of the installation block is welded with a bedside frame main body, and the left and right sides of the bedside frame main body are provided with extension plates. The left and right sides of the main body of the bedside frame are connected with the extension board through the telescopic device, and the extension board is provided with a clasp device inside. The utility model pulls the baffle, the baffle rotates through the first rotating shaft, the first rotating shaft moves out from the extension plate, and then the first sleeve is pulled, the first sleeve rotates through the second rotating shaft, the first sleeve and the second The sleeve rod is moved out from the limit slot to improve the variety of use of the device. At the same time, by pressing the first button, the first button is moved out from the circular hole opened on the surface of the second sleeve, and then the first sleeve rod is pulled through the extension plate to move. , so that the distance between the main body of the bedside frame and the first set of rods can be adjusted, and the use range of the device is improved.

Description

A new type of material bedside frame that is firmly fixed

technical field

The technical field of the bedside frame of the utility model is in particular a new-type material bedside frame that is firmly fixed.

Background technique

A bedside frame is generally installed next to a hospital bed. The patient is intercepted by the bedside frame to prevent the patient from falling, and the bedside frame is used as a handle to assist in getting up and standing. The existing bedside frame can already meet the daily needs. Requirements have been used, but there are still some shortcomings that need to be improved.

When the existing bedside frame is in use, it is generally arranged on both sides of the hospital bed to prevent the patient from turning over and falling from the hospital bed to the ground when sleeping at night, and the bedside frame can be used as a support, which is convenient for the patient to turn over or sit up, so that the bedside can be easily turned over. The use of the frame is relatively simple, so a new material bedside frame with firm fixing is urgently needed to solve the above problems.

Utility model content

The purpose of the present invention is to provide a new material bedside frame with firm fixing, so as to solve the problem that the use range of the bedside frame proposed in the above-mentioned background art is relatively simple.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a firmly fixed new material bedside frame, comprising an installation block, a bedside frame main body and an extension plate, the upper end of the installation block is welded with a bedside frame main body, and the bedside frame main body is welded. Extension plates are arranged on the left and right sides, the left and right sides of the bedside frame main body are connected with the extension plates by means of telescopic devices, and the extension plate is provided with a clasp device inside.

Preferably, the telescopic device includes a first set of rods, a first button, a second sleeve, a second spring groove and a second spring, and the second sleeves are embedded in the left and right sides of the bedside frame body, and the four A first set of rods are embedded in the second sleeves, and a second spring groove is welded on the inner side of the first set of rods, and a second spring is arranged in the second spring groove, and the front surface of the second spring is The first button and the reverse side are welded with a first button, and the first button penetrates one side of the second sleeve, and an extension plate is welded on the outer side of the first sleeve rod.

Preferably, the flapping device includes a first rotating shaft, a baffle plate, a limiting groove, a first spring groove, a second button, a second rotating shaft, a first spring, a first sleeve and a second set of rods. A rotating shaft is welded to the upper end of the inner wall of the extension plate, the two sets of extension plates pass through the upper end of the baffle plate, the middle of the baffle plate is provided with a limiting groove, and the lower end of the inner wall of the limiting groove is welded with a second rotating shaft, and the second rotating shaft Passing through the bottom end of the first sleeve, a first spring is arranged inside the first sleeve, one end of the first spring is welded to the first sleeve, and the other end of the first spring is welded to the first spring groove Above, the first spring groove is provided with a fixing device, the upper end of the first spring groove is welded with a second set of rods, and the second set of rods passes through the upper end of the first sleeve, and the top of the second set of rods is connected to the limiter. Bit slot fit.

Preferably, the fixing device includes a third spring and a second button, the third spring is arranged inside the first spring groove, the front and back sides of the third spring are welded with a second button, and the second button penetrates through One side of the first spring slot and the second button.

Preferably, both the first spring groove and the surface of the first sleeve are provided with circular holes, and the diameter of the inner wall of the circular hole formed on the surface of the first spring groove and the first sleeve is equal to the diameter of the surface of the second button.

Preferably, through holes are formed on the surface of the second sleeve, and the diameter of the inner wall of the through hole formed on the surface of the second sleeve is equal to the diameter of the surface of the first button.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The new material bedside frame with firm fixing is provided with a limiting slot, a baffle, a first rotating shaft, a second rotating shaft, a first sleeve, a first spring, a second set of rods and a second button. By pulling the baffle , the baffle plate rotates through the first rotating shaft, the first rotating shaft moves out from the extension plate, and then pulls the first sleeve, the first sleeve rotates through the second rotating shaft, and the first sleeve and the second sleeve rod are removed from the limiting groove. Move out, the first spring pushes the second set of rods to move, and at the same time the second button is inserted into the circular hole opened on the surface of the first sleeve to fix the second set of rods, through the second set of rods, the first sleeve and the second shaft The limit groove is supported to facilitate the patient to place the leg on the surface of the limit groove, thereby improving the versatility of the device.

2. The new material bedside frame with firm fixing is provided with a first set of rods, a first button and a second spring. By pressing the first button, the first button is moved out from the circular hole opened on the surface of the second sleeve, Then pull the first set of rods to move through the extension plate to adjust the distance between the bedside frame body and the first set of rods. When the first set of rods moves to a suitable position, push the first button through the second spring, and the The button is inserted into the round hole opened on the surface of the second sleeve to fix the position of the extension plate, which facilitates the adjustment of the distance between the extension plate and the first set of rods, prolongs the usable area of the device, and improves the usable range of the device.

Description of drawings

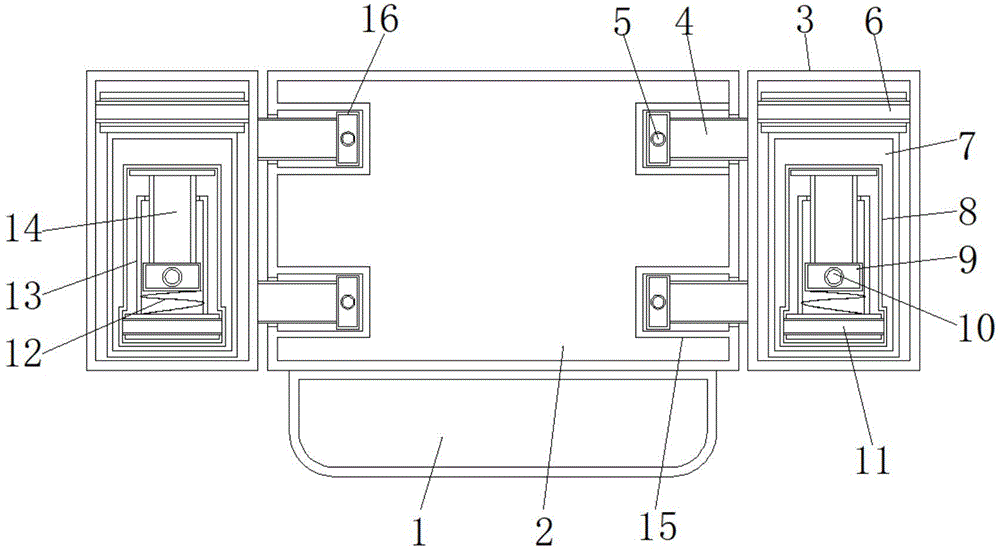

Fig. 1 is the front view sectional structure schematic diagram of the present utility model;

Fig. 2 is the side view sectional structure schematic diagram when the baffle plate of the present invention is in use;

Fig. 3 is the enlarged structural schematic diagram of the place A in Fig. 2 of the utility model;

FIG. 4 is a schematic top-view cross-sectional structural diagram of the sleeve rod and the sleeve of the present invention.

In the figure: 1. Installation block; 2. Main body of bedside frame; 3. Extension plate; 4. First set of rods; 5. First button; 6. First shaft; 7. Baffle plate; 8. Limit slot; 9, the first spring groove; 10, the second button; 11, the second shaft; 12, the first spring; 13, the first sleeve; 14, the second set of rods; 15, the second sleeve; 16, the second Spring groove; 17, second spring; 18, third spring.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, an embodiment provided by the present utility model:

A bedside frame of new type material that is firmly fixed, comprising a mounting block 1, a bedside frame main body 2 and an extension plate 3, the upper end of the installation block 1 is welded with a bedside frame main body 2, and the left and right sides of the bedside frame main body 2 are provided with extension plates 3. The left and right sides of the bedside frame main body 2 are connected to the extension plate 3 through a telescopic device. The telescopic device includes a first set of rods 4, a first button 5, a second sleeve 15, a second spring groove 16 and a second spring 17. The second sleeves 15 are embedded in the left and right sides of the bedside frame body 2 , and the first sleeve rods 4 are embedded in the four sets of the second sleeves 15 , and the second spring grooves 16 are welded on the inner side of the first sleeve rods 4 . A second spring 17 is arranged in the second spring groove 16 , the front and back of the second spring 17 are welded with the first button 5 , and the first button 5 penetrates one side of the second sleeve 15 , and the surface of the second sleeve 15 is welded. Both are provided with through holes. The diameter of the inner wall of the through hole opened on the surface of the second sleeve 15 is equal to the diameter of the surface of the first button 5. When the first sleeve rod 4 drives the second spring groove 16 to move, the second spring groove 16 drives The first button 5 moves, when the first button 5 moves to the through hole opened on the surface of the second sleeve 15, the elastic deformation of the second spring 17 is restored, and the first button 5 is inserted into the through hole opened on the surface of the second sleeve 15, The extension plate 3 is fixed, and the extension plate 3 is welded on the outside of the first set of rods 4 .

The extension plate 3 is provided with a flap device. The flap device includes a first rotating shaft 6, a baffle plate 7, a limit slot 8, a first spring slot 9, a second button 10, a second rotating shaft 11, a first spring 12, a first A sleeve 13 and a second set of rods 14, the first rotating shaft 6 are welded to the upper end of the inner wall of the extension plate 3, the two sets of extension plates 3 pass through the upper end of the baffle plate 7, and the middle of the baffle plate 7 is provided with a limit slot 8, the limit slot 8. The lower end of the inner wall is welded with a second rotating shaft 11, and the second rotating shaft 11 penetrates the bottom end of the first sleeve 13. The first sleeve 13 is provided with a first spring 12, and one end of the first spring 12 is welded to the first sleeve 13. , the other end of the first spring 12 is welded on the first spring groove 9, the first spring groove 9 is provided with a fixing device, and the fixing device includes a third spring 18 and a second button 10, and the third spring 18 is arranged in the first spring 18. Inside the spring groove 9, the front and back sides of the third spring 18 are welded with a second button 10, and the second button 10 runs through the first spring groove 9 and one side of the second button 10, the first spring groove 9 and the first sleeve The surface of 13 is provided with circular holes, and the diameter of the inner wall of the circular hole opened on the surface of the first spring groove 9 and the first sleeve 13 is equal to the diameter of the surface of the second button 10. When the first spring 12 pushes the first spring groove 9 to move, The first spring groove 9 moves in the first sleeve 13, so that the first spring groove 9 drives the second button 10 to move. When the second button 10 moves the circular hole formed on the surface of the first sleeve 13, the third spring 18 is elastic When the deformation is restored, the third spring 18 pushes the second button 10 to move, so that the second button 10 is inserted into the first spring groove 9 and the circular hole opened on the surface of the first sleeve 13, and the second sleeve rod 14 is fixed, and the first spring The upper end of the slot 9 is welded with a second set of rods 14 , and the second set of rods 14 passes through the upper end of the first sleeve 13 , and the top of the second set of rods 14 is fitted with the limiting groove 8 .

Working principle: When it is necessary to increase the shielding area, first press the first button 5, the first button 5 squeezes the second spring 17, the second spring 17 is elastically deformed, and the first button 5 enters the second spring groove 16, And the first button 5 moves from the circular hole opened on the surface of the second sleeve 15. When the first button 5 moves out of the circular hole opened on the surface of the second sleeve 15, the extension plate 3 is pulled again, and the extension plate 3 drives the first button 5. When the set of rods 4 moves, the first set of rods 4 drives the second spring groove 16 to move in the second sleeve 15. When the extension plate 3 moves to the proper position, the elastic deformation of the second spring 17 is restored, and the second spring 17 pushes the first When a button 5 moves, the first button 5 is removed from the second spring groove 16, and the first button 5 is inserted into the round hole opened on the surface of the second sleeve 15 to fix the first button 5 and improve the use range of the device.

When the limit slot 8 needs to be used, first pull the baffle 7, the top of the baffle 7 rotates through the first rotating shaft 6, so that the baffle 7 rotates 90°, when the baffle 7 rotates 90°, then pull the second The sleeve rod 14 and the second sleeve rod 14 drive the first sleeve 13 to move, so that the first sleeve 13 rotates through the second rotating shaft 11 , and the first sleeve 13 and the second sleeve rod 14 are moved out of the limiting groove 8 , when the first sleeve 13 and the second sleeve rod 14 are removed from the limiting groove 8, the elastic deformation of the first spring 12 is restored, the first spring 12 pushes the first spring groove 9 to move, and the first spring groove 9 drives the second The sleeve rod 14 moves to move the second sleeve rod 14 out of the first sleeve 13 , and the first spring groove 9 drives the second button 10 to move. When the second button 10 moves to the circular hole opened on the surface of the first sleeve 13 After that, the elastic deformation of the third spring 18 is restored, and the third spring 18 pushes the second button 10 to move, so that the second button 10 is inserted into the round hole opened on the surface of the first sleeve 13, and the second sleeve rod 14 is fixed, so that the first The two sets of rods 14 , the first sleeve 13 and the second rotating shaft 11 support the limiting slot 8 , so that patients with leg injuries can place their legs on the baffle plate 7 .

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A bedside frame of a new type that is firmly fixed, comprising a mounting block (1), a bedside frame main body (2) and an extension plate (3), the upper end of the mounting block (1) is welded with a bedside frame main body (2), The left and right sides of the bedside frame main body (2) are provided with extension plates (3), characterized in that: the left and right sides of the bedside frame main body (2) are connected with the extension plates (3) through telescopic devices, and the extension plates ( 3) The interior is provided with a cladding device. 2 . The firmly fixed new material bedside frame according to claim 1 , wherein the telescopic device comprises a first set of rods ( 4 ), a first button ( 5 ), a second sleeve ( 15 ). 3 . ), a second spring groove (16) and a second spring (17), the second sleeves (15) are embedded in the left and right sides of the bedside frame body (2), and four sets of the second sleeves ( 15) A first set of rods (4) are embedded in the first set of rods (4), and second spring grooves (16) are welded on the inside of the first set of rods (4), and a second spring is provided in the second spring grooves (16). (17), the front and back sides of the second spring (17) are welded with a first button (5), and the first button (5) penetrates one side of the second sleeve (15), and the first sleeve (4) Extension plates (3) are welded on the outside. 3. A kind of firmly fixed new material bedside frame according to claim 1, it is characterized in that: described clasp device comprises first rotating shaft (6), baffle plate (7), limit groove (8), a first spring groove (9), a second button (10), a second shaft (11), a first spring (12), a first sleeve (13) and a second sleeve (14), the first shaft (6) are welded to the upper end of the inner wall of the extension plate (3), the two sets of extension plates (3) all pass through the upper end of the baffle plate (7), and the middle of the baffle plate (7) is provided with a limiting groove (8), so The lower end of the inner wall of the limiting groove (8) is welded with a second rotating shaft (11), and the second rotating shaft (11) penetrates the bottom end of the first sleeve (13), and the first sleeve (13) is internally provided with a first rotating shaft (11). A spring (12), one end of the first spring (12) is welded on the first sleeve (13), the other end of the first spring (12) is welded on the first spring groove (9), the A fixing device is arranged inside the first spring groove (9), a second sleeve rod (14) is welded on the upper end of the first spring groove (9), and the second sleeve rod (14) passes through the first sleeve (13) At the upper end, the top end of the second set of rods (14) is fitted with the limiting groove (8). 4. A new-type material bedside frame with firm fixing according to claim 3, characterized in that: the fixing device comprises a third spring (18) and a second button (10), and the third spring (18) ) is arranged inside the first spring groove (9), the front and back of the third spring (18) are welded with a second button (10), and the second button (10) penetrates the first spring groove (9) and The second button (10) side. 5. A kind of firmly fixed new material bedside frame according to claim 4 is characterized in that: the surface of the first spring groove (9) and the first sleeve (13) are both provided with circular holes, and the surface of the first spring groove (9) and the first sleeve (13). The diameter of the inner wall of the circular hole formed on the surface of the first spring groove (9) and the first sleeve (13) is equal to the diameter of the surface of the second button (10). 6 . The firmly fixed new material bedside frame according to claim 2 , characterized in that: the surface of the second sleeve (15) is provided with through holes, and the surface of the second sleeve (15) is provided with through holes. 7 . The diameter of the inner wall of the opened through hole is equal to the diameter of the surface of the first button (5).
