Abstract

The utility model proposes a disposable saliva towel, comprising a saliva towel body, the saliva towel body comprising a contact surface layer, a water-absorbing outer layer, a polymer water-absorbing layer and a leak-proof bottom layer sequentially stacked from outside to inside; the saliva towel body is further provided with There is a plastic skeleton that adjusts the shape of the saliva towel. The main body of the saliva towel is provided with a neck guard, and the neck guard is provided with an elastic band. The main body of the saliva towel of the utility model can be wrapped around the neck or attached to the clothes, and the neck guards are fitted with the baby's neck through the elastic band to prevent the saliva from slipping down the neck and soaking the clothes. The absorbent outer layer is used to keep the user's skin dry; the polymer absorbent layer prevents a large amount of drool from soaking the baby's clothes, and instantly absorbs and locks the drool. People change the shape of the disposable saliva towel by deforming the plastic skeleton, so that the disposable saliva towel of the present utility model can be adjusted according to the contours of different babies, and can be adapted to babies of different sizes.

Description

Disposable saliva towel

technical field

The utility model belongs to the technical field of daily necessities, in particular to a disposable saliva towel.

Background technique

The saliva towel is a daily necessities commonly used by infants and young children in daily life. Of course, the elderly and the sick and disabled can also use saliva towels, which are similar to children's saliva pockets or bibs.

The saliva towel on the market is usually made of cotton or other fabrics with water-absorbing function. After each use, this type of saliva towel needs to be washed and dried, which is very troublesome; and this type of saliva towel can only protect a small amount of water. When the amount of saliva is large, it will still be wet from the outermost layer to the innermost layer, thus dipping the baby's clothes. If the baby's clothes are not handled in time, the baby's resistance is poor, and the baby is very likely to catch a cold. As a result, disposable saliva towel has appeared, but the existing disposable saliva towel cannot be adjusted according to the outline of the baby, the sticking width is poor, and the use experience is poor.

Utility model content

The purpose of the utility model is to solve the technical problems existing in the prior art, and the purpose of the utility model is to provide a disposable saliva towel to solve the problem.

In order to achieve the above purpose, the present utility model adopts the following technical solutions: a disposable saliva towel includes a saliva towel body, and the saliva towel body includes a contact surface layer, a polymer water-absorbing layer and a leak-proof bottom layer that are sequentially stacked from outside to inside; the saliva towel The main body is also provided with a plastic skeleton for adjusting the shape of the saliva towel.

In the above technical solution, the polymer water-absorbing layer has a large water absorption capacity, which can prevent a large amount of saliva from soaking the baby's clothes; and can instantly absorb the saliva and lock the saliva; of course, it can also prevent the baby from overflowing and wetting the clothes during breastfeeding. By deforming the plastic skeleton, the shape of the disposable saliva towel can be changed, so that the disposable saliva towel of the present invention can be adjusted according to the contours of different babies and adapted to babies of different sizes.

In a preferred embodiment of the present invention, the main body of the saliva towel can be wrapped around the neck or attached to clothing. Wrapped around the neck, the disposable saliva towel is a bib.

In a preferred embodiment of the present invention, the main body of the saliva towel is connected with a neckband, and a through hole for accommodating the neck is formed between the main body of the saliva towel and the neckband;

Or the main body of the saliva towel is connected with the clothes, and the upper part of the main body of the saliva towel is provided with a notch matching the neck.

In a preferred embodiment of the present invention, a water-absorbing outer layer is further provided between the contact surface layer and the polymer water-absorbing layer. The water-absorbing outer layer can quickly leave the saliva from the user's skin and the contact surface layer of the main body of the saliva towel, so as to keep the user's skin dry, thereby improving the comfort of use.

In a preferred embodiment of the present invention, the plastic skeleton is embedded in the main body of the saliva towel, or located outside the saliva towel, and is fixed on the leak-proof bottom layer.

In another preferred embodiment of the present invention, the main body of the saliva towel is provided with neck guards. Neck flaps protect the baby's neck and improve comfort.

In another preferred embodiment of the present invention, the neck guard is provided with an elastic band. The neck flaps fit the baby's neck with an elastic band, preventing saliva from slipping down the neck and soaking the clothes.

In another preferred embodiment of the present invention, one or both ends of the scarf band is detachably connected to the saliva towel body; when one end of the scarf band is detachably connected to the saliva towel body, the other end of the scarf band is detachably connected to the saliva towel body. Fixed connection.

When in use, one or both ends of the scarf band is separated from the main body of the saliva towel, so that people can wear the disposable saliva towel on the baby's neck, and the use is more convenient.

In another preferred embodiment of the present utility model, the scarf band and the main body of the saliva towel are detachably connected by means of Velcro;

The main body of the saliva towel is provided with a velcro thorn part, and the scarf band is made of a velcro thorn matched with the velcro thorn part; Made of velcro thorns that match the hair.

The Velcro has a simple structure and is easy to operate.

In another preferred embodiment of the present invention, the plastic skeleton is in a "U" shape. Compared with the "one" shape, the "U" shape has a longer plastic skeleton and a wider range of adjustment.

The beneficial effects of the above technical solutions are: additional aspects and advantages of the present invention will be partially given in the following description, and some will become apparent from the following description, or learned through the practice of the present invention.

Description of drawings

The above and/or additional aspects and advantages of the present invention will become apparent and readily understood from the following description of embodiments in conjunction with the accompanying drawings, wherein:

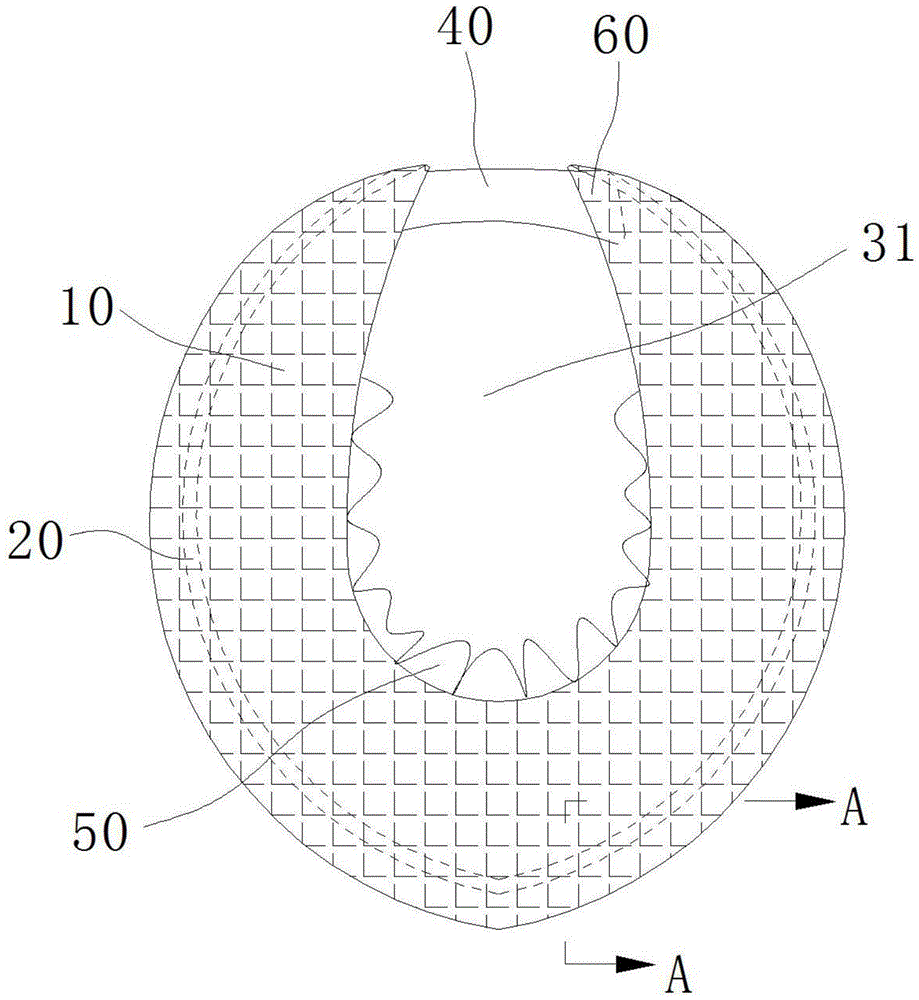

FIG. 1 is a schematic structural diagram of a disposable saliva towel according to Embodiment 1 of the present application.

FIG. 2 is an enlarged cross-sectional view taken along line A-A in FIG. 1 .

FIG. 3 is a schematic diagram of wrapping the disposable saliva towel of Embodiment 1 around the neck of an infant.

FIG. 4 is a schematic structural diagram of the disposable saliva towel according to the second embodiment of the present application.

The reference signs in the accompanying drawings include: saliva towel body 10 , contact surface layer 11 , water-absorbing outer layer 12 , polymer water-absorbing layer 13 , leak-proof bottom layer 14 , plastic skeleton 20 , through hole 31 , notch 32 , neckband 40 , Neck wing 50, elastic band 51, Velcro 60, adhesive 70.

Detailed ways

The following describes in detail the embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary and are only used to explain the present invention, but should not be construed as a limitation of the present invention.

In the description of the present invention, it should be understood that the terms "portrait", "horizontal", "vertical", "upper", "lower", "front", "rear", "left" and "right" , "vertical", "horizontal", "top", "bottom", "inside", "outside" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the accompanying drawings, only for the convenience of describing the present utility The novel and simplified description does not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as limiting the invention.

In the description of the present invention, unless otherwise specified and limited, it should be noted that the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a mechanical connection or an electrical connection, or it may be a The internal communication between the two elements may be directly connected or indirectly connected through an intermediate medium, and those of ordinary skill in the art can understand the specific meanings of the above terms according to specific circumstances.

Example 1

This embodiment provides a disposable saliva towel, as shown in FIG. 1 and FIG. 2 , in a preferred embodiment, it includes a saliva towel body 10 , and the saliva towel body 10 includes contacts that are sequentially stacked from outside to inside. The surface layer 11 , the polymer water-absorbing layer 13 and the anti-leakage bottom layer 14 ; the main body 10 of the saliva towel is also provided with a plastic skeleton 20 for adjusting the shape of the saliva towel. The contact surface layer 11 and the leak-proof bottom layer 14 wrap the polymer water-absorbing layer 13 inside the saliva towel body 10 .

In this embodiment, the plastic frame 20 is made of a bendable steel sheet or aluminum sheet, and the plastic frame 20 is in a "U" shape. The plastic skeleton 20 is embedded inside the saliva towel body 10 , or the plastic skeleton 20 is located outside the saliva towel and is fixed on the leak-proof bottom layer 14 . Preferably, the plastic skeleton 20 is embedded in the main body 10 of the saliva towel, for example, between the polymer water-absorbing layer 13 and the leak-proof bottom layer 14, so as not to be in contact with the skin, which is safer.

In this embodiment, the contact surface layer 11 may be a non-woven fabric layer, or woven from physical antibacterial fibers and ES fibers (such as the material of the contact surface layer disclosed in CN201711471033.4). The polymer water-absorbing layer 13 is made of a polymer water-absorbing resin such as acrylic. The leak-proof bottom layer 14 is made of PE film material, or cast film material, or a release paper layer.

As shown in FIG. 1 and FIG. 3 , in this embodiment, the saliva towel body 10 can be encircled around the neck, the saliva towel body 10 is connected with a neckband 40 , and a neck accommodating neck is formed between the saliva towel body 10 and the neckband 40 . through hole 31. For example, the saliva towel is wrapped around the baby's neck, and the baby's neck is located in the through hole 31 . Then people deform the plastic skeleton 20 to adjust the shape of the saliva towel, so that the contact surface layer 11 fits the baby's face and chin to suit babies of different sizes. The neckband 40 can prevent the body 10 of the saliva towel from falling off when the baby moves, so that the wearing is more secure.

The baby's saliva drips onto the contact surface layer 11 of the saliva towel body 10, and is absorbed by the polymer water-absorbing layer 13 after passing through the contact surface layer 11, and the leak-proof bottom layer 14 prevents the saliva from penetrating outside. The polymer water-absorbing layer 13 is made of water-absorbing resin, which has a large water absorption capacity, which can prevent a large amount of saliva from soaking the baby clothes; and can instantly absorb the saliva and lock the saliva.

As shown in Figure 2, in another preferred embodiment, a water-absorbing outer layer 12 is also provided between the contact surface layer 11 of the saliva towel main body 10 and the polymer water-absorbing layer 13, and the water-absorbing outer layer 12 is a bamboo charcoal fiber layer, or It is made of wood pulp cotton or bamboo pulp cotton, so that saliva can quickly leave the user's skin and the contact surface layer 11 of the main body 10 of the saliva towel, keeping the user's skin dry, thereby improving the comfort of use.

In this embodiment, due to the provision of the water-absorbing outer layer 12, the contact surface layer 11 can be made of a perforated film material or a perforated non-woven fabric layer; The spherical concave structure is the same.

As shown in FIGS. 1 and 3 , in another preferred embodiment, the body 10 of the saliva towel is provided with a neck guard 50 , the neck guard 50 is located at the through hole 31 , and the neck guard 50 is provided with an elastic band 51. The neck guard 50 can be made of non-woven fabric, and the elastic band 51 can be an elastic rubber band. The neck guard wings 50 can protect the baby's neck and improve comfort; and the neck guard wings 50 are fitted with the baby's neck through the elastic band 51 to prevent saliva from sliding down the neck and soaking the clothes.

As shown in FIG. 1 , in another preferred embodiment, one or both ends of the scarf band 40 is detachably connected to the saliva towel body 10; preferably, one end of the scarf band 40 is detachably connected to the saliva towel body 10, The other end of the saliva towel is fixedly connected with the main body 10 of the saliva towel. One end of the scarf band 40 is detachably connected to the saliva towel body 10 by means of a Velcro 60; production. Specifically, the Velcro 60 can adopt the existing diaper sticking method, which is the prior art, and will not be described in detail again.

The Velcro is provided, which is convenient for people to wear the disposable saliva towel on the neck of the baby, which is more convenient to use; and the entire scarf 40 is made of Velcro sticky hair, so that the size of the through hole 31 can be adjusted, improving the The scope of use of the disposable saliva towel can not only be used for babies, but also for the elderly and the sick and disabled.

Of course, the main body 10 of the saliva towel is also provided with a Velcro sticking portion, and the scarf band 40 is made of Velcro thorns matched with the Velcro sticking portion.

In the disposable saliva towel of this embodiment, tearing off the Velcro 60 makes one end of the neckband 40 separate from the saliva towel body 10, and then people deform the plastic skeleton 20 to unfold the whole saliva towel into strips, which are convenient for storage.

In addition to preventing the baby's saliva from getting wet on the clothes, the disposable saliva towel of this embodiment can also prevent the baby from wetting the clothes when breastfeeding and breastfeeding; especially when the baby is sleeping, the disposable saliva towel can cover the baby's face, It won't wet pillows and clothes if you spill milk or drool. Since the U-shaped plastic frame 20 is used, there is no need to use the Velcro 60 when sleeping, and only the opening of the plastic frame 20 needs to be shaped inward by hand, and the disposable saliva towel can gently lean against the baby's neck and not fall off. .

Embodiment 2

The structural principle of this embodiment is basically the same as that of the first embodiment, the difference is that in this embodiment, the neckband 40 is not provided, and the saliva towel body 10 can be attached to the clothes. Specifically, as shown in FIG. 4 , in this embodiment, the saliva towel body 10 is in a “U” shape, and the saliva towel body 10 is connected to the clothing. It is hot melt adhesive, and the bottom of the adhesive 70 is covered with release paper; the main body 10 of the saliva towel is provided with a gap 32 that matches the neck, the gap 32 is also provided with a neck guard 50, and the neck guard 50 is provided with an elastic band 51.

When in use, the gap 32 is matched with the baby's neck, the neck guard 50 is fitted with the baby's neck through the elastic band 51, and then the saliva towel is directly adhered to the user's clothes after tearing off the release paper; The frame 20 is deformed to change the shape of the saliva towel body 10 so that the saliva towel body 10 fits under the baby's chest and jaw.

It should be pointed out that the disposable saliva towel of the present invention can be used not only for infants, but also for the elderly and the sick and disabled while eating.

In the description of this specification, reference to the terms "preferred embodiment", "one embodiment", "some embodiments", "example", "specific example" or "some examples" or the like is meant to be combined with the description of the embodiment A particular feature, structure, material, or characteristic described or exemplified is included in at least one embodiment or example of the present invention. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention. Variations, the scope of the present invention is defined by the claims and their equivalents.

Claims (10)

1. Disposable saliva towel, is characterized in that, comprises saliva towel main body, and described saliva towel main body comprises contact surface layer, macromolecule water-absorbing layer and anti-leakage bottom layer arranged successively from outside to inside; A plastic skeleton is provided to adjust the shape of the saliva towel. 2 . The disposable saliva towel according to claim 1 , wherein the main body of the saliva towel can be wrapped around the neck or attached to clothes. 3 . 3. The disposable saliva towel according to claim 2, wherein the main body of the saliva towel is connected with a bib band, and a through hole for accommodating the neck is formed between the main body of the saliva towel and the bib band; Or the main body of the saliva towel is connected with the clothes, and the upper part of the main body of the saliva towel is provided with a notch matching the neck. 4. The disposable saliva towel according to claim 1, wherein a water-absorbing outer layer is further provided between the contact surface layer and the polymer water-absorbing layer. 5 . The disposable saliva towel according to claim 1 , wherein the plastic skeleton is embedded in the main body of the saliva towel, or located outside the saliva towel and fixed on the leak-proof bottom layer. 6 . 6 . The disposable saliva towel according to claim 1 , wherein a neck guard is provided on the main body of the saliva towel. 7 . 7. The disposable saliva towel according to claim 6, wherein the neck guard is provided with an elastic band. 8. The disposable saliva towel according to claim 3, wherein one end or both ends of the scarf band is detachably connected to the saliva towel body; one end of the scarf band is detachable from the saliva towel body. When disassembling and connecting, the other end of the scarf band is fixedly connected with the main body of the saliva towel. 9. The disposable saliva towel according to claim 8, wherein the scarf band and the saliva towel main body are detachably connected by means of Velcro; The main body of the saliva towel is provided with a velcro thorn part, and the neckband is made of a velcro thorn matched with the velcro thorn part; or the main body of the saliva towel is provided with a velcro thorn part and the scarf band is made of velcro bristles matched with the velcro sticking part. 10. The disposable saliva towel according to any one of claims 1-7, wherein the plastic skeleton is in a "U" shape.
