Abstract

The utility model discloses a novel temperature control cabinet, comprising a cabinet body of a protection device and a cabinet door used for dust-proof sealing. The cabinet door is movably installed on the front of the cabinet body by being provided with hinges; Brush rods, drive rod cabinet locks, sealing strips and rotating motors, and the cooling ports include rotating blades and fans. This new type of temperature control cabinet has a simple structure. The cabinet body and the fixed plate are connected by a linear guide motor and a sliding plate, so that it can be lifted and lowered remotely and intelligently under the control of the processor, avoiding damage to poultry breeding and reducing the temperature at the same time. Adjust the temperature and humidity and the safety hazard of climbing up and down during maintenance; the sealing strip is used to prevent the entry of dust and the multi-layer dust of the air inlet, so that the service life of the circuit board and the processor inside the device is protected; the processor makes the device It can be connected to the Internet so that users can know the temperature and humidity around the temperature cabinet and the breeding plant at any time, so as to remotely adjust intelligently, which is convenient and simple.

Description

A new type of temperature control cabinet

technical field

The utility model relates to the technical field of temperature control cabinets, in particular to a novel temperature control cabinet.

Background technique

The control cabinet is to assemble switchgear, measuring instruments, protective appliances and auxiliary equipment in a closed or semi-closed metal cabinet according to the electrical wiring requirements, while the temperature control cabinet is used to detect the ambient temperature, and an alarm is issued to notify personnel to carry out Adjustment, widely used in industry, breeding industry and people's daily life, etc. In the breeding industry, the temperature control cabinet is generally installed relatively high to prevent the poultry from being damaged, which makes it not very convenient to adjust the temperature and humidity. Activities and people's walking lead to a large amount of dust, which makes it easy for dust to enter the cabinet, resulting in the aging of electrical components and lines and reducing the service life. Therefore, we have improved this and proposed a new type of temperature control cabinet.

Utility model content

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

The utility model relates to a novel temperature control cabinet, comprising a cabinet body of a protection device and a cabinet door used for dust-proof sealing. screen, brush rod, drive rod cabinet lock, sealing strip and rotating motor, the side of the cabinet body is installed with an air inlet, a heat dissipation port and a temperature and humidity sensor, the heat dissipation port includes a rotating blade and a fan, the cabinet body The front and top of the cabinet are provided with warning lights, the back of the cabinet is provided with a fixed plate and a sliding plate, the bottom of the cabinet is provided with a filter screen and a dust storage bin, the middle of the cabinet is provided with a circuit board, and the cabinet is provided with a circuit board. The top of the body is provided with a processor and a speaker.

As a preferred technical solution of the present invention, the cabinet is made of stainless steel metal material and has a rectangular design, a plurality of sets of screw holes are arranged on both sides of the fixing plate to be fixedly installed on the wall, and the fixing plate is A linear guide motor is installed vertically in the middle of the sliding plate, the front of the sliding plate is fixedly installed on the middle of the back of the cabinet by screws, the back of the sliding plate is fixed and installed on the surface of the linear guide motor, and the fixed plate is installed on the surface of the linear guide motor. The guide rail motor and the sliding plate are connected with the cabinet drive.

As a preferred technical solution of the present invention, the display screen is fixedly embedded and installed at the bottom of the cabinet door, the rotating motor is fixedly installed on the back of the cabinet door and located at the top center of the display screen, and the transmission rod penetrates through the cabinet The door is drivingly connected with a brush rod, the brush rod is made of a brush and a rubber rod, and one side of the brush is attached to the surface of the display screen, and the display screen and the rotating motor are electrically connected to the circuit board and the processor through wires.

As a preferred technical solution of the present invention, the cabinet lock is installed through the middle side of the cabinet door, the sealing strip is attached and installed on the inner wall edge of the cabinet door, and the warning light is fixed and embedded in the shape of a long strip. Installed on the front top of the cabinet and electrically connected to the processor, the temperature and humidity sensors are provided in two groups and are respectively installed in the middle of the inner wall and the bottom of the outer wall of the cabinet, and the temperature and humidity sensors are electrically connected to the processor.

As a preferred technical solution of the present invention, the two ends of the circuit board are fixedly installed in the middle of the cabinet through brackets and are electrically connected to the processor, and the processor is fixedly installed on the cabinet by means of a frame. In the center of the top, a wireless module and an information storage module are arranged inside the processor, and two sets of speakers are arranged and are fixedly installed on both sides of the processor to be electrically connected with it.

As a preferred technical solution of the present invention, the air inlet is fixedly installed on the side bottom of the cabinet, the air inlet is provided with a dust-proof gauze, and the surface of the dust storage bin is provided with a handle and It is movably connected with the inner wall of the bottom of the cabinet, the surface of the filter screen is provided with a metal frame support, and the filter screen is fixedly installed on the top of the air inlet and located between the dust storage bin and the circuit board.

As a preferred technical solution of the present invention, the cooling vents are symmetrically installed on both sides of the top of the cabinet, and the top of the rotating blades is cylindrically designed and provided with a drive shaft that is movably installed inside the cooling vents. The bottom of the rotating blade is designed to cooperate with the wind swing of the fan to dissipate heat and prevent dust from entering.

The beneficial effects of the utility model are as follows: the novel temperature control cabinet has a simple structure, and the cabinet body and the fixed plate are connected by a linear guide rail motor and a sliding plate, so that it can be remotely intelligently lifted and lowered under the control of the processor. It avoids damage to poultry farming and reduces the safety hazard of climbing up and down during temperature and humidity adjustment and maintenance. The multi-layer dust filter at the air inlet and the circuit board inside the device is sealed by providing a sealing strip to prevent dust from entering. The service life is protected; by being provided with a processor, the device can be connected to the Internet, so that the user can keep abreast of the temperature and humidity conditions in the temperature cabinet and the surrounding of the breeding plant, so as to remotely intelligently adjust, which is convenient and simple.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

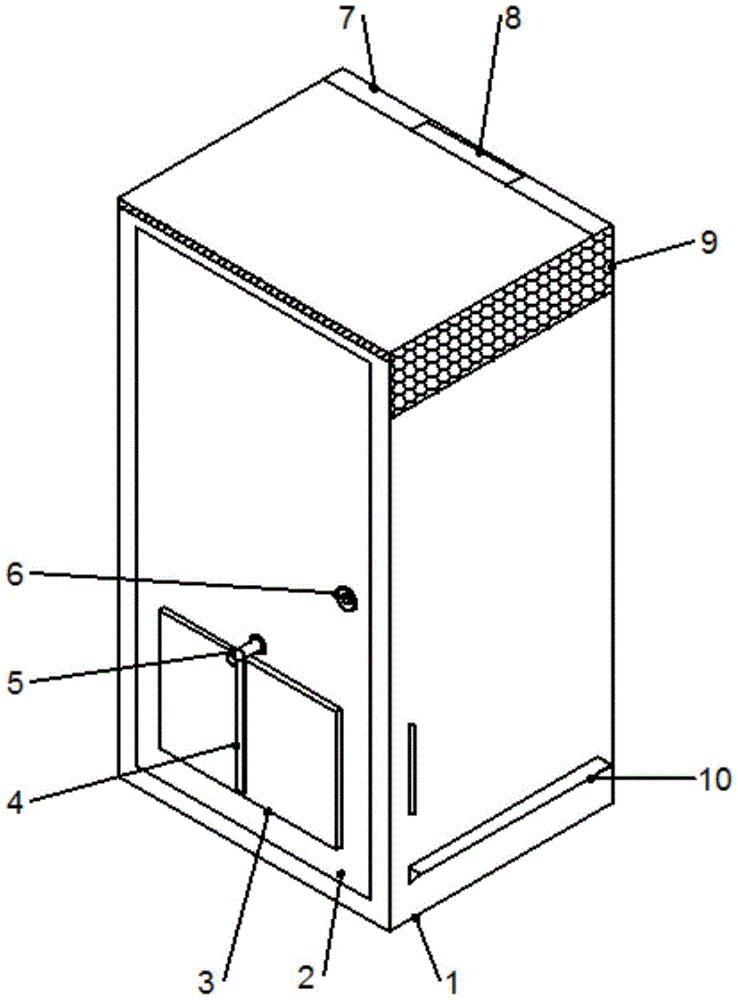

Fig. 1 is a perspective view of a novel temperature control cabinet of the present utility model;

Figure 2 is a perspective view of the open cabinet door of a novel temperature control cabinet of the present invention;

Fig. 3 is the front sectional view of the fixed plate of a novel temperature control cabinet of the present utility model;

4 is an enlarged sectional view of a heat dissipation port of a novel temperature control cabinet of the present invention.

In the figure: 1. Cabinet body; 2. Cabinet door; 3. Display screen; 4. Brush rod; 5. Rotating rod; 6. Cabinet lock; 7. Fixed plate; 8. Slide plate; Air port; 11, dust storage bin; 12, filter screen; 13, sealing strip; 14, rotating motor; 15, warning light; 16, horn; 17, processor; 18, circuit board; 19, temperature and humidity sensor; 20 , Linear guide motor; 21, rotating blade; 22, fan.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Example: As shown in Figures 1-4, a novel temperature control cabinet of the present invention includes a cabinet body 1 of a protection device and a cabinet door 2 used for dust-proof sealing. The cabinet door 2 is movably installed on the On the front of the cabinet 1, the cabinet door 2 includes a display screen 3, a brush rod 4, a transmission rod 5, a cabinet lock 6, a sealing strip 13 and a rotating motor 14. The side of the cabinet 1 is installed with an air inlet 10, a heat dissipation port 9 and The temperature and humidity sensor 19, the heat dissipation port 9 includes a rotating blade 21 and a fan 22, the front and top of the cabinet 1 is provided with a warning light 15, the back of the cabinet 1 is provided with a fixed plate 7 and a sliding plate 8, and the bottom of the cabinet 1 is provided with The filter screen 12 and the dust storage bin 11 are provided with a circuit board 18 in the middle of the cabinet 1 , and a processor 17 and a speaker 16 are provided on the top of the cabinet 1 .

Among them, the cabinet 1 is made of stainless steel metal material and has a rectangular design, a plurality of sets of screw holes are arranged on both sides of the fixing plate 7 to be fixedly installed on the wall, and a linear guide motor 20 is vertically embedded in the middle of the fixing plate 7 , the front of the sliding plate 8 is fixedly installed on the middle of the back of the cabinet 1 by screws, the back of the sliding plate 8 is fixed and installed on the surface of the linear guide motor 20, and the fixed plate 7 is connected to the cabinet 1 through the linear guide motor 20 and the sliding plate 8. , the setting of the cabinet 1 protects the internal devices.

Wherein, the display screen 3 is fixedly embedded and installed at the bottom of the cabinet door 2, the rotating motor 14 is fixedly installed on the back of the cabinet door 2 and located at the top center of the display screen 3, and the transmission rod 5 penetrates through the cabinet door 2 and is connected with the brush rod 4 for transmission, The brush rod 4 is made of a brush and a rubber rod, and one side of the brush is attached to the surface of the display screen 3. The display screen 3 and the rotating motor 14 are electrically connected to the circuit board 18 and the processor 17 through wires. The setting of the display screen 3 It is convenient to view the data of the temperature cabinet.

The cabinet lock 6 is installed through the middle side of the cabinet door 2 , the sealing strip 13 is attached and installed on the inner wall edge of the cabinet door 2 , and the warning light 15 is fixed and embedded in the front top of the cabinet body 1 in the form of a long strip. Electrically connected with the processor 17, two sets of temperature and humidity sensors 19 are provided and are respectively installed in the middle of the inner wall and the bottom of the outer wall of the cabinet 1, the temperature and humidity sensor 19 is electrically connected with the processor 17, and the sealing strip 13 is provided for protection Reduce dust entering the cabinet.

Wherein, both ends of the circuit board 18 are fixedly installed in the middle of the cabinet 1 through brackets and are electrically connected to the processor 17. The processor 17 is fixedly installed on the top center of the cabinet 1 through a frame, and the inside of the processor 17 A wireless module and an information storage module are provided. Two sets of speakers 16 are installed on both sides of the processor 17 and are electrically connected to it. The arrangement of the processor 17 enables the device to be intelligently and remotely controlled.

Among them, the air inlet 10 is fixedly installed on the side bottom of the cabinet 1, the interior of the air inlet 10 is provided with a dust-proof gauze, the surface of the dust storage bin 11 is provided with a handle and is movably connected with the inner wall of the bottom of the cabinet 1, and the filter screen The surface of 12 is provided with a metal frame support, and the filter screen 12 is fixedly installed on the top of the air inlet 10 and is located between the dust storage bin 11 and the circuit board 18. Set up multiple layers to isolate dust from entering the cabinet.

Among them, the cooling vents 9 are symmetrically installed on both sides of the top of the cabinet 1, the top of the rotating blade 21 is cylindrically designed and is provided with a transmission shaft and is movably installed inside the cooling opening 9, and the bottom of the rotating blade 21 is designed as a blade to match the fan The wind of 22 swings to dissipate heat and prevent dust from entering. The fans 22 are provided with multiple groups and are fixedly installed on the inner side of the heat dissipation port 9. The setting of the heat dissipation port 9 is used to escape the high temperature inside the cabinet 1, thereby protecting the internal processors 17 and 17. circuit board 18.

Working principle: The utility model is a new type of temperature control cabinet. When in use, firstly, the fixing plate is fixed and installed on the wall with a specified height by screws, and the sliding plate 8 is connected with the linear guide motor 20. It is fixedly installed on the sliding plate 8, and then the processor 17, the speaker 16, the circuit board 18, the filter screen 12 and the dust storage bin 11 are installed in the cabinet 1 in sequence. Mobile phones or computers are remotely connected and controlled for use. Two sets of temperature and humidity sensors 19 detect the temperature and humidity in the surroundings and inside the cabinet 1 at all times. By rotating the motor 14 and the transmission rod 5 and the brush rod 4 to sweep the dust, the display screen 3 can be used for a long time, and the data is retained through the storage module of the processor 17 and connected to the user's smart device through the wireless module, so that the data can be checked at all times. 9. Cooperate with the internal fan 22 to extract the high-temperature air inside the cabinet 1. The air inlet 10 cooperates with the filter screen 12 to filter dust in multiple layers so that clean air enters the cabinet 1, thereby maintaining the circuit board 18 and the processor 17 inside the cabinet 1. When maintenance is required, the user can use the processor 17 and the intelligent device to remotely control the linear guide motor 20 to drive the slide plate 8 and the cabinet 1 to move up and down, so as to reduce the traditional safety hazards of climbing up and down.

Finally, it should be noted that: in the description of the present utility model, it should be noted that the orientations or positional relationships indicated by the terms "vertical", "upper", "lower", "horizontal", etc. are based on those shown in the accompanying drawings. The orientation or positional relationship is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limit.

In the description of the present invention, it should also be noted that, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection" and "connection" should be understood in a broad sense, for example, it may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still understand the foregoing. The technical solutions described in the embodiments are modified, or some technical features thereof are equivalently replaced. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. A novel temperature control cabinet, comprising a cabinet body (1) of a protective device and a cabinet door (2) for dust-proof sealing, characterized in that the cabinet door (2) is movably installed on the cabinet door (2) by being provided with a hinge. The front of the cabinet body (1), the cabinet door (2) includes a display screen (3), a brush rod (4), a transmission rod (5), a cabinet lock (6), a sealing strip (13) and a rotating motor (14) ), an air inlet (10), a heat dissipation port (9) and a temperature and humidity sensor (19) are installed on the side of the cabinet (1), and the heat dissipation port (9) includes a rotating blade (21) and a fan ( 22), a warning light (15) is provided on the front top of the cabinet (1), a fixing plate (7) and a sliding plate (8) are provided on the back of the cabinet (1), and the cabinet (1) The bottom of the cabinet (1) is provided with a filter screen (12) and a dust storage bin (11), the middle of the cabinet (1) is provided with a circuit board (18), and the top of the cabinet (1) is provided with a processor (17) and horn (16). 2. A novel temperature control cabinet according to claim 1, characterized in that the cabinet body (1) is made of stainless steel metal material and has a rectangular design, and both sides of the fixing plate (7) are provided with A plurality of sets of screw holes are fixedly installed on the wall, a linear guide motor (20) is vertically embedded in the middle of the fixing plate (7), and the front surface of the sliding plate (8) is fixedly installed on the cabinet body (1) by screws. ), the back of the slide plate (8) is fixedly mounted on the surface of the linear guide motor (20), and the fixed plate (7) is connected to the cabinet ( 1) Transmission connection. 3. A novel temperature control cabinet according to claim 1, characterized in that, the display screen (3) is fixedly embedded in the bottom of the cabinet door (2), and the rotating motor (14) is fixedly installed on the bottom of the cabinet door (2). The back of the cabinet door (2) is located at the top center of the display screen (3). made of rubber rod and one side of the brush is attached to the surface of the display screen (3), the display screen (3) and the rotating motor (14) are electrically connected to the circuit board (18) and the processor (17) through wires . 4. A novel temperature control cabinet according to claim 1, characterized in that, the cabinet lock (6) is installed through the middle side of the cabinet door (2), and the sealing strip (13) is attached around the It is installed on the edge of the inner wall of the cabinet door (2). Two sets of sensors (19) are provided and are respectively mounted on the middle of the inner wall and the bottom of the outer wall of the cabinet (1), and the temperature and humidity sensors (19) are electrically connected to the processor (17). 5. A new type of temperature control cabinet according to claim 1, characterized in that, both ends of the circuit board (18) are fixedly installed in the middle of the cabinet body (1) by means of brackets, and are connected with the processor (17) electrically connected, the processor (17) is fixedly installed on the top center of the cabinet (1) by being provided with a frame, a wireless module and an information storage module are arranged inside the processor (17), and the speaker (16) ) is provided with two groups and is fixedly installed on both sides of the processor (17) and is electrically connected to it. 6. A new type of temperature control cabinet according to claim 1, characterized in that, the air inlet (10) is fixedly installed on the side bottom of the cabinet body (1), and the inner part of the air inlet (10) A dustproof gauze is provided, the surface of the dust storage bin (11) is provided with a handle and is movably connected with the inner wall of the bottom of the cabinet (1), the surface of the filter screen (12) is provided with a metal frame support, and the filter The net (12) is fixedly snapped and installed on the top of the air inlet (10) and is located between the dust storage bin (11) and the circuit board (18). 7. A new type of temperature control cabinet according to claim 1, characterized in that, the heat dissipation ports (9) are symmetrically installed on both sides of the top of the cabinet (1), and the top of the rotating blade (21) is in the shape of a The cylindrical design is provided with a transmission shaft which is movably installed inside the heat dissipation port (9). The bottom of the rotating blade (21) is designed as a blade and is swayed to dissipate heat in accordance with the wind force of the fan (22) and block the entry of dust. (22) A plurality of groups are provided and are fixedly installed on the inner side of the heat dissipation port (9).
