Abstract

The utility model discloses a convenient positioning detection table for maintenance based on an electronic mobile phone. A detection support table is installed at the middle end of the top of the maintenance table, and clamping plates are movably connected to both sides of the detection support table. A movable connecting seat is fixedly connected to the back of the clamping plate, one end of the movable connecting seat is movably connected with a connecting screw, the connecting screw penetrates through the fixing seat, and the end of the connecting screw is fixedly connected with a tightening knob. , Detection support table, positioning pad, clamping plate, movable seat, limit slider, limit chute, movable connecting seat, connecting screw, fixing seat and tightening knob can pass the clamping plate during the maintenance of the mobile phone. The rapid movement and fixation of the maintenance mobile phone can quickly locate and fix the maintenance mobile phone, thereby ensuring that the mobile phone has higher position accuracy and stability during maintenance, so as to prevent the mobile phone from shaking during the maintenance process and bring about the maintenance work of the maintenance personnel. trouble.

Description

A convenient positioning detection platform based on electronic mobile phone maintenance

technical field

The utility model relates to the technical field of mobile phone maintenance, in particular to a convenient positioning detection table based on electronic mobile phone maintenance.

Background technique

As an indispensable communication tool in modern life, mobile phones have added more and more functions, such as taking pictures, surfing the Internet, and office work. It is necessary to use the maintenance bench to facilitate the manual detection and maintenance of the faulty mobile phone. In the mobile phone detection and maintenance, the operator usually puts the mobile phone on the maintenance workbench for operation;

However, the current workbenches are all ordinary tables. Due to the lack of components for quick positioning and fixing of the mobile phone during maintenance, the staff cannot quickly and conveniently position and fix the mobile phone during maintenance, which makes the maintenance personnel easy to be damaged by the mobile phone during the maintenance process. The random shaking will reduce the maintenance efficiency of the maintenance personnel.

Utility model content

The utility model provides a convenient positioning detection table based on the maintenance of electronic mobile phones, which can effectively solve the problem that the current work table is an ordinary table proposed in the above-mentioned background technology, and the lack of components for fast positioning and fixing of the maintenance mobile phone causes work problems. During maintenance, personnel cannot quickly and conveniently position and fix the mobile phone, which makes the maintenance personnel prone to random shaking of the mobile phone during the maintenance process, which reduces the maintenance efficiency of the maintenance personnel.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a convenient positioning detection table for overhauling electronic mobile phones, including an overhaul table, an adjustment bracket is fixedly installed at the middle end of one side of the top of the overhaul table, and the adjustment A fixing plate is fixedly installed on the top of the bracket, a detection multimeter is fixedly installed at the position of one side of the top of the fixing plate, and a detection head is connected to the two sides of the detection multimeter through connecting wires;

A detection support table is installed at the middle end of the top of the inspection support table, a positioning pad is fixedly installed at the middle end of the top surface of the inspection support table, and clamping plates are movably connected to both sides of the detection support table. A movable seat is fixedly connected at the bottom positions of the two side ends, and one end of the movable seat is fixedly connected with a limit slider. The back of the clamping plate is fixedly connected with a movable connecting seat, and one end of the movable connecting seat is movably connected with a connecting screw. The screw rod penetrates through the fixing seat, and the end of the connecting screw rod is fixedly connected with a tightening knob;

One side of the top of the inspection table is provided with a movable movable groove, and both sides of the movable movable groove are provided with limited guide grooves, and a movable block is embedded in the movable movable groove. Limiting guide blocks are fixedly connected to the positions corresponding to the limiting guide grooves, the top of the moving block is fixedly connected with a moving strut, the top of the moving strut is fixedly connected with a clamping ring, and the inside of the clamping ring is embedded and connected with metal shaping A hose, one end of the metal shaped hose is connected with a dust suction head, the other end of the metal shaped hose is fixedly connected with a gas collecting hood, and the bottom end of the gas collecting hood is connected with a collecting box.

Preferably, the clamping plate is guided and connected by the limit sliders at the bottom and edges of the clamping plate and the limiting chute, and the inner side end of the clamping plate is fixedly bonded with a flexible rubber pad.

Preferably, a movable cavity is provided inside the movable connecting seat, a movable ball head is fixedly connected with one end of the connecting screw rod at a position inside the movable cavity, and the movable ball head and the movable cavity are fitted and connected.

Preferably, a sealing seat is provided at the connection between the gas collecting hood and the collecting box, a box door is arranged on one side of the collecting box, and an axial flow is fixed at the corresponding position of the inner top of the collecting box and the gas collecting hood. fan.

Preferably, a limit card board is fixedly installed on one side of the cleaning head, a lighting torch is embedded and fitted inside the limit card board, and LED lighting lamps are fixedly installed on both sides of the bottom of the fixed board.

Preferably, an engaging slot is formed inside the limit card, the lighting torch is embedded in the engaging slot, a battery is installed inside the lighting torch, the input end of the LED lighting lamp and the output end of the external power supply Electrical connection.

Compared with the prior art, the beneficial effects of the present utility model: the utility model has a scientific and reasonable structure, and is safe and convenient to use:

1. Through the detection head, the detection support table, the positioning pad, the clamping plate, the movable seat, the limit slider, the limit chute, the movable connection seat, the connecting screw, the fixed seat and the fastening knob, the mobile phone can be inspected in the process of repairing the mobile phone. , Through the fast movement and convenient fixing of the clamping plate, the maintenance mobile phone can be quickly positioned and fixed, thereby ensuring that the mobile phone has higher position accuracy and stability during maintenance, and preventing the mobile phone from shaking during the maintenance process. Personnel maintenance work brings trouble.

2. By moving the live groove, limit guide groove, moving block, limit guide block, moving strut, clamping ring, metal forming hose, vacuum head, gas collecting hood and collecting box, the metal can pass through the metal during the actual maintenance process. The shaped hose and the vacuum head are used to quickly collect the dust and dirt accumulated inside the mobile phone. At the same time, the position of the metal shaped hose is easy to adjust and fix, which improves the vacuuming range of the vacuum head and ensures the maintenance of the mobile phone. Cleaner inside.

3. Through the limit card board, the lighting torch and the LED lighting lamp, the lighting torch can be used to provide lighting for the vacuuming parts of the mobile phone during the process of moving and vacuuming the cleaning head, so as to facilitate the staff to absorb dust more thoroughly. At the same time, the mobile lighting method combined with the use of LED lighting enables the maintenance personnel to have higher lighting brightness during actual maintenance, so as to facilitate the rapid maintenance of the maintenance personnel, thereby improving the maintenance efficiency.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention.

In the attached image:

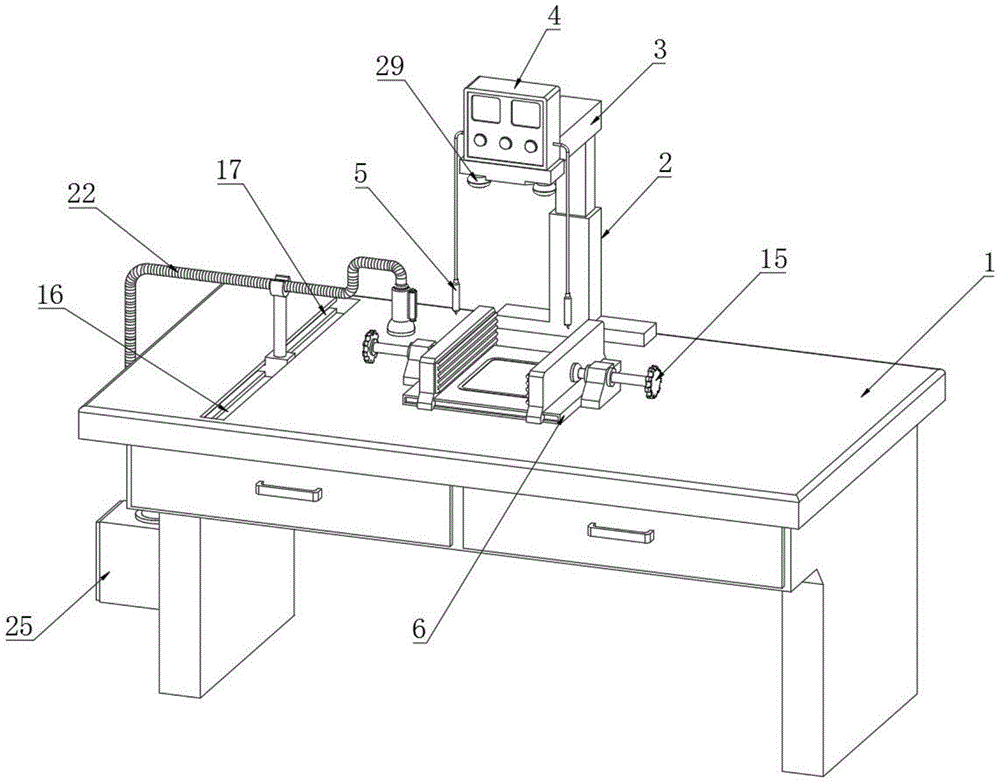

Fig. 1 is the structural representation of the present utility model;

Figure 2 is a schematic diagram of the installation structure of the clamping plate of the present invention;

3 is a schematic diagram of the installation structure of the dust collector of the present utility model;

Labels in the figure: 1. Inspection table; 2. Adjusting bracket; 3. Fixed plate; 4. Detection multimeter; 5. Detection head; 6. Detection support table; 7. Positioning pad; 8. Clamping plate; 9. Active seat ;10. Limit slider; 11. Limit chute; 12. Active connection seat; 13. Connecting screw; 14. Fixed seat; 15. Fastening knob; 18. Moving block; 19. Limiting guide block; 20. Moving pillar; 21. Clamping ring; 22. Metal shaped hose; 23. Dust suction head; 24. Gas collecting hood; 25. Collection box; 26. Seal 27. Limit card board; 28. Lighting torch; 29. LED lighting.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Example: As shown in Figures 1-3, the present utility model provides a technical solution, a convenient positioning detection table for maintenance based on electronic mobile phones, including a maintenance table 1, which is fixedly installed at the middle end of one side of the top of the maintenance table 1. There is an adjustment bracket 2, a fixed plate 3 is fixedly installed on the top of the adjustment bracket 2, a detection multimeter 4 is fixedly installed at one side of the top of the fixed plate 3, and a detection head 5 is connected to the two sides of the detection multimeter 4 through connecting wires;

A detection support table 6 is installed at the top middle end of the inspection table 1, a positioning pad 7 is fixedly installed at the middle end of the top surface of the inspection support table 6, and clamping plates 8 are movably connected to both sides of the detection support table 6. A movable seat 9 is fixedly connected to the bottom position of the side end, one end of the movable seat 9 is fixedly connected to a limit slider 10, and a limit chute 11 is provided at the corresponding positions of the two sides of the detection support platform 6 and the limit slider 10, The clamping plate 8 is guided and connected by the limit sliders 10 at the bottom and edges of the clamping plate 8 and the limit chute 11. The inner edge of the clamping plate 8 is fixedly bonded with a flexible rubber pad, which is convenient for clamping the plate 8. At the same time, the clamping plate 8 will not cause damage to the edge of the mobile phone when clamping the mobile phone. The back of the clamping plate 8 is fixedly connected with a movable connecting seat 12, and one end of the movable connecting seat 12 is movably connected with a connecting screw 13. , the movable connecting seat 12 is provided with a movable cavity inside, and one end of the connecting screw 13 is fixedly connected with a movable ball head at the inner position of the movable cavity, and the movable ball head and the movable cavity are fit and connected, so that the connecting screw 13 can be connected with the movable cavity. The connection and movement between the seats 12, the top of the inspection table 1 is located at the edge positions on both sides of the detection support table 6 are fixedly installed with a fixed seat 14, the connecting screw 13 runs through the fixed seat 14, and the end of the connecting screw 13 is fixedly connected with a Tighten knob 15;

One side of the top of the inspection table 1 is provided with a movable movable slot 16, and both sides of the movable movable slot 16 are provided with limited guide grooves 17. The movable movable slot 16 is embedded and movably connected with a movable block 18. The corresponding positions of the limit guide grooves 17 are fixedly connected to the limit guide blocks 19 , the top of the moving block 18 is fixedly connected with the moving support 20 , the top of the moving support 20 is fixedly connected with a clamping ring 21 , and the inside of the clamping ring 21 is embedded and connected with metal shaping The hose 22, one end of the metal shaped hose 22 is connected with a dust suction head 23, the other end of the metal shaped hose 22 is fixedly connected with a gas collecting cover 24, the bottom end of the gas collecting cover 24 is connected with a collecting box 25, and the gas collecting cover 24 is connected with the collecting box 25. A sealing seat 26 is arranged at the connection of the box 25, a box door is arranged on one side of the collecting box 25, and an axial flow fan is fixedly installed at the corresponding position of the inner top of the collecting box 25 and the air collecting hood 24 to ensure that the air collecting hood 24 is connected to the collecting hood 24. The airtightness after the box 25 is connected also facilitates the suction of dust into the collection box 25 by the axial flow fan.

A limit card 27 is fixedly installed on one side of the cleaning head 23 , and a lighting torch 28 is embedded and fitted inside the limit card 27 , and LED lights 29 are fixedly installed on both sides of the bottom of the fixing plate 3 , and the limit card 27 An engaging slot is opened inside, and the lighting torch 28 is embedded in the engaging slot. A battery is installed inside the lighting torch 28. The input end of the LED lighting lamp 29 is electrically connected with the output end of the external power supply, which is convenient for the lighting torch 28 and the limit card. Connection and disassembly between plates 27 .

The working principle and use process of the present utility model: in the actual application process of the portable positioning detection platform based on the maintenance of electronic mobile phones, the mobile phone to be repaired is first placed on the detection support table 6, and the positioning pad 7 is used to adjust the position of the mobile phone. position, so as to facilitate the rapid positioning of the mobile phone, and after the position of the mobile phone is adjusted, rotate the tightening knob 15 to drive the connecting screw 13 to rotate, and use the connecting screw 13 to drive the movable connecting seat 12 and the clamping plate 8 to rotate. When the clamping plate 8 moves, the limit action of the limit slider 10 and the limit chute 11 prevents the clamping plate 8 from shifting during the movement process. After both sides are in close contact with the edge of the mobile phone, stop the continuous movement of the tightening knob 15 at this time, so as to quickly fix the mobile phone to ensure the stability of the mobile phone during the maintenance process;

After the mobile phone is positioned and fixed, the maintenance personnel disassemble and repair the mobile phone through the maintenance tool, and at the same time, combine the detection head 5 and the detection multimeter 4 to detect the internal circuit of the mobile phone. After the mobile phone is disassembled, start the collection box 25. The axial flow fan provides suction for the collection box 25 through the axial flow fan, and quickly sucks the dust and dirt accumulated inside the mobile phone into the collection box 25 through the dust suction head 23 and the metal shaping hose 22, so that the In this way, the interior of the mobile phone is cleaned to prevent excessive dust from affecting the normal use of the mobile phone. When people use the vacuum head 23 for vacuuming, because the metal forming hose 22 is easy to bend and shape, it is convenient for maintenance personnel to pass the vacuum. The head 23 vacuums different parts inside the mobile phone, and at the same time, the mobile support 20 and the clamping ring 21 are used to make the vacuum head 23 have a higher cleaning range;

In the process of vacuuming, by turning on the lighting torch 28 on the side of the vacuum head 23, it can provide illumination for the dust removal work of the maintenance personnel, so as to facilitate the maintenance personnel to clean the interior of the mobile phone more thoroughly. The LED lighting lamp 29 enables the entire maintenance process to have higher lighting brightness, thereby facilitating maintenance personnel to perform maintenance more conveniently and effectively, and improving maintenance efficiency.

Finally, it should be noted that the above is only a preferred example of the present utility model, and is not intended to limit the present utility model. Although the present utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art, It is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (6)

1. A convenient positioning detection table for overhauling an electronic mobile phone, comprising an overhaul table (1), characterized in that: an adjustment bracket (2) is fixedly installed at the mid-end position on one side of the top of the overhaul table (1), so that an adjustment bracket (2) is installed. A fixing plate (3) is fixedly installed at the top of the adjusting bracket (2), and a detection multimeter (4) is fixedly installed at the position of one side edge of the top of the fixing plate (3). All are connected with the detection head (5) through the connecting wire; A detection support table (6) is installed at the top middle end of the inspection table (1), a positioning pad (7) is fixedly installed at the middle end of the top surface of the detection support table (6), and two sides of the detection support table (6) are fixedly installed. A clamping plate (8) is movably connected to the sides, and a movable seat (9) is fixedly connected to the bottom positions of the two sides of the clamping plate (8), and one end of the movable seat (9) is fixedly connected to a limited position. A slider (10), a limit chute (11) is provided at the corresponding positions of the two sides of the detection support platform (6) and the limit slider (10), and the back of the clamping plate (8) is fixedly connected with a A movable connecting seat (12), one end of the movable connecting seat (12) is movably connected with a connecting screw (13), and the top of the inspection table (1) is fixedly installed at the edge positions on both sides of the detection support table (6). a fixing seat (14), the connecting screw (13) penetrates through the fixing seat (14), and a fastening knob (15) is fixedly connected to the end of the connecting screw (13); One side of the top of the inspection table (1) is provided with a movable movable groove (16), and both sides of the movable movable groove (16) are provided with limited guide grooves (17), and the interior of the movable movable groove (16) A moving block (18) is movably connected to the embedding, and the limiting guide blocks (19) are fixedly connected at the corresponding positions of the two sides of the moving block (18) and the limiting guide groove (17). The moving block (18) A moving strut (20) is fixedly connected to the top, and a clamping ring (21) is fixedly connected to the top of the moving strut (20). One end of the metal shaping hose (22) is connected with a dust suction head (23), the other end of the metal shaping hose (22) is fixedly connected with a gas collecting cover (24), and the bottom end of the gas collecting cover (24) is connected with a Collection box (25). 2. A portable positioning and testing platform for overhauling electronic mobile phones according to claim 1, characterized in that: the clamping plate (8) passes through the limit sliders (10) at the bottom and edges of the clamping plate (8) and the limiter. The position sliding grooves (11) are connected with guide and limit positions, and the inner side end of the clamping plate (8) is fixedly bonded with a flexible rubber pad. 3. A convenient positioning detection platform for overhauling electronic mobile phones according to claim 1, characterized in that: a movable cavity is provided inside the movable connecting seat (12), and one end of the connecting screw (13) is located at The movable ball head is fixedly connected at the inner position of the movable cavity, and the movable ball head and the movable cavity are fitted and connected. 4. A portable positioning detection platform for overhauling electronic mobile phones according to claim 1, characterized in that: a sealing seat (26) is provided at the connection between the gas collecting hood (24) and the collecting box (25) A box door is provided on one side of the collection box (25), and an axial flow fan is fixedly installed at the corresponding position of the top of the inner side of the collection box (25) and the air collecting hood (24). 5 . The portable positioning detection platform for overhauling electronic mobile phones according to claim 1 , characterized in that: a limit card ( 27 ) is fixedly installed on one side of the cleaning head ( 23 ). An illuminating torch (28) is embedded, fitted and connected inside the limiting card board (27), and LED illuminating lights (29) are fixedly installed on both sides of the bottom of the fixing plate (3). 6 . A convenient positioning and testing platform for overhauling electronic mobile phones according to claim 5 , characterized in that: said limit card plate ( 27 ) is provided with a snap-fit groove inside, and said lighting torch ( 28 ) is embedded in the In the engaging groove, a battery is installed inside the lighting torch (28), and the input end of the LED lighting lamp (29) is electrically connected with the output end of the external power supply.
