Abstract

The utility model discloses a food waste disposer with a six-stage grinding device. The disposer comprises a disposer body. A baffle ring is fixedly installed inside the disposer body. The outer side wall of the baffle ring is provided with evenly distributed through holes, which pass through the grinding disc. The knife beats the falling food waste to smash the falling food waste, and then the cutting blade performs preliminary cutting of the smashed garbage. Due to the centrifugal force generated by the rotation of the driving component, the preliminary cut garbage scrapes on the ring-shaped knife net, forming lumpy garbage. It flows through the gap between the serration of the cutting blade and the inner toothed ring, and the rotation of the cutting blade has a better effect on the treatment of fibers and hard bones in Chinese family diets. The garbage falls on the blocking ring and enters from the through hole. , The cutter cuts the garbage flowing out of the through hole again to form a slurry state, and through the multiple treatment of multiple garbage, the kitchen garbage is more conducive to the discharge and dredging of the sewer.

Description

A food waste disposer with a six-stage grinding device

technical field

The utility model relates to the technical field of garbage disposal, in particular to a food waste disposer with a six-stage grinding device.

Background technique

There are a variety of food waste disposers in the prior art, and food waste disposers are now generally used in households without households, bringing more convenience to people, but the principles of the existing food waste disposers are similar. The food waste is smashed to make it into lumps and then flushed out. However, the accumulation of lumpy food waste will also cause the blockage of the pipeline, which will affect the use. There is no device for reprocessing the lumpy food waste. A food waste disposer with a six-stage grinding device is specially proposed.

Utility model content

The purpose of the present invention is to provide a food waste disposer with a six-stage grinding device to solve the above-mentioned problems in the background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a food waste disposer with a six-stage grinding device, comprising a disposer body, a baffle ring is fixedly installed inside the disposer body, and an outer side of the baffle ring is installed. The wall is provided with evenly distributed through holes, and the lower end of the through hole is communicated with the lower end chamber of the processor body, the lower end of the processor body is fixedly installed with a drive assembly, and the output shaft of the drive assembly is fixedly connected to the rotating shaft, and the rotating shaft It runs through the processor body and extends to the inside, and the retaining ring is sleeved on the rotating shaft. The outer side wall of the rotating shaft is fixedly installed with a knife holder. The knife holder is fixedly connected with evenly distributed cutting knives through bolts. The surface conforms to the lower surface of the retaining ring.

Preferably, the top of the rotating shaft is fixedly installed with a grinding disc, the upper surface of the grinding disc is fixedly connected with evenly distributed knife hammers by bolts, and the upper end of the edge of the grinding disc is fixedly connected with a filter screen.

Preferably, the outer side wall of the rotating shaft is fixedly connected with evenly distributed cutting blades, the cutting blades are circular, the outer walls of the cutting blades are in the shape of evenly distributed strip openings, and the openings are cutting edges, the The cutting blade is located at the lower end of the grinding disc, and the inside of the processor body is fixedly connected with an annular knife net corresponding to the cutting blade.

Preferably, the outer side wall of the cutting blade is serrated, and the inner side wall of the annular knife net is fixedly connected with an inner toothed ring matching the serrated cutting blade.

Preferably, a conical ring is fixedly connected to the inside of the processor body, and the conical ring is located between the grinding disc and the cutting blade.

Preferably, the driving component is a DC motor.

Compared with the prior art, the beneficial effect of the present utility model is: a food waste disposer with a six-stage grinding device, which smashes the falling food waste by hammering a knife on the The garbage is preliminarily cut. Due to the centrifugal force generated by the rotation of the driving component, the preliminarily cut garbage is scraped on the annular knife net. The rotation of the blade has a better effect on the treatment of fibers and hard bones in Chinese family diets. The garbage falls on the baffle ring and enters from the through hole. The cutting knife cuts the garbage flowing out of the through hole again to form a molten The slurry state, through the multiple treatment of multiple garbage, makes the kitchen garbage more conducive to the discharge and dredging of the sewers.

Description of drawings

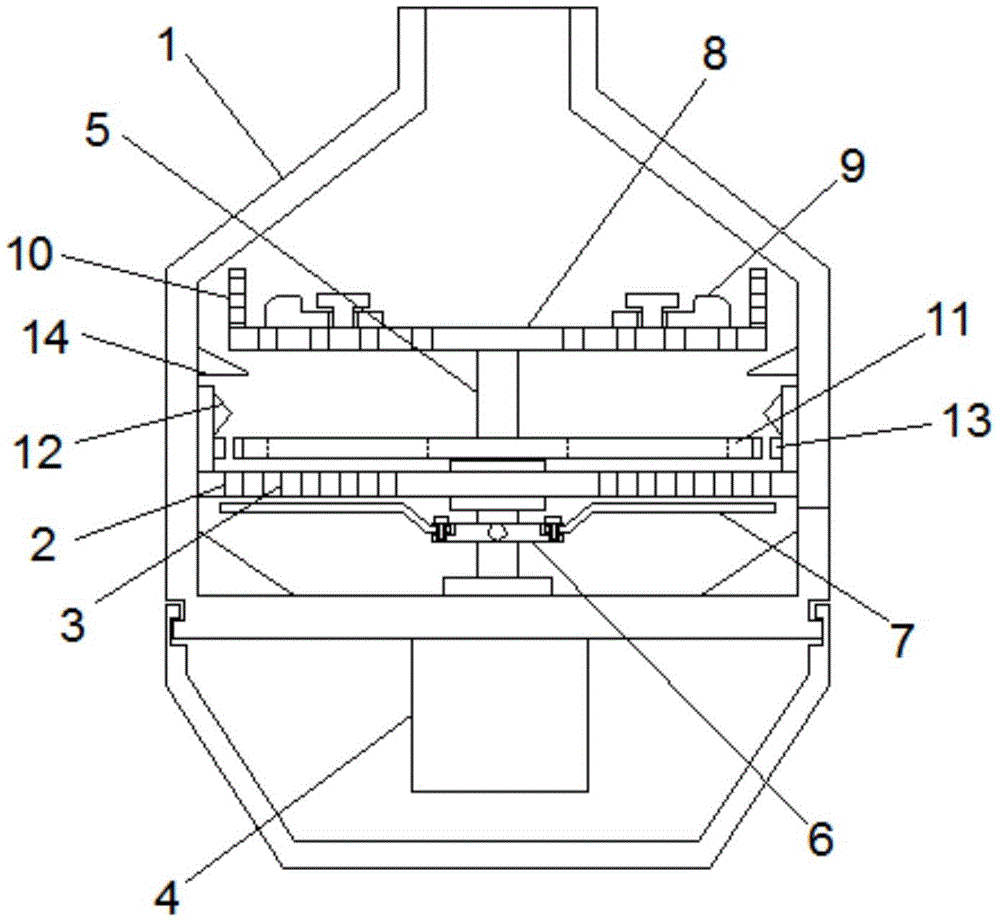

Figure 1 is a schematic structural diagram of the utility model.

Figure 2 is a schematic diagram of the cutting blade of the present invention.

In the picture: 1 processor body, 2 retaining ring, 3 through hole, 4 driving assembly, 5 rotating shaft, 6 knife holder, 7 cutter, 8 grinding disc, 9 knife hammer, 10 filter screen, 11 cutting blade, 12 ring knife net , 13 inner gear ring, 14 conical ring.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2, the present invention provides a technical solution: a food waste disposer with a six-stage grinding device, comprising a disposer body 1, a baffle ring 2 is fixedly installed inside the disposer body 1, and the baffle ring The outer side wall of 2 is provided with evenly distributed through holes 3, and the lower end of the through holes 3 is communicated with the lower end chamber of the processor body 1, the lower end of the processor body 1 is fixedly installed with a drive assembly 4, and the output shaft of the drive assembly 4 is fixed. The rotating shaft 5 is connected, and the rotating shaft 5 extends through the processor body 1 to the inside, and the retaining ring 2 is sleeved on the rotating shaft 5. The outer side wall of the rotating shaft 5 is fixedly installed with a tool holder 6, and the tool holder 6 is fixedly connected by bolts. The cutter 7, the upper surface of the cutter 7 is in contact with the lower surface of the retaining ring 2, the top of the rotating shaft 5 is fixedly installed with a grinding disc 8, and the upper surface of the grinding disc 8 is fixedly connected with a uniformly distributed knife hammer 9 by bolts, and the grinding disc 8 A filter screen 10 is fixedly connected to the upper edge of the upper surface of the rotating shaft 5, and evenly distributed cutting blades 11 are fixedly connected to the outer side wall of the rotating shaft 5. The cutting blades 11 are circular, and the outer walls of the cutting blades 11 are evenly distributed. The place is an edge, the cutting blade 11 is located at the lower end of the grinding disc 8, the inside of the processor body 1 is fixedly connected with an annular knife net 12 corresponding to the cutting blade 11, and the outer side wall of the cutting blade 11 is serrated. The inner side wall is fixedly connected with an inner gear ring 13 that matches the serrated cutting blade 11, and the inside of the processor body 1 is fixedly connected with a conical ring 14, and the conical ring 14 is located between the grinding disc 8 and the cutting blade 11, the drive assembly 4 is a DC motor, the upper end of the cutter 7 is flush with the lower surface of the baffle ring 2, and the upper end of the cutter 7 is fitted with the baffle ring 2 to reduce the gap between the baffle ring 2 and the cutter 7. It is impossible to cut the lumpy garbage again. The drive assembly 4 drives the rotating shaft 5 to rotate, and the same power is used to drive the grinding disc 8, the cutter 7, and the cutting blade 11 to rotate, reducing the power source and saving resources. The knife hammer 9 is fixed by bolts On the grinding plate 8, there is a gap between the grinding plate 8 and the knife hammer 9, so that the knife hammer 9 can move on the grinding plate 8, so that the grinding plate 8 can swing with the rotation of the grinding plate 8 to increase the garbage crushing efficiency. The ring 14 can collect the crushed garbage into the position of the cutting blade 11. The drive assembly 4 is a DC motor used in the food waste disposer in the prior art, and the size and model of the DC motor are the same.

Working principle: The grinding disc 8 is driven by the drive assembly 4 to rotate, the knife hammer 9 on the grinding disc 8 smashes the falling food waste to achieve the first and second grinding, and then the cutting blade 11 performs preliminary cutting on the broken waste to achieve the third grinding. , due to the centrifugal force generated by the rotation of the drive assembly 4, the preliminarily cut garbage is scraped on the annular knife net 12 to realize the fourth grinding, and the formed lumpy garbage is formed from the serration of the cutting blade 11 and the gap between the inner gear ring 13 Flow through, through the rotation of the cutting blade 11, the fibers and hard bones in the Chinese family diet are processed to achieve the fifth grinding, the garbage falls on the retaining ring 2, enters from the through hole 3, and the cutter 7 pairs the through hole 3 The outflowing garbage is cut again to form a slurry state to realize the sixth grinding of the garbage.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a take six grades of grinder's food waste disposer which characterized in that: including the treater body, the inside fixed mounting of treater body has the fender ring, evenly distributed's through-hole is seted up to the lateral wall that keeps off the ring, and the lower extreme cavity intercommunication of the lower extreme of through-hole and treater body, the lower extreme fixed mounting of treater body has drive assembly, drive assembly's output shaft fixed connection pivot, and the pivot runs through the treater body and extend to inside, and keeps off the ring and cup joint in the pivot, the lateral wall fixed mounting of pivot has the knife rest, through bolt fixedly connected with evenly distributed's cutter in the knife rest, the upper surface of cutter is laminated with the lower surface that keeps off the ring mutually.

2. The food waste disposer of claim 1, wherein: the top fixed mounting of pivot has the mill, the upper surface of mill passes through bolt fixedly connected with evenly distributed's sword hammer, the border upper end fixedly connected with filter screen of mill.

3. The food waste disposer of claim 2, wherein: the utility model discloses a grinding machine, including treater body, lateral wall fixedly connected with evenly distributed's cutting blade of pivot, cutting blade is circular, cutting blade's outer wall is evenly distributed's bar opening form, and the opening part is for edging, cutting blade is located the lower extreme of mill, the inside fixedly connected with of treater body and the corresponding annular sword net of cutting blade.

4. A food waste disposer with a six-stage grinder assembly according to claim 3, wherein: the outer side wall of the cutting blade is in a sawtooth shape, and the inner side wall of the annular knife net is fixedly connected with an inner toothed ring matched with the sawtooth-shaped cutting blade.

5. A food waste disposer with a six-stage grinder assembly according to claim 3, wherein: the inside fixedly connected with toper ring of treater body, and toper ring is located between mill and the cutting blade.

6. The food waste disposer of claim 1, wherein: the driving component is a direct current motor.
