Abstract

The utility model relates to a bottle cap of a rotating material bin, which relates to the technical field of liquid beverage packaging, in particular to a beverage bottle cap for instant beverages that is easy to carry and use. The utility model comprises: a feeding part, a silo part and a connecting part; the upper and lower ends of the silo part are respectively provided with a feeding part and a connecting part; the upper feeding part is communicated with the silo part; the silo part is communicated with the lower connecting part, A discharge port is arranged at the connection between the silo part and the connecting part, and a bottle mouth sealing ring for connecting and sealing with the bottle mouth of the water bottle is arranged at the discharge port; The inner wall of the connecting part is processed with a bottle cap thread, and the bottle cap of the rotating material bin is connected with the water bottle through the bottle cap thread. The technical scheme of the utility model solves the problem that the effective substances in the beverages in the prior art are decomposed or destroyed under the influence of the external environment, resulting in the decline of the nutritional components.

Description

Rotary silo cap

technical field

The utility model relates to a bottle cap of a rotating material bin, which relates to the technical field of liquid beverage packaging, in particular to a beverage bottle cap for instant beverages that is easy to carry and use.

Background technique

At present, functional beverages and nutritional beverages are more suitable for the needs of the public. However, the effective substances are dissolved in the water in the beverage bottle, and the active ingredients in the beverage solution may be decomposed or destroyed in unfavorable environments such as external temperature rise and ultraviolet radiation. , resulting in a decrease in nutrients.

In view of the above problems in the prior art, it is very necessary to study and design a new type of bottle cap of the rotary silo, so as to overcome the problems in the prior art.

SUMMARY OF THE INVENTION

According to the technical problem that the effective substances in the beverages are decomposed or destroyed under the influence of the external environment, resulting in the decline of nutritional components, a rotary silo bottle cap is provided. The rotating silo of the utility model contains solid beverage solutes to separate them from water. When drinking, the material baffle plate is rotated to mix the water and the beverage solutes for drinking, thereby achieving the effect of ensuring the nutrients in the beverage solutes.

The technical means adopted by the utility model are as follows:

A rotary silo bottle cap comprises: a feeding part, a silo part and a connecting part; the upper and lower ends of the silo part are respectively provided with a feeding part and a connecting part; the upper feeding part is communicated with the silo part; The connecting part is connected, and a discharge port is arranged at the connection between the silo part and the connecting part, and a bottle mouth sealing ring for connecting and sealing with the bottle mouth of the water bottle is arranged at the discharge port; The ring structure is provided; the inner wall of the connecting part is processed with a bottle cap thread, and the bottle cap of the rotating material bin is connected with the water bottle through the bottle cap thread.

Further, the silo part includes: a silo, a material baffle rotating shaft, a material baffle, a silicone sealing ring, a material baffle rotary wrench and a sealing cover; the interior of the silo is a horizontal cylindrical structure; the material baffle is Semi-cylindrical shape, the material baffle is coaxial with the silo, and the outer diameter of the material baffle is slightly smaller than the inner diameter of the silo to maintain a sliding seal; the material baffle is processed with a coaxial material baffle rotating shaft; In the feeding silo, the outside of the silo is equipped with a silicone sealing ring and a sealing cover, and the sealing cover and the silo are connected by threads; bezel.

Further, the feeding part includes: a feeding nozzle and a feeding nozzle cover; the feeding nozzle is installed on the upper part of the silo part and communicates with the silo; the feeding nozzle cover is provided on the feeding nozzle.

The use method of this utility model is:

1. Reserve storage of solid drink solute: turn the material baffle and rotate the wrench to drive the material baffle to rotate, so that the semi-circular material baffle closes the discharge port, and then open the feeding nozzle cover, add fruit powder and concentrated juice from the feeding nozzle, and then cover it tightly Feeding nozzle cover, the bottle cap of the rotating silo and the water bottle are assembled into one through the thread;

2. Mixed drinking: When it is necessary to drink, rotate the material baffle and rotate the wrench to drive the material baffle to rotate, so that the silo passes through the discharge port in the same way as the water bottle, and the water in the bottle is evenly mixed with the fruit powder or concentrated juice falling in the silo, namely The lid of the feeding nozzle can be opened to drink through the feeding nozzle.

Compared with the prior art, the utility model has the following advantages:

1. The bottle cap of the rotating silo provided by the present invention is equipped with beverage solute through the silo, which is separated from the water in the bottle to ensure that the beverage solute will not be damaged by the external environment before drinking.

2. The rotary silo bottle cap provided by the utility model is equipped with beverage solute through the silo, which is separately packed from the water in the bottle, which can prolong the shelf life of the beverage and increase the shelf life of the beverage.

3. The rotary silo bottle cap provided by the utility model is equipped with various flavored beverage substances through the silo, which enriches the variety of beverages.

4. The rotary hopper bottle cap provided by the utility model has a simple structure, is convenient to operate, and is suitable for use in various beverage bottles.

To sum up, the application of the technical solution of the present invention solves the problem that the effective substances in the beverages in the prior art are decomposed or destroyed under the influence of the external environment, resulting in the decrease of nutritional components.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description The drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

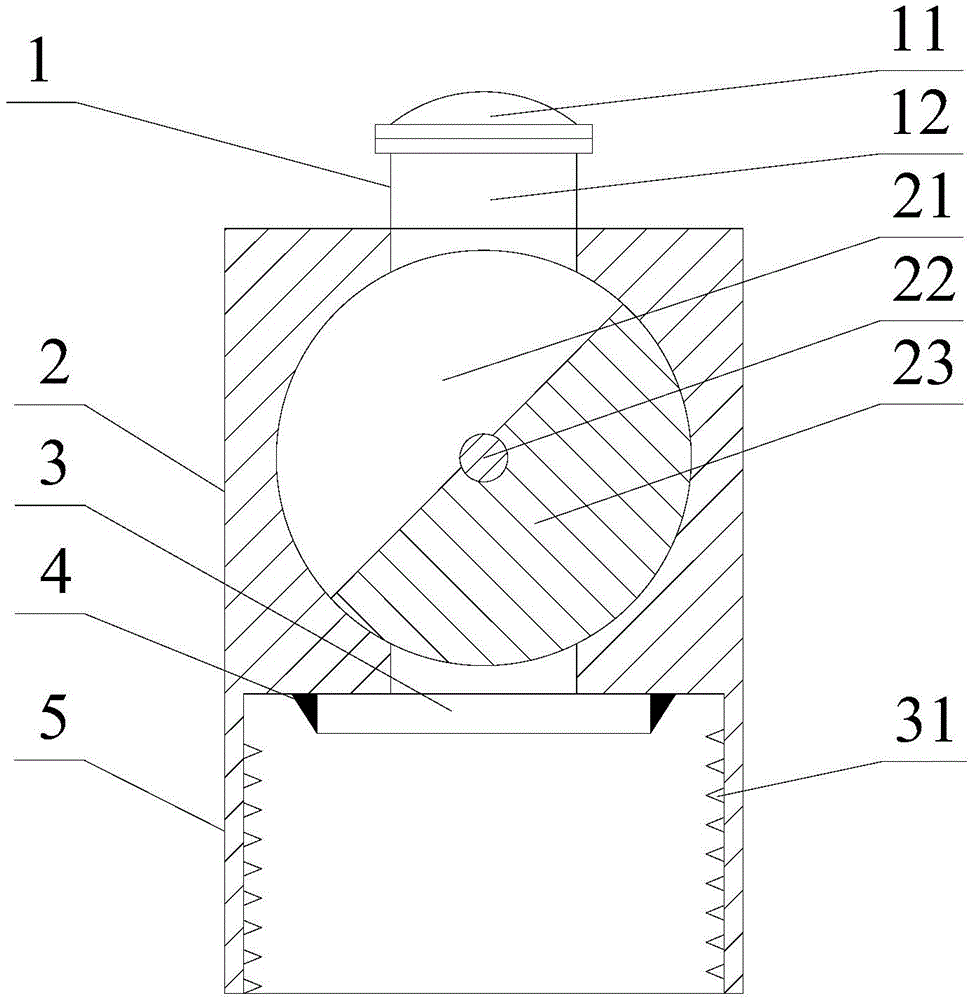

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a side view of Fig. 1;

FIG. 3 is a state diagram of the utility model in use.

In the figure: 1. Feeding part 11, feeding nozzle cover 12, feeding nozzle 2, silo part 21, silo 22, material baffle rotating shaft 23, material baffle 24, silicone sealing ring 25, material baffle rotating wrench 26 , Sealing cap 3, discharge port 31, bottle cap thread 4, bottle mouth sealing ring 5, connecting part 6, water bottle.

Detailed ways

It should be noted that the embodiments of the present invention and the features of the embodiments may be combined with each other under the condition of no conflict. The present utility model will be described in detail below with reference to the accompanying drawings and in conjunction with the embodiments.

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are only a part of the embodiments of the present invention, but not all of the embodiments. The following description of at least one exemplary embodiment is merely illustrative in nature and is in no way intended to limit the invention, its application or uses in any way. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that the terminology used herein is for describing specific embodiments only, and is not intended to limit the exemplary embodiments according to the present invention. As used herein, unless the context clearly dictates otherwise, the singular is intended to include the plural as well, furthermore, it is to be understood that when the terms "comprising" and/or "including" are used in this specification, it indicates that There are features, steps, operations, devices, components and/or combinations thereof.

The relative arrangement of the components and steps, the numerical expressions and numerical values set forth in these embodiments do not limit the scope of the invention unless specifically stated otherwise. Meanwhile, it should be understood that, for the convenience of description, the dimensions of various parts shown in the accompanying drawings are not drawn in an actual proportional relationship. Techniques, methods, and devices known to those of ordinary skill in the relevant art may not be discussed in detail, but where appropriate, such techniques, methods, and devices should be considered part of the authorized specification. In all examples shown and discussed herein, any specific values should be construed as illustrative only and not limiting. Accordingly, other examples of exemplary embodiments may have different values. It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further discussion in subsequent figures.

In the description of the present utility model, it should be understood that orientation words such as "front, rear, top, bottom, left, right", "horizontal, vertical, vertical, horizontal" and "top, bottom" etc. The orientation or positional relationship is usually based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, and these orientations do not indicate and imply the indicated device unless otherwise stated. Or elements must have a specific orientation or be constructed and operated in a specific orientation, so it cannot be construed as a limitation on the protection scope of the present invention: the orientation words "inside and outside" refer to the inside and outside relative to the contour of each component itself.

For ease of description, spatially relative terms, such as "on", "over", "on the surface", "above", etc., may be used herein to describe what is shown in the figures. The spatial positional relationship of one device or feature shown to other devices or features. It should be understood that spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if the device in the figures is turned over, elements described as "above" or "over" other devices or features would then be oriented "below" or "over" the other devices or features under its device or structure". Thus, the exemplary term "above" can encompass both an orientation of "above" and "below." The device may also be otherwise oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptions used herein interpreted accordingly.

In addition, it should be noted that the use of words such as "first" and "second" to define components is only for the convenience of distinguishing corresponding components. Unless otherwise stated, the above words have no special meaning and therefore cannot be understood To limit the scope of protection of the present invention.

As shown in the figure, the utility model provides a bottle cap of a rotating silo, which includes: a feeding part 1, a silo part 2 and a connecting part 5; the upper and lower ends of the silo part 2 are respectively provided with a feeding part 1 and a connecting part 5; The upper feeding part 1 is communicated with the silo part 2; The bottle mouth sealing ring 4 for connecting and sealing with the bottle mouth of the water bottle 6; the connecting part 5 is located in the lower part of the bottle cap of the rotating silo and has a ring structure; 6 Connected through the cap thread 31.

The silo part 2 includes: a silo 21, a material baffle rotating shaft 22, a material baffle 23, a silicone seal 24, a material baffle rotary wrench 25 and a sealing cover 26; the interior of the silo 21 is a horizontal cylindrical structure ; The material baffle 23 is a semi-cylindrical shape, the material baffle 23 is coaxial with the silo 21, and the outer diameter of the material baffle 23 is slightly smaller than the inner diameter of the silo 21 to maintain a sliding seal; the material baffle 23 is processed with a coaxial The material baffle rotating shaft 22; the material baffle 23 is loaded into the silo 21, the outside of the silo is equipped with a silicone sealing ring 24 and a sealing cover 26, and the sealing cover 26 is connected with the silo 21 by threads; the material baffle rotating shaft 22 The part protruding from the outside of the sealing cover 26 is provided with a material baffle rotating wrench 25 for rotating the material baffle 23 .

The feeding part 1 includes: a feeding nozzle 12 and a feeding nozzle cover 11;

Example 1

First, turn the rotary wrench on the material baffle to drive the material baffle to rotate, so that the semi-circular material baffle closes the discharge port, add blueberry fruit powder from the feeding nozzle, cover the feeding nozzle tightly, and tighten the bottle cap of the rotating material bin on the thread of the water bottle When you need to drink, rotate the material baffle and rotate the wrench to make the silo communicate with the water bottle. The water in the bottle and the blueberry fruit powder are evenly mixed, and the feeding spout cover can be opened for drinking. After drinking, the position of the material baffle can be restored. , continue to add blueberry fruit powder to the silo.

Embodiment 2

First, turn the rotary wrench on the material baffle to drive the material baffle to rotate, so that the semi-circular material baffle closes the discharge port, add raspberry juice concentrate from the feeding nozzle, cover the feeding nozzle tightly, and tighten the bottle cap of the rotating hopper on At the thread of the water bottle; when it is necessary to drink, rotate the material baffle and rotate the wrench to make the silo communicate with the water bottle. The water in the bottle and the concentrated raspberry juice can be mixed evenly, and then the feeding nozzle cover can be opened for drinking. After drinking, it can be restored. At the position of the material baffle, continue to add raspberry juice concentrate into the silo.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that : it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some or all of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the various embodiments of the present utility model Scope of technical solutions.

Claims (3)

1. A rotary hopper bottle cap, characterized in that the rotary hopper bottle cap comprises: a feeding part (1), a hopper part (2) and a connecting part (5); The upper and lower ends of the silo part (2) are respectively provided with a feeding part (1) and a connecting part (5); the upper feeding part (1) is communicated with the silo part (2); The lower connecting part (5) is communicated, and a discharge port (3) is provided at the connection between the silo part (2) and the connecting part (5). bottle mouth sealing ring (4) for connection and sealing; The connecting part (5) is located at the lower part of the bottle cap of the rotating silo and has a ring structure; the inner wall of the connecting part (5) is machined with a cap thread (31), and the bottle cap of the rotating silo and the water bottle (6) pass through the cap. The threads (31) are connected. 2. The bottle cap of a rotating silo according to claim 1, wherein the silo portion (2) comprises: a silo (21), a material baffle rotating shaft (22), a material baffle (23) ), silicone sealing ring (24), material baffle rotary wrench (25) and sealing cover (26); The interior of the silo (21) is a horizontal cylindrical structure; The material baffle (23) is in a semi-cylindrical shape, the material baffle (23) is coaxial with the silo (21), and the outer diameter of the material baffle (23) is slightly smaller than the inner diameter of the silo (21). sliding seal; The material baffle (23) is machined with a coaxial material baffle rotating shaft (22); The material baffle (23) is loaded into the silo (21), the outside of the silo is provided with a silicone sealing ring (24) and a sealing cover (26), and the sealing cover (26) is connected with the silo (21) by threads ; The part of the material baffle rotating shaft (22) protruding from the outside of the sealing cover (26) is provided with a material baffle rotating wrench (25) for rotating the material baffle (23). 3. The bottle cap according to claim 1, wherein the feeding part (1) comprises: a feeding nozzle (12) and a feeding nozzle cover (11); The feeding nozzle (12) is mounted on the upper part of the silo (2) and communicates with the hopper; the feeding nozzle (12) is provided with a feeding nozzle cover (11).
