Abstract

The utility model discloses an auxiliary device for billiards training, comprising a table board, wherein the table board is set as an inverted L-shaped structure, and a fixing block is fixedly connected to one side of the upper end of the table board, and the fixing block is set as a wedge-shaped structure , both sides of the fixing block are inserted with pan head bolts with threads passing through the table board, the upper end of the fixing block is provided with a track, and the bottom edge of the table board is evenly distributed and fixed for connection with table legs. Compared with the prior art, the utility model has the advantages that: the billiard training auxiliary device is convenient for training and quickly correcting the swing of the practitioner, and when practicing the swing, the swing is smooth, and there is no problem with the inner and outer turns of the swing. Very good correction, and can correct the dominant eye, reducing training time.

Description

A billiard training aid

technical field

The utility model relates to the technical field of billiards training equipment, in particular to a billiards training auxiliary device.

Background technique

With the extensive development of fitness sports, more and more people begin to choose fitness and leisure sports. Billiards is a leisure sport with a high degree of mass participation. Beginners learn billiards, training time is long, and posture is not in place, which leads to vigorous development. When the movement is deformed, at present, the existing training equipment is tied to the arm, relying on itself to correct the movement, it is difficult to achieve the effect, these problems need to be solved, so it needs to be improved.

Utility model content

The technical problem to be solved by the utility model is to overcome the above technical defects, and to provide a billiards training auxiliary device which is convenient for training and correcting the swing of a practitioner.

In order to solve the above-mentioned technical problems, the technical scheme provided by the present utility model is: a billiard training auxiliary device, comprising a table board, the table board is set as an inverted L-shaped structure, and the upper end side of the table board is fixedly connected with a fixing device. The fixed block is set as a wedge-shaped structure, and both sides of the fixed block are inserted with pan head bolts threaded through the table board, the upper end of the fixed block is provided with a track, and the Table legs are evenly distributed and fixed at the edge of the bottom end.

Compared with the prior art, the advantage of the utility model is that: an auxiliary device for billiards training includes a table board, and the table board is set as an inverted L-shaped structure, which can solve the problem of position training for practitioners. The upper side of the plate is fixedly connected with a fixing block, the fixing block is a wedge-shaped structure, and both sides of the fixing block are inserted with pan head bolts with threads passing through the table board. The upper end is provided with a track, so that the relative height of the track on the fixed block can be adjusted through the pan head bolt, and the club can be sleeved on the track to help the trainer feel the trajectory of the club. The bottom edge of the bottom edge is evenly distributed and fixed with table legs, which can support the table board and ensure that it fits the standard pool table to ensure that there is no deviation in training.

As an improvement, the two sides with right angles of the table board are fixedly connected with rubber protective pads, which can protect the trainer.

As an improvement, the width of the track is matched with the billiard cue, which is convenient for constraining the movement trajectory of the cue when it comes out.

As an improvement, the height of the table legs is the same as the height of the table legs of a standard billiard table, so as to ensure that it fits the standard billiard table.

Description of drawings

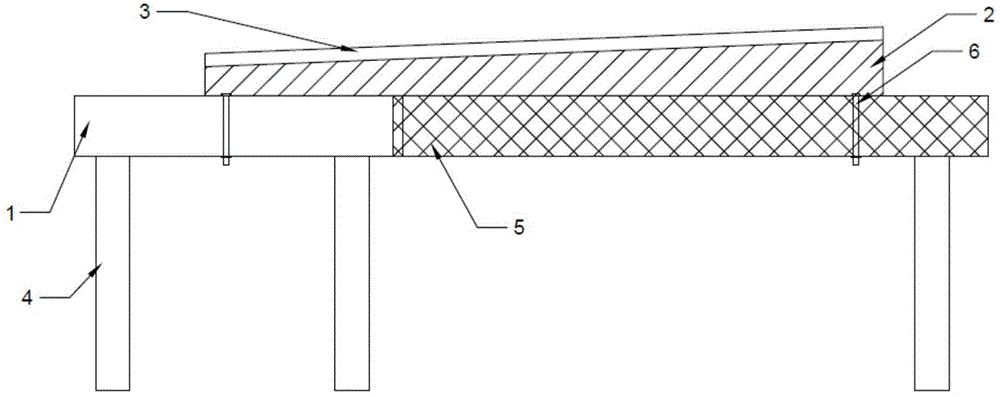

Figure 1 is a schematic side view of a billiards training auxiliary device of the present invention.

FIG. 2 is a top view of the structure of a billiards training auxiliary device of the present invention.

As shown in the picture: 1. Table board, 2. Fixed block, 3. Track, 4. Table leg, 5. Protective pad, 6. Pan head bolt.

Detailed ways

The present utility model will be further described in detail below in conjunction with the accompanying drawings.

During the specific implementation of the present utility model, a billiards training auxiliary device is provided, which comprises a table board 1, the table board 1 is set as an inverted L-shaped structure, and a fixing block 2 is fixedly connected to one side of the upper end of the table board 1, The fixing block 2 is set as a wedge-shaped structure. Both sides of the fixing block 2 are inserted with pan-head bolts 6 threaded through the table top 1. The upper end of the fixing block 2 is provided with a track 3, so The bottom edge of the table board 1 is evenly distributed and fixedly connected with table legs 4 .

The two sides with right angles of the table board 1 are fixedly connected with rubber protective pads 5 .

The width of the track 3 is matched to the billiard cue.

The height of the table legs 4 is the same as that of a standard pool table.

The working principle of the utility model is as follows: the billiard training auxiliary device of the present utility model is convenient for training and quickly correcting the swing of the practitioner. At present, the existing training equipment is to bind the equipment to the arm, and rely on itself to correct the action, which is very difficult to achieve. It is difficult to achieve the effect. In view of these situations, the billiards training auxiliary device includes a table board 1, and the table board 1 is set as an inverted L-shaped structure. The position training problem of practitioners, in addition, the two sides with right angles of the table board 1 are fixedly connected with a rubber protective pad 5, and the upper end side of the table board 1 is fixedly connected with a wedge-shaped structure The fixing block 2, both sides of the fixing block 2 are plugged with pan head bolts 6 threaded through the table top 1, the upper end of the fixing block 2 is provided with a track 3, and the width of the track 3 It can be matched with the billiard cue, and the cue can be sleeved on the track 3. At the same time, the height of the two ends of the fixing block 2 relative to the table board 1 can be adjusted by using the pan head bolts 6, so as to realize multiple scenes. Simulate the exercise, and use the track 3 to constrain the trajectory of the club when the club is out, allowing the trainer to feel the most correct stance and club trajectory in one step through the sliding of the club. The bottom of the table board 1 The edge of the end is evenly distributed and fixedly connected with table legs 4. The height of the table legs 4 is the same as that of the table legs 4 of a standard pool table, which can support the table board 1 and ensure that it fits the standard pool table and ensures that training is not easy. There is a deviation, which solves the problem of the trainer's stance, and when practicing the swing, the shot is smooth, and the swing inward and outward turn is well corrected, and it can correct the dominant eye and reduce the training time. time.

The present invention and the embodiments thereof have been described above, and the description is not restrictive, and what is shown in the accompanying drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. All in all, if those of ordinary skill in the art are inspired by it, without departing from the purpose of the present invention, and without creatively designing the structural modes and embodiments similar to the technical scheme, all should belong to the protection of the present invention. scope.

Claims (4)

1. A billiards training auxiliary device, comprising a table board (1), characterized in that: the table board (1) is set as an inverted L-shaped structure, and the upper end side of the table board (1) is fixedly connected with a fixed block (2), the fixing block (2) is set as a wedge-shaped structure, and both sides of the fixing block (2) are inserted with pan head bolts (6) threaded through the table board (1), The upper end of the fixing block (2) is provided with a track (3), and the bottom edge of the table board (1) is evenly distributed and fixedly connected with table legs (4). 2 . The billiards training auxiliary device according to claim 1 , wherein the two sides with right angles of the table board ( 1 ) are fixedly connected with rubber protective pads ( 5 ). 3 . 3. A billiards training auxiliary device according to claim 1, characterized in that: the width of the track (3) is matched with the billiard cue. 4. A billiard training auxiliary device according to claim 1, characterized in that: the height of the table legs (4) is the same as the height of the table legs of a standard billiard table.
