CN211910590U - Woman swimming suit convenient to adjust and ventilative - Google Patents

Abstract

The utility model discloses an easily adjustable and breathable women's swimsuit, which comprises a swimsuit body, the upper end of the swimsuit body is provided with two shoulder straps, the two shoulder straps are provided with elastic buttons, and the swimsuit body is provided with two shoulder straps. The front side of the swimsuit body is provided with an opening, the side wall of the swimsuit body close to the opening is provided with a plurality of through holes, and a plurality of the through holes are jointly provided with a decorative band, the material of the swimsuit body is composite fabric, and the swimsuit body It comprises a base layer, the upper side wall of the base layer is provided with a breathable layer, the upper side wall of the breathable layer is provided with a wear-resistant layer, the lower side wall of the base layer is provided with an antibacterial layer, and the lower side wall of the antibacterial layer is provided with an antibacterial layer. An antistatic layer is provided, the lower side wall of the antistatic layer is provided with a comfortable layer, and the two shoulder straps are made of elastic fabrics. The utility model has a reasonable structure, not only can the body of the swimsuit be adjusted according to the needs of the user, but also has a better ventilation effect and increases the comfort of the user.

Description

An easily adjustable and breathable women's swimsuit

technical field

The utility model relates to the technical field of swimwear and swimwear, in particular to a women's swimsuit which is easy to adjust and breathable.

Background technique

Women's swimsuits are divided into two-piece and one-piece swimsuits; one-piece swimsuits include shoulder straps and tube styles, as well as Chinese-style enterprise neck designs; shoulder strap swimwear with an upper body such as a vest is very traditional and is the most popular. selected style. In fact, although the shoulder strap swimsuit is ordinary, through the change of the shoulder strap, you can still find something special, such as the one-shoulder one-piece head that has been popular abroad in the past few years. In addition, the deep-opened chest and the wrap-around swimsuit are the best modification for the body with a narrow top and a wide bottom. Moreover, adding a unique modification to the bust line can make the body shape more perfect.

Although the current one-piece swimsuit is elastic, for some women, the swimsuit is tighter when worn for a period of time, which makes the body uncomfortable; secondly, the current swimsuit has poor ventilation effect after being soaked in water, and the long-term wear will make the skin more sultry, causing discomfort, so we designed an easily adjustable and breathable women's swimsuit to solve the above problems.

Utility model content

The purpose of this utility model is to solve the shortcomings in the prior art, and proposes an easily adjustable and breathable women's swimsuit, which can not only adjust the body of the swimsuit according to the user's needs, but also has better ventilation effect. , to increase user comfort.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An easily adjustable and breathable women's swimsuit, comprising a swimsuit body, the upper end of the swimsuit body is provided with two shoulder straps, the two shoulder straps are provided with elastic buttons, and the front of the swimsuit body is provided with an opening , the side wall of the swimsuit body close to the opening is provided with a plurality of through holes, and a plurality of the through holes are jointly provided with a decorative band, the material of the swimsuit body is composite cloth, the swimsuit body includes a base layer, and the swimsuit body includes a base layer. The upper side wall of the base layer is provided with a breathable layer, the upper side wall of the breathable layer is provided with a wear-resistant layer, the lower side wall of the base layer is provided with an antibacterial layer, and the lower side wall of the antibacterial layer is provided with an antistatic layer , the lower side wall of the antistatic layer is provided with a comfort layer.

Preferably, both of the shoulder straps are elastic fabrics, and both of the shoulder straps are connected to the body of the swimsuit by sewing.

Preferably, the material of the breathable layer is Golster film.

Preferably, the material of the wear-resistant layer is cordura nylon.

Preferably, the material of the antibacterial layer is natural fiber, and the antibacterial layer is provided with antibacterial powder.

Preferably, the material of the antistatic layer is polyester-viscose blended fabric.

Preferably, the material of the comfort layer is seaweed fiber.

Compared with the prior art, the utility model has the following beneficial effects:

1. In this utility model, the elastic buckle can be adjusted according to the actual situation to realize the tightness of the shoulder strap; the user can control the size of the opening by pulling or loosening the decorative strap to meet the needs of the user and realize the adjustment of the body of the swimsuit.

2. The utility model, by setting up a breathable layer, an antibacterial layer, an antistatic layer, a wear-resistant layer, and a comfortable layer, can not only sterilize and antibacterial, prevent static electricity, and increase the comfort of the user, but also have the effect of air permeability, which is effective. Improve user comfort.

To sum up, the structure of the utility model is reasonable, not only can the body of the swimsuit be adjusted according to the needs of the user, but also has a better ventilation effect and increases the comfort of the user.

Description of drawings

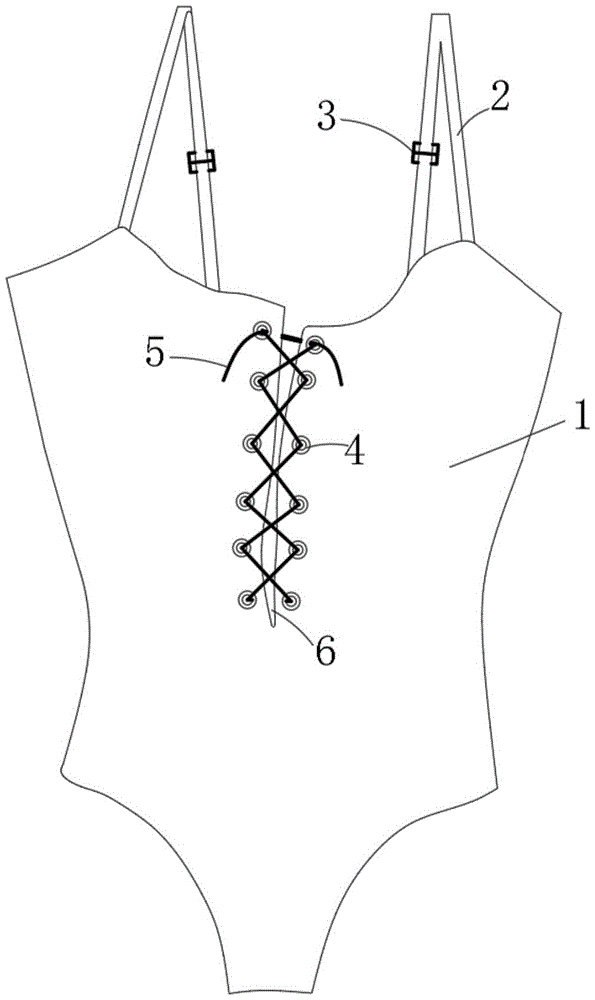

Fig. 1 is the structural representation of a kind of convenient adjustment and breathable women's swimsuit proposed by the utility model;

2 is a cross-sectional view of a swimsuit body in a women's swimsuit that is easy to adjust and breathable according to the present invention.

In the picture: 1 swimsuit body, 2 shoulder straps, 3 elastic buttons, 4 through holes, 5 decorative belts, 6 openings, 7 base layers, 8 breathable layers, 9 wear layers, 10 comfort layers, 11 antibacterial layers, 12 antistatic layers layer, 13 antibacterial powder.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-2, a women's swimsuit that is easy to adjust and breathable includes a swimsuit body 1, the upper end of the swimsuit body 1 is provided with two shoulder straps 2, the two shoulder straps 2 are elastic fabrics, and the two shoulder straps 2 are connected with the swimsuit body 1 by sewing, and the two shoulder straps 2 are provided with elastic buttons 3, and the length of the shoulder straps 2 can be adjusted by pulling the two elastic buttons 3; the front of the swimsuit body 1 There is an opening 6, and the side wall of the swimsuit body 1 close to the opening 6 is provided with a plurality of through holes 4, and a decorative band 5 is arranged in the plurality of through holes 4, and the size of the opening 6 can be controlled by pulling or loosening the decorative band 5, meet the needs of users.

The swimsuit body 1 is made of composite fabric, the swimsuit body 1 includes a base layer 7, the base layer 7 is made of synthetic fibers, the upper side wall of the base layer 7 is provided with a breathable layer 8, and the breathable layer 8 is connected with the base layer 7 through viscose, and is breathable. The material of the layer 8 is Gorester film, seawater can easily evaporate through the Gorester film, so that the body is always kept comfortable and dry; the upper side wall of the breathable layer 8 is provided with a wear-resistant layer 9, and the wear-resistant layer 9 passes through the adhesive layer. The glue is connected with the breathable layer 8, and the material of the wear-resistant layer 9 is Cordura nylon. Cordura nylon not only has excellent wear resistance, tear resistance, high strength, but also has a good hand feeling, light weight, Soft and stable in color, so it will not change color when exposed to the sun and has excellent abrasion resistance.

The lower side wall of the base layer 7 is provided with an antibacterial layer 11, and the antibacterial layer 11 is connected with the base layer 7 through adhesive. The bacteria multiply and kill them; the lower side wall of the antibacterial layer 11 is provided with an antistatic layer 12, and the antistatic layer 12 is connected with the antibacterial layer 11 through viscose. The viscose fiber is arranged in the viscose blended fabric, which improves the air permeability of the fabric, improves the anti-melt porosity, and reduces the pilling and antistatic phenomenon of the fabric; the lower side wall of the antistatic layer 12 is provided with a comfort layer 10 , the material of the comfort layer 10 is seaweed fiber, and the comfort layer 10 is connected with the antistatic layer 12 through viscose, which can make the human blood resonate, promote the subcutaneous temperature to rise, accelerate blood circulation, promote metabolism, and eliminate harmful substances in the body It can effectively improve the comfort of the user when wearing it.

In the present invention, the user can adjust the elastic buckle 3 according to the actual situation, which can realize the tightness of the shoulder strap 2; the user can control the size of the opening 6 by pulling or loosening the decorative strap 5, so as to meet the needs of the user and achieve Adjustment to swimsuit body 1.

By providing the breathable layer 8, the antibacterial layer 11, the antistatic layer 12, the wear-resistant layer 9, and the comfort layer 10, it can not only sterilize and antibacterial, prevent static electricity, and increase the comfort of the user, but also have the effect of air permeability, which can effectively improve the User comfort.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. The woman swimsuit convenient to adjust and breathable comprises a swimsuit body (1) and is characterized in that two shoulder straps (2) are arranged at the upper end of the swimsuit body (1), elastic buckles (3) are arranged on the two shoulder straps (2), an opening (6) is formed in the front of the swimsuit body (1), a plurality of through holes (4) are formed in the side wall, close to the opening (6), of the swimsuit body (1), a decorative belt (5) is arranged in the through holes (4) together, the swimsuit body (1) is made of composite cloth, the swimsuit body (1) comprises a base layer (7), a breathable layer (8) is arranged on the upper side wall of the base layer (7), a wear-resistant layer (9) is arranged on the upper side wall of the breathable layer (8), an antibacterial layer (11) is arranged on the lower side wall of the base layer (7), and an antistatic layer (12) is arranged on the lower side wall of the antibacterial layer (11), the lower side wall of the antistatic layer (12) is provided with a comfortable layer (10).

2. The adjustable and breathable women's swimsuit according to claim 1, wherein both of the shoulder straps (2) are made of elastic cloth, and both of the shoulder straps (2) are connected with the swimsuit body (1) by sewing.

3. An adjustable and breathable women's swimming garment according to claim 1, wherein the breathable layer (8) is made of Golstre film.

4. An adjustable and breathable women's swimming garment according to claim 1, wherein the wear layer (9) is made of cordurone.

5. The adjustable and breathable women's swimsuit according to claim 1, wherein the antibacterial layer (11) is made of natural fibers, and antibacterial powder (13) is arranged in the antibacterial layer (11).

6. An adjustable and breathable women's swimsuit according to claim 1, wherein the antistatic layer (12) is made of polyester-viscose blended fabric.

7. An adjustable and breathable women's swimming garment according to claim 1, wherein the comfort layer (10) is made of alginate fibers.
