Abstract

The utility model discloses a drying device for the production of automobile parts, which comprises a box body, a cleaning room and a drying room. The box body is divided into a cleaning room and a drying room by a partition, and the cleaning room and the drying room are further separated by a partition The connection channel left on the board is connected, a first conveyor belt is installed above the interior of the cleaning chamber, a hot air blower is installed on the top of the box, and the air outlet end of the hot air blower is connected to several air outlet buckets through an air duct, and a drying chamber is installed with a The inclined second conveyor belt has a plurality of drying lamps installed on the top of the connecting channel and the inner two sides of the drying chamber; the drying device of the present utility model cleans the parts through the cleaning chamber in advance, and then passes through the mesh-shaped first conveyor belt. The conveyor belt conveys the cleaned parts. During the conveying process, the parts are dried from both sides using a hot air blower and a heating tube, and then sent to the drying room, where they are fully dried by the drying lamp, which can be quickly and thoroughly dried. Parts, high drying efficiency, easy to use and promote.

Description

A drying device for auto parts production

technical field

The utility model relates to a drying device, in particular to a drying device for the production of auto parts, which belongs to the technical field of production equipment for auto parts.

Background technique

In the production process of auto parts, it is often necessary to clean the processed auto parts. After the cleaning of the parts is completed, the parts need to be dried.

For the drying devices for parts in the prior art, most of the parts are placed inside the slot drying device, and the parts are dried through hot air circulation, but because the position of the parts in the drying device remains unchanged, resulting in zero drying. The windward side of the parts is dried first, while the windward side of the parts is still wet. It takes a continuous drying time for the parts to completely dry the parts, which reduces the drying efficiency and also reduces the drying efficiency. Increase power consumption. To this end, we propose a drying device for the production of auto parts.

Utility model content

The utility model provides a drying device for the production of auto parts, which solves the problems of incomplete drying and low drying efficiency of the auto parts in the prior art.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

The utility model provides a drying device for the production of automobile parts, which comprises a box body, a cleaning room and a drying room. The box body is divided into a cleaning room and a drying room by a partition plate. The cleaning room and the drying room The chambers are also communicated through the connecting passages left on the partitions, a first conveyor belt is installed above the interior of the cleaning chamber, a hot air blower is installed on the top of the box, and the air outlet end of the hot air blower communicates with several air ducts. There are several air outlet buckets, and several of the air outlet buckets are facing the first conveyor belt, the second inclined conveyor belt is installed in the drying chamber, and the top of the connecting channel and the inner sides of the drying chamber are installed with multiple conveyor belts. a drying lamp, and the drying lamp in the drying chamber is located above the second conveyor belt.

As a preferred technical solution of the present invention, a controller is also installed on the top of the box body, and the first conveyor belt, the second conveyor belt, the hot air blower and several drying lamps are respectively electrically connected to the controller.

As a preferred technical solution of the present invention, the first conveying belt includes a first conveying roller and a mesh conveying belt, four of the first conveying rollers are installed in the cleaning chamber, and one end of one of the first conveying rollers is also A servo motor is connected, the mesh conveyor belt is sleeved on four first conveyor rollers to form a conveyor belt in the shape of an irregular quadrilateral, a plurality of baffles are arranged on the mesh conveyor belt, and the controller is electrically connected servo motor.

As a preferred technical solution of the present invention, the output end of the hot air blower is connected with a first air duct and a second air duct, and the first air duct and the second air duct are respectively facing the upward slope of the first conveyor belt. The first air duct and the second air duct are connected to a plurality of air outlet buckets, and a U-shaped arrangement of heating pipes is installed under the top end face of the first conveyor belt. Connect the controller.

As a preferred technical solution of the present invention, a plurality of lifting cylinders are installed at the inner bottom end of the cleaning chamber, and the piston ends of the plurality of lifting cylinders are jointly connected to a filter screen plate, and both sides of the lower part of the cleaning chamber A plurality of ultrasonic vibrators are installed, one side of the cleaning chamber is also connected to a water outlet pipe with a valve, the ultrasonic vibrator is located above the filter screen plate, and the lifting cylinder and the ultrasonic vibrator are both electrically connected to the controller. .

As a preferred technical solution of the present invention, the second conveyor belt includes a second conveyor roller and a plate conveyor belt, the two second conveyor rollers are installed in the drying chamber, and the plate conveyor belt is sleeved on the two second conveyor belts. On the two transfer rollers, a servo motor is also installed at the inner bottom end of the drying chamber, and one of the second transfer rollers is connected to the output end of the servo motor through a transmission mechanism composed of a belt and a pulley, and the servo motor is electrically Connect the controller.

As a preferred technical solution of the present invention, the upper end of the partition is inclined, the upper part of the lower inclined surface of the first conveyor belt is close to the upper inclined surface of the partition, and one side of the cleaning chamber and the drying chamber are provided There are inlets and outlets, and the two inlets and outlets are respectively located at the lower part of the upper inclined surface of the first conveyor belt and the lower part of the inclined surface of the second conveyor belt.

The beneficial effects achieved by the utility model are as follows: compared with the prior art, the drying device for the production of auto parts of the present utility model has the following beneficial effects:

1. The drying device of the present utility model carries out ultrasonic cleaning through the ultrasonic vibrator in the cleaning room in advance, and then drives the components on the filter screen plate to rise through the lifting cylinder, and transmits through the first conveyor belt. The heating tube is heated by blowing air to dry the moisture on the surface of the parts from the upper and lower sides, with high cleaning efficiency and good drying effect.

2. The drying device of the present utility model transmits the cleaned parts through the mesh-shaped first conveyor belt, and uses the air outlet on the first air duct to blow out hot air in advance, so that the parts can be drained when the parts are lifted and conveyed. After drying the parts from both sides of the parts through the air outlet on the second air duct and the heating pipe, they are then transferred to the drying room and fully dried by the drying lamp, which can quickly and thoroughly dry the parts. High drying efficiency, easy to use and promote.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention.

In the attached image:

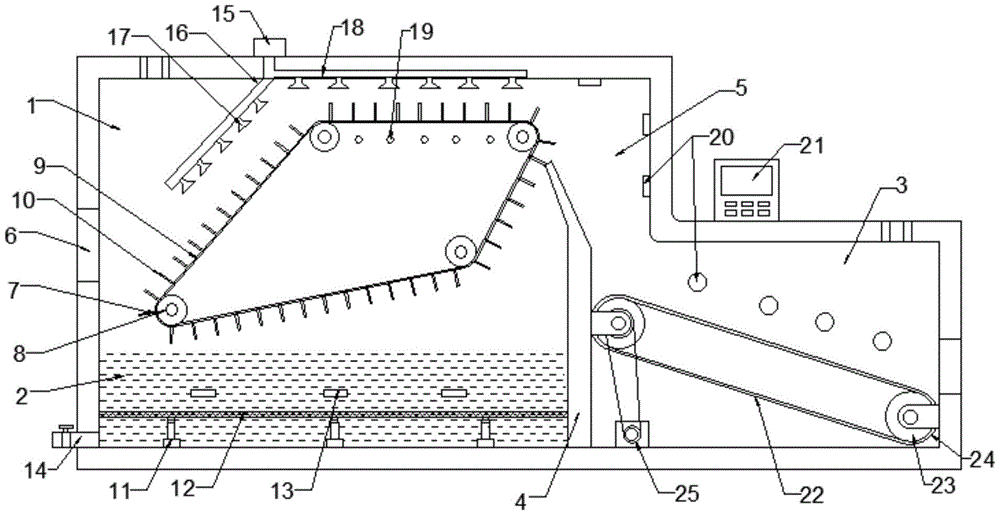

Fig. 1 is the subjective structure schematic diagram of a kind of auto parts production drying device proposed by the utility model;

Fig. 2 is the heating pipe structure schematic diagram of a kind of auto parts production drying device proposed by the present utility model;

In the figure: 1. Box; 2. Cleaning room; 3. Drying room; 4. Partition; 5. Connecting channel; 6. Import and export; 7. First conveyor belt; conveyor belt; 10, baffle plate; 11, lift cylinder; 12, filter screen plate; 13, ultrasonic vibrator; 14, water outlet pipe; 15, hot air blower; 16, first air duct; 17, air outlet bucket; 18, The second air duct; 19, the heating pipe; 20, the drying lamp; 21, the controller; 22, the second conveyor belt; 23, the second conveyor roller; 24, the plate conveyor; 25, the servo motor.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Example 1

As shown in Figures 1-2, the present utility model provides a drying device for the production of auto parts, comprising a box body 1, a cleaning chamber 2 and a drying chamber 3, and the box body 1 is divided into a cleaning chamber by a partition 4 2 and the drying chamber 3, the cleaning chamber 2 and the drying chamber 3 are also communicated through the connecting channel 5 left on the partition plate 4, the first conveyor belt 7 is installed above the interior of the cleaning chamber 2, and the top of the box 1 is installed with a heat exchanger. Fan 15, the air outlet end of the hot air blower 15 is connected to several air outlet buckets 17 through air ducts, and several air outlet buckets 17 are all facing the first conveyor belt 7, and a second inclined conveyor belt 22 is installed in the drying chamber 3 to connect A plurality of drying lamps 20 are installed at the top of the channel 5 and on both sides of the interior of the drying chamber 3 , and the drying lamps 20 in the drying chamber 3 are located above the second conveyor belt 22 .

A controller 21 is also installed on the top of the box 1. The first conveyor belt 7, the second conveyor belt 22, the hot air blower 15 and several drying lamps 20 are respectively electrically connected to the controller 21, and the controller 21 is an S7-200 PLC controller.

The first conveying belt 7 includes a first conveying roller 8 and a mesh conveying belt 9. Four first conveying rollers 8 are installed in the cleaning chamber 2. One end of one of the first conveying rollers 8 is also connected with a servo motor 25. The mesh conveying belt 9 It is sleeved on four first conveying rollers 8 to form a conveying belt in the shape of an irregular quadrilateral. A plurality of baffles 10 are arranged on the mesh conveying belt 9 , and the controller 21 is electrically connected to the servo motor 25 .

The output end of the hot air blower 15 is connected with a first air duct 16 and a second air duct 18. The first air duct 16 and the second air duct 18 face the upper inclined surface and the top end face of the first conveyor belt 7 respectively. 16 and the second air pipe 18 are connected with a plurality of air outlet buckets 17 , and a section of U-shaped heating pipes 19 are installed under the top end face of the first conveyor belt 7 , and the heating pipes 19 are electrically connected to the controller 21 .

The inner bottom end of the cleaning chamber 2 is installed with a plurality of lifting cylinders 11, the piston ends of the plurality of lifting cylinders 11 are connected to a filter screen plate 12, and a plurality of ultrasonic vibrators 13 are installed on both sides of the lower part of the cleaning chamber 2. The cleaning chamber One side of 2 is also connected to a water outlet pipe 14 with a valve, and the valve can be opened, so that the water in the cleaning chamber 2 is led out from the water outlet pipe 14, the ultrasonic vibrator 13 is located above the filter screen plate 12, the lifting cylinder 11 and the ultrasonic vibrator are 13 are electrically connected to the controller 21 .

Specifically, during use, the controller 21 controls the ultrasonic vibrator 13 to perform ultrasonic vibration, so that the components located on the filter screen 12 in the cleaning chamber 2 are ultrasonically cleaned. At the same time, the controller 21 controls the lifting cylinder 11 at regular intervals. Drive the filter screen plate 12 to rise for a period of time, during this period, the filter screen plate 12 is close to the bottom end of the first conveyor belt 7, the first conveyor belt 7 is driven by the servo motor 25 to rotate, the baffle plate 10 on the mesh conveyor belt 9 With the rotation of the first conveyor belt 7, the parts can be taken out from the filter screen plate 12, and when the parts are located on the upper inclined surface of the first conveyor belt 7, the moisture on it is filtered through the mesh conveyor belt 9, and, The controller 21 controls the hot air blower 15 and the heating pipe 19 to work. The hot air blower 15 blows out hot air through the air outlet duct 17 on the first air duct 16 to speed up the draining efficiency of the surface moisture of the parts. After that, when the parts reach the first conveyor belt 7. When the top end is on the end surface, the hot air is blown out through the air outlet 17 on the second air duct 18, and the heat emitted by the heating pipe 19 is used to dry the moisture on the surface of the component from both sides.

Example 2

As shown in Figure 1-2, the box body 1 is divided into a cleaning chamber 2 and a drying chamber 3 by a partition 4, and the cleaning chamber 2 and the drying chamber 3 are also connected through the connecting channel 5 left on the partition 4. A first conveyor belt 7 is installed above the interior of the chamber 2, a second inclined conveyor belt 22 is installed in the drying chamber 3, and a plurality of drying lamps 20 are installed on the top of the connecting channel 5 and on both sides of the interior of the drying chamber 3, The drying lamps 20 in the drying chamber 3 are located above the second conveyor belt 22 .

The second conveyor belt 22 includes a second conveyor roller 23 and a slatted conveyor belt 24. The slatted conveyor belt 24 has a large friction force, which can make the components rest on the inclined surface of the slatted conveyor belt 24. The two second conveyor rollers 23 are installed on the drying In the chamber 3, the slat conveyor 24 is sleeved on the two second transfer rollers 23, the inner bottom end of the drying chamber 3 is also equipped with a servo motor 25, and one of the second transfer rollers 23 is connected by a transmission mechanism composed of a belt and a pulley. On the output end of the servo motor 25, the servo motor 25 is electrically connected to the controller 21, the two pulleys are respectively installed on the output end of the servo motor 25 and one of the second conveying rollers 23, and a belt is sleeved on the two pulleys , the rotation of the servo motor 25 can drive the second conveying roller 23 to rotate, thereby driving the second conveying belt 22 to work.

The upper end of the partition plate 4 is inclined, the upper part of the lower inclined surface of the first conveyor belt 7 is close to the upper inclined surface of the partition plate 4, one side of the cleaning chamber 2 and the drying chamber 3 is provided with an inlet and outlet 6, and the two inlet and outlet 6 are respectively located at In the lower part of the upper inclined surface of the first conveyor belt 7 and the lower part of the inclined surface of the second conveyor belt 22 , the inlet and outlet 6 are convenient for taking parts into the box 1 .

Specifically, in the connecting channel 5, the parts conveyed by the top end face of the first conveyor belt 7 can be turned over due to the rotation of the parts, and the parts can be slid onto the second conveyor belt 22 through the upper inclined surface of the partition plate 4. Under the action of the controller 21, the servo motor 25 drives the second conveyor belt 22 to convey the parts. During the conveying process, the drying lamp 20 completely dries the moisture on the surface of the parts in the connecting channel 5 and the drying chamber 3.

The drying device of the present invention carries out ultrasonic cleaning through the ultrasonic vibrator 13 in the cleaning chamber 2 in advance, and then drives the components on the filter screen plate 12 to rise through the lifting cylinder 11, and the cleaned first conveyor belt 7 conveys the cleaned For the parts, the hot air is blown out by the air outlet 17 on the first air duct 16 in advance, so that the parts can drain the water on the surface when the parts are raised and conveyed, and then pass the air outlet 17 and the heating pipe on the second air duct 18. 19. The parts are dried from both sides, and then transferred to the drying room 3, and fully dried by the drying lamp 20, which can quickly and thoroughly clean the parts and dry the parts, with high drying efficiency, easy to use and promote .

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. The drying device for automobile part production comprises a box body (1), a cleaning chamber (2) and a drying chamber (3), and is characterized in that the box body (1) is internally separated into the cleaning chamber (2) and the drying chamber (3) through a partition plate (4), the cleaning chamber (2) and the drying chamber (3) are communicated through a connecting channel (5) reserved on the partition plate (4), a first conveying belt (7) is installed above the inside of the cleaning chamber (2), a hot air blower (15) is installed at the top end of the box body (1), the air outlet end of the hot air blower (15) is communicated with a plurality of air outlet hoppers (17) through air pipes, the air outlet hoppers (17) are just opposite to the first conveying belt (7), an inclined second conveying belt (22) is installed in the drying chamber (3), a plurality of drying lamps (20) are installed at the top end of the connecting channel (5) and two sides inside the drying chamber (3), and a drying lamp (20) in the drying chamber (3) is positioned above the second conveyor belt (22).

2. The drying device for producing the automobile parts as claimed in claim 1, wherein a controller (21) is further installed at the top end of the box body (1), and the first conveyor belt (7), the second conveyor belt (22), the hot air blower (15) and the plurality of drying lamps (20) are respectively electrically connected with the controller (21).

3. The drying device for producing the automobile parts is characterized in that the first conveying belt (7) comprises first conveying rollers (8) and a mesh conveying belt (9), four first conveying rollers (8) are installed in the cleaning chamber (2), one end of one first conveying roller (8) is further connected with a servo motor (25), the mesh conveying belt (9) is sleeved on the four first conveying rollers (8) to form a conveying belt shaped like a trapezoid, a plurality of baffle plates (10) are arranged on the mesh conveying belt (9), and the servo motor (25) is electrically connected with the controller (21).

4. The drying device for producing the automobile parts as claimed in claim 3, wherein an output end of the hot air blower (15) is communicated with a first air pipe (16) and a second air pipe (18), the first air pipe (16) and the second air pipe (18) are respectively opposite to an upper inclined surface and a top end surface of the first conveyor belt (7), the first air pipe (16) and the second air pipe (18) are respectively communicated with a plurality of air outlet hoppers (17), a section of U-shaped arranged heating pipe (19) is further installed below the top end surface of the first conveyor belt (7), and the heating pipe (19) is electrically connected with the controller (21).

5. The drying device for the production of the automobile parts is characterized in that a plurality of lifting cylinders (11) are mounted at the bottom end inside the cleaning chamber (2), the piston ends of the lifting cylinders (11) are connected with a filter screen plate (12), a plurality of ultrasonic vibrators (13) are mounted on two sides of the lower portion of the cleaning chamber (2), a water outlet pipe (14) with a valve is further connected to one side of the cleaning chamber (2), the ultrasonic vibrators (13) are located above the filter screen plate (12), and the lifting cylinders (11) and the ultrasonic vibrators (13) are electrically connected with a controller (21).

6. The drying device for the production of the automobile parts is characterized in that the second conveying belt (22) comprises second conveying rollers (23) and a plate-type conveying belt (24), two second conveying rollers (23) are installed in the drying chamber (3), the plate-type conveying belt (24) is sleeved on the two second conveying rollers (23), a servo motor (25) is further installed at the bottom end inside the drying chamber (3), one of the second conveying rollers (23) is connected to the output end of the servo motor (25) through a transmission mechanism formed by a belt and a belt pulley, and the servo motor (25) is electrically connected with the controller (21).

7. The drying device for producing the automobile parts according to claim 1, wherein the upper end of the partition plate (4) is inclined, the upper part of the lower inclined surface of the first conveyor belt (7) is close to the upper inclined surface of the partition plate (4), one side of the cleaning chamber (2) and one side of the drying chamber (3) are provided with an inlet and an outlet (6), and the two inlet and the outlet (6) are respectively positioned at the lower part of the upper inclined surface of the first conveyor belt (7) and the lower part of the inclined surface of the second conveyor belt (22).
