CN211899289U - Steel construction roofing seam waterproof construction - Google Patents

Abstract

The utility model discloses a waterproof structure for a steel structure roof joint, which comprises a base fabric layer, a sealing groove, a bonding groove and a waterproof and breathable membrane. It is connected to the bottom of the base fabric layer by means of the base fabric layer, and the bottom of the base fabric layer is provided with an adhesive groove, and the adhesive groove is located on both sides of the sealing groove. The waterproof structure for the joints of the steel structure roof better solves the problem of poor waterproofness of the joints of the steel structure roof through the sealing groove provided at the bottom of the base fabric layer. , it can completely cover the outside of the seam, and at the same time, the inside of the sealing groove is filled with sealant. The tight bonding together greatly improves the waterproof performance of the steel structure roof joints. The overall structure is simple and the function is strong.

Description

A steel structure roof joint waterproof structure

technical field

The utility model relates to the technical field of steel structure roof waterproofing, in particular to a steel structure roof joint waterproof structure.

Background technique

Steel structure roof is a roof made of steel material, which is characterized by light weight, high material strength and easy realization.

At present, most of the steel structure roofs on the market cannot be waterproofed separately for the joints, and the functionality is poor. Rainwater can easily seep into the joints to cause corrosion, and the waterproofing effect is not strong. Most waterproof structures cannot be used in environments with excessively high temperatures, and have certain limitations.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a joint waterproof structure of a steel structure roof, which solves the problem that most of the existing steel structure roofs on the market cannot perform waterproof construction for the joints alone when waterproofing. The water resistance is poor, and the rainwater can easily seep into the joints to cause corrosion, and the waterproof effect is not strong.

(2) Technical solutions

In order to achieve the above purpose, the utility model is realized through the following technical solutions: a waterproof structure for a steel structure roof joint, comprising a base fabric layer, a sealing groove, a bonding groove and a waterproof and breathable membrane, and the base fabric layer is provided with A sealing groove, the sealing groove is connected to the bottom of the base fabric layer by means of bonding, the bottom of the base fabric layer is provided with a bonding groove, and the bonding groove is located on both sides of the sealing groove.

Preferably, the interior of the sealing groove is filled with sealant, the sealant covers the outside of the joint, and the sealing groove is attached to the surface of the steel structure roof.

Preferably, the bonding grooves are in a symmetrical distribution form, the interior of the bonding grooves is filled with waterproof glue, and the bonding grooves are bonded to the surface of the steel structure roof.

Preferably, glue overflow gaps are provided on both sides of the sealing groove, and the glue overflow gaps are symmetrically distributed on both sides of the sealing groove.

Preferably, the base cloth layer is made of stitched polyester cloth material, the top of the base cloth layer is connected with a waterproof adhesive tape through a polyurethane waterproof coating, and the waterproof adhesive tape is made of butyl rubber and polyisobutylene material production.

Preferably, a waterproof surface layer is provided under the waterproof and breathable membrane, the waterproof and breathable membrane is connected to the surface of the waterproof surface layer by means of bonding, and the waterproof surface layer is made of SBS roll material.

(3) Beneficial effects

The utility model provides a waterproof structure for a steel structure roof joint. Has the following beneficial effects:

(1) The waterproof structure of the steel structure roof joints, through the sealing groove provided at the bottom of the base fabric layer, better solves the problem of poor waterproofness of the steel structure roof joints. The sealing groove can completely cover the outside of the seam, and at the same time, the inside of the sealing groove is filled with sealant. They are closely bonded together, which greatly improves the waterproof performance of the steel structure roof joints. The overall structure is simple and the function is strong.

(2), the waterproof structure of the steel structure roof joint is provided with a waterproof adhesive tape and a waterproof surface layer on the top of the base fabric layer, and the waterproof adhesive tape made of butyl rubber and polyisobutylene materials is more environmentally friendly , and the waterproof surface layer made of SBS coil material has strong high temperature resistance, so that the waterproof structure is suitable for use in the case of strong solar radiation, and has strong practicability.

Description of drawings

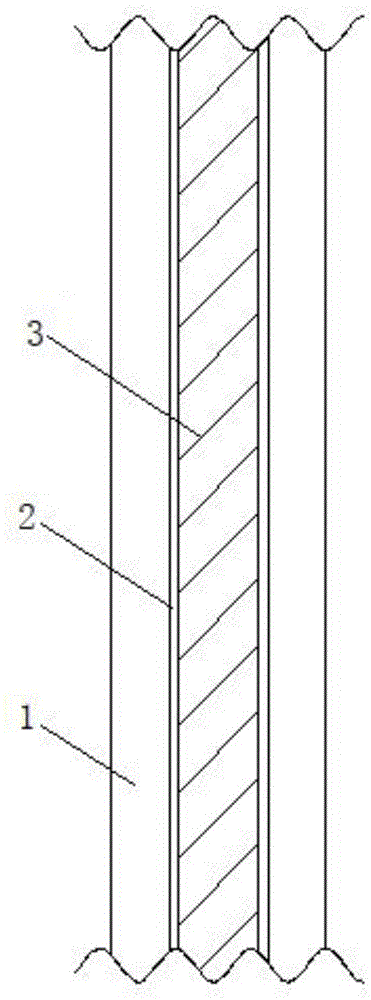

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the overall sectional view of the utility model;

In the figure, base fabric layer-1, sealing groove-2, sealant-3, bonding groove-4, waterproof glue-5, waterproof adhesive tape-6, waterproof surface layer-7, waterproof breathable membrane-8.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2, an embodiment of the present utility model provides a technical solution: a steel structure roof joint waterproof structure, including a base fabric layer 1, a sealing groove 2, a bonding groove 4 and a waterproof and breathable membrane 8, the said The bottom of the base fabric layer 1 is provided with a sealing groove 2, the sealing groove 2 is connected to the bottom of the base fabric layer 1 by means of bonding, and the bottom of the base fabric layer 1 is provided with a bonding groove 4. The grooves 4 are located on both sides of the sealing groove 2 .

The inside of the sealing groove 2 is filled with a sealant 3, the sealant 3 covers the outside of the joint, and the sealing groove 2 is attached to the surface of the steel structure roof. It can well seal the joints of the steel structure roof, which is more targeted and more practical.

The bonding groove 4 is in a symmetrical distribution form, the interior of the bonding groove 4 is filled with waterproof glue 5, and the bonding groove 4 is bonded to the surface of the steel structure roof. The bonding groove 4 can bond the base fabric layer 1 to the steel structure roof twice, so as to realize the sealing and fixing of the butt joint and the roof itself at the same time, with strong functionality.

Both sides of the sealing groove 2 are provided with overflow gaps, and the glue overflow gaps are symmetrically distributed on both sides of the sealing groove 2 . In the overflow gap, the sealing work on both sides of the sealing groove 2 is realized, and the practicability is strong.

The base fabric layer 1 is made of stitched polyester cloth material, and the top of the base fabric layer 1 is connected to a waterproof adhesive tape 6 through a polyurethane waterproof coating, and the waterproof adhesive tape 6 is made of butyl rubber and polyisobutylene. The base fabric layer 1 made of stitched polyester cloth has high tensile strength and strong stability, and the service life of the waterproof structure is better improved.

The waterproof surface layer 7 is provided below the waterproof breathable membrane 8, and the waterproof breathable membrane 8 is connected to the surface of the waterproof surface layer 7 by bonding. The waterproof surface layer 7 made of the coil material has strong high temperature resistance, so that the waterproof structure is suitable for use in the case of strong solar radiation, and has strong practicability.

Working principle: When applying the steel structure roof joint waterproof structure, firstly apply the sealant 3 evenly on the joints of the steel structure roof, and then seal the sealant through the sealing groove 2 provided at the bottom of the base fabric layer 1. The groove 2 is aligned with the seam and pressed down firmly, so that the sealing groove 2 tightly wraps the sealant 3. At the same time, because there is an overflow gap outside the sealing groove 2, the overflowing sealant 3 will It flows into the overflow gap, so as to achieve the sealing work on both sides of the sealing groove 2. When the sealant 3 solidifies, the joints and the base fabric layer 1 can be tightly bonded together, which greatly improves the quality of the steel. The waterproof performance of the structural roof joints is strong, and then the waterproof glue 5 is filled in the bonding groove 4 through the bonding groove 4 provided at the bottom of the base fabric layer 1, and then the base fabric layer 1 is pressed firmly. On both sides, the two sides of the bottom of the base fabric layer 1 can be bonded to the surface of the steel structure roof, so as to realize the sealing and fixing of the butt joint and the roof itself at the same time, and finally a layer of waterproof surface layer 7 is bonded outside. The waterproof and breathable membrane 8 can complete the construction and installation of the waterproof structure. During the operation of the waterproof structure, since the top of the base fabric layer 1 is provided with a waterproof adhesive tape 6 and a waterproof surface layer 7, it is composed of butyl rubber and polystyrene. The waterproof adhesive tape 6 made of isobutylene material has strong environmental protection, and the waterproof surface layer 7 made of SBS coil material has strong high temperature resistance, so that the waterproof structure is suitable for carrying out in the case of strong solar radiation. Use, strong practicability.

The base fabric layer 1 , the sealing groove 2 , the sealing glue 3 , the bonding groove 4 , the waterproof glue 5 , the waterproof adhesive tape 6 , the waterproof surface layer 7 , and the waterproof breathable membrane 8 of the present invention are all common standard parts or parts in the field The structure and principle of the components known to the technicians are all known by the technicians through technical manuals or through conventional experimental methods. The problem solved by this utility model is that most of the existing steel structure roofs on the market are waterproofing. It is impossible to carry out waterproof construction for the joints alone, the functionality is poor, rainwater can easily seep into the joints and cause corrosion, and the waterproofing effect is not strong. Due to the combination of the above-mentioned components and the sealing groove provided at the bottom of the base fabric layer, the present invention better solves the problem of poor waterproofness of the joints of the steel structure roof. The strip-shaped sealing groove can completely cover the outside of the seam, and at the same time, the inside of the sealing groove is filled with sealant. The base fabric layers are closely bonded together, which greatly improves the waterproof performance of the joints of the steel structure roof, and has strong functionality. The waterproof adhesive tape made of butyl rubber and polyisobutylene has strong environmental protection, and the waterproof surface layer made of SBS coil material has strong high temperature resistance, making the waterproof structure suitable for strong solar radiation. It is more practical to use under the circumstances.

The basic principles and main features of the present invention and the advantages of the present invention are shown and described above. For those skilled in the art, it is obvious that the present invention is not limited to the details of the above-mentioned exemplary embodiments, and does not deviate from the present invention. The present invention can be implemented in other specific forms under the condition of the spirit or basic features. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (6)

1. A steel structure roof joint waterproof structure, characterized in that: comprising a base fabric layer (1), a sealing groove (2), a bonding groove (4) and a waterproof breathable membrane (8), the base fabric layer ( 1) a sealing groove (2) is provided below, the sealing groove (2) is connected to the bottom of the base fabric layer (1) by means of bonding, and the bottom of the base fabric layer (1) is provided with an adhesive groove (4), the bonding grooves (4) are located on both sides of the sealing groove (2). 2. A steel structure roof joint waterproof structure according to claim 1, characterized in that: the sealing groove (2) is filled with a sealant (3), and the sealant (3) covers the joint Outside the seam, the sealing groove (2) is fitted on the surface of the steel structure roof. 3. A steel structure roof joint waterproof structure according to claim 1, characterized in that: the bonding groove (4) is in the form of symmetrical distribution, and the interior of the bonding groove (4) is filled with waterproof glue (5), the bonding groove (4) is bonded on the surface of the steel structure roof. 4. A steel structure roof joint waterproof structure according to claim 1, characterized in that: both sides of the sealing groove (2) are provided with overflowing gaps, and the overflowing gaps are symmetrically distributed in the sealing groove (2). 2) on both sides. 5. A steel structure roof joint waterproof structure according to claim 1, characterized in that: the base fabric layer (1) is made of stitched polyester fabric material, and the base fabric layer (1) The top of the waterproof adhesive tape (6) is connected with a polyurethane waterproof coating, and the waterproof adhesive tape (6) is made of butyl rubber and polyisobutylene material. 6. A steel structure roof joint waterproof structure according to claim 1, characterized in that: a waterproof surface layer (7) is provided below the waterproof and breathable membrane (8), and the waterproof and breathable membrane (8) passes through The waterproof surface layer (7) is connected to the surface of the waterproof surface layer (7) by means of bonding, and the waterproof surface layer (7) is made of SBS roll material.
