CN211897831U - Municipal administration way bridge drainage processing apparatus - Google Patents

Abstract

The utility model discloses a drainage treatment device for municipal roads and bridges, which belongs to the field of municipal roads and bridges. , Discharge transmission structure, drain valve, outlet pipe, filter screen. The utility model uses the installation box installed on the installation frame installed on the bridge body, uses the water inlet pipe to collect the sewage on the bridge body, and then drops the sewage into the installation box, and uses the water baffle to block the water flow, thereby slowing down the water flow. The impact of the water in the installation box causes the sludge in the sewage to settle. The conical bucket can be used to collect the sludge to the sewage pipe, and the discharge transmission structure is used to drive the rotating shaft to rotate, which in turn drives the screw to rotate. After opening the sewage valve The sludge can be discharged under certain conditions, and the supernatant of the sewage is filtered through the filter screen and discharged through the outlet pipe to realize the bridge drainage treatment.

Description

A municipal road and bridge drainage treatment device

technical field

The utility model relates to the field of municipal roads and bridges, in particular to a drainage treatment device for municipal roads and bridges.

Background technique

There are usually drainage devices on municipal roads. The existing drainage devices usually use the sewer pipes to directly discharge them into the sewer pipes or rivers and lakes. However, there is usually a lot of dust and debris on the road, and the existing drainage devices directly discharge them into the sewer pipes. It is easy to cause the debris and silt on the road surface to flow directly into the sewer, which in turn easily leads to blockage of the sewer or pollution to rivers and lakes. Therefore, a municipal road, bridge and bridge drainage treatment device is needed to solve the above problems.

Utility model content

The purpose of the utility model is to design a drainage treatment device for municipal roads and bridges in order to solve the problems raised in the background technology.

To achieve the above purpose, the technical scheme of the present utility model is, a municipal road and bridge drainage treatment device, including a bridge body, a mounting frame, a mounting box, a water inlet pipe, a water baffle, a conical bucket, a sewage pipe, a rotating shaft, a spiral sheet , Discharge transmission structure, drain valve, water outlet pipe, filter screen, the installation frame is installed on the bridge body, the installation box is installed on the installation frame, and the water inlet pipe is installed above the installation box and is connected to the bridge body. Pipe connection, the water baffle is installed in the installation box and is located on the side of the connection of the water inlet pipe, the conical bucket is installed under the installation box, the sewage pipe is installed under the conical bucket, and the rotating shaft is rotatable Installed in the installation box, the spiral piece is sleeved on the rotating shaft and located in the conical bucket, the discharge transmission structure is installed on the installation box, the sewage valve is installed at the lower end of the sewage pipe, and the water outlet pipe is installed in the Above the side surface of the installation box, the filter screen is installed in the installation box and is located at the connection of the water outlet pipe.

Preferably, the discharging transmission structure comprises a No. 1 bevel tooth, a No. 2 bevel tooth and a transmission shaft, the No. 1 bevel tooth is installed on the upper end of the rotating shaft, the No. 2 bevel tooth is engaged with the No. 1 bevel tooth, the The transmission shaft is rotatably inserted on the installation box and connected with the No. 2 bevel gear.

Preferably, the outer end of the transmission shaft is provided with a crank handle, and the crank handle is installed on the outer end of the transmission shaft.

Preferably, the water blocking plate is provided with flow-equalizing holes, and a plurality of the flow-equalizing holes are distributed on the water blocking plate in an array.

Preferably, the height of the water baffle is two thirds of the height of the installation box and is installed on the upper part of the installation box.

beneficial effect

The utility model provides a drainage treatment device for municipal roads and bridges, which has the following beneficial effects. Through its structural design, the device utilizes a mounting box installed on a mounting frame installed on the bridge body, and utilizes a water inlet pipe to collect water on the bridge body. Sewage, and then the sewage falls into the installation box, and the water flow is blocked by the baffle plate, thereby slowing the impact of the water flow on the water in the installation box, so that the sludge in the sewage is precipitated, and the conical bucket can be used. At the sewage pipe, the discharge transmission structure is used to drive the rotating shaft to rotate, which in turn drives the spiral blade to rotate. When the sewage valve is opened, the sludge can be discharged. The supernatant of the sewage is filtered through the filter screen and then discharged through the outlet pipe to realize the bridge drainage treatment. , thereby solving the problems raised in the background art.

Description of drawings

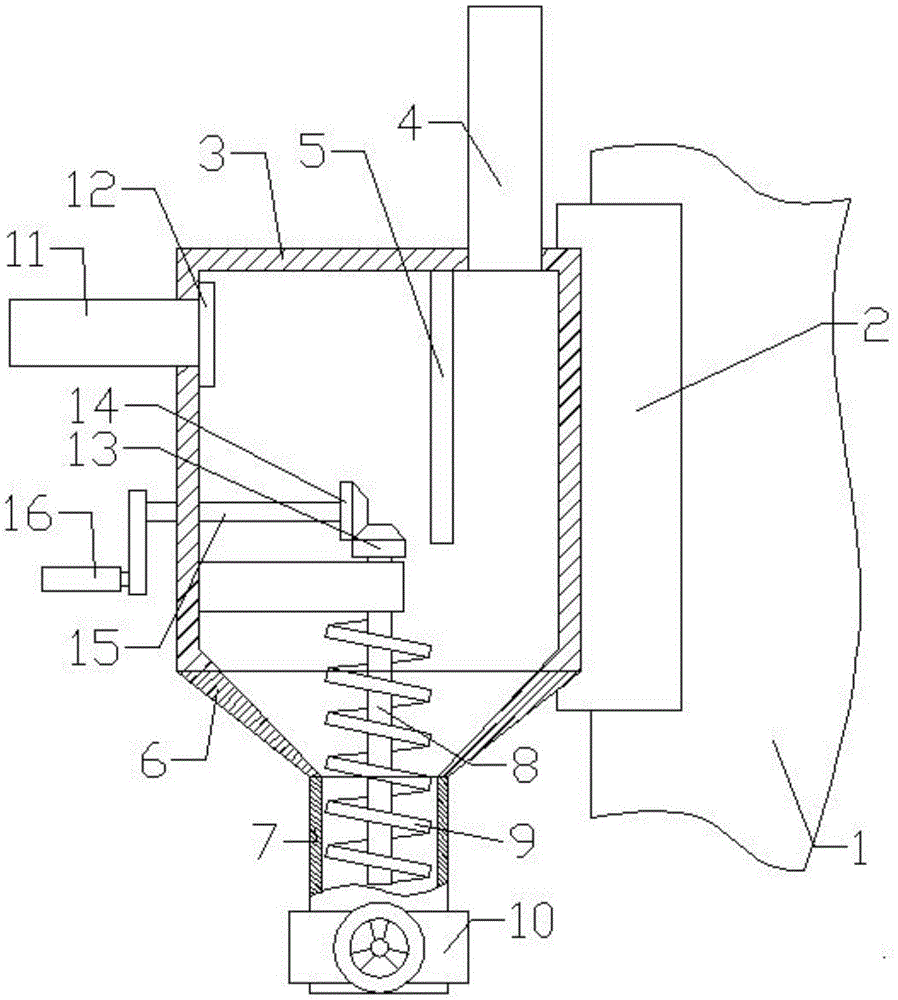

Fig. 1 is the structural representation of the municipal road and bridge drainage treatment device of the present invention;

Fig. 2 is the side view structure schematic diagram of the water retaining plate part of the municipal road and bridge drainage treatment device of the present invention;

3 is a schematic side view of the structure of the filter screen of the drainage treatment device for municipal roads and bridges according to the present invention.

In the figure, 1, the bridge body; 2, the installation frame; 3, the installation box; 4, the water inlet pipe; 5, the water baffle; 6, the conical bucket; 7, the sewage pipe; 8, the rotating shaft; 10. Sewage valve; 11. Outlet pipe; 12. Filter screen; 13. No. 1 bevel tooth; 14, No. 2 bevel tooth; 15. Transmission shaft;

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a municipal road and bridge drainage treatment device, comprising a bridge body 1, a mounting frame 2, a mounting box 3, a water inlet pipe 4, a water baffle 5, a taper Bucket 6, sewage pipe 7, rotating shaft 8, spiral blade 9, discharge transmission structure, sewage valve 10, water outlet pipe 11, filter screen 12, the installation frame 2 is installed on the bridge body 1, and the installation box 3 is installed On the installation frame 2, the water inlet pipe 4 is installed above the installation box 3 and is connected with the sewer pipe of the bridge body 1, and the water blocking plate 5 is installed in the installation box 3 and is located on the side of the connection of the water inlet pipe 4, so The conical bucket 6 is installed under the installation box 3 , the sewage pipe 7 is installed under the conical bucket 6 , the rotating shaft 8 can be rotatably installed in the installation box 3 , and the spiral sheet 9 is sleeved on the rotating shaft 8 And located in the conical bucket 6, the discharge transmission structure is installed on the installation box 3, the sewage valve 10 is installed on the lower end of the sewage pipe 7, the water outlet pipe 11 is installed on the side surface of the installation box 3, the filter The net 12 is installed in the installation box 3 and is located at the connection of the water outlet pipe 11 .

In the present utility model, the discharge transmission structure includes a No. 1 bevel tooth 13, a No. 2 bevel tooth 14, and a transmission shaft 15, the No. 1 bevel tooth 13 is installed on the upper end of the rotating shaft 8, and the No. 2 bevel tooth 14 is connected to the The No. 1 bevel tooth 13 is engaged, and the transmission shaft 15 can be rotatably inserted on the installation box 3 and connected with the No. 2 bevel tooth 14. When the sludge in the installation box 3 needs to be cleaned, the transmission shaft 15 is rotated to drive the The No. 2 bevel tooth 14 rotates, and the No. 2 bevel tooth 14 rotates to drive the engaged No. 1 bevel tooth 13 to rotate, and then the No. 1 bevel tooth 13 rotates to drive the rotating shaft 8 to rotate.

In the utility model, the outer end of the transmission shaft 15 is provided with a crank handle 16, the crank handle 16 is installed on the outer end of the transmission shaft 15, and the transmission shaft 15 can be driven to rotate by the staff shaking the crank handle 16.

In the present invention, the water blocking plate 5 is provided with equalizing holes 17 , and a plurality of the equalizing holes 17 are distributed on the water blocking plate 5 in an array, and then the equalizing holes 17 are used to force the water flow from the uniform flow. The flow hole 17 flows out, and the resistance of the flow equalizing hole 17 is used to reduce the flow velocity of the water flow, thereby preventing the impact of the water flow from reducing the sedimentation effect of the sewage in the installation box 3 .

In the present invention, the height of the water baffle 5 is two-thirds of the height of the installation box 3 and is installed on the upper part of the installation box 3, and the open structure of the lower part of the water baffle 5 is conducive to sludge sedimentation, and will not pollute the sewage. Mud settling creates a hindrance.

All the electrical components in this case are connected with the power supply to which they are adapted through wires by those skilled in the art, and an appropriate controller should be selected according to the actual situation to meet the control requirements. The specific connection and control sequence should refer to the following working principles Among them, the electrical connection between the electrical components is completed in sequence, and the detailed connection method is known in the art. The following mainly introduces the working principle and process, and will not describe the electrical control.

In this embodiment:

The device collects the sewage on the bridge body 1 through the installation box 3 installed on the installation frame 2 installed on the bridge body 1, and then uses the water inlet pipe 4 to collect the sewage on the bridge body 1, and then drops the sewage into the installation box 3, and uses the water baffle 5 to prevent the water flow. Block, and then slow down the impact of the water flow on the water in the installation box 3, and then cause the sludge in the sewage to settle, the conical bucket 6 can be used to collect the sludge to the sewage pipe 7, and the discharge transmission structure is used to drive the rotating shaft 8 to rotate, In turn, the screw blade 9 is driven to rotate. When the sewage valve 10 is opened, the screw blade 9 rotates to discharge the sludge. The supernatant of the sewage is filtered through the filter screen 12 and then discharged through the water outlet pipe 11 to realize the bridge drainage treatment.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. without more restrictions. An element defined by the phrase "comprising an... does not preclude the presence of additional identical elements in a process, method, article or apparatus comprising said element".

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A drainage treatment device for municipal roads and bridges, comprising a bridge body (1), a mounting frame (2), a mounting box (3), a water inlet pipe (4), a water retaining plate (5), and a conical bucket (6) , sewage pipe (7), rotating shaft (8), spiral blade (9), discharge transmission structure, sewage valve (10), water outlet pipe (11), filter screen (12), the installation frame (2) is installed On the bridge body (1), the installation box (3) is installed on the installation frame (2), and it is characterized in that the water inlet pipe (4) is installed above the installation box (3) and is connected with the bridge body (1) The water baffle (5) is installed in the installation box (3) and is located on one side of the connection of the water inlet pipe (4), and the conical bucket (6) is installed under the installation box (3), The sewage pipe (7) is installed under the conical bucket (6), the rotating shaft (8) is rotatably installed in the installation box (3), and the spiral sheet (9) is sleeved on the rotating shaft (8) and located in the conical bucket (6), the discharge transmission structure is installed on the installation box (3), the sewage valve (10) is installed on the lower end of the sewage pipe (7), and the water outlet pipe (11) is installed in the Above the side surface of the installation box (3), the filter screen (12) is installed in the installation box (3) and is located at the connection of the water outlet pipe (11). 2 . The drainage treatment device for municipal roads and bridges according to claim 1 , wherein the discharge transmission structure comprises a No. 1 bevel tooth (13), a No. 2 bevel tooth (14), and a transmission shaft (15), 3 . The No. 1 bevel tooth (13) is installed on the upper end of the rotating shaft (8), the No. 2 bevel tooth (14) is engaged with the No. 1 bevel tooth (13), and the transmission shaft (15) is rotatably inserted into the installation The box (3) is connected to the second bevel tooth (14). 3. The drainage treatment device for municipal roads and bridges according to claim 2, wherein the outer end of the transmission shaft (15) is provided with a crank handle (16), and the crank handle (16) is installed on the transmission shaft (16). 15) Outer end. 4 . The drainage treatment device for municipal roads and bridges according to claim 1 , wherein the water retaining plate ( 5 ) is provided with equalizing holes ( 17 ), and a plurality of the equalizing holes ( 17 ) are arranged in an array. 5 . The shape is distributed on the water blocking plate (5). 5. The drainage treatment device for municipal roads and bridges according to claim 1, wherein the height of the water retaining plate (5) is two-thirds of the height of the installation box (3) and is installed in the installation box (3) upper.
