Abstract

The utility model discloses an electric clothes drying machine with a clothes drying cover, which comprises: a main machine, an air duct is arranged in the main machine, and the main machine is also provided with an air inlet and an air outlet connected with the air duct; a fan is arranged in the main machine for driving The air flow in the air duct is discharged from the air outlet; the clothes drying component is located below the main unit; the lifting device is connected with the main unit and the clothes airing component at both ends; A tuyere; and a storage piece, the storage piece is detachably connected with the clothes drying assembly, the drying cover has a folded storage state and an extended state for use, when the drying cover is in the folded storage state, the storage piece lifts the lower part of the drying cover and is connected to the drying cover. The clothes components are connected together, and when the clothes dryer is in the extended state of use, the storage part is separated from the main machine or the clothes drying component. The clothes drying machine of the utility model has high drying efficiency and convenient use.

Description

Electric clothes dryer with hood

technical field

The utility model relates to an electric clothes drying machine with a clothes drying cover.

Background technique

In our daily life, we have all been troubled by the bad weather, the problem of the clothes being difficult to dry or the problem that the clothes cannot be dried quickly. However, the clothes drying racks commonly used in daily life can only be used to dry clothes in the sky and dry them naturally. In response to this problem, a clothes drying machine is currently proposed on the market. However, the existing clothes dryers all use the fan assembly in the main body of the clothes dryer to blow the clothes on the clothes dryer to make the clothes dry quickly. The fan assembly of the washing machine is in an open environment, and the blown air is easy to spread, resulting in poor use effect, inability to quickly dry clothes, and waste of resources.

Utility model content

The main purpose of the utility model is to provide an electric clothes drying machine with a clothes drying cover, which aims to improve the drying efficiency of drying clothes.

In order to achieve the above-mentioned purpose, the electric clothes drying machine with clothes drying cover proposed by the present utility model includes:

The main engine is provided with an air duct, and the main engine is also provided with an air inlet and an air outlet that communicate with the air duct;

a fan, which is arranged in the host and is used to drive the airflow in the air duct to be discharged from the air outlet;

a clothes drying component, located under the main unit;

a lifting device, the two ends are respectively connected to the main machine and the clothes drying assembly;

a clothes drying hood, the upper end of the drying hood is connected with the host and has an air inlet communicated with the air outlet; and

A storage piece, the storage piece is detachably connected with the clothes drying assembly, the clothes drying cover has a folded storage state and an extended state for use, and when the drying cover is in the folded storage state, the storage piece supports the The lower part of the clothes drying hood is connected with the clothes drying assembly. When the clothes drying hood is in an extended state, the storage part is separated from the clothes drying assembly.

Optionally, the electric clothes drying machine with a clothes dryer further comprises a buckle or a hook, one end of the buckle is connected to the host, and the other end of the buckle or the hook is suitable for connecting with the storage part. connect.

Optionally, the storage member is a tray supported on the lower end of the drying cover, and the other end of the buckle is adapted to be connected with the frame edge of the tray in a snap fit.

Optionally, the clothes drying assembly includes at least two spaced cross bars, and at least two spaced limit bars located between the two cross bars, and two ends of the limit bars are respectively connected to the two spaced bars. The drying cover is passed between the two limit rods, and each limit rod is connected with the buckle.

Optionally, the clothes drying cover includes a cover body, a support frame within the cover body and supporting the cover body, and a clothes hanger within the cover body and above the support frame body.

Optionally, a zipper is also provided on the cover body.

Optionally, the bottom of the cover body is further provided with air exhaust holes.

Optionally, the cover body is a flexible material.

Optionally, the electric clothes drying machine further includes a heating component, and the heating component is arranged in the air duct.

Optionally, the air outlet is also provided with an air guide assembly.

The technical scheme of the utility model is combined with the main machine by setting the clothes drying cover, so that the clothes can be dried in a closed environment, which effectively improves the drying effect of the clothes, saves energy, and at the same time, it can avoid the clothes hanging on the airing for a long time. On the washing machine, the phenomenon of dust or bacteria sticking to the exposed air occurs.

Specifically, when the clothes need to be dried quickly, the clothes can be placed in the drying hood. Since the air inlet of the drying hood is communicated with the air outlet of the main unit, and the main unit is provided with a fan, the air blown by the fan is All the clothes are directly poured into the drying hood through the air inlet, and the clothes hung in the drying hood are blown, so that the clothes are quickly dried. All the wind will be collected in the drying hood, which effectively improves the drying effect of clothes and saves waste of resources. At the same time, because the clothes are placed in a closed space, it can prevent the clothes from hanging on the clothes dryer for a long time. phenomenon occurs. In addition, the clothes drying machine of the present application is further provided with a storage member, the storage member can be connected to the clothes drying component, and the clothes drying cover can be folded and stored through the storage member, so the clothes drying machine of the present application can dry clothes when not in use. The cover does not occupy space under the clothes dryer, thus further improving the convenience of use of the clothes dryer.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained based on the structures shown in these drawings without any creative effort.

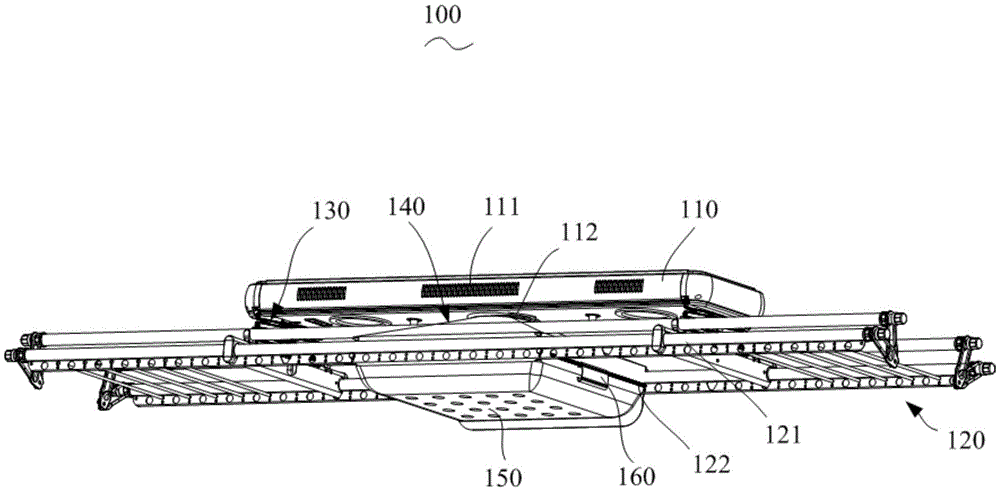

1 is a schematic structural diagram of an embodiment of an electric clothes drying machine with a clothes dryer cover of the present invention, in which the clothes dryer cover is in a folded and stored state;

Fig. 2 is the structural schematic diagram of the electric clothes drying machine with clothes drying cover of the present invention, in which the clothes drying cover is in a folded and stored state;

Fig. 3 is the sectional view of the electric clothes dryer with clothes drying cover in Fig. 2;

Fig. 4 is the enlarged view of A place in Fig. 3;

Fig. 5 is the bottom view of the partial structure of the electric clothes drying machine with clothes drying cover of the present invention;

FIG. 6 is a perspective view of the drying cover part of the electric clothes drying machine with the drying cover according to the present invention.

Description of reference numbers:

The realization, functional characteristics and advantages of the purpose of the present utility model will be further described with reference to the accompanying drawings in conjunction with the embodiments.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, not all of them. Example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that all directional indications (such as up, down, left, right, front, back...) in the embodiments of the present invention are only used to explain the difference between the various components under a certain posture (as shown in the accompanying drawings). If the specific posture changes, the directional indication also changes accordingly.

In the present utility model, unless otherwise expressly specified and limited, the terms "connection", "fixed" and the like should be understood in a broad sense, for example, "fixed" can be a fixed connection, a detachable connection, or an integrated; It can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal communication between two elements or the interaction relationship between the two elements, unless otherwise clearly defined. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In addition, descriptions such as "first", "second", etc. in the present invention are only used for description purposes, and should not be understood as indicating or implying their relative importance or implicitly indicating the number of indicated technical features. Thus, a feature delimited with "first", "second" may expressly or implicitly include at least one of that feature. In addition, the technical solutions between the various embodiments can be combined with each other, but must be based on the realization by those of ordinary skill in the art. When the combination of technical solutions is contradictory or cannot be realized, it should be considered that the combination of such technical solutions does not exist. , is not within the scope of protection required by the present utility model.

The utility model provides an electric clothes drying machine 100 with a clothes drying cover.

1 to 6 , in the embodiment of the present invention, the electric clothes dryer 100 with a clothes dryer includes a main unit 110 , a fan 113 , a clothes drying assembly 120 , a lifting device 130 , a clothes dryer 140 and a storage part 150.

The main unit 110 is provided with an air duct, and the main unit 110 is also provided with an air inlet 111 and an air outlet 112 connected to the air duct. Below the main unit 110; both ends of the lifting device 130 are respectively connected to the main unit 110 and the clothes drying assembly 120; the upper end of the clothes drying cover 140 is connected to the main unit 110 and has a clothes drying cover 140a communicating with the air outlet 112; Removably connected, the drying cover 140 has a folded and stored state and an extended state. When the drying cover 140 is in the folded and stored state, the storage part 150 supports the lower part of the drying cover 140 and is connected with the clothes drying assembly 120. When the drying cover 140 is in the extended state, the storage member 150 is separated from the clothes drying assembly 120 .

The technical solution of the present invention is to set the clothes drying cover 140 in combination with the main unit 110, so that the clothes can be dried in a closed environment, which effectively improves the drying effect of clothes, saves energy, and at the same time, can avoid hanging clothes for a long time. On the clothes dryer, it is exposed to the phenomenon of dust or bacteria sticking to the air.

Specifically, when the clothes need to be dried quickly, the clothes can be placed in the drying cover 140. Since the drying cover 140a of the drying cover 140 communicates with the air outlet 112 of the main unit 110, the main unit 110 is provided with a fan 113. , so that the wind blown by the fan 113 is directly poured into the drying cover 140 through the drying cover 140a, and the clothes hung in the drying cover 140 are blown, so that the clothes are dried quickly. Compared with the traditional clothes drying The air blown by the fan 113 component of the clothes drying machine of this technical solution will all be collected in the drying cover 140, which effectively improves the drying effect of clothes and saves waste of resources. At the same time, because the clothes are placed in the closed space, It can avoid the phenomenon that the clothes are hung on the clothes dryer for a long time and stick to the dust. In addition, the clothes drying machine of the present application is further provided with a storage member 150, the storage member 150 can be connected to the clothes drying assembly 120, and the clothes drying cover 140 can be folded and stored by the storage member 150, so the clothes drying machine of the present application is not used in the future. When in use, the clothes drying cover 140 does not occupy the space below the clothes drying machine, which further improves the convenience of using the clothes drying machine.

Please refer to FIG. 1 to FIG. 5 again, the main unit 110 of the electric clothes drying machine of the present application is fixed on the ceiling at the balcony or other suitable places when in use. The main unit 110 includes a housing and a main control board arranged in the housing. , a driving power supply, and the host 110 is also equipped with lighting lamps and germicidal lamps, wherein the host 110 can also be equipped with a signal transmitter and receiver, so as to realize the working control of the electric clothes drying rack of the present application through a matching remote control. The air inlet 111 is opened on the side wall of the casing of the host 110 , and the air outlet 112 is formed on the bottom wall of the casing. The number of the air inlets 111 is not limited here. In addition, the number of drying covers 140 in the present application can also be adjusted as required. The number of drying covers 140 shown in the figure is one. In other embodiments, the number of drying covers 140 may also be two. Or three, and they are arranged side by side under the main unit 110 , and the number of the air outlets 112 corresponds to the number of the drying cover 140 .

The lifting device 130 includes a scissors frame formed by a link structure, a motor for driving the lifting and lowering, a transmission rope for pulling the scissors frame, and some auxiliary rollers. Two ends of the scissor frame are respectively connected to the casing of the host 110 and the clothes drying assembly 120 located below the host 110 , and the motor can be installed on the casing. The motor drives the transmission rope to pull the scissor frame to shrink so as to lift the clothes drying assembly 120 and release the transmission rope to make the clothes drying assembly 120 move down under the action of gravity.

The clothes drying assembly 120 includes at least two horizontal bars 121 arranged at intervals, and at least two spaced limiting bars 122 between the two horizontal bars 121 . There are many support rods. The support rods are located at the end of the cross rod 121 and can be used to hang clothes when drying clothes in general. The limit rod 122 of the present application is correspondingly arranged in the middle of the cross rod 121, and the two ends of the limit rod 122 are connected respectively. The two spaced apart horizontal bars 121 and the drying cover 140 pass through between the two limiting bars 122 . Through the design of the limiting rod 122 and the combination with the horizontal rod 121, the clothes drying cover 140 can be framed, so that the clothes drying rack is less likely to shake randomly during use.

The clothes drying cover 140 includes a cover body 141 , a support frame 142 located in the cover body 141 and supporting the cover body 141 , and a clothes hanger 143 located in the cover body 141 and above the support frame 142 .

The cover body 141 is a flexible material, which can be made of canvas, plastic, nylon, etc., so that it can be gathered and stored together. In order to facilitate taking and placing clothes, the cover body 141 is further provided with a zipper 1412 , and the zipper 1412 extends in the up-down direction of the cover body 141 . The support frame 142 of the present application is placed at the bottom of the cover body 141 in a basket structure, so that the cover body 141 made of flexible material can sag naturally with the help of the gravity of the support frame 142 to ensure a good shape of the cover body 141 . The clothes hanger 143 is also a basket structure and is located at the inner upper end of the cover body 141 . The clothes hanger 143 has a rod structure partially extending out of the cover body 141 so that the clothes hanger 143 can be hung on the limiting rod 122 or on the casing.

During the use of the electric clothes drying machine of the present application, the fan 113 continuously blows air into the cover body 141 from the air outlet 112 and the clothes drying cover 140a. There are exhaust holes 1411.

In order to improve the effect of the blown air flow, the present application is further provided with an air guide assembly 115 located at the air outlet 112 in the main unit 110 , wherein the air guide assembly 115 includes an air guide sleeve accommodated in the air outlet 112 and a sleeve connected to the air outlet 112 . The air guide cover of the air guide sleeve is provided with many air holes. One end of the air guide cover covers the air outlet 112 , and the other end is accommodated in the clothes drying cover 140 . When the wind flows through the air guide hood, it is divided into multiple airflows by each air guide hole, and the airflow direction is changed, which effectively improves the purging effect, and at the same time, it can reduce airflow turbulence and reduce noise.

Further, in order to speed up the drying efficiency, the present application also installs a heating component 114 in the main unit 110, the heating component 114 is arranged in the air duct and is located at the outlet of the fan 113, and the heating component 114 can be a high-power PTC heater.

In some embodiments of the present invention, the storage member 150 is a tray supported on the lower end of the drying cover 140, and the electric clothes dryer is also provided with a buckle 160 or a hook, one end of the buckle 160 or the hook is connected to the above-mentioned limit The rod 122 is connected in rotation, and the other end of the clip 160 can be flipped over and hooked on the frame edge of the tray. That is, during the use of the electric clothes drying rack of the present invention, when the clothes drying cover 140 needs to be stored, the clothes drying assembly 120 can be lowered by operating the lifting device 130, and the tray can be caught by the buckle 160 or the hook. The bottom of 140 is placed on the tray, and the lifting device 130 is operated to move up, then the drying cover 140 can be folded and stored. When it needs to be used, the clothes drying assembly 120 can be lowered and the tray can be removed. In this way, the drying cover 140 Does not occupy the lower space of the electric clothes drying rack. Further, in the present application, air holes corresponding to the air exhaust holes 1411 are also opened at the bottom of the tray.

It should be noted that, in other embodiments, the detachable connection method between the storage member 150 and the clothes drying assembly 120 may also be a magnetic adsorption method, a rope binding method, or the like.

The above descriptions are only optional embodiments of the present utility model, and are not intended to limit the scope of the present utility model patent. Under the inventive concept of the present utility model, the equivalent structure transformations made by using the contents of the present utility model description and accompanying drawings, Or directly/indirectly applied in other related technical fields are included in the scope of patent protection of the present invention.

Claims (10)

1. an electric clothes drying machine with clothes dryer, is characterized in that, comprises: The main engine is provided with an air duct, and the main engine is also provided with an air inlet and an air outlet that communicate with the air duct; a fan, which is arranged in the host and is used to drive the airflow in the air duct to be discharged from the air outlet; a clothes drying component, located under the main unit; a lifting device, the two ends are respectively connected to the main machine and the clothes drying assembly; a clothes drying hood, the upper end of the drying hood is connected with the host and has an air inlet communicated with the air outlet; and A storage piece, the storage piece is detachably connected with the clothes drying assembly, the clothes drying cover has a folded storage state and an extended state for use, and when the drying cover is in the folded storage state, the storage piece supports the The lower part of the clothes drying hood is connected with the clothes drying assembly. When the clothes drying hood is in an extended state, the storage part is separated from the clothes drying assembly. 2 . The electric clothes drying machine with a clothes dryer according to claim 1 , wherein the electric clothes dryer with a clothes dryer further comprises a buckle or a hook, and one end of the buckle or the hook is attached. 3 . The clothes drying assembly is connected, and the other end of the buckle or the hook is suitable for connecting with the storage part. 3 . The electric clothes drying machine with a clothes dryer according to claim 2 , wherein the storage part is a tray installed on the lower end of the clothes dryer, and the other end of the buckle is suitable for connecting with the clothes dryer. 4 . The frame edges of the tray are snap-fitted and connected. 4. The electric clothes drying machine with a clothes dryer according to claim 3, wherein the clothes drying assembly comprises at least two horizontal bars arranged at intervals, and at least two spaced bars between the two horizontal bars The limit rod is provided, the two ends of the limit rod are respectively connected with two horizontal bars arranged at intervals, the clothes drying cover is passed between the two limit rods, and each limit rod is connected with a the buckle. 5 . The electric clothes drying machine with a clothes dryer according to claim 1 , wherein the clothes dryer includes a cover body, a support frame located in the cover body and supporting the cover body, and a support frame located in the cover body. 6 . A coat hanger inside the cover and above the support frame. 6 . The electric clothes drying machine with a clothes drying cover according to claim 5 , wherein the cover body is further provided with a zipper. 7 . 7 . The electric clothes drying machine with a clothes drying cover according to claim 5 , wherein the bottom of the cover body is further provided with an air exhaust hole. 8 . 8. The electric clothes drying machine with a clothes dryer cover according to claim 5, wherein the cover body is a flexible material. 9 . The electric clothes drying machine with a clothes dryer according to claim 1 , wherein the electric clothes drying machine further comprises a heating assembly, and the heating assembly is arranged in the air duct. 10 . . 10. The electric clothes drying machine with a clothes dryer according to any one of claims 1 to 8, wherein an air guide assembly is further provided at the air outlet.
