CN211892583U - A device for auxiliary dictation of English words - Google Patents

Abstract

The utility model discloses an auxiliary dictation device for English words, which relates to the technical field of learning auxiliary equipment. Aiming at the problem that the existing vocabulary does not have the function of separating words and interpretations, which leads to inconvenient recitation of words, the following scheme is proposed, which includes a connecting board and sliding frame, both sides of the connecting plate are hinged with a backboard, and two guide rails symmetrically distributed along the length direction of the backboard are fixedly installed on one side surface of the backboard, and the two The surface of one side of the guide rails away from the back plate is provided with guide grooves, and the two guide grooves are respectively arranged along the length directions of the two guide rails. The utility model has a novel structure, and the device can not only cover the dictation part of the word book through the shielding plate, so as to facilitate dictation, and facilitate the comparison of words or interpretations after dictation; at the same time, the trouble of self-provided paper is avoided; and It is convenient for storage and has a certain protective effect, which is suitable for promotion.

Description

A device for auxiliary dictation of English words

technical field

The utility model relates to the technical field of learning auxiliary equipment, in particular to an auxiliary dictation device for English words.

Background technique

In our country from primary school to high school, especially middle school, almost all schools choose English as their main or only foreign language compulsory course; in full-time ordinary universities, except for non-English foreign language majors, English is generally a compulsory course, other Foreign language is an elective course; language majors other than English majors generally require English as a necessary course at the same time. It can be seen that English courses play an important role in campus education in our country, and the foundation of learning English well is the memory of words.

Most of the current word books generally record the words and their definitions together, which makes the learners vulnerable to the interference of the definitions when reciting the words, which brings inconvenience to the memory of the words, and the word books generally do not have word dictation. Paper, so that when words are recited by dictation, additional paper is required, which affects the efficiency of word dictation. Therefore, in order to solve such problems, we propose an auxiliary dictation device for English words.

Utility model content

The auxiliary dictation device for English words proposed by the utility model solves the problem that the existing words have no function of separating words and interpretations, which leads to inconvenient recitation of words.

In order to achieve the above purpose, the present invention adopts the following technical scheme: an auxiliary dictation device for English words, comprising a connecting plate and a sliding frame, both sides of the connecting plate are hinged with backboards, and one side of the backboard is hinged on one side. The side surface is fixedly installed with two guide rails that are symmetrically distributed along the length direction of the backplane, and the side surfaces of the two guide rails away from the backplane are both provided with guide grooves, and the two guide grooves are respectively along the two guide rails. Each of the guide rails is arranged in the length direction, and both ends of the sliding frame are slidably installed inside the guide grooves. The interior of the sliding frame is provided with sliding grooves along the inner walls of both sides, and the two sliding frames are provided with sliding grooves. A shielding plate is slidably installed inside the groove, a baffle hole is formed on one end surface of the sliding frame, and the baffle hole penetrates the inner wall of the sliding frame, and a spring is fixedly installed on the surface of the back plate on the side away from the guide rail folder.

Preferably, closed magnetic strips are fixedly installed on one side of the two backboards away from each other, and the two closed magnetic strips are matched with each other.

Preferably, a sliding handle is fixedly installed on a side surface of the shielding plate away from the back plate, and the sliding handle is disposed close to the end of the shielding plate.

Preferably, the inside of the spring clip holds the writing paper.

Preferably, evenly distributed pen covers are fixedly installed on one side surface of the connecting plate close to the spring clip.

The beneficial effects of the present utility model are:

1. The device is installed with a sliding frame between the two guide rails, and a shielding plate is slidably installed inside the sliding groove, so that the shielding plate can move with the sliding frame to the place where the word book needs to be dictated, which is convenient. Dictate words or interpretations; and the shutter slides inside the sliding slot, gradually displaying the words or interpretations of the word book from top to bottom, so that it is convenient to compare and correct the dictation words or interpretations.

2. By fixing the spring clips on the surface of the backboard, the dictation spring can be clamped and fixed on the surface of the backboard through the spring clips. By dictating words or interpretations on the dictation paper, it avoids the need for self-provided paper. The trouble of dictation.

3. The closed magnetic strip is fixedly installed on the side of the two backboards away from each other, and by rotating the two backboards, the two closed magnetic strips are attracted to each other, so that the device is closed, which is convenient for storage and has a certain Protective effects.

To sum up, the device can not only cover the dictation part of the word book through the blocking plate, so as to facilitate dictation, and facilitate the comparison of words or interpretations after dictation; at the same time, it avoids the trouble of self-provided paper; and it is convenient to carry out It has a certain protective effect and is suitable for promotion.

Description of drawings

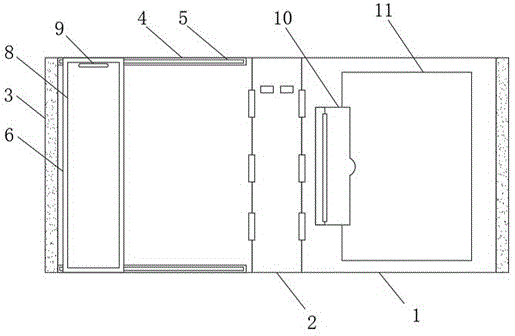

Figure 1 is a schematic structural diagram of the utility model.

FIG. 2 is a side view of the structure in the folded state of the present invention.

FIG. 3 is a schematic diagram of the installation structure of the shielding plate of the present invention.

Labels in the figure: 1 back plate, 2 connecting plate, 3 closed magnetic strip, 4 guide rail, 5 guide groove, 6 sliding frame, 7 sliding groove, 8 shielding plate, 9 sliding handle, 10 spring clip, 11 silent writing paper, 12 Pen sleeve.

Detailed ways

The technical solutions of the present utility model will be described in further detail below in conjunction with specific embodiments.

1-3, an English word auxiliary dictation device, comprising a connecting plate 2 and a sliding frame 6, both sides of the connecting plate 2 are hinged with a backboard 1, and one side surface of the backboard 1 is fixed on one side Two guide rails 4 that are symmetrically distributed along the length of the backplane 1 are installed, and the surfaces of the two guide rails 4 on one side away from the backplane 1 are arranged in the open direction, and both ends of the sliding frame 6 are It is slidably installed inside the guide groove 5 , the inside of the sliding frame 6 is provided with sliding grooves 7 along the inner walls of both sides thereof, and the interior of the two sliding grooves 7 is slidably installed with a shielding plate 8 , the sliding frame 6 A baffle hole is formed on the surface of one end of the guide rail 4, and the baffle hole penetrates the inner wall of the sliding frame 6, and the surface of the back plate 1 on the side away from the guide rail 4 is fixedly installed with a spring clip 10. The two back plates 1 One side away from each other is fixedly installed with a closed magnetic strip 3, and the two closed magnetic strips 3 are matched with each other. It is arranged near the end of the shielding plate 8 , the inside of the spring clip 10 holds the writing paper 11 , and the side surface of the connecting plate 2 near the spring clip 10 is fixedly installed with evenly distributed pen covers 12 .

Working principle: When the device is in use, first open the two backboards 1, so that the two closed magnetic strips 3 are separated from each other to open the device, then open the word book and place it on the backboard on the side where the guide rail 4 is installed 1, then move the sliding frame 6 along the length direction of the guide rail 4, so that the sliding frame 6 slides to the top of the area where the word book needs to be blocked, and the shielding plate 8 moves with the sliding frame 6 to the top of the word book, Thereby, the word part or the interpretation part of the word book is occluded, so that the user can dictate the interpretation according to the word, and can also dictate the word according to the interpretation; at the same time, when a word is recited, the shielding plate 8 can be slid along the sliding handle 9 by sliding the handle 9. Sliding the length direction of the slot 7, you can display the word or interpretation just after dictation to check whether you remember the spelling or interpretation of the word; by holding the dictation paper 11 on the spring clip 10, the dictation paper 11 and the backboard are clamped. 1. Fixed connection, so as to facilitate the dictation of words or interpretations during word recitation; when the word recitation is completed, the two backboards 1 are rotated so that the closed magnetic strips 3 on one side of the two backboards 1 away from each other attract each other, thereby making The relative positions of the two backboards 1 are fixed, so that the device is combined, and the function of protecting the device body and the word book has been achieved.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (5)

1. An auxiliary dictation device for English words, comprising a connecting plate (2) and a sliding frame (6), characterized in that both sides of the connecting plate (2) are hinged with a back plate (1), and one side is Two guide rails (4) symmetrically distributed along the length direction of the back plate (1) are fixedly mounted on one side surface of the back plate (1), and the two guide rails (4) are far away from the side of the back plate (1). Guide grooves (5) are provided on one side surface, the two guide grooves (5) are respectively arranged along the length direction of the two guide rails (4), and both ends of the sliding frame (6) are It is slidably installed inside the guide groove (5), the interior of the sliding frame (6) is provided with sliding grooves (7) along the inner walls on both sides thereof, and the interiors of the two sliding grooves (7) are slidably installed with shielding Plate (8), one end surface of the sliding frame (6) is provided with a baffle hole, and the baffle hole penetrates the inner wall of the sliding frame (6), and the back plate ( 1) The spring clip (10) is fixedly mounted on the surface. 2. An English word auxiliary dictation device according to claim 1, characterized in that a closed magnetic strip (3) is fixedly installed on one side of the two backboards (1) away from each other, and the two are closed The magnetic strips (3) match each other. 3 . An English word auxiliary dictation device according to claim 1 , wherein a sliding handle ( 9 ) is fixedly installed on the side surface of the shielding plate ( 8 ) away from the back plate ( 1 ), and the The sliding handle (9) is arranged close to the end of the shielding plate (8). 4 . The device for assisting dictation of English words according to claim 1 , wherein a dictation paper ( 11 ) is clamped inside the spring clip ( 10 ). 5 . 5 . The device for assisting dictation of English words according to claim 1 , wherein a uniformly distributed pen cover ( 12 ) is fixedly installed on one side surface of the connecting plate ( 2 ) close to the spring clip ( 10 ). 6 .
