Abstract

The utility model discloses a filling system for artificial stone processing. On the upper and lower sides of the movable plate, and the discharge port of the feeding end is opposite to the feeding port of the unloading end, the movable plate is movably connected with the driving device on the main body of the frame, and is slidably installed on the on the guide rail, thereby driving the packing device to reciprocate on the frame body. The frame body is also provided with a filler leveling device at the position in front of the discharge port of the unloading end, which solves the problem of easy blockage of the packing device when discharging. Improve the filling efficiency of the equipment and its filling effect.

Description

A filling system for artificial stone processing

technical field

The utility model relates to the technical field of artificial stone processing equipment, in particular to a filler system for artificial stone processing.

Background technique

The purpose of powder spraying in artificial stone production is to prevent the influence of moisture. The raw materials of artificial stone body are mud masses formed by crushing various minerals. The moisture in them is very large. If the mud masses are directly used for burning, the deformation will be very severe. The need to make a row, the press cannot press the soil, because it will stick to the press, and the air in the green body cannot be discharged when the water is large, forming an intermediate layer, the need for the green body, the water in the mud mass is large The gaps between the substances are all water, and the powders are different. It is sprayed according to the requirements of particle gradation. Once pressed by the press, the gaps seen in the powder will be very small, which is conducive to the later firing. , the need for firing, the firing time of the floor tile kiln is relatively fast, the moisture and hardness of the green body are required, and the needs of the production process, such as printing, glazing and other links, require the green body to have a certain hardness.

The filling machine is a device for filling in the processing groove after the artificial stone is grooved. However, the filling efficiency of the traditional filling machine is low, and the discharge port is easily blocked, which affects the filling effect of the equipment.

Utility model content

In order to overcome the above-mentioned problems, the utility model provides a filler system for artificial stone processing, which solves the problem of easy blockage of the filler device when discharging, and improves the filler work efficiency and filler effect of the equipment.

The technical scheme adopted by the utility model to solve the technical problem is as follows: the utility model provides a filling system for artificial stone processing, which includes a frame main body and a filling device, and the filling device includes a feeding end, a feeding end and a filling device. The movable plate, the loading end and the unloading end are respectively installed on the upper and lower sides of the movable plate, and the discharge port of the loading end is arranged opposite to the feeding port of the unloading end. The device is movably connected, and is slidably installed on the guide rails provided on the main body of the frame, thereby driving the filling device to reciprocate on the main body of the frame. device.

Preferably, the feeding end includes a feeding hopper, a feeding conveyor, a first motor and a supporting frame, the supporting frame is installed on the upper end face of a movable plate and is located behind the feeding end, and the movable plate is located inside the supporting frame The top block is symmetrically arranged, the feeding conveyor belt is fastened and installed on the fixing frame connected by bolts on the upper end face of the top block and is connected with the first motor drive, and its transmission outlet is arranged facing the unloading end, and the feeding hopper is fixed Mounted on top of the support frame and set up against the infeed conveyor.

Preferably, the unloading end includes a beam plate, a column, a discharge hopper, a second motor and a discharge conveyor belt, one end of the discharge hopper passes through a through hole provided on the movable plate and is placed at the lower end of the movable plate, and the other One end is set facing the transmission outlet of the feeding conveyor belt, the column runs through the beam plate, and the beam plate is set above the discharge hopper. Motor drive connection.

Preferably, a third motor is installed on the upper end of the beam plate, and a stirring rod is driven and connected by the third motor, and the stirring rod is placed inside the discharge hopper. The stirring rod can break up the filling material entering the feeding end to avoid clogging.

Preferably, a guide discharge frame is also installed at the transmission outlet of the discharge conveyor belt.

Preferably, the filler scraping device includes a connecting rod, which is installed across the frame bodies, the upper end of the connecting rod is slidably connected with a fastener, and a scraper seat for assembling the scraper is detached and installed through the fastener , the scraper is set close to the workpiece to be processed.

Preferably, the drive device is driven by a pulley.

Compared with the prior art, the utility model has the beneficial effects as follows: the filling device of the equipment includes a feeding end and a feeding end, so that the filled raw materials are first transferred through the feeding end and then input to the feeding end to be filled into the artificial stone. In the processing tank, the problem that the filling device is easy to block when discharging material is solved, and the filling efficiency and filling effect of the equipment are improved, and the filling device reciprocates on the frame body through the movable plate to ensure the accuracy of the filling position. Further, the main body of the frame is also provided with a filler leveling device at the position in front of the discharge port of the unloading end, and the filler leveling device is used to level the excess filler material protruding from the surface of the artificial stone, which is convenient for subsequent processing of the artificial stone.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

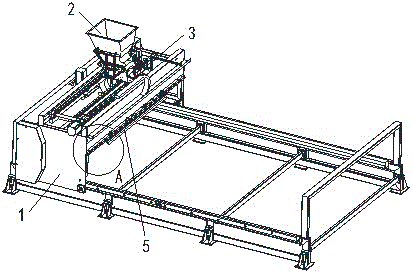

1 is a schematic diagram of the overall structure of a filler system for artificial stone processing according to the present utility model;

Fig. 2 is the structural representation of the packing device of the present invention;

Fig. 3 is the schematic diagram of the feeding end according to the present utility model;

Fig. 4 is the schematic diagram of the discharging end according to the present utility model;

FIG. 5 is a partial enlarged view of FIG. 1 .

Description of the drawings: 1. Main body of the frame; 2. Feeding end; 201, Feeding hopper; 202, Feeding conveyor; 203, First motor; 204, Supporting frame; 205, Top block; 301, beam plate; 302, column; 303, discharge hopper; 304, second motor; 305, discharge conveyor; 306, guide discharge frame; 307, third motor; 308, stirring rod; 4, movable plate; 5, filler scraping device; 501, connecting rod; 502, fastener; 503, scraper; 504, scraper seat.

Detailed ways

The present utility model will now be described in further detail in conjunction with the accompanying drawings. These drawings are all simplified schematic diagrams, and only illustrate the basic structure of the present invention in a schematic manner, so they only show the structures related to the present invention.

The specific implementation of the utility model is as follows: as shown in Figures 1-5, a filling system for artificial stone processing includes a frame main body 1 and a filling device, and the filling device includes a feeding end 2, a feeding end 3 and a movable plate 4. The loading end 2 and the unloading end 3 are respectively installed on the upper and lower sides of the movable plate 4, and the discharge port of the loading end 2 is arranged opposite to the feeding port of the unloading end 3. The movable plate 4 is connected to the machine. The driving device on the frame main body 1 is movably connected, and is slidably installed on the guide rail set on the frame main body 1, so as to drive the filling device to reciprocate on the frame main body 1 to ensure the accuracy of the filling position. The driving device is driven by a pulley. And through the feeding end 2 and the feeding end 3, the raw materials are conveyed, so that the filled raw materials are first transferred through the feeding end 2 and then input to the unloading end 3 to be filled into the processing tank of the artificial stone, which solves the problem that the filling device is easy to discharge. The problem of blockage can improve the filling efficiency and filling effect of the equipment. The main body 1 of the frame is located in front of the discharge port of the unloading end 2 and is also provided with a filler leveling device 5. The filler leveling device 5 includes a connecting rod 501. The The connecting rod 501 is installed across the frame main body 1, and the upper end of the connecting rod 501 is slidably connected with a fastener 502, and through the fastener 502, a squeegee seat 504 for assembling the squeegee 503 is disassembled and installed, and the squeegee 403 is closely processed When the workpiece is set, the excess filling material protruding from the surface of the artificial stone is scraped off by the filler scraping device 5, so as to facilitate the subsequent processing of the artificial stone.

The feeding end 2 includes a feeding hopper 201, a feeding conveyor belt 202, a first motor 203 and a supporting frame 204. The supporting frame 204 is installed on the upper end face of the movable plate 4 and is located behind the feeding end 3, and the movable plate 4 is located in the supporting frame The top block 205 is symmetrically arranged inside the 204. The feeding conveyor belt 202 is fastened and installed on the fixing frame 206 bolted on the upper end face of the top block 205 and is connected with the first motor 203 in a driving manner. The feeding hopper 201 is fixedly installed on the top of the supporting frame 204 and is disposed facing the feeding conveyor belt 202 .

The discharge end 3 includes a beam plate 301, a column 302, a discharge hopper 303, a second motor 304 and a discharge conveyor 305. One end of the discharge hopper 303 passes through the through hole provided by the movable plate 4 and is placed at the lower end of the movable plate 4, The other end is set facing the transmission outlet of the feeding conveyor belt 305 , the column 302 penetrates the beam plate 301 , and the beam plate 301 is placed above the discharge hopper 303 , and the discharge conveyor belt 305 is installed at the discharge port position of the discharge hopper 303 , and is connected with the second motor 304 by transmission, and a guide discharge frame 306 is also installed at the transmission outlet position of the discharge conveyor belt 305, so that the raw materials can be filled into the processing tank more accurately, and the raw materials can be prevented from being scattered everywhere. The beam plate 301 A third motor 307 is installed on the upper end of the pump, and a stirring rod 308 is connected to the transmission through the third motor 307, and the stirring rod 308 is placed inside the discharge hopper 303, and the stirring rod 308 can carry out the filling material entering the unloading end 3. Disperse to avoid clogging.

Taking the above ideal embodiment according to the present invention as inspiration, through the above description, relevant staff can make various changes and modifications without departing from the technical idea of the present invention. The technical scope of the present utility model is not limited to the content in the description, and its technical scope must be determined according to the scope of the claims.

Claims (7)

1. A be used for rostone processing filler system which characterized in that: including frame main part and filler device, the filler device includes material loading end, unloading end and fly leaf, material loading end and unloading end are installed respectively at the upper and lower both sides terminal surface of fly leaf, and the discharge gate of material loading end just sets up the feed inlet of unloading end, and this drive arrangement swing joint in fly leaf and the frame main part to the smooth cooperation is installed on the guide rail that the frame main part set up, thereby drives filler device reciprocating motion in the frame main part, the position that the frame main part is located unloading end discharge gate the place ahead still is equipped with the filler and scrapes the device.

2. A packing system for engineered stone processing according to claim 1, wherein: the feeding end comprises a feeding hopper, a feeding conveyor belt, a first motor and a support frame, the support frame is installed on the upper end face of the movable plate and located at the rear of the discharging end, the movable plate is located inside the support frame and symmetrically provided with ejector blocks, the feeding conveyor belt is tightly installed on a fixing frame which is connected with the upper end face of each ejector block through bolts and is in transmission connection with the first motor, a transmission outlet of the feeding conveyor belt is arranged right at the discharging end, and the feeding hopper is fixedly installed at the top of the support frame and is arranged right at the feeding conveyor belt.

3. A packing system for engineered stone processing according to claim 1, wherein: the unloading end includes crossbeam board, stand, ejection of compact hopper, second motor and exit conveyor, the one end of ejection of compact hopper is passed the through-hole that the fly leaf set up and is placed in the fly leaf lower extreme, and its other end just sets up to the transmission exit of feeding conveyor, the stand runs through the crossbeam board to set up crossbeam board in ejection of compact hopper top immediately, exit conveyor installs the discharge gate position at ejection of compact hopper to be connected with second motor drive.

4. A packing system for engineered stone processing according to claim 3, wherein: the third motor is installed to the upper end of crossbeam board to be connected with the puddler through third motor transmission, and inside this puddler was arranged discharge hopper in.

5. A packing system for engineered stone processing according to claim 3, wherein: and a guide discharging frame is further installed at the position of a transmission outlet of the discharging conveyor belt.

6. A packing system for engineered stone processing according to claim 1, wherein: the filler strickle device includes the connecting rod, and this connecting rod spanes and installs between the frame main part, and its upper end sliding fit is connected with the fastener to install the scraper blade seat that is used for assembling the scraper blade through the fastener dismantlement, this scraper blade pastes the setting of tight processing work piece.

7. A packing system for engineered stone processing according to claim 1, wherein: the driving device adopts belt pulley transmission.
