Abstract

The utility model discloses an herbal tea extraction device, comprising a cooking chamber and a filter tank, a support frame is installed at the bottom of the cooking chamber, a fixing plate is installed at the upper end of the cooking chamber, and a lifting mechanism and a lifting mechanism are arranged on the fixing plate. A rotating mechanism, the lifting mechanism is connected with a turntable, a plurality of groups of connecting rods are fixed at the bottom of the turntable at equal intervals in the circumferential direction, and a storage net box is rotatably connected between a pair of the connecting rods, and the storage net box is on the A box cover is installed, a heating plate is installed at the bottom of the cooking chamber, a circulation mechanism for increasing the cooking rate is provided on the side wall of the cooking chamber, and the cooking chamber and the filter pool are communicated through a connecting pipe, and the filter pool is A filter screen is provided, a liquid outlet pipe is arranged at the bottom of the filter tank, and a valve is installed in the liquid outlet pipe and the connecting pipe. The utility model has a reasonable structure, can complete the filling of a plurality of materials at one time, and can clean up without affecting the normal extraction operation.

Description

A kind of herbal tea extraction device

technical field

The utility model relates to the technical field of herbal tea production, in particular to an herbal tea extraction device.

Background technique

Herbal tea is a generic term for traditional Chinese herbal botanical beverages. Guangdong herbal tea is the representative of traditional Chinese herbal tea culture. Herbal tea is a drink made of decoction of Chinese herbal medicine, which is cold and cool, and can dissolve heat in the human body, to eliminate the heat in the human body in summer, or to treat diseases such as sore throat caused by dryness in winter.

The existing Chinese herbal medicine boiling and extraction device for herbal tea uses water boiling to extract the effective components inside the Chinese herbal medicine into water, but after boiling once, the boiled Chinese herbal medicine needs to be poured out and then filled with new materials. For cooking and extraction, the delay time is long, which affects the processing efficiency.

Utility model content

The purpose of the utility model is to solve the shortcomings of the prior art, and proposes a herbal tea extraction device, which can complete the filling of multiple materials at one time, and can clean up without affecting the normal extraction operation.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An herbal tea extraction device includes a cooking chamber and a filter tank, a support frame is installed at the bottom of the cooking chamber, a fixing plate is installed at the upper end of the cooking chamber, and a lifting mechanism and a rotating mechanism are arranged on the fixing plate. The lifting mechanism is connected with a turntable, and the bottom of the turntable is fixed with a plurality of groups of connecting rods at equal intervals in the circumferential direction. A storage net box is rotatably connected between a pair of the connecting rods, and a box cover is installed on the storage net box. The bottom of the cooking chamber is installed with a heating plate, the side wall of the cooking chamber is provided with a circulation mechanism for improving the cooking rate, the cooking chamber is communicated with the filter pool through a connecting pipe, and the filter pool is provided with a filter screen, A liquid outlet pipe is arranged at the bottom of the filter tank, and a valve is installed in the liquid outlet pipe and the connecting pipe.

Preferably, the lifting mechanism includes a hydraulic cylinder rotatably connected to the fixing plate, and the telescopic end of the hydraulic cylinder is fixedly connected to the turntable.

Preferably, the rotational connection includes a motor mounted on the bottom of the fixing plate, a first gear is fixed at the end of the output shaft of the motor, and a second gear that meshes with the first gear is fixed on the outer wall of the hydraulic cylinder.

Preferably, the box cover is connected with the storage net box through a latch.

Preferably, the circulation mechanism includes a circulation pump installed on the side wall of the cooking chamber, the suction end of the circulation pump is connected with a suction pipe extending into the cooking chamber, and the water outlet end of the circulation pump is connected with a main pipe extending into the cooking chamber , the cooking chamber is provided with a flow mechanism connected with the main pipe.

Preferably, the flow mechanism includes an annular pipe installed at the end of the main pipe, the upper end of the main pipe is connected with a branch pipe, the branch pipe and the side wall of the annular pipe are provided with a plurality of water outlet heads at equal intervals, and the annular pipe is located in the storage Below the net box, the branch pipe is located on one side of the storage net box.

Compared with the prior art, the utility model has the following beneficial effects:

1. By setting up a lifting mechanism, a rotating mechanism and multiple storage net boxes, materials can be filled into multiple storage net boxes in advance. After one cooking and extraction is completed, the residue can be poured out without affecting the next cooking and extraction. process to increase the processing speed.

2. By setting the circulation mechanism and the flow mechanism, the water in the cooking chamber can continuously flow toward the storage net box, so that the stacked Chinese herbal medicines are loosened, which is more conducive to the outflow and extraction of the ingredients in the Chinese herbal medicines.

3. By setting the filter screen and filter pool, the steamed herbal tea can be filtered and cooled.

Description of drawings

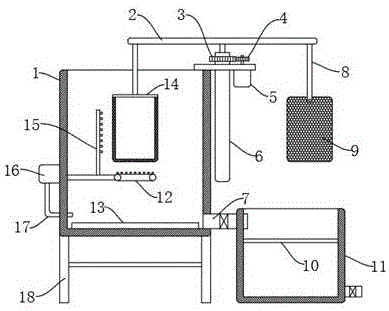

Fig. 1 is the structural representation of a kind of herbal tea extraction device proposed by the utility model;

Fig. 2 is the top view schematic diagram of the turntable of a kind of herbal tea extraction device proposed by the utility model;

FIG. 3 is a schematic diagram of the flow mechanism of a herbal tea extraction device proposed by the utility model.

In the picture: 1 cooking chamber, 2 turntable, 3 second gear, 4 first gear, 5 motor, 6 hydraulic cylinder, 7 connecting pipe, 8 connecting rod, 9 storage net box, 10 filter screen, 11 filter pool, 12 Annular pipe, 13 heating plate, 14 box cover, 15 branch pipe, 16 circulating pump, 17 suction pipe, 18 supporting frame, 19 water outlet, 20 main pipe.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

1-3, an herbal tea extraction device includes a cooking chamber 1 and a filter tank 11, a support frame 18 is installed at the bottom of the cooking chamber 1, a fixing plate is installed at the upper end of the cooking chamber 1, and a lifting mechanism and a lifting mechanism are installed on the fixing plate. The rotating mechanism, the lifting mechanism includes a hydraulic cylinder 6 that is rotatably connected to the fixed plate, the telescopic end of the hydraulic cylinder 6 is fixedly connected to the turntable 2, and the rotating connection includes a motor 5 installed at the bottom of the fixed plate, and the end of the output shaft of the motor 5 is fixed with a first A gear 4, the outer wall of the hydraulic cylinder 6 is fixed with a second gear 3 that meshes with the first gear 4, start the hydraulic cylinder 6 and the motor 5, the used Chinese herbal medicine can be poured out, and the new Chinese herbal medicine can enter, so that it can be cleaned during cleaning. The process does not affect the next cooking extraction.

The lifting mechanism is connected with a turntable 2, and a plurality of groups of connecting rods 8 are fixed at the bottom of the turntable 2 at equal intervals in the circumferential direction. A storage net box 9 is rotatably connected between a pair of connecting rods 8, and a box cover 14 is installed on the storage net box 9. , the box cover 14 is connected with the storage net box 9 through the latch, the bottom of the cooking chamber 1 is installed with a heating plate 13, the side wall of the cooking chamber 1 is provided with a circulation mechanism for improving the cooking rate, and the circulation mechanism includes a side installed in the cooking chamber 1. The circulating pump 16 on the wall, the suction end of the circulating pump 16 is connected with a suction pipe 17 extending into the cooking chamber 1, and the water outlet end of the circulating pump 16 is connected with a main pipe 20 extending into the cooking chamber 1. The flow mechanism to which the main 20 is connected.

The flow mechanism includes an annular pipe 12 installed at the end of the main pipe 20, the upper end of the main pipe 20 is connected with a branch pipe 15, the branch pipe 15 and the side wall of the annular pipe 12 are provided with a plurality of water outlets at equal intervals, and the annular pipe 12 is located in the storage net box 9. Below, the branch pipe 15 is located on one side of the storage net box 9, the circulating pump 16 is activated, and the water in the cooking chamber 1 is continuously pumped into the main pipe 20, a part of the water enters the annular pipe 12, and the other part of the water enters the branch pipe 15. The water outlet 19 is discharged, forming a bottom-up water flow and a left and right water flow. The water flows into the storage net box 9, and continuously rushes into the Chinese herbal medicine room to improve the internal fluidity, thereby increasing the speed of the outflow of the Chinese herbal medicine.

The cooking chamber 1 is communicated with the filter tank 11 through a connecting pipe 7. The filter tank 11 is provided with a filter screen 10, the bottom of the filter tank 11 is provided with a liquid outlet pipe, and both the liquid outlet pipe and the connecting pipe 7 are equipped with valves.

In the present invention, during cooking, the lids 14 of the plurality of storage net boxes 9 are opened, the Chinese herbal medicines are put into the storage net boxes 9, the cooking chamber 1 is filled with water, and the heating plate 13 is activated for heating, The starter motor 5 drives the first gear 4 to rotate, the first gear 4 drives the second gear 3 to rotate, and the second gear 3 drives the hydraulic cylinder 6 to rotate, so that the turntable 2 rotates, and the storage net box 9 containing the Chinese herbal medicine is turned to cooking. Above the chamber 1, start the hydraulic cylinder 6 to lower the storage net box 9 into the cooking chamber 1 for cooking, start the circulating pump 16, and continuously pump the water in the cooking chamber 1 into the main pipe 20, part of the water enters the annular pipe 12, and the other A part of the water enters the branch pipe 15 and is discharged through the water outlet 19 to form a bottom-up water flow and a left and right water flow. Improve the speed of the outflow of the substances in the Chinese herbal medicine. After the extraction is completed, it enters the filter tank 11 through the connecting pipe 7, realizes filtration through the filter screen 10, and discharges through the liquid outlet pipe after standing to cool. After one cooking is completed, start the hydraulic cylinder 6 and the motor. 5. The used Chinese herbal medicine can be poured out, and the new Chinese herbal medicine can enter, so that the next cooking extraction will not be affected during the cleaning process.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a cold tea extraction device, includes cooking chamber (1) and filtering ponds (11), its characterized in that, support frame (18) are installed to the bottom of cooking chamber (1), the fixed plate is installed to the upper end of cooking chamber (1), be provided with elevating system and slewing mechanism on the fixed plate, elevating system is connected with carousel (2), the bottom circumference equidistant of carousel (2) is fixed with multiunit connecting rod (8), and is a pair of it is connected with storing net box (9) to rotate between connecting rod (8), install lid (14) on storing net box (9), hot plate (13) are installed to the bottom of cooking chamber (1), the lateral wall of cooking chamber (1) is equipped with the circulation mechanism who is used for improving the rate of cooking, communicate through connecting pipe (7) between cooking chamber (1) and filtering ponds (11), be provided with filter screen (10) in filtering ponds (11), the bottom of the filter tank (11) is provided with a liquid outlet pipe, and valves are arranged in the liquid outlet pipe and the connecting pipe (7).

2. The herbal tea extraction device according to claim 1, wherein the lifting mechanism comprises a hydraulic cylinder (6) rotatably connected to the fixed plate, and the telescopic end of the hydraulic cylinder (6) is fixedly connected with the turntable (2).

3. The herbal tea extraction device according to claim 2, wherein the rotary connection comprises a motor (5) mounted at the bottom of the fixing plate, a first gear (4) is fixed at the end of an output shaft of the motor (5), and a second gear (3) meshed with the first gear (4) is fixed on the outer wall of the hydraulic oil cylinder (6).

4. The herb tea extraction device as claimed in claim 1, wherein the lid (14) is connected to the storage net box (9) by a latch.

5. The herbal tea extraction device according to claim 1, wherein the circulation mechanism comprises a circulation pump (16) installed on the side wall of the cooking chamber (1), a suction pipe (17) extending into the cooking chamber (1) is connected to a water suction end of the circulation pump (16), a main pipe (20) extending into the cooking chamber (1) is connected to a water outlet end of the circulation pump (16), and a flow mechanism connected with the main pipe (20) is arranged in the cooking chamber (1).

6. The herbal tea extraction device according to claim 5, wherein the flowing mechanism comprises a ring pipe (12) arranged at the tail end of a main pipe (20), the upper end of the main pipe (20) is connected with a branch pipe (15), a plurality of water outlets are arranged on the branch pipe (15) and the side wall of the ring pipe (12) at equal intervals, the ring pipe (12) is positioned below the storage net box (9), and the branch pipe (15) is positioned on one side of the storage net box (9).
