CN211881282U - A seedling raising device for Dendrobium planting - Google Patents

Abstract

The utility model discloses a seedling raising device for planting dendrobium, which comprises a base, legs are arranged at four corners of the bottom of the base, a box body is arranged on the top of the base, and a water storage tank is fixedly connected to the bottom center of the inner wall of the box. The bottom of the side is connected with a water pumping pipe, the end of the water pumping pipe away from the water storage tank is connected with a water pump, and the outer side of the water pump is connected with a water outlet hose. The inner side of the hard pipe is connected with a sprinkler head, the two ends of the box are fixedly provided with support columns, an aluminum base plate is fixedly connected between the tops of the two support columns, and a plant growth lamp is arranged in the middle of the bottom surface of the aluminum base plate. Both ends of the box are provided with insect trapping lights, and the middle of the top surface of the box is provided with a cultivation pot. The utility model can automatically water the dendrobium seedlings, can provide the light source required for the growth of the plants, promote the growth of the plants, and has the functions of attracting and killing insects.

Description

A seedling raising device for Dendrobium planting

technical field

The utility model relates to a seedling raising device, in particular to a seedling raising device for Dendrobium planting, which belongs to the technical field of Dendrobium planting.

Background technique

Dendrobium, also known as dendrobium orchid, immortal grass, revival grass, purple lingering immortal plant, spider orchid, linlan, forbidden life, golden hairpin flower, etc., the stem is erect, the fleshy is thick, slightly flattened cylindrical, 10-60 long cm, up to 1.3 cm thick, medicinal plant, sweet and slightly salty in nature, cold, return to stomach, kidney, lung meridian, invigorating stomach and promoting body fluid, nourishing yin and clearing heat, used for yin injury and fluid deficiency, dry mouth, polydipsia, retching due to lack of food , Deficiency and heat after the disease, the eyes are dark and unclear.

Dendrobium seedlings need to be used when Dendrobium seedlings are raised. At present, the existing Dendrobium seedling raising devices do not have the function of automatic watering. As a result, farmers need to manually water the Dendrobium seedlings when raising Dendrobium seedlings, causing farmers to appear. The time-consuming and laborious situation increases the labor of farmers and reduces the work efficiency of farmers; in addition, the existing dendrobium seedling device cannot perform photosynthesis in continuous rainy weather, which will easily lead to the death of seedlings, and it does not have the ability to attract and kill insects. It cannot effectively protect the seedlings and reduces the practicability of the dendrobium seedling raising device.

Utility model content

The purpose of this utility model is to provide a seedling raising device for planting dendrobium, so as to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the utility model provides the following technical solutions:

A seedling raising device for planting dendrobium, comprising a base, four corners of the bottom of the base are provided with legs, a top of the base is provided with a box, a water storage tank is fixedly connected to the bottom center of the inner wall of the box, and the The bottoms of both sides of the water storage tank are connected with a water pump, and the end of the water pump away from the water storage tank is connected with a water pump, the inner side of the water pump is provided with an installation mechanism, and the outer side of the water pump is connected with a water outlet hose, and the water outlet is soft. The end of the pipe away from the water pump penetrates to the outside of the box body and is connected with a water outlet hard pipe. The inner side of the water outlet hard pipe is connected with a sprinkler head. Both ends of the box body are fixedly provided with support columns. An aluminum substrate is fixedly connected between the tops of the columns, and a plant growth lamp is arranged in the middle of the bottom surface of the aluminum substrate. Both ends of the plant growth lamp are provided with insect traps, and the plant growth lamp includes red LED lamp beads. and blue LED lamp beads, the insect trapping lamp is an ultraviolet LED lamp bead, a light-transmitting lampshade is provided outside the plant growth lamp and the insect-trapping lamp, and the light-transmitting lampshade is arranged outside the LED lamp bead, and the light-transmitting lampshade is arranged outside the LED lamp bead. The top of the light-transmitting lampshade is a rectangular opening, and the bottom is an arc-shaped convex surface. The width and length of the light-transmitting lampshade are respectively smaller than the width and length of the aluminum substrate. The center of the rectangular opening of the light-transmitting lampshade coincides with the center of the bottom surface of the aluminum substrate. It is attached and connected with the bottom surface of the aluminum substrate, and an insecticidal net is provided on the outer cover of the light-transmitting lampshade of the insect trapping lamp. A humidity sensor is fixedly connected to the bottom of the inner wall of the cultivation basin, and a processor is fixedly connected to the left side of the top of the inner wall of the box.

Further, the front ends of both sides of the top of the box body are fixedly connected with support blocks, the top of the support blocks is fixedly connected with a fixed column, and the top of the fixed column is connected with the bottom of the water outlet hard pipe.

Further, the installation mechanism includes an installation plate, the inner side of the installation plate is fixedly connected with the outer side of the water storage tank through bolts, the top and bottom of the outer side of the installation plate are fixedly connected with a mounting bracket, and the outer side of the installation bracket is connected with the outer side of the water storage tank. The surface of the pump is permanently attached.

Further, several ventilation holes are opened on the middle surfaces of the two supporting columns.

Further, the input end of the processor is unidirectionally electrically connected to the output end of the humidity sensor, and the output end of the processor is unidirectionally electrically connected to the input end of the water pump.

Further, the top left end of the base is provided with an external power supply.

Further, the output ends of the external power supply are respectively electrically connected with the input ends of the plant growth lamp, the insect trapping lamp, the insecticidal net and the water pump.

Further, the bottom of the outrigger is provided with a fixable universal wheel.

Compared with the prior art, the beneficial effect of the present utility model is: the utility model is provided with a humidity sensor, a processor, a water storage tank, a water pumping pipe, a water pump, an installation mechanism, a water outlet hose, a water outlet hard pipe and a sprinkler head. By cooperating with each other, the advantages of automatic watering of Dendrobium seedlings are achieved, and the existing Dendrobium seedling raising device does not have the function of automatic watering; The mutual cooperation between the nets effectively avoids the disadvantage that the seedlings cannot perform photosynthesis in long-term rainy weather, which easily leads to the death of the seedlings. It can not only provide the light source required for plant growth, promote plant growth, but also attract insects and kill insects. insect function.

Description of drawings

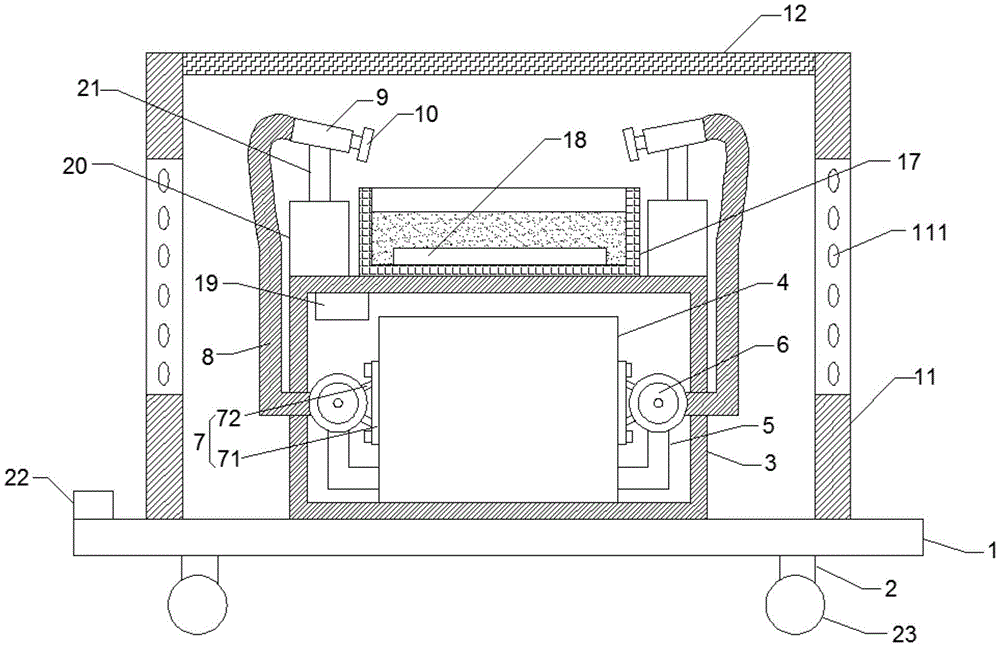

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural schematic diagram of the plant growth lamp and the trap lamp in the utility model;

FIG. 3 is a schematic structural diagram of the light-transmitting lampshade and the insecticidal net in the utility model.

In the picture: 1. Base, 2. Outriggers, 3. Box, 4. Water storage tank, 5. Suction pipe, 6. Water pump, 7. Mounting mechanism, 71. Mounting plate, 72. Mounting bracket, 8. Water outlet soft Tube, 9, Outlet water pipe, 10, Sprinkler head, 11, Support column, 111, Ventilation hole, 12, Aluminum base plate, 13, Plant growth lamp, 14, Trap lamp, 15, Light-transmitting lampshade, 16, Killer Insect net, 17, cultivation pot, 18, humidity sensor, 19, processor, 20, support block, 21, fixed column, 22, external power supply, 23, universal wheel.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a seedling raising device for planting dendrobium, comprising a base 1, the bottom four corners of the base 1 are provided with legs 2, and the top of the base 1 is provided with Box 3, the bottom center of the inner wall of the box 3 is fixedly connected with a water storage tank 4, the bottoms of both sides of the water storage tank 4 are connected with a suction pipe 5, and the end of the suction pipe 5 away from the water storage tank 4 is connected with a Water pump 6, the inner side of the water pump 6 is provided with a mounting mechanism 7, the outer side of the water pump 6 is connected with a water outlet hose 8, and the end of the water outlet hose 8 away from the water pump 6 penetrates to the outside of the box 3 and communicates with the water outlet The hard pipe 9, the inner side of the water outlet hard pipe 9 is connected with a shower head 10, the two ends of the box body 3 are fixedly provided with support columns 11, and the tops of the two support columns 11 are fixedly connected with aluminum The substrate 12, the middle of the bottom surface of the aluminum substrate 12 is provided with a plant growth lamp 13, both ends of the plant growth lamp 13 are provided with insect trapping lights 14, and the plant growth lamp 13 includes red LED lamp beads and blue LEDs Lamp beads, the insect trapping lamp 14 is an ultraviolet LED lamp bead, and a light-transmitting lampshade 15 is provided outside the plant growth lamp 13 and the insect-trapping lamp 14. The top of the light-transmitting lampshade 15 is a rectangular opening, and the bottom end is an arc-shaped convex surface. The width and length of the light-transmitting lampshade 15 are respectively smaller than the width and length of the aluminum substrate 12 , and the center of the rectangular opening of the light-transmitting lampshade 15 coincides with the center of the bottom surface of the aluminum substrate 12 . , the rectangular opening of the light-transmitting lampshade 12 is connected with the bottom surface of the aluminum substrate 12, and the outer cover of the light-transmitting lampshade 15 of the insect trapping lamp 14 is provided with an insecticidal net 16, and the insecticidal net 16 is a high-voltage power grid, so The middle of the top surface of the box body 3 is provided with a cultivation pot 17 , the bottom of the inner wall of the cultivation pot 17 is fixedly connected with a humidity sensor 18 , and the left side of the top of the inner wall of the box body 3 is fixedly connected with a processor 19 .

The front ends on both sides of the top of the box body 3 are fixedly connected with support blocks 20 , the top of the support blocks 20 is fixedly connected with a fixed column 21 , and the top of the fixed column 21 is connected with the bottom of the water outlet pipe 9 .

The mounting mechanism 7 includes a mounting plate 71, the inner side of the mounting plate 71 is fixedly connected to the outer side of the water storage tank 4 through bolts, and the top and bottom of the outer side of the mounting plate 71 are fixedly connected with mounting brackets 72. The outer side of the mounting bracket 72 is fixedly connected to the surface of the water pump 6 .

Wherein, several ventilation holes 111 are opened on the middle surfaces of the two supporting columns 11 .

The input end of the processor 19 is electrically connected to the output end of the humidity sensor 18 in one direction, and the output end of the processor 19 is electrically connected to the input end of the water pump 6 in one direction.

Wherein, the top left end of the base 1 is provided with an external power supply 22 .

Wherein, the output ends of the external power supply 22 are respectively electrically connected to the input ends of the plant growth lamp 13 , the insect trapping lamp 14 , the insecticidal net 16 and the water pump 6 .

Wherein, the bottom of the outrigger 2 is provided with a fixed universal wheel 23 .

Working principle: when in use, the universal wheel 23 is used to move it to the sun for photosynthesis, and then the humidity sensor 18 starts to sense the humidity of the soil in the inner cavity of the cultivation pot 17. When the humidity is too low, the humidity sensor 18 sends a message to the processor 19. After sending the command, the processor 19 starts the water pump 6 after processing, and the water pump 6 starts pumping the water in the inner cavity of the water storage tank 4 through the water pumping pipe 5, and the water enters the inner cavity of the water outlet hard pipe 9 through the water outlet hose 8, and then passes through the spray. The head 10 waters the inner cavity of the cultivation pot 17. When the humidity sensor 18 senses that the humidity of the soil in the inner cavity of the cultivation pot 17 increases, the humidity sensor 18 sends an instruction to the processor 19, and the processor 19 closes the water pump 6 after processing. , used repeatedly in this way, by setting the water outlet hose 8, it can freely expand and contract according to the length of the water outlet hard pipe 9, and by opening several ventilation holes 111 on the middle surface of the two support columns 11, it can make the air circulate and photosynthetic. The effect is more sufficient. When it encounters continuous rainy days, it is moved to the house, and the red LED lamp beads and blue LED lamp beads of the plant growth lamp 13 are used to provide red and blue light to promote plant growth. In specific applications, The power ratio of the red LED lamp beads and the blue LED lamp beads can be set according to the growth needs of the plants. The ultraviolet light emitted by the trap lamp 14 plays a role of attracting insects, and the insecticidal nets 16 arranged on the periphery of the trap lamp 14 play the role of killing insects. It is also possible to further collect the captured insects by arranging an insect-catching bag under the insecticidal 16. Since the plant growth lamp 13, the insect-trapping lamp 14 and the insecticidal net 16 are arranged at the same time, it can not only provide plant growth The required light source can promote the growth of plants, and has the functions of attracting and killing insects, ensuring the good growth of the seedlings. The device has a simple structure, is easy to operate, and has strong practicability.

In the description of the present invention, it should be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "the other end", "upper", "one side", " The orientation or positional relationship indicated by "top", "inside", "front", "center", "both ends", etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description , rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operate in a specific orientation, and therefore cannot be construed as a limitation on the present invention.

In addition, the terms "first", "second", "third", "fourth" are only used for descriptive purposes and should not be understood as indicating or implying relative importance or implying the number of technical features indicated, Thus, features defined as "first", "second", "third", "fourth" may expressly or implicitly include at least one of such features.

In the present utility model, unless otherwise expressly specified and limited, terms such as "installation", "arrangement", "connection", "fixation" and "swivel connection" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachable connection or integrated; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediate medium, it can be the internal communication of two elements or the interaction of two elements Unless otherwise clearly defined, those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. The utility model provides a stem of noble dendrobium is planted with device of growing seedlings which characterized in that: the device comprises a base, supporting legs are arranged at four corners of the bottom of the base, a box body is arranged at the top of the base, a water storage tank is fixedly connected at the center of the bottom of the inner wall of the box body, water pumping pipes are communicated with the bottoms of two sides of the water storage tank, one ends of the water pumping pipes, which are far away from the water storage tank, are communicated with a water pump, an installation mechanism is arranged on the inner side of the water pump, a water outlet hose is communicated with the outer side of the water pump, one end of the water outlet hose, which is far away from the water pump, penetrates through the outer part of the box body and is communicated with a water outlet hard pipe, a spray head is communicated with the inner side of the water outlet hard pipe, supporting columns are fixedly arranged at two ends of the box body, an aluminum substrate is fixedly connected between the tops of the two supporting columns, a, the insect trap lamp is an ultraviolet LED lamp bead, light-transmitting lamp covers are arranged outside the plant growth lamp and the insect trap lamp, the light-transmitting lamp covers the LED lamp bead, the top end of the light-transmitting lamp covers is a rectangular opening, the bottom end of the light-transmitting lamp covers is an arc-shaped convex surface, the width and the length of the light-transmitting lamp covers are smaller than those of the aluminum substrate respectively, the center of the rectangular opening of the light-transmitting lamp covers coincides with the center of the bottom surface of the aluminum substrate, the rectangular opening of the light-transmitting lamp covers are connected with the bottom surface of the aluminum substrate in an attached mode, an insect killing net is arranged outside the light-transmitting lamp covers of the insect trap lamp and is a high-voltage power grid, a cultivation basin is arranged in the middle of the top surface of the box.

2. The dendrobium nobile cultivation is with device of growing seedlings of claim 1, characterized in that: the water outlet hard pipe is characterized in that supporting blocks are fixedly connected to the front ends of the two sides of the top of the box body, fixing columns are fixedly connected to the tops of the supporting blocks, and the tops of the fixing columns are connected with the bottom of the water outlet hard pipe.

3. The dendrobium nobile cultivation is with device of growing seedlings of claim 1, characterized in that: the installation mechanism comprises an installation plate, the inner side of the installation plate is fixedly connected with the outer side of the water storage tank through a bolt, the top and the bottom of the outer side of the installation plate are fixedly connected with installation supports, and the outer side of each installation support is fixedly connected with the surface of a water pump.

4. The dendrobium nobile cultivation is with device of growing seedlings of claim 1, characterized in that: and a plurality of vent holes are formed in the surfaces of the middle parts of the two support columns.

5. The dendrobium nobile cultivation is with device of growing seedlings of claim 1, characterized in that: the input end of the processor is in one-way electric connection with the output end of the humidity sensor, and the output end of the processor is in one-way electric connection with the input end of the water pump.

6. The dendrobium nobile cultivation is with device of growing seedlings of claim 1, characterized in that: and an external power supply is arranged at the left end of the top of the base.

7. A dendrobium nobile cultivation is with device of growing seedlings according to claim 6, characterized in that: the output end of the external power supply is respectively and electrically connected with the plant growth lamp, the trap lamp, the insect killing net and the input end of the water pump.

8. The dendrobium nobile cultivation is with device of growing seedlings of claim 1, characterized in that: the bottom of the supporting leg is provided with a fixable universal wheel.
