Abstract

An embedded male extension cord safety combination harness with switch protection, including an embedded plug (1), a harness (3), a fuse (4), a two-way online switch (5) and an integrated socket (6); The ground wire (31), the live wire (32) and the neutral wire (33) at the rear end of the embedded plug (1) are connected to the integrated socket (6) through the sectional sleeve of the wire harness (3), and the branch circuit in the middle of the wire harness is connected to the fuse tube (4) or two-way online switch (5); the front end of the embedded plug (1) has an inner groove, and the inner groove is installed and fixed to connect the ground wire (31), the live wire (32) and the neutral wire (33) respectively. the plug terminal (13). The fuse or switch is connected at the branch of the wire harness to facilitate the connection of the multi-hole socket after the parallel connection, which has a better sealing effect and improves the integrity and reliability of the wire harness. It has strong practicability and simple operation, can effectively protect the wiring harness body, is convenient for maintenance and prolongs the service life.

Description

Inline Male Extension Cable Safety Combination Harness with Switch Protection

technical field

The utility model relates to a structural improvement technology of a wire harness, in particular to an embedded male extension wire safety combination wire harness with switch protection.

Background technique

The wiring harness provides the totality of service equipment for a certain load source group, such as trunk lines, switching devices, control systems, etc. The load source is the service object of the wire harness, which usually refers to the user equipment; in a broad sense, the upper-level equipment is the load source of the lower-level equipment. In order to facilitate installation and maintenance and ensure that the electrical equipment can work under the worst conditions, the wires of different specifications and colors used by each electrical equipment are rationally arranged and integrated, and the wires are bundled with insulating materials. .

With the increase of electrical functions and the widespread application of electronic control technology, the number of circuits and power consumption have increased significantly, and the wiring harness has become thicker and heavier. The wiring harness plays a greater role and has become a problem faced by the manufacturing industry.

The three-wire socket is the 220V power socket for household appliances. Its internal wiring method should be correctly wired according to international and national standards, that is, the commonly known wiring structure of left zero, right fire and middle ground. If the internal wiring of the three-wire socket is wrong, for example, it may occur during decoration or informal electrician installation. When the user plugs in the electrical equipment, it will not work normally, and the electrical shell will be charged and cause electric shock danger.

At present, some high-end construction machinery wiring harnesses have begun to adopt the method of adding cables and connectors. The wiring harnesses basically have no branches. The logical relationship of the lines is connected through the terminals in the controller and the control box. However, although this form of wiring harnesses is reliable. Higher, but requires the installation of a controller and a large number of terminals, and the cost is higher.

Utility model content

The purpose of the utility model is to provide an embedded male extension wire safety combination harness with switch protection to solve the above technical problems.

The purpose of this utility model will be achieved through the following technical measures: including embedded plugs, wire harnesses, fuses, dual-circuit on-line switches and integrated sockets; The segmented set is connected to the integrated socket, and the branch circuit in the middle section of the wiring harness is connected to the fuse or the two-way online switch; the front end of the embedded plug has an inner groove, and the plug terminals for connecting the ground wire, the live wire and the neutral wire respectively are installed and fixed in the inner groove. .

In particular, the front part of the embedded plug has an inlay shell, and the front end of the inlaid shell has an inner groove, and the bottom of the inner groove has a plug fixing bottom plate and three plug terminals respectively connected to the ground wire, the live wire and the neutral wire are distributed and fixed on the upper part of the inner groove. , on both sides of the front end face of the inlaid shell are respectively turned outward to connect a socket lug plate, and there are socket holes on the two socket lugs respectively.

In particular, the extension of the plug terminal on the rear side of the plug-in plug is connected to the ground, live or neutral wire by means of connection clips.

In particular, the ground wire branched from the middle section of the wire harness is connected through a fuse.

In particular, the live wire and the neutral wire branched from the middle section of the harness tube are connected by a two-way on-line switch, a switch button is installed on the top of the two-way on-line switch, and the live wire and the neutral wire are connected at the bottom of the two-way on-line switch through the terminal block.

In particular, the integrated socket includes at least three sets of sockets.

In particular, a power switch is integrated into the integrated socket.

In particular, the sockets on the integrated socket are arranged in a row.

The advantages and effects of the utility model are as follows: fuses or switches are tapped at the branch of the wire harness to facilitate the connection to the multi-hole socket after paralleling, which has better sealing effect and improves the integrity and reliability of the wire harness. It has strong practicability, simple operation, can effectively protect the wiring harness body, is convenient for maintenance and prolongs the service life.

Description of drawings

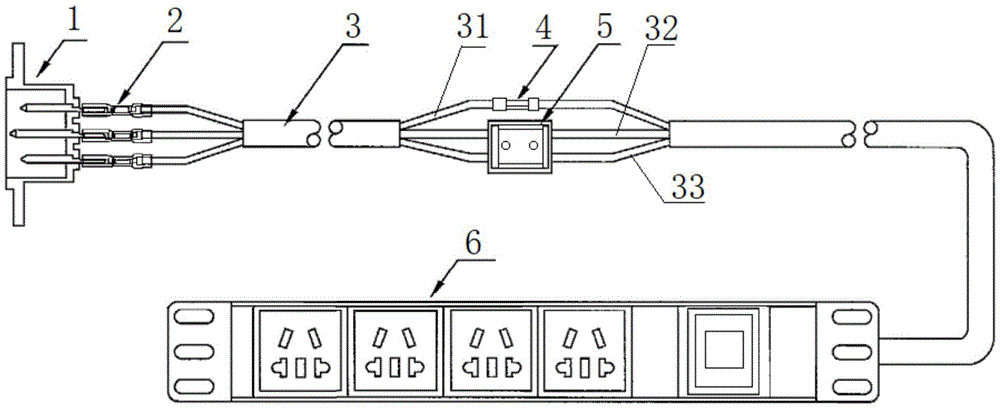

1 is a schematic structural diagram of Embodiment 1 of the present invention.

FIG. 2 is a schematic diagram of the end face structure of the embedded plug in Embodiment 1 of the present utility model.

3 is a schematic structural diagram of a dual-circuit on-line switch in Embodiment 1 of the present invention.

Reference numerals include:

1-Embedded plug, 2-Wiring clip, 3-Wire harness, 4-Safety tube, 5-Dual online switch, 6-Integrated socket, 11-Embedded shell, 12-Plug fixing base plate, 13-Plug terminal, 14-connector ear plate, 15-connection hole, 31-ground wire, 32-live wire, 33-neutral wire, 51-switch button, 52-connection terminal.

Detailed ways

The principle of the utility model is that the production process of the wire harness sequentially includes the processes of wire opening, crimping, pre-assembly and final assembly. The accuracy of the wire-opening process is directly related to the entire production schedule. Once an error occurs, especially if the wire-opening size is too short, it will lead to rework of all stations, which is time-consuming and labor-intensive and affects production efficiency. In the crimping process, the crimping parameters are determined according to the terminal type required by the drawing, and the crimping operation manual is produced. For those with special requirements, it is necessary to indicate on the process document and train the operator. In the pre-assembly process, the pre-assembly process operation manual must be compiled first. In order to improve the efficiency of the final assembly, a pre-assembly station must be set for complex wiring harnesses. If the pre-assembled part is assembled too little or the wire path of the assembly is unreasonable, it will increase the workload of the general assembly personnel. In the final assembly process, according to the assembly platen designed by the product development department, design the tooling equipment, the specifications and dimensions of the material box, and paste the numbers of all the assembly sheaths and accessories on the material box to improve the assembly efficiency.

The utility model comprises: an embedded plug 1 , a wire harness 3 , a fuse 4 , a two-way on-line switch 5 and an integrated socket 6 .

The utility model will be further described below in conjunction with the accompanying drawings and embodiments.

Embodiment 1: As shown in FIG. 1, the ground wire 31, live wire 32 and neutral wire 33 at the rear end of the embedded plug 1 are connected to the integrated socket 6 through the sectional sleeve of the wire harness 3, and the branch circuit in the middle section of the wire harness is connected to the fuse 4 Or two-way online switch 5; the front end of the embedded plug 1 has an inner groove, and the plug terminals 13 connected to the ground wire 31, the live wire 32 and the neutral wire 33 respectively are installed and fixed in the inner groove.

In the foregoing, the front part of the embedded plug 1 has an embedded shell 11, and the front end of the embedded shell 11 has an inner groove. The bottom of the inner groove has a plug fixing bottom plate 12, and the upper part is distributed and fixed to connect the ground wire 31, the live wire 32 and the zero wire respectively. The three plug terminals 13 of the wire 33 are respectively turned outward on both sides of the front end surface of the inlay shell 11 to connect to a socket lug 14 , and the two socket lugs 14 are respectively provided with sockets 15 .

In the foregoing, the extension end of the plug terminal 13 on the rear side of the embedded plug 1 is connected to the ground wire 31 , the live wire 32 or the neutral wire 33 through the wiring clip 2 .

In the foregoing, the ground wire 31 branched from the middle section of the harness 3 is connected through the fuse 4 .

In the foregoing, the live wire 32 and the neutral wire 33 branched out in the middle section of the wire harness 3 are connected by the two-way on-line switch 5, the switch button 51 is installed on the top of the two-way on-line switch 5, and the live wire 32 and the live wire 32 are connected to the bottom of the two-way on-line switch 5 through the terminal 52 Neutral line 33.

In the foregoing, the integrated socket 6 includes at least three groups of sockets.

In the foregoing, a power switch is integrally mounted on the integrated socket 6 .

In the foregoing, the sockets on the integrated socket 6 are arranged in a row.

In the embodiment of the utility model, the front and rear sections of the ground wire 31, the live wire 32 and the neutral wire 33 are respectively 800mm and 500mm long, the integrated socket 6 is an 8-position new five-hole national standard belt line RVV 300/500V, and the total length of the integrated socket 6 is 460mm .

In the embodiment of the present utility model, during application, the embedded plug 1 is embedded and fixed on the electrical equipment shell through screws to facilitate external power supply, the fuse 4 and the dual-circuit on-line switch 5 are respectively installed inside the equipment, and the integrated socket 6 is installed in the control panel or power terminal block.

Claims (8)

1. The safe combined wire harness with the switch protection function for the embedded male extension line comprises an embedded plug (1), a wire harness pipe (3), a fuse (4), a two-way online switch (5) and an integrated socket (6); the integrated socket is characterized in that a wire harness of a ground wire (31), a live wire (32) and a zero wire (33) at the rear end of the scarf plug (1) is connected with the integrated socket (6) in a sleeved mode in a subsection mode through a wiring pipe (3), and a branch line of the wire harness is connected with a fuse tube (4) or a two-way online switch (5); the front end of the scarf joint plug (1) is provided with an inner groove, and a plug terminal (13) which is respectively connected with a ground wire (31), a live wire (32) and a zero wire (33) is fixedly arranged in the inner groove.

2. The safety combined wire harness with the switch protection embedded male extension line is characterized in that an embedded shell (11) is arranged at the front part of an embedded plug (1), an inner groove is arranged at the front end of the embedded shell (11), a plug fixing bottom plate (12) is arranged at the bottom of the inner groove, three plug terminals (13) which are respectively connected with a ground wire (31), a live wire (32) and a zero wire (33) are fixedly distributed and distributed in a delta shape on the inner groove, a connecting seat lug plate (14) is respectively connected with two sides of the front end surface of the embedded shell (11) in an outwards-turned mode, and connecting holes (15) are respectively formed in the two connecting seat lug plates (14).

3. The safety combined wiring harness with the switch protection embedded male extension line is characterized in that the extending end of the plug terminal (13) at the rear side of the embedded plug (1) is connected with a ground wire (31), a live wire (32) or a neutral wire (33) through a wiring clip (2).

4. The in-line public extension cord safety combination wiring harness with switch protection according to claim 1, wherein the ground wires (31) branched from the middle section of the wiring harness tube (3) are connected through a fuse tube (4).

5. The safety combined wiring harness with the switch protection function and the embedded public head extension line is characterized in that the live line (32) and the zero line (33) which are branched from the middle section of the wiring harness (3) are connected through the two-way online switch (5), the switch button (51) is installed at the top of the two-way online switch (5), and the bottom of the two-way online switch (5) is connected with the live line (32) and the zero line (33) through the wiring terminal (52).

6. The switch-protected embedded male extension cord safety combination wiring harness of claim 1, wherein the integrated socket (6) comprises at least three sets of plug-in positions.

7. The switch-protected embedded male extension cord safety combination wiring harness according to claim 1, wherein a power switch is integrally mounted on the integrated socket (6).

8. The switch-protected embedded male extension cord safety combination wiring harness of claim 1, wherein the plug sites on the integrated socket (6) are aligned.
