The utility model discloses a belong to underground building construction technical field, specifically a formula of sinking bathroom is including wall body, floor layer, top layer waterproof layer and top floor drain, the right side wall fixed mounting of wall body the floor layer, the inside fixed mounting raceway of wall body, the top fixed mounting first waterproof layer of floor layer, the top fixed mounting second waterproof layer of first waterproof layer, the top fixed mounting third water proofing layer of second waterproof layer, the right side wall of wall body and the top fixed mounting of third water proofing layer are all fixed mounting the top layer waterproof layer, the inside fixed mounting of second waterproof layer has a branch flow pipe, the top left side of branch flow pipe link up the top layer waterproof layer fixed mounting top floor drain, the top right side fixed mounting of branch flow pipe has an inside floor drain, this utility model optimizes the design structure, the waterproof effect is improved, and the comprehensive waterproof effect of the upper layer and the lower layer is realized.
Description
Technical Field
The utility model relates to an underground construction technical field specifically is a formula of sinking bathroom.
Background
In a traditional multi-storey civil residential building, a toilet pipeline drainage system is generally in a cross-storey mode, namely drainage of a toilet in an upper layer generally passes through floors and is collected and drained on a ceiling of a toilet in a lower layer. Under the condition, if the drainage pipeline of the upper layer is damaged or the water leakage condition of the toilet occurs, the normal life of the residents of the next layer is influenced; in addition, the sound produced in the water discharging process also brings trouble to the lives of residents. In recent years, there has been a sink type toilet in which a toilet room is constructed at a position lower by about 40cm from other positions in a house, and a drainage system is installed at the position to avoid an influence on the next floor, and is generally called a "same floor drainage system". After the pipeline of the sinking toilet is installed, the part lower than the ground of the house needs to be backfilled, the backfilling depth is about 40cm, the backfilling mode adopted at present is generally to fill by adopting light building blocks, and then to fill gaps by adopting cement mortar, or to fill by adopting concrete with ceramsite as aggregate.
The sink-type toilet in the prior art is thin, easily causes seeping of accumulated water, and causes poor waterproof effect, and meanwhile, the structural design of a general sink-type toilet is complex, so that a sink-type toilet needs to be developed.
SUMMERY OF THE UTILITY MODEL
This section is for the purpose of summarizing some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this section and in the abstract of the specification and the title of the application to avoid obscuring the purpose of this section, the abstract of the specification and the title of the application, and such simplifications or omissions are not intended to limit the scope of the invention.
In view of the problems existing in the prior art, the utility model discloses.
Therefore, the utility model aims at providing a formula of sinking bathroom can realize the optimal design structure, improves water-proof effects, and the realization is double-deck waterproof from top to bottom.
For solving the technical problem, according to the utility model discloses an aspect, the utility model provides a following technical scheme:
the utility model provides a formula of sinking bathroom, its includes wall body, floor layer, top layer waterproof layer and top floor drain, the right side wall fixed mounting of wall body the floor layer, the inside fixed mounting raceway of wall body, the first waterproof layer of top fixed mounting of floor layer, the top fixed mounting second waterproof layer of first waterproof layer, the top fixed mounting third water layer of second waterproof layer, the right side wall of wall body with the equal fixed mounting of top fixed mounting of third water layer the top layer waterproof layer, the inside fixed mounting of second waterproof layer has a branch flow pipe, the top left side of branch flow pipe link up surface layer waterproof layer fixed mounting the top floor drain, the top right side fixed mounting of branch flow pipe has inside floor drain, inside floor drain is located the top of second waterproof layer.
As a preferred scheme of the formula bathroom that sinks, wherein: the water conveying pipeline is communicated with the left end of the branch flow pipe.
As a preferred scheme of the formula bathroom that sinks, wherein: and sealing pastes are adopted between the top floor drain and the surface waterproof layer and between the inner floor drain and the second waterproof layer for sealing.
As a preferred scheme of the formula bathroom that sinks, wherein: and the surface waterproof layer at the top of the third waterproof layer inclines towards the middle part of the top floor drain.
As a preferred scheme of the formula bathroom that sinks, wherein: the top of the inner floor drain is provided with a water accumulation groove which is obliquely arranged towards the middle of the inner floor drain.
Compared with the prior art, the beneficial effects of the utility model are that: through the setting of this formula bathroom sinks, structural design is reasonable, utilizes the top layer waterproof layer to reach surface waterproof's effect at first, utilizes the top floor drain to leak into the ponding of ground surface inside the second waterproof layer, be provided with inside floor drain in the bottom of the third water proofing layer on inlayer and be used for arranging the tributary intraduct with inside infiltration is timely, utilizes tributary pipe and conduit looks through connection at last, realizes the discharge with the ponding technique, has optimized the project organization, improves water-proof effects, realizes double-deck waterproof from top to bottom.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the present invention will be described in detail with reference to the accompanying drawings and detailed embodiments, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor. Wherein:

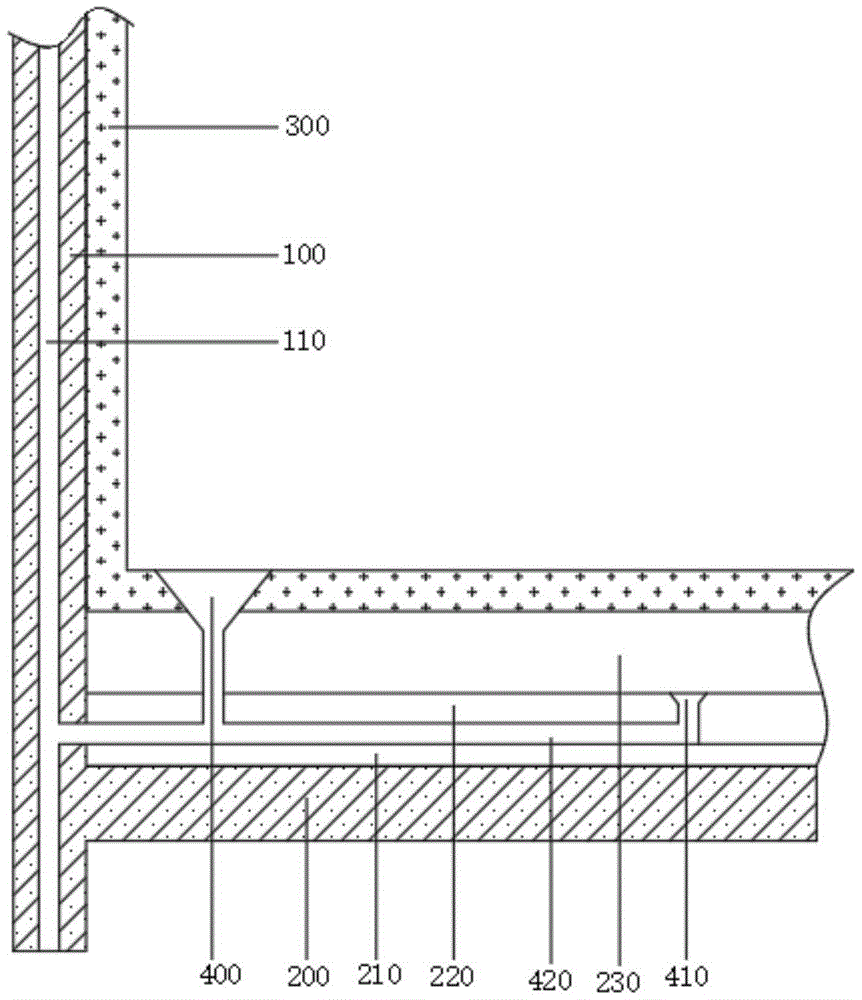

fig. 1 is a schematic structural diagram of the present invention.
Detailed Description
In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, but the present invention may be implemented in other ways than those specifically described herein, and one skilled in the art may similarly generalize the present invention without departing from the spirit of the present invention, and therefore the present invention is not limited to the specific embodiments disclosed below.
Next, the present invention will be described in detail with reference to the schematic drawings, and in the detailed description of the embodiments of the present invention, for convenience of explanation, the sectional view showing the device structure will not be enlarged partially according to the general scale, and the schematic drawings are only examples, and should not limit the scope of the present invention. In addition, the three-dimensional dimensions of length, width and depth should be included in the actual fabrication.
In order to make the objects, technical solutions and advantages of the present invention clearer, embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.
The utility model provides a following technical scheme: a sinking toilet optimizes the design structure, improves the waterproof effect, realizes the upper and lower double-layer waterproof in the using process, please refer to figure 1, comprising a wall 100, a floor layer 200, a surface waterproof layer 300 and a top floor drain 400;
referring to fig. 1 again, the floor layer 200 is fixedly installed on the right side wall of the wall 100, the water pipe 110 is fixedly installed inside the wall 100, the first waterproof layer 210 is fixedly installed on the top of the floor layer 200, the second waterproof layer 220 is fixedly installed on the top of the first waterproof layer 210, the third waterproof layer 230 is fixedly installed on the top of the second waterproof layer 220, the surface waterproof layer 300 is fixedly installed on the top of both the right side wall of the wall 100 and the top of the third waterproof layer 230, the branch pipe 420 is fixedly installed inside the second waterproof layer 220, the top floor drain 400 is fixedly installed on the left side of the top of the branch pipe 420 by penetrating through the surface waterproof layer 300, the inside floor drain 410 is fixedly installed on the right side of the top of the branch pipe 420, and the inside floor drain 410 is located on the top of the second waterproof layer 220.
Wherein, the water pipe 110 is communicated with the left end of the branch pipe 420.
And sealing pastes are used for sealing between the top floor drain 400 and the surface waterproof layer 300 and between the inner floor drain 410 and the second waterproof layer 220.
The surface waterproof layer 300 on the top of the third waterproof layer 230 inclines towards the middle of the top floor drain 400.
Wherein, the top of the inner floor drain 410 is provided with a water accumulation groove, and the water accumulation groove is obliquely arranged towards the middle part of the inner floor drain 410.
In specific use, as needs the utility model discloses at first utilize top layer waterproof layer 300 to reach surface waterproof's effect at the in-process that uses, utilize top floor drain 400 to leak into the ponding of ground surface inside second waterproof layer 220, be provided with inside floor drain 410 in the bottom of the third water layer 230 of inlayer and be used for the timely row of inside infiltration to the lateral flow pipe 420 inside, utilize lateral flow pipe 420 and conduit 110 looks through connection at last, realize the discharge with the ponding technique.
The number of the top floor drains 400 and the number of the inner floor drains 410 are not limited to the specific number described in the embodiment, and the number of the top floor drains 400 and the number of the inner floor drains 410 may be increased or decreased as required by those skilled in the art on the premise that the present device can perform drainage.
While the invention has been described above with reference to an embodiment, various modifications may be made and equivalents may be substituted for elements thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features of the disclosed embodiments of the present invention can be used in any combination with each other, and the non-exhaustive description of these combinations in this specification is merely for the sake of brevity and resource conservation. Therefore, it is intended that the invention not be limited to the particular embodiments disclosed, but that the invention will include all embodiments falling within the scope of the appended claims.
Claims (5)
1. A sink-type toilet is characterized in that: the floor drain comprises a wall body (100), a floor layer (200), a surface waterproof layer (300) and a top floor drain (400), wherein the right side wall of the wall body (100) is fixedly installed on the floor layer (200), a water conveying pipeline (110) is fixedly installed inside the wall body (100), a first waterproof layer (210) is fixedly installed on the top of the floor layer (200), a second waterproof layer (220) is fixedly installed on the top of the first waterproof layer (210), a third waterproof layer (230) is fixedly installed on the top of the second waterproof layer (220), the surface waterproof layer (300) is fixedly installed on the right side wall of the wall body (100) and the top of the third waterproof layer (230), a branch flow pipe (420) is fixedly installed inside the second waterproof layer (220), the left side of the top of the branch flow pipe (420) penetrates through the surface waterproof layer (300) and is fixedly installed on the top floor drain (400), an inner floor drain (410) is fixedly installed on the right side of the top of the branch flow pipe (420), and the inner floor drain (410) is located on the top of the second waterproof layer (220).
2. A sink toilet according to claim 1, wherein: the water conveying pipeline (110) is communicated with the left end of the branch flow pipe (420).
3. A sink toilet according to claim 1, wherein: and sealing paste is adopted between the top floor drain (400) and the surface waterproof layer (300) and between the inner floor drain (410) and the second waterproof layer (220) for sealing.
4. A sink toilet according to claim 1, wherein: and the surface waterproof layer (300) at the top of the third waterproof layer (230) inclines towards the middle part of the top floor drain (400).
5. A sink toilet according to claim 1, wherein: the top of the inner floor drain (410) is provided with a water accumulation groove, and the water accumulation groove is obliquely arranged towards the middle of the inner floor drain (410).
