Abstract

The utility model belongs to the technical field of high stools for electric power operation and maintenance, in particular to a multifunctional high stool; the utility model comprises a main frame, a step board is arranged between two inclined uprights on the front of the main frame, and a step plate is arranged on the top surface of the main frame There is an insulating work platform board, the bottoms of the two inclined columns on the front of the main frame are provided with first anti-skid pads, the bottoms of the two vertical columns on the back of the main frame are provided with second anti-skid pads, and the two inclined columns on the front of the main frame are provided with second anti-skid pads. The lower part of the column is rotatably connected with handlebars, the upper part of the side of the main frame is provided with a lighting pole, the upper part of the back of the main frame is provided with a first roller, the lower part of the back of the main frame is provided with a second roller; the back of the main frame is provided with a bottom plate The upper part of the main frame is provided with a tool box, and the left and right sides of the main frame are provided with guard plates near the bottom plate; the utility model has a reasonable structure, is convenient to carry, can carry and store various tools and implements, and can be used for staff at night. homework help.

Description

multifunctional high stool

technical field

The utility model belongs to the technical field of electric power operation and maintenance high stools, in particular to a multifunctional high stool.

Background technique

The high stool is a kind of climbing tool that is often used due to the height of the stool in the work of substation operation and substation maintenance. In actual work, due to the work site and equipment location and other reasons, the high stool must be moved frequently during work. Position, when transferring the position of the high stool, because the volume and weight of the high stool are relatively large, two people are often required to carry it together, which is very inconvenient. At the same time, the operation tools and maintenance work are relatively heavy, and usually the preparation work needs to go back and forth at least. Two or more times, a great waste of time, prolonging the power transmission time, causing economic losses and complaints from the masses; the traditional high stool only includes a steel frame, a step board and a working platform at the top, which provides a relatively simple function and cannot be carried. Therefore, it is necessary to develop a new type of multifunctional high stool.

Utility model content

The purpose of the utility model is to overcome the deficiencies of the prior art, and to provide a multifunctional high stool with reasonable structure, convenient transportation, carrying and storing various tools and work tickets, and providing help for the staff to work at night.

The purpose of the utility model is achieved as follows: a multifunctional high stool, which includes a main frame, a step board is arranged between two inclined uprights on the front of the main frame, and a top surface of the main frame is arranged There is an insulating work platform board, the bottoms of the two inclined columns on the front of the main frame are provided with first anti-skid pads, and the bottoms of the two vertical columns on the back of the main frame are provided with second anti-skid pads. The lower parts of the two inclined uprights on the front of the frame are both rotatably connected with handlebars, the upper part of the side of the main frame is provided with a lighting pole, the upper part of the back of the main frame is provided with a first roller, and the lower part of the back of the main frame is provided with There is a second roller; the back of the main frame is provided with a bottom plate, the upper part of the main frame is provided with a tool box, and the left and right sides of the main frame are provided with guard plates near the bottom plate.

The first roller is a directional roller, the second roller is a universal roller, and both the first roller and the second roller are connected with a connecting plate.

The first roller is fixedly connected to the main frame through the connecting plate, and the second roller is fixedly connected to the main frame through the connecting plate.

The main frame is provided with connecting grooves at positions corresponding to the first roller and the second roller, and the first roller and the second roller are slidably connected to the connecting groove through the connecting plate, A locking bolt is arranged on the connecting groove.

The top of the lighting pole is provided with an L-shaped plate, and the L-shaped plate is rotatably connected to the lighting pole through a rotating bolt.

The lighting pole includes a pole body, a U-shaped connecting plate is provided on the main frame at a position corresponding to the lighting pole, and the lighting pole body is rotatably connected to the U-shaped connecting plate through a connecting shaft; The bottom of the U-shaped connecting plate is threadedly connected to the limit head, and the bottom of the lamp post main body is provided with a groove matched with the end of the limit head.

The lighting pole includes a fixed pole fixedly connected with the main frame, a sliding pole slidably connected with the fixed pole is arranged in the fixed pole, and an adjustment bolt is arranged on the upper part of the fixed pole.

The handlebar is rotatably connected to the oblique column on the front of the main frame through a limit device, and the limit device includes a limit shaft and a limit nut.

The handlebar includes a rotating tube rotatably connected with the oblique column on the front of the main frame, and a telescopic rod slidably connected with the rotating tube is arranged in the rotating tube.

The handlebar includes a handle bar, and the two ends of the handle bar are respectively connected with the telescopic bars on the left and right sides.

Beneficial effects of the utility model: On the basis of the traditional high stool, the utility model is provided with a first roller and a second roller on the back of its main frame, and a handlebar is respectively arranged on the lower part of the two inclined uprights on the front of its main frame. When carrying the high stool, the high stool can be put down and operated as a cart, which can greatly improve the efficiency of the staff to carry the high stool and reduce its labor intensity; at the bottom of the main frame, there are first anti-skid The pad and the second anti-skid pad can effectively improve the stability of the high stool when it is working; a lighting pole is set on the upper part of the main frame, and when working at night, ordinary lamps can be fixed on the lighting pole, or a The lamps are adsorbed on the lighting lamps, which can provide night lighting for the working room; a bottom plate is set on the back of the main frame, and guard plates are set on the left and right sides of the main frame, so that when it is transported as a cart, related tools or appliances can be stored , which greatly facilitates the staff, avoids carrying tools and equipment back and forth, and improves work efficiency. At the same time, a drawer-type toolbox is set on the upper part of the main frame, which can store small tools, work tickets, etc., further enriching the function of the high stool and facilitating work. The utility model has reasonable structure and simple operation, can be quickly transformed on the basis of the existing high stool, can provide great help for the staff to carry the high stool, carry and store tools and work at night, and reduce the total labor intensity. , a multifunctional high stool that improves work efficiency and can help staff work at night.

Description of drawings

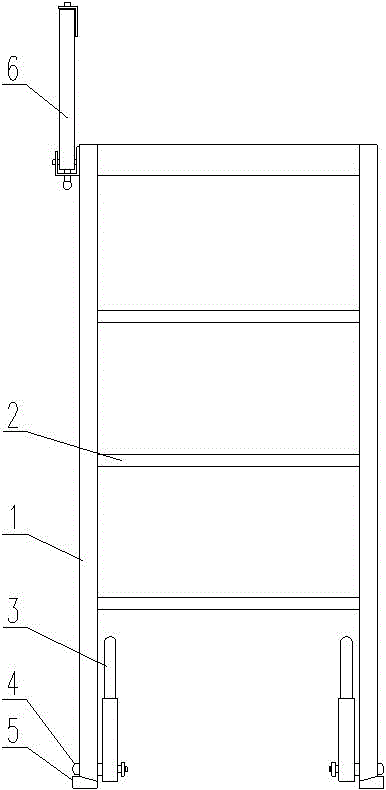

FIG. 1 is a schematic view of the front structure of a multifunctional high stool of the present invention.

Fig. 2 is a left view structural schematic diagram of a multifunctional high stool of the present invention.

FIG. 3 is a schematic view of the right side structure of a multifunctional high stool of the present invention.

FIG. 4 is a schematic diagram of the rear view of a multifunctional high stool of the present invention.

FIG. 5 is a schematic structural diagram of a multifunctional high stool of the present invention when it is used as a cart.

6 is a schematic structural diagram of a fixed connection of a first roller according to an embodiment of the present invention.

7 is a schematic structural diagram of a detachable connection of a first roller according to an embodiment of the present invention.

FIG. 8 is a left-side structural schematic diagram of FIG. 7 .

FIG. 9 is a schematic structural diagram of a lighting pole according to an embodiment of the present invention.

10 is a schematic structural diagram of a lighting pole according to an embodiment of the present invention.

11 is a schematic structural diagram of a handlebar according to an embodiment of the present invention.

12 is a schematic structural diagram of a handlebar according to an embodiment of the present invention.

In the figure: 1. Main frame 2, tread plate 3, handlebar 4, limit device 5, first anti-skid pad 6, lighting pole 7, first roller 8, second roller 9, tool box 10, guard plate 11 , the second anti-skid pad 12, the bottom plate 13, the connecting plate 14, the connecting groove 15, the locking bolt 16, the U-shaped connecting plate 17, the connecting shaft 18, the limit head 19, the light pole main body 20, the L-shaped plate 21, the rotating bolt 22. Fixed rod 23, sliding rod 24, adjusting bolt 25, limit shaft 26, limit nut 27, rotating tube 28, telescopic rod 29, handrail rod.

Detailed ways

The utility model will be further described below in conjunction with the accompanying drawings.

Example 1

As shown in Figures 1-12, a multifunctional high stool includes a main frame 1, a step board 2 is arranged between two inclined uprights on the front of the main frame 1, and a top of the main frame 1 is provided The surface is provided with an insulating working platform board, the bottoms of the two inclined columns on the front of the main frame 1 are provided with first anti-skid pads 5, and the bottoms of the two vertical columns on the back of the main frame 1 are provided with second anti-skid pads 5. Pad 11, the lower parts of the two inclined uprights on the front of the main frame 1 are rotatably connected with handlebars 3, the upper part of the side of the main frame 1 is provided with a lighting pole 6, and the upper part of the back of the main frame 1 is provided with a third A roller 7, the lower part of the back of the main frame 1 is provided with a second roller 8; the back of the main frame 1 is provided with a bottom plate 12, the upper part of the main frame 1 is provided with a tool box 9, Guard plates 10 are provided on the left and right sides near the bottom plate 12 .

On the basis of the traditional high stool, the utility model is provided with a first roller 7 and a second roller 8 on the back of the main frame 1, and handlebars 3 are respectively arranged on the lower parts of the two inclined uprights on the front of the main frame 1. When the stool is used, the high stool can be put down and operated as a cart, which can greatly improve the efficiency of the staff to carry the high stool and reduce its labor intensity; first anti-skid pads are respectively arranged at the bottom of the column of the main frame 1 5 and the second anti-skid pad 11, which can effectively improve the stability of the high stool when working; a lighting pole 6 is arranged on the upper part of the main frame 1, and when working at night, ordinary lamps can be fixed on the lighting pole 6, or The lamps with magnetic suction cups are adsorbed on the lighting lamps, which can provide night lighting for the working room; the bottom plate 12 is arranged on the back of the main frame 1, and the guard plates 10 are arranged on the left and right sides thereof, so that when it is transported as a cart, It can store related tools or utensils, which greatly facilitates the staff, prevents them from carrying tools and utensils back and forth, and improves work efficiency. The function of the high stool is further enriched, which is convenient for the staff; the utility model has a reasonable structure, is easy to operate, can be quickly transformed on the basis of the existing high stool, and can be used for the staff to carry the high stool, carry and store tools and work at night. Great help, reducing total labor intensity, improving work efficiency, and a multifunctional high stool that can help staff work at night.

Example 2

As shown in Figures 1-12, a multifunctional high stool includes a main frame 1, a step board 2 is arranged between two inclined uprights on the front of the main frame 1, and a top of the main frame 1 is provided The surface is provided with an insulating working platform board, the bottoms of the two inclined columns on the front of the main frame 1 are provided with first anti-skid pads 5, and the bottoms of the two vertical columns on the back of the main frame 1 are provided with second anti-skid pads 5. Pad 11, the lower parts of the two inclined uprights on the front of the main frame 1 are rotatably connected with handlebars 3, the upper part of the side of the main frame 1 is provided with a lighting pole 6, and the upper part of the back of the main frame 1 is provided with a third A roller 7, the lower part of the back of the main frame 1 is provided with a second roller 8; the back of the main frame 1 is provided with a bottom plate 12, the upper part of the main frame 1 is provided with a tool box 9, Guard plates 10 are provided on the left and right sides near the bottom plate 12 .

For better effect, the first roller 7 is a directional roller, the second roller 8 is a universal roller, and both the first roller 7 and the second roller 8 are connected with a connecting plate 13; the directional roller and The setting of the universal roller makes the steering more convenient when the high stool is transported as a cart, improves the operability of the utility model, and further reduces the labor intensity of the staff.

For better effect, the first roller 7 is fixedly connected to the main frame 1 through the connecting plate 13, and the second roller 8 is fixedly connected to the main frame 1 through the connecting plate 13; the roller is fixed It is arranged on the main frame 1 and has good stability during operation, and is not easily damaged after long-term operation.

For better effect, connecting grooves 14 are provided on the main frame 1 at positions corresponding to the first roller 7 and the second roller 8 , and the first roller 7 and the second roller 8 pass through The connecting plate 13 is slidably connected with the connecting groove 14, and the connecting groove 14 is provided with a locking bolt 15; the setting of the connecting groove 14 can facilitate the installation and removal of the roller, which can be different according to the actual working conditions. selection, improve the applicability of the utility model.

For better effect, the top of the lighting pole 6 is provided with an L-shaped plate 20, and the L-shaped plate 20 is rotatably connected to the lighting pole 6 through a rotating bolt 21; On the L-shaped plate 20, the lighting direction of the lamp can be adjusted by rotating the L-shaped plate, which makes the present invention more practical.

For better effect, the lighting pole 6 includes a pole main body 19 , a U-shaped connecting plate 16 is provided on the main frame 1 at a position corresponding to the lighting pole 6 , and the pole main body 19 passes through the main frame 1 . The connecting shaft 17 is rotatably connected with the U-shaped connecting plate 16 ; the bottom of the U-shaped connecting plate 16 is threadedly connected to the limit head 18 , and the bottom of the lamp post main body 19 is provided with a matching end of the limit head 18 . When needed, the light pole main body 19 can be erected, and the end of the limiting head 18 is inserted into the bottom groove of the light pole main body 19 to limit it, and the operation is simple and convenient.

For better effect, the lighting pole 6 includes a fixing rod 22 fixedly connected with the main frame 1 , and a sliding rod 23 slidably connected with the fixing rod 22 is provided in the fixing rod 22 , and the upper part of the fixing rod 22 is provided There are adjusting bolts 24; when needed, the length of the sliding rod 23 can be adjusted through the adjusting bolts 24, so as to provide support for the lamp and facilitate the night operation of the staff.

For better effect, the handlebar 3 is rotatably connected to the oblique column on the front of the main frame 1 through a limiting device 4, and the limiting device 4 includes a limiting shaft 25 and a limiting nut 26; The limit nut 26 adjusts the angle of the handlebar 3 to facilitate the push-pull operation of the cart by the staff.

For better effect, the handlebar 3 includes a rotating tube 27 that is rotatably connected to the oblique column on the front of the main frame 1 , and a telescopic rod 28 slidably connected to the rotating tube 27 is arranged in the rotating tube 27; The telescopic rod 28 extends out to a length so as to accommodate operators of different heights and facilitate their push-pull operations on the cart.

For better effect, the handlebar 3 includes a handle bar 29, and the two ends of the handle bar 29 are respectively connected with the telescopic bars 28 on the left and right sides; The telescopic rod 28 is connected as a whole, which can facilitate the staff to operate the cart with one hand and improve the operability of the utility model.

On the basis of the traditional high stool, the utility model is provided with a first roller 7 and a second roller 8 on the back of the main frame 1, and handlebars 3 are respectively arranged on the lower parts of the two inclined uprights on the front of the main frame 1. When the stool is used, the high stool can be put down and operated as a cart, which can greatly improve the efficiency of the staff to carry the high stool and reduce its labor intensity; first anti-skid pads are respectively arranged at the bottom of the column of the main frame 1 5 and the second anti-skid pad 11, which can effectively improve the stability of the high stool when working; a lighting pole 6 is arranged on the upper part of the main frame 1, and when working at night, ordinary lamps can be fixed on the lighting pole 6, or The lamps with magnetic suction cups are adsorbed on the lighting lamps, which can provide night lighting for the working room; the bottom plate 12 is arranged on the back of the main frame 1, and the guard plates 10 are arranged on the left and right sides thereof, so that when it is transported as a cart, It can store related tools or utensils, which greatly facilitates the staff, prevents them from carrying tools and utensils back and forth, and improves work efficiency. The function of the high stool is further enriched, which is convenient for the staff; the utility model has a reasonable structure, is easy to operate, can be quickly transformed on the basis of the existing high stool, and can be used for the staff to carry the high stool, carry and store tools and work at night. Great help, reducing the total labor intensity, improving work efficiency, and a multi-functional high stool that can help staff work at night.

Claims (10)

1. A multifunctional high stool, which includes a main frame (1), a step board (2) is arranged between two inclined uprights on the front of the main frame (1), and a top of the main frame (1) is provided. The main frame (1) is provided with an insulating working platform plate on the surface, and is characterized in that: the bottoms of the two inclined uprights on the front of the main frame (1) are provided with first anti-skid pads (5), and the two vertical columns on the back of the main frame (1) are provided with first anti-skid pads (5). Second anti-skid pads (11) are provided at the bottom of the upright columns, handlebars (3) are rotatably connected to the lower parts of the two inclined columns on the front of the main frame (1), and the upper part of the side of the main frame (1) A lighting pole (6) is provided, a first roller (7) is provided on the upper part of the back of the main frame (1), and a second roller (8) is provided on the lower part of the back of the main frame (1); The back of the frame (1) is provided with a bottom plate (12), the upper part of the main frame (1) is provided with a tool box (9), and the left and right sides of the main frame (1) are close to the bottom plate (12). Both are provided with a guard plate (10). 2. The multifunctional high stool according to claim 1, characterized in that: the first roller (7) is a directional roller, the second roller (8) is a universal roller, and the first roller (7) ) and the second roller (8) are connected with a connecting plate (13). 3 . The multifunctional high stool according to claim 2 , wherein the first roller ( 7 ) is fixedly connected to the main frame ( 1 ) through the connecting plate ( 13 ), and the second roller (8) The connecting plate (13) is fixedly connected with the main frame (1). 4 . The multifunctional high stool according to claim 2 , wherein the main frame ( 1 ) is provided with a position corresponding to the first roller ( 7 ) and the second roller ( 8 ). 5 . A connecting groove (14), the first roller (7) and the second roller (8) are slidably connected to the connecting groove (14) through the connecting plate (13), and the connecting groove (14) is A locking bolt (15) is provided. 5. The multifunctional high stool according to claim 1, characterized in that: the top of the lighting pole (6) is provided with an L-shaped plate (20), and the L-shaped plate (20) rotates the bolt (21) ) is rotatably connected with the lighting pole (6). 6. The multifunctional high stool according to claim 5, characterized in that: the lighting pole (6) comprises a pole body (19), and the main frame (1) is connected to the lighting pole (19). 6) A U-shaped connecting plate (16) is provided at the corresponding position, and the lamp post body (19) is rotatably connected to the U-shaped connecting plate (16) through a connecting shaft (17); the U-shaped connecting plate (16) is rotatably connected. ) The bottom is threadedly connected to the limiting head (18), and the bottom of the light pole main body (19) is provided with a groove matched with the end of the limiting head (18). 7. The multifunctional high stool according to claim 5, characterized in that: the lighting pole (6) comprises a fixing pole (22) fixedly connected with the main frame (1), and the fixing pole ( 22) A sliding rod (23) which is slidably connected with the fixed rod (22) is provided inside, and an adjusting bolt (24) is provided on the upper part of the fixing rod (22). 8 . The multifunctional high stool according to claim 1 , wherein the handlebar ( 3 ) is rotatably connected to the oblique column on the front of the main frame ( 1 ) through a limiting device ( 4 ). The positioning device (4) includes a limiting shaft (25) and a limiting nut (26). 9 . The multifunctional high stool according to claim 1 , wherein the handlebar ( 3 ) comprises a rotating tube ( 27 ) that is rotatably connected to the oblique column on the front of the main frame ( 1 ). A telescopic rod (28) slidably connected to the rotating tube (27) is arranged in the rotating tube (27). 10 . The multifunctional high stool according to claim 9 , wherein the handlebar ( 3 ) includes a handle bar ( 29 ), and two ends of the handle bar ( 29 ) are respectively connected with left and right sides. 11 . The telescopic rod (28).
