Abstract

The utility model discloses a hoisting device for overweight equipment in a super high-rise building, which comprises a counterweight base, a bearing body and a bearing base, the top of the counterweight base is fixedly connected with a bearing body, and the bottom of the counterweight base is fixedly connected with a counterweight base A weight block, an anchor seat is fixedly welded on the outer surface of the counterweight block, a first motor is fixedly installed inside the carrier body, a power distribution box is fixedly installed on one side of the carrier body, and the first motor is fixedly installed. The output end is movably connected with a rotatable take-up reel. The super-high-rise building overweight equipment hoisting device is set by the first motor, the rewinding plate, the fixed pulley and the movable pulley. When the device is hoisting building materials, the first motor can save labor to 1/3 of the building material quality, thereby reducing the first motor. The operating load of a motor increases the practical life of the device. Compared with the tower crane, the device is smaller in size, easy to install, simple to operate, low in manufacturing cost, and can be easily installed in various floors of high-rise buildings.

Description

Overweight equipment lifting device for super high-rise buildings

technical field

The utility model relates to the technical field of building construction devices, in particular to a hoisting device for overweight equipment of super high-rise buildings.

Background technique

The number of super high-rise buildings is increasing day by day. In engineering construction, it is often necessary to hoist and install large-scale machinery and equipment, especially the transportation and installation of super-high-rise large-scale equipment. At present, for the hoisting of large equipment in super high-rise buildings, tower cranes are mainly used for transportation and hoisting.

Although the tower crane transportation and hoisting has high hoisting efficiency and hoisting capacity, most of the construction sites are constructed at the same time, so the tower crane transportation and hoisting cannot meet the needs of many places, and the tower crane transportation and hoisting is very challenging when the tower crane is hoisted in the building. Therefore, the utility model proposes a lifting device for overweight equipment of super high-rise buildings.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a hoisting device for overweight equipment of a super high-rise building, which solves the problems raised in the above-mentioned background technology.

(2) Technical solutions

In order to achieve the above purpose, the present utility model is realized through the following technical solutions: a hoisting device for overweight equipment in a super high-rise building, comprising a counterweight base, a bearing body and a bearing seat, the top of the counterweight base is fixedly connected with a bearing body, and the The bottom of the counterweight base is fixedly connected to the counterweight block, the outer surface of the counterweight block is fixedly welded with an anchor seat, the inside of the carrier body is fixedly installed with a first motor, and one side of the carrier body is fixedly installed with a power distribution The output end of the first motor is movably connected with a rotatable take-up plate, the surface of the take-up plate is movably connected with a steel cable, the side of the bearing body away from the distribution box is fixedly connected with a bearing seat, the The top of the bearing seat is fixedly connected with a guide seat, the middle part of the guide seat is rotatably connected with a first guide wheel, the middle part of the bearing seat is provided with a guide hole, and the inner part of the guide hole is rotatably connected with a second guide wheel, so A second motor is fixedly installed on the side of the load-bearing base located in the guide hole, and an extension frame plate is fixedly connected to the side of the load-bearing base close to the second motor, and a screw rod is arranged in the middle of the extension frame plate. One end of the screw rod is movably connected with the output end of the second motor, the other end of the screw rod is connected with the inner wall of the extension frame plate through a bearing, the surface of the screw rod is threadedly connected with a moving piece, and the moving piece is Positioning rods are inserted on both sides, both ends of the positioning rods are fixedly connected to the inner wall of the extension shelf plate, a fixed pulley is fixedly connected to the bottom of the moving piece, and a movable pulley is arranged below the fixed pulley, The top of the movable pulley is fixedly connected with a hook, and the bottom of the movable pulley is fixedly connected with a hook.

Optionally, the number of the second guide wheels is two, and the steel cable passes through the middle of the two second guide wheels.

Optionally, the end of the wire rope is movably connected with a hook provided on the movable pulley.

Optionally, a reinforcement rod is fixedly welded on the top of the bearing body on one side of the bearing base, and an end of the reinforcement rod away from the bearing body is fixedly welded with the bearing base.

Optionally, the distribution box, the first motor and the second motor are all electrically connected through wires.

(3) Beneficial effects

The utility model provides a hoisting device for overweight equipment in a super high-rise building, which has the following beneficial effects:

1. The overweight equipment hoisting device for super high-rise buildings is set by the first motor, the reel, the fixed pulley and the movable pulley. When the device is hoisting building materials, the first motor can save labor to 1/3 of the quality of the building materials, thereby reducing the Compared with the tower crane, the device is smaller in size, easy to install, simple to operate, low in manufacturing cost, and can be easily installed in various floors of high-rise buildings.

2. The overweight equipment hoisting device for super high-rise buildings can make the fixed pulley drive the movable pulley to adjust the position in the horizontal direction through the setting of the second motor, the screw rod and the moving part, and the setting of the counterweight block can effectively lift For the stability of the device, through the arrangement of the reinforcing rod, the bearing seat and the extension frame plate can be reinforced to prevent them from breaking, and the arrangement of the anchor seat facilitates the installation.

Description of drawings

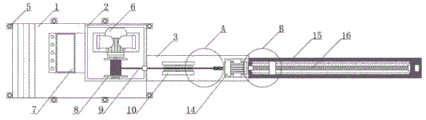

Fig. 1 is the top view structural perspective view of the utility model;

Fig. 2 is the structural side view of the utility model;

Fig. 3 is the enlarged structural schematic diagram at A in Fig. 1 of the utility model;

FIG. 4 is an enlarged schematic view of the structure at B in FIG. 1 of the present utility model.

In the picture: 1. Counterweight base; 2. Bearing body; 3. Load-bearing seat; 4. Counterweight block; 5. Anchor seat; 6. The first motor; 7. Distribution box; cable; 10, guide seat; 11, first guide wheel; 12, guide hole; 13, second guide wheel; 14, second motor; 15, extension frame plate; 16, screw rod; 17, moving part; 18, Positioning rod; 19, fixed pulley; 20, movable pulley; 21, hook; 22, hook; 23, reinforcement rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Please refer to FIGS. 1 to 4 , the present utility model provides a technical solution: a hoisting device for overweight equipment in a super high-rise building, comprising a counterweight base 1 , a bearing body 2 and a bearing base 3 , the top of the counterweight base 1 is fixedly connected with a bearing Body 2, the bottom of the counterweight base 1 is fixedly connected to the counterweight block 4, and the outer surface of the counterweight block 4 is fixedly welded with an anchor seat 5. To further improve the stability of the device and prevent collapse, the first motor 6 is fixedly installed inside the carrier body 2, and the power distribution box 7 is fixedly installed on one side of the carrier body 2;

The output end of the first motor 6 is movably connected with a rotatable take-up plate 8, the surface of the take-up plate 8 is movably connected with a steel cable 9, and the side of the bearing body 2 away from the distribution box 7 is fixedly connected with a bearing seat 3, and the bearing seat 3 A guide seat 10 is fixedly connected to the top of the guide seat 10 , a first guide wheel 11 is rotatably connected to the middle of the guide seat 10 , a guide hole 12 is opened in the middle of the bearing seat 3 , and a second guide wheel 13 is rotatably connected to the inside of the guide hole 12 . Both the guide wheel 11 and the second guide wheel 13 play the role of guiding the wire rope 9;

The first motor 6, the take-up disk 8, the fixed pulley 19 and the movable pulley 20 are arranged in coordination, and when in use, the first motor 6 drives the take-up disk 8 to rewind and release the wire rope 9, and at that time, the movable pulley 20 is moved in the vertical direction, So as to achieve the purpose of lifting building materials;

The second motor 14 is fixedly installed on the side of the bearing seat 3 located in the guide hole 12, and the side of the bearing seat 3 close to the second motor 14 is fixedly connected with an extension frame plate 15, and a screw rod 16 is arranged in the middle of the extension frame plate 15. One end of the rod 16 is movably connected with the output end of the second motor 14, the other end of the screw rod 16 is connected with the inner wall of the extension frame plate 15 through a bearing, the surface of the screw rod 16 is threadedly connected with a moving piece 17, and the moving piece 17 The chute on the inner side of the extension frame plate 15 is slidably connected, and the positioning rods 18 are inserted on both sides of the movable member 17. Both ends of the positioning rods 18 are fixedly connected to the inner wall of the extension frame plate 15, and the positioning rods 18 play a position limit The function of the moving part 17 is to prevent the moving part from turning over. The bottom of the moving part 17 is fixedly connected with a fixed pulley 19, a movable pulley 20 is arranged below the fixed pulley 19, the top of the movable pulley 20 is fixedly connected with a hook 21, and the bottom of the movable pulley 20 is fixedly connected with a hook 22;

Through the cooperation of the second motor 14 , the screw rod 16 and the moving member 17 , when in use, the second motor 14 drives the screw rod 16 to rotate, so that the moving member 17 moves on the screw rod 16 , so that the building materials hoisted on the hook 22 are Adjust the position in the horizontal direction;

The number of the second guide pulleys 13 is two. The wire rope 9 passes through the middle of the two second guide pulleys 13 and overlaps the grooves of the movable pulley 20 and the fixed pulley 19. The hook 21 on the movable pulley 20 is movably connected, and a reinforcement rod 23 is fixedly welded on the top of the bearing body 2 on one side of the bearing seat 3, and the end of the reinforcement rod 23 away from the bearing body 2 is fixedly welded with the bearing seat 3. The motor 6 and the second motor 14 are electrically connected through wires.

As a preferred technical solution of the present invention, the number of anchor seats 5 is eight, and the middle parts of the eight anchor seats 5 are provided with anchor bolts.

The electrical components appearing in this article are all connected with the external main controller and 220V mains, and the main controller can be a conventional known device controlled by a computer or the like.

To sum up, the super-high-rise building overweight equipment hoisting device can be stably installed at the edge of the floor through the eight anchor bases 5, and the power distribution box 7 can be energized for use.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (5)

1. A hoisting device for overweight equipment in a super high-rise building, comprising a counterweight base (1), a bearing body (2) and a bearing seat (3), characterized in that: the top of the counterweight base (1) is fixedly connected with a bearing body (2) The bottom of the counterweight base (1) is fixedly connected to the counterweight block (4), the outer surface of the counterweight block (4) is fixedly welded with an anchor seat (5), and the bearing body (2) A first motor (6) is fixedly installed inside of the bearing body (2), a power distribution box (7) is fixedly installed on one side of the carrier (2), and a rotatable coil is movably connected to the output end of the first motor (6). A rewinding tray (8), the surface of the reeling tray (8) is movably connected with a steel cable (9), and a bearing seat (3) is fixedly connected to the side of the bearing body (2) away from the distribution box (7), so A guide seat (10) is fixedly connected to the top of the bearing seat (3), a first guide wheel (11) is rotatably connected to the middle of the guide seat (10), and a guide hole is opened in the middle of the bearing seat (3). (12), a second guide wheel (13) is rotatably connected inside the guide hole (12), and a second motor (14) is fixedly installed on one side of the bearing seat (3) on the guide hole (12), An extension frame plate (15) is fixedly connected to the side of the bearing seat (3) close to the second motor (14), and a screw rod (16) is arranged in the middle of the extension frame plate (15), and the screw rod ( One end of 16) is movably connected with the output end of the second motor (14), the other end of the lead screw (16) is connected with the inner wall of the extension frame plate (15) through a bearing, and the lead screw (16) A moving piece (17) is threadedly connected to the surface of the moving piece (17), a positioning rod (18) is inserted on both sides of the moving piece (17), and both ends of the positioning rod (18) are fixedly connected to the extension frame On the inner wall of the plate (15), a fixed pulley (19) is fixedly connected to the bottom of the moving member (17), a moving pulley (20) is arranged below the fixed pulley (19), and the top of the moving pulley (20) is fixed A hook (21) is connected, and a hook (22) is fixedly connected to the bottom of the movable pulley (20). 2 . The overweight equipment hoisting device for super high-rise buildings according to claim 1 , wherein the number of the second guide wheels ( 13 ) is two, and the steel cables ( 9 ) extend from the two guide wheels ( 13 ). 3 . The middle of the second guide wheel (13) passes through. 3 . The overweight equipment hoisting device for super high-rise buildings according to claim 1 , wherein the end of the wire rope ( 9 ) is movably connected with the hook ( 21 ) provided on the movable pulley ( 20 ). 4 . 4. The super high-rise building overweight equipment hoisting device according to claim 1, characterized in that: a reinforcement rod (23) is fixedly welded on the top of the bearing body (2) on one side of the bearing seat (3), and the One end of the reinforcing rod (23) away from the bearing body (2) is fixedly welded to the bearing seat (3). 5. The super high-rise building overweight equipment hoisting device according to claim 1, characterized in that: the distribution box (7), the first motor (6) and the second motor (14) are all electrically connected through wires connect.
