Abstract

The utility model discloses a textile machine with a leveling function and convenient for automatic cloth cutting, comprising a frame and a spring rod, a first motor is fixed on the front surface of the frame, and a fixing column is connected behind the first motor , a pressing roller is fixed at the outer center of the fixing column, a screw is connected above the frame, and an upper support plate is arranged below the screw, and the driving gear is installed inside the frame, and one end of the driving gear is A driven gear is connected, a lower support plate is connected to the outer side of the support column, a spring rod is fixed on the right side of the cutter, and one end of the spring rod is fixed on the inner right surface of the frame. The textile machine has a leveling function and is convenient for automatic cutting of fabrics. The upper support plate and the lower support plate can level the fabric to prevent wrinkles on the surface of the fabric. The first motor can not only drive the pressing roller to rotate, make the fabric move, and Move the cutter to cut the fabric.

Description

A textile machine with a leveling function and convenient for automatic cloth cutting

technical field

The utility model relates to the technical field of textile machines, in particular to a textile machine with a leveling function and convenient for automatic cloth cutting.

Background technique

Textile machines are very common in daily life. Textile machines can process raw materials such as silk, thread and hemp into fabrics, and fabrics can be made into clothes or decorations, so there is a great demand for fabrics in life, so the textile machine It is very important, and the general textile machine has some problems at work, such as:

First, the general textile machine does not have a leveling function, resulting in wrinkles on the surface of the fabric during processing. After processing, the surface of the finished product is flawed, which is not conducive to sale;

Second, the general textile machine does not have an automatic cutting function. After the fabric is processed, it is necessary to re-cut the fabric, which is troublesome and increases the production cost.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a textile machine with a leveling function and convenient for automatic cloth cutting, so as to solve the problems of no leveling function and automatic cutting in the above-mentioned background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a textile machine with a leveling function and convenient for automatic cloth cutting, comprising a frame and a spring rod, the front surface of the frame is fixed with a first motor, and the first motor is fixed on the front surface of the frame. A fixing column is connected behind a motor, a pressing roller is fixed at the outer center of the fixing column, and a transmission chain is arranged on the outer side of the fixing column, a fixing block is fixed on the upper surface of the transmission chain, and the inner connection of the fixing block is There is a connecting block, a screw is connected above the frame, and an upper support plate is arranged below the screw, a connecting column is connected on the left side of the frame, and a driving gear is fixed on the right side of the connecting column, and the driving gear Installed inside the frame, one end of the driving gear is connected with a driven gear, and a support column is fixed at the center of the driven gear, the outer side of the support column is connected with a lower support plate, and the inside of the frame is provided There is a slider, and a cutter is connected to the right side of the slider, a spring rod is fixed on the right side of the cutter, and one end of the spring rod is fixed on the inner right surface of the rack, and the front outer surface of the rack is A second motor is fixed on the right side, a rotating roller is connected behind the second motor, and a limit roller is arranged on the right side of the rotating roller.

Preferably, the upper surface of the conveyor chain is provided with fixed blocks equidistantly, and the fixed blocks and the connection blocks constitute a disassembly and installation structure.

Preferably, the screw and the frame are threadedly connected, and the screw and the upper support plate constitute a rotating structure.

Preferably, the driving gear and the driven gear are in meshing connection, the support column fixed above the driven gear and the lower support plate are threadedly connected, and the lower support plate and the frame are in sliding connection.

Preferably, the sliding block and the frame are slidably connected, and two sliding blocks are symmetrically arranged with respect to the transverse center line of the upper surface of the frame.

Preferably, two spring bars are provided in mirror images with respect to the lateral centerline of the upper surface of the frame, and the spring bars and the cutter constitute a telescopic structure.

Compared with the prior art, the beneficial effects of the present utility model are: the weaving machine with a leveling function and convenient for automatic cloth cutting:

1. The position of the upper support plate of the device can be adjusted by the screw, the position of the lower support plate can be driven by rotating the connecting column to drive the driving gear to rotate, and the driving gear drives the driven gear to rotate, so that the support column rotates to change the lower support plate. The position of the upper support plate and the lower support plate has a certain pressure on the fabric. When there are wrinkles on the surface of the cloth, because the bottom end of the upper support plate and the top of the lower support plate are "T"-shaped structures, the wrinkles can be pressed toward the fabric. Both sides, and then make the folds disappear, while making the folds disappear, it will not cause damage to the fabric;

2. The first motor drives a fixed column to rotate. When the fixed column rotates, it will drive the outer pressure roller to rotate, and also drive the transmission chain to rotate, and the transmission chain will drive another fixed column and pressure roller to rotate. Rotate, so that the pressing roller transports the cloth on its surface, so that the cloth passes through the device evenly, and the pressing roller will squeeze the cloth once to make the inside of the cloth tighter;

3. When the conveyor chain rotates, it will drive the fixed block and the connecting block to rotate. When the connecting block rotates to the right, it will drive the slider to move, thereby pushing the cutter to move to the right to cut the fabric. When the slider is not supported, the device returns to its original position under the action of the spring rod. If the cutting length is different, the fixing block and the connecting block can be disassembled, and then reinstalled as required, thereby changing the cutting length.

Description of drawings

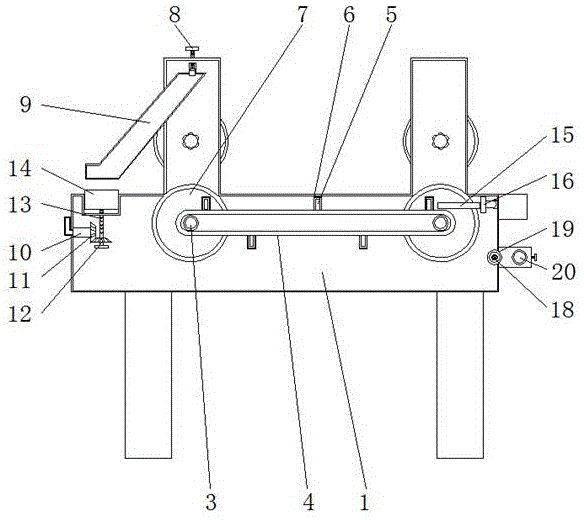

Fig. 1 is the overall frontal sectional structure schematic diagram of the utility model;

2 is a schematic view of the top-view installation structure of the frame and the first motor of the present invention;

3 is a schematic view of the top-view installation structure of the slider and the cutter of the present invention;

4 is a schematic diagram of the front-view installation structure of the frame and the first motor of the present invention;

FIG. 5 is a schematic view of the top-view installation structure of the screw rod and the upper support plate of the present invention.

In the figure: 1, frame; 2, first motor; 3, fixed column; 4, conveyor chain; 5, fixed block; 6, connecting block; 7, pressing roller; 8, screw rod; 9, upper support plate; 10 , connecting column; 11, driving gear; 12, driven gear; 13, support column; 14, lower support plate; 15, slider; 16, cutter; 17, spring rod; 18, second motor; 19, turn Roller; 20. Limit roller.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-5, the present utility model provides a technical solution: a textile machine with a leveling function and convenient for automatic cloth cutting, comprising a frame 1, a first motor 2, a fixed column 3, a transmission chain 4, a fixed Block 5, connecting block 6, pressing roller 7, screw 8, upper support plate 9, connecting column 10, driving gear 11, driven gear 12, support column 13, lower support plate 14, slider 15, cutter 16, spring The rod 17, the second motor 18, the rotating roller 19 and the limit roller 20, the first motor 2 is fixed on the front surface of the frame 1, and the rear of the first motor 2 is connected with a fixed column 3, and the outer center of the fixed column 3 is The pressure roller 7 is fixed, and the outer side of the fixed column 3 is provided with a conveyor chain 4, the upper surface of the conveyor chain 4 is fixed with a fixed block 5, and the interior of the fixed block 5 is connected with a connecting block 6, and the top of the frame 1 is connected with a screw rod 8, and the bottom of the screw 8 is provided with an upper support plate 9, the left side of the frame 1 is connected with a connecting column 10, and the right side of the connecting column 10 is fixed with a driving gear 11, and the driving gear 11 is installed inside the frame 1 One end of the driving gear 11 is connected with the driven gear 12, and the center of the driven gear 12 is fixed with a support column 13, the outer side of the support column 13 is connected with a lower support plate 14, and the inside of the frame 1 is provided with a slider 15, And the right side of the slider 15 is connected with a cutter 16, the right side of the cutter 16 is fixed with a spring rod 17, and one end of the spring rod 17 is fixed on the inner right surface of the rack 1, the front outer surface of the rack 1 is right A second motor 18 is fixed to the side, a rotating roller 19 is connected to the rear of the second motor 18 , and a limit roller 20 is provided on the right side of the rotating roller 19 .

The upper surface of the conveyor chain 4 is provided with fixed blocks 5 equidistantly, and the fixed block 5 and the connecting block 6 constitute a disassembly and installation structure. When it is necessary to cut fabrics of different lengths, the connecting block 6 can be removed and reinstalled as required. In the fixed block 5, the gap time when the cutter 16 is cutting is adjusted, and the length of the cut cloth is further adjusted.

The screw 8 and the frame 1 are threadedly connected, and the screw 8 and the upper support plate 9 form a rotating structure. When the screw 8 is rotated, because the screw 8 and the frame 1 are threadedly connected, the screw 8 will descend, while the screw 8 and the upper support plate 9 constitutes a rotating structure, so the lateral position of the upper support plate 9 will not change, and the upper support plate 9 will move up and down with the up and down movement of the screw 8, so as to adjust the position of the upper support plate 9, and the upper support plate 9 and the upper support plate 9 will move up and down. The lower support plates 14 are all of "T" type structure. When there are wrinkles on the surface of the cloth, the upper support plates 9 and the lower support plates 14 can press the wrinkles to both sides so as to disappear, and the wrinkles are eliminated while protecting the fabric.

The driving gear 11 and the driven gear 12 are in meshing connection, and the support column 13 fixed above the driven gear 12 and the lower support plate 14 are screwed, and the lower support plate 14 and the frame 1 are in sliding connection. When the driving gear 11 rotates When the support column 13 rotates, since the support column 13 and the lower support plate 14 are threadedly connected, it will drive the lower support plate 14 to move up and down, and then adjust the lower support plate 14. The position of the support plate 14 .

The sliders 15 and the frame 1 are slidingly connected, and two sliders 15 are arranged symmetrically with respect to the lateral centerline of the upper surface of the frame 1, and two spring bars 17 are arranged mirrored with respect to the lateral centerline of the upper surface of the frame 1, And the spring rod 17 and the cutter 16 form a telescopic structure. The connecting block 6 pushes the slider 15 to move to the right, and the slider 15 pushes the cutter 16 to move to the right. At this time, the spring rod 17 will be charged, and the cutter 16 will move to the right. When cutting the fabric on the right, when the sliding block 15 loses the supporting force of the connecting block 6, the cutting knife 16 and the sliding block 15 return to their original positions under the push of the spring rod 17.

Working principle: When using the textile machine with leveling function and convenient for automatic cloth cutting, first connect the frame 1 to the external power supply, turn the screw 8 to adjust the height of the upper support plate 9, and then turn the connecting column 10, and the connecting column 10 rotates When the driving gear 11 rotates, the driving gear 11 rotates to drive the driven gear 12 to rotate, and the driven gear 12 rotates to drive the support column 13 to rotate, thereby adjusting the height of the lower support plate 14, the bottom end of the upper support plate 9 and the lower The tops of the support plates 14 are all "T"-shaped structures, when the cloth passes through, the cloth can be stretched to prevent the cloth from wrinkling;

The first motor 2 drives the fixed column 3 to rotate. When the fixed column 3 rotates, it will drive the pressure roller 7 and the conveying chain 4 to rotate. The pressure roller 7 can drive the cloth on the surface of the pressure roller 7 to move, and the conveying chain 4 can drive the other end. The fixed column 3 is rotated;

When the conveyor chain 4 rotates, the fixed block 5 and the connecting block 6 above the conveyor chain 4 will rotate with the rotation of the conveyor chain 4. When the connecting block 6 rotates to the right, the slider 15 can be pushed to move to the right, and the sliding block 6 will move to the right. The block 15 pushes the cutter 16 to move to the right to cut the fabric. When cutting, one end of the fabric is fixed between the rotating roller 19 and the limit roller 20, so as to straighten the fabric and cut the fabric. After that, the second motor 18 drives the roller 19 to rotate, thereby driving the cloth to move downward. After the cutting is completed, the connecting block 6 no longer supports the slider 15. Under the action of the spring rod 17, the device returns to its original position, increasing the overall practicability.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.
