CN211864793U

CN211864793U - Auxiliary device for medical care

Info

Publication number: CN211864793U
Application number: CN202020446487.7U
Authority: CN
Inventors: 孙娜
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-03-31
Filing date: 2020-03-31
Publication date: 2020-11-06
Anticipated expiration: 2030-03-31

Abstract

The utility model relates to the technical field of medical equipment, and an auxiliary device for medical care is disclosed, including the under casing, the lower surface mounting of under casing has the universal wheel of a plurality of quantities, the last fixed surface of under casing is connected with the mixing box, the interior lower surface mounting of under casing has the motor, the output of motor passes through shaft coupling fixedly connected with pivot, the other end of pivot runs through the lower surface of under casing upper surface and mixing box in proper order, the pivot is located the puddler of a plurality of quantities of lateral surface fixedly connected with of mixing box one end, the spoiler of a plurality of quantities of medial surface fixedly connected with of mixing box, the interior lower surface mounting of under casing has the water pump, the import of water pump is through the lower fixed surface intercommunication of liquid suction pipe and mixing box. This auxiliary device for medical care, the accurate configuration of medical personnel to the antiseptic solution of being convenient for, and make the antiseptic solution can mix more even, also very big promotion the mixing rate of antiseptic solution to disinfection's speed has been promoted.

Description

Auxiliary device for medical care

Technical Field

The utility model relates to the technical field of medical equipment, specifically be an auxiliary device for medical care.

Background

At present, in the medical care process, often need auxiliary device for medical care to disinfect to improve the medical care environment better, effectual control hospital infects, guarantees that personnel's is healthy, current auxiliary device for medical care when using, the medical personnel of being not convenient for mix the configuration of disinfectant, thereby not only the medical personnel's of being not convenient for use, also influence the speed of disinfection.

Therefore, an auxiliary device for medical care is designed.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art, the utility model provides an auxiliary device for medical care has solved current auxiliary device for medical care and has mixed the configuration of disinfectant not convenient to medical personnel when using to not only be not convenient for medical personnel's use also influences the problem of disinfection processing speed.

In order to achieve the above purpose, the utility model adopts the technical scheme that:

an auxiliary device for medical care comprises a bottom box, wherein a plurality of universal wheels are arranged on the lower surface of the bottom box, a mixing box is fixedly connected to the upper surface of the bottom box, a motor is arranged on the inner lower surface of the bottom box, the output end of the motor is fixedly connected with a rotating shaft through a coupler, the other end of the rotating shaft sequentially penetrates through the upper surface of the bottom box and the lower surface of the mixing box, a plurality of stirring rods are fixedly connected to the outer side surface of one end of the rotating shaft, a plurality of spoilers are fixedly connected to the inner side surface of the mixing box, a water pump is arranged on the inner lower surface of the bottom box, the inlet of the water pump is fixedly communicated with the lower surface of the mixing box through a liquid pumping pipe, a liquid conveying pipe is fixedly communicated with the outlet of the water pump, a flow dividing pipe is arranged on one side surface of the, the other end of transfer line runs through the side of under casing and with the fixed intercommunication in side of shunt tubes, the fixed intercommunication in side of shunt tubes has the shower nozzle pipe of a plurality of quantity, atomizer is installed to the other end of shower nozzle pipe, the interior lower surface mounting of under casing has the battery, the last fixed surface of mixing box is connected with the collecting box, be provided with two parallel arrangement's allotment case in the collecting box, the lower surface of allotment case is connected with the interior lower fixed surface of collecting box through the connecting rod that two symmetries set up, the last fixed surface intercommunication of liquid pipe and mixing box is passed through to the lower surface of allotment case, install assorted control valve on the liquid pipe, the side-mounting of allotment case has the observation window, the.

Furthermore, a U-shaped push rod is fixedly connected to one side surface of the bottom box.

Furthermore, the upper end of the blending box is fixedly connected with a feed hopper matched with the blending box.

Furthermore, the front end face of the collecting box is fixedly communicated with a first liquid discharge pipe, the other end of the first liquid discharge pipe is in threaded connection with a first sealing cover, the side face of the mixing box is fixedly communicated with a second liquid discharge pipe, and the other end of the second liquid discharge pipe is in threaded connection with a second sealing cover.

Furthermore, a rotating door is installed on the front end face of the bottom box.

Furthermore, two ends of the shunt pipe are sealed through plugs.

Furthermore, an ultraviolet germicidal lamp is further mounted on the lower surface of the bottom box.

The utility model has the advantages that:

1. the utility model discloses a when using, according to the ratio needs of antiseptic solution, respectively will treat the antiseptic solution of configuration and pour into two allotment casees respectively in, through setting up the scale mark on observation window and the observation window of allotment case side, the capacity of antiseptic solution in the allotment case is poured into in control, the allotment finishes the back, open the control valve, make two different antiseptic solutions in the allotment case let in the mixing box, again according to the ratio needs, add appropriate amount water to the mixing box through two allotment casees, thereby be convenient for medical personnel to the accurate configuration of antiseptic solution.

2. The utility model discloses a after the allotment is accomplished, starter motor, the rotation of motor drive the rotation of pivot, and the rotation of pivot drives the puddler and stirs the antiseptic solution in the mixing box, stirs the in-process, carries out the vortex through the spoiler, makes more even that the antiseptic solution can mix, also very big promotion the mixing rate of antiseptic solution to the speed of disinfection processing has been promoted.

Drawings

Fig. 1 is a schematic structural view of the present invention;

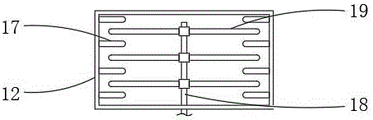

FIG. 2 is a cross-sectional structural view of the mixing box;

fig. 3 is a sectional view of the bottom case.

In the figure: 1. a universal wheel; 2. a bottom box; 3. a shunt tube; 4. a U-shaped push rod; 5. a collection box; 6. a feed hopper; 7. a nozzle tube; 8. fixing a sleeve; 9. an atomizing spray head; 10. a transfusion tube; 11. connecting blocks; 12. a mixing box; 13. a liquid pipe is communicated; 14. a control valve; 15. a blending box; 16. an observation window; 17. a spoiler; 18. a rotating shaft; 19. a stirring rod; 20. an electric motor; 21. a liquid pumping pipe; 22. a water pump; 23. a storage battery; 24. an ultraviolet germicidal lamp.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

Referring to FIGS. 1-3: an auxiliary device for medical care comprises a bottom case 2, a plurality of universal wheels 1 are arranged on the lower surface of the bottom case 2, a mixing box 12 is fixedly connected on the upper surface of the bottom case 2, a motor 20 is arranged on the inner lower surface of the bottom case 2, the output end of the motor 20 is fixedly connected with a rotating shaft 18 through a coupler, the other end of the rotating shaft 18 sequentially penetrates through the upper surface of the bottom case 2 and the lower surface of the mixing box 12, a plurality of stirring rods 19 are fixedly connected on the outer side surface of the rotating shaft 18 at one end of the mixing box 12, a plurality of spoilers 17 are fixedly connected on the inner side surface of the mixing box 12, a water pump 22 is arranged on the inner lower surface of the bottom case 2, the inlet of the water pump 22 is fixedly communicated with the lower surface of the mixing box 12 through a liquid pumping pipe 21, a liquid conveying pipe 10 is fixedly communicated with the outlet of the water pump 22, the side surface of the fixed sleeve 8 is fixedly connected with the side surface of the bottom box 2 through a connecting block 11, the other end of the infusion tube 10 penetrates through the side surface of the bottom box 2 and is fixedly communicated with the side surface of the shunt tube 3, the side surface of the shunt tube 3 is fixedly communicated with a plurality of nozzle tubes 7, the other end of each nozzle tube 7 is provided with an atomizing nozzle 9, the inner lower surface of the bottom box 2 is provided with a storage battery 23 (power supply interfaces of a motor 20 and a water pump 22 are electrically connected with the storage battery 23 through switches to realize the control of the motor 20 and the water pump 22), the upper surface of the mixing box 12 is fixedly connected with a collecting box 5, two allocating boxes 15 which are arranged in parallel are arranged in the collecting box 5, the lower surface of the allocating box 15 is fixedly connected with the inner lower surface of the collecting box 5 through two connecting rods which are symmetrically arranged, the lower surface of the allocating box 15 is, an observation window 16 is arranged on the side surface of the blending box 15, and the outer surface of the observation window 16 is provided with scale marks.

A side fixedly connected with U-shaped push rod 4 of under casing 2, through the U-shaped push rod 4 that sets up, the medical personnel of being convenient for promote whole device, and it is more convenient when making medical personnel remove whole device through universal wheel 1.

The upper end fixedly connected with assorted feeder hopper 6 of allotment case 15, through the feeder hopper 6 that sets up, be convenient for pour the antiseptic solution into allotment case 15.

The front end face of the collecting box 5 is fixedly communicated with a first liquid discharge pipe, the other end of the first liquid discharge pipe is in threaded connection with a first sealing cover, the side face of the mixing box 12 is fixedly communicated with a second liquid discharge pipe, the other end of the second liquid discharge pipe is in threaded connection with a second sealing cover, the first liquid discharge pipe is convenient for discharging collected disinfectant in the collecting box 5, and the second liquid discharge pipe is convenient for discharging waste liquid for cleaning the mixing box 12.

The front end face of the bottom box 2 is provided with a rotating door, and the electric appliance elements in the bottom box 2 can be conveniently overhauled through the rotating door.

Both ends of the shunt tube 3 are sealed by plugs, so that the configured disinfectant is prevented from being discharged from both ends of the shunt tube 3.

The lower surface of the bottom box 2 is also provided with an ultraviolet germicidal lamp 24, and the ground is irradiated and sterilized through the ultraviolet germicidal lamp 24, so that the effect of disinfection treatment is improved.

To sum up, the utility model discloses when using, according to the ratio needs of antiseptic solution, respectively pour into two allotment casees 5 with the antiseptic solution of waiting to dispose respectively (through the collecting box 5 that sets up, can collect and pour into the antiseptic solution that spills in-process into), through setting up observation window 16 and the scale mark on the observation window 16 of allotment case 5 side, control pours into the capacity of antiseptic solution in allotment case 5 into, after the allotment finishes, open control valve 14, make two different antiseptic solutions in allotment case 5 let in mixing box 12, according to the ratio needs again, add right amount of water in mixing box 12 through two allotment casees 5, thereby be convenient for medical personnel to the accurate configuration of antiseptic solution; after the blending is finished, the motor 20 is started, the rotation of the motor 20 drives the rotation of the rotating shaft 18, the rotation of the rotating shaft 18 drives the stirring rod 19 to stir the disinfectant in the mixing box 12, and in the stirring process, the turbulent flow is carried out through the turbulent flow plate 17, so that the disinfectant can be mixed more uniformly, the mixing speed of the disinfectant is also greatly improved, and the speed of disinfection treatment is further improved; after mixing, the motor 20 is turned off, the water pump 22 is started, the water pump 22 pumps the disinfectant into the shunt tube 3 through the liquid pumping tube 21 and the liquid conveying tube 10, and the disinfectant which is configured is sprayed out through the plurality of atomizing nozzles 9 to disinfect the ground.

The utility model discloses circuit and control that relate to are prior art, do not carry out too much repetition here.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", "front", "rear", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims

1. An auxiliary device for medical care, comprising a bottom case (2), characterized in that: the lower surface mounting of bottom case (2) has universal wheel (1) of a plurality of quantity, the last fixed surface of bottom case (2) is connected with mixing box (12), the interior lower surface mounting of bottom case (2) has motor (20), the output of motor (20) passes through shaft coupling fixedly connected with pivot (18), the other end of pivot (18) runs through bottom case (2) upper surface and the lower surface of mixing box (12) in proper order, the lateral surface fixedly connected with puddler (19) of a plurality of quantity that pivot (18) are located mixing box (12) one end, the medial surface fixedly connected with spoiler (17) of a plurality of quantity of mixing box (12), the interior lower surface mounting of bottom case (2) has water pump (22), the import of water pump (22) passes through the fixed intercommunication of lower fixed surface of liquid suction pipe (21) and mixing box (12), the export fixed intercommunication of water pump (22) has transfer line (10), a shunt tube (3) is arranged on one side surface of the bottom box (2), two symmetrically arranged fixed sleeves (8) are sleeved on the outer side surface of the shunt tube (3), the side surface of each fixed sleeve (8) is fixedly connected with the side surface of the bottom box (2) through a connecting block (11), the other end of the infusion tube (10) penetrates through the side surface of the bottom box (2) and is fixedly communicated with the side surface of the shunt tube (3), a plurality of spray head pipes (7) are fixedly communicated with the side surface of the shunt tube (3), an atomizing spray head (9) is arranged at the other end of each spray head pipe (7), a storage battery (23) is arranged on the inner lower surface of the bottom box (2), a collecting box (5) is fixedly connected with the upper surface of the mixing box (12), two parallel arrangement allocation boxes (15) are arranged in the collecting box (5), the lower surface of each allocation box (15) is fixedly, the lower surface of the blending box (15) is fixedly communicated with the upper surface of the mixing box (12) through a liquid passing pipe (13), a matched control valve (14) is installed on the liquid passing pipe (13), an observation window (16) is installed on the side surface of the blending box (15), and scale marks are arranged on the outer surface of the observation window (16).

2. The medical care assist device according to claim 1, characterized in that: one side surface of the bottom box (2) is fixedly connected with a U-shaped push rod (4).

3. The medical care assist device according to claim 1, characterized in that: the upper end of the blending box (15) is fixedly connected with a feed hopper (6) matched with the upper end of the blending box.

4. The medical care assist device according to claim 1, characterized in that: the front end face of the collecting box (5) is fixedly communicated with a first liquid discharge pipe, the other end of the first liquid discharge pipe is in threaded connection with a first sealing cover, the side face of the mixing box (12) is fixedly communicated with a second liquid discharge pipe, and the other end of the second liquid discharge pipe is in threaded connection with a second sealing cover.

5. The medical care assist device according to claim 1, characterized in that: the front end face of the bottom box (2) is provided with a rotating door.

6. The medical care assist device according to claim 1, characterized in that: and two ends of the shunt pipe (3) are sealed by plugs.

7. The medical care assist device according to claim 1, characterized in that: and an ultraviolet germicidal lamp (24) is also arranged on the lower surface of the bottom box (2).
