Abstract

The utility model belongs to the technical field of nursing appliances, in particular to an abdominal belt for general surgery nursing, comprising a soft layer, the outer surface of the heating layer is provided with ventilation holes, the inner side of the soft layer is provided with a sliding groove, the One end of the sliding groove is provided with an elastic band, the front end surface of the sliding groove is provided with a spacer, one side of the spacer is provided with a connecting rod, one end of the connecting rod is provided with a sliding wheel, and the outer side of the spacer is provided with a sliding wheel. Both the surface and the outer surface of the sliding groove are provided with sponge pads. In the utility model, an isolation body, a sliding wheel and a sliding groove are arranged, and the sliding wheel drives the isolation body to move to the top of the patient's wound through the sliding groove, so as to isolate the patient's wound from the inner side of the abdominal girdle, and prevent the inner side of the abdominal girdle from squeezing the patient's wound. The pressure causes secondary damage. By setting the ventilation holes, the ventilation holes can connect the air in the abdominal belt with the outside world, so that the abdominal belt can maintain the permeability, so that the patient can use the abdominal belt well.

Description

A kind of abdominal girdle for general surgery nursing

technical field

The utility model relates to the technical field of nursing appliances, in particular to an abdominal belt for general surgery nursing.

Background technique

General surgery is general surgery. It is a clinical discipline that mainly uses surgery to treat tumors and other diseases such as trauma. It is the largest specialty in the surgical system. Especially after surgery, patients will experience short-term discomfort, wound pain, and inconvenience in movement. Therefore, post-operative care is crucial to the recovery of patients.

The following problems exist:

1. When the patient uses the traditional abdominal belt, the abdominal belt has no protective function, and the inner side of the abdominal belt will squeeze the patient's wound and cause secondary damage to the patient.

2. The traditional abdominal belt has no air permeability, and wearing it for a long time will cause damage to the patient's skin, which is not conducive to the use of the patient.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides an abdominal belt for general surgery nursing, which solves the problems that the abdominal belt has no protective function and no air permeability.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a belly belt for general surgery nursing, comprising a soft layer, the outer surface of the soft layer is provided with a heating layer, and the outer surface of the heating layer is provided with ventilation holes, The front end surface of the heating layer is provided with a zipper, the front end surface of the zipper is provided with a slider, the upper end surface of the heating layer is provided with a battery box, the upper end surface of the battery box is provided with a button switch, and the heating layer is provided with a button switch. The rear end surface of the sliding groove is provided with a sticking part, the inner surface of the soft layer is provided with a sliding groove, one end of the sliding groove is provided with an elastic band, the front end surface of the sliding groove is provided with an isolator, and one side of the isolator is provided A connecting rod is provided, one end of the connecting rod is provided with a sliding wheel, and a sponge pad is provided on the outer surface of the isolator and the outer surface of the sliding groove.

As a preferred technical solution of the present invention, the heating layer is fixedly connected to the outer surface of the soft layer, and the ventilation holes are fixedly connected to the outer surface of the heating layer.

As a preferred technical solution of the present invention, the zipper is fixedly connected to the front end surface of the heating layer, and the slider is movably connected to the front end surface of the zipper.

As a preferred technical solution of the present invention, the battery box is fixedly connected to the upper end surface of the heating layer, and the push button switch is movably connected to the upper end surface of the battery box.

As a preferred technical solution of the present invention, the sticking portion is fixedly connected to the rear end surface of the heating layer, and the sliding groove is fixedly connected to the inner surface of the soft layer.

As a preferred technical solution of the present invention, the elastic band is fixedly connected to one end of the sliding groove, and the spacer is movably connected to the front end surface of the sliding groove.

As a preferred technical solution of the present invention, the connecting rod is fixedly connected to one side of the isolator, and the sliding wheel is fixedly connected to one end of the connecting rod.

As a preferred technical solution of the present invention, the sponge pads are respectively fixedly connected to the outer surface of the insulator and the outer surface of the sliding groove, and the number of the sliding wheels is four groups.

Compared with the prior art, the utility model provides a belly belt for general surgery nursing, which has the following beneficial effects:

1. The abdominal girdle for general surgery nursing is provided with an isolator, a sliding wheel and a sliding groove. The sliding wheel drives the isolator to move to the top of the patient's wound through the sliding groove, and isolates the patient's wound from the inside of the abdominal girdle to prevent the abdominal girdle. The inner side squeezes the patient's wound and causes secondary damage.

2. The abdominal girdle for general surgery nursing is provided with ventilation holes, which can connect the air in the abdominal girdle with the outside, so that the abdominal girdle can maintain the permeability, and the patient can use the abdominal girdle well.

Description of drawings

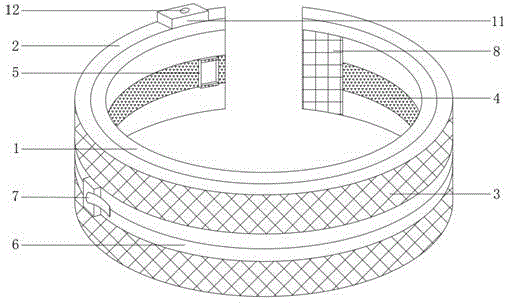

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the back of the utility model;

FIG. 3 is a schematic structural diagram of the isolator of the present invention.

In the figure: 1. Soft layer; 2. Heating layer; 3. Ventilation hole; 4. Sliding groove; 5. Separator; 6. Zipper; 7. Puller; 8. Elastic band; 9. Paste part; 10. Sponge Pad; 11, battery box; 12, button switch; 13, sliding wheel; 14, connecting rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example

Please refer to FIGS. 1-3, the present utility model provides the following technical solutions: an abdominal belt for general surgical nursing, comprising a soft layer 1, the outer surface of the soft layer 1 is provided with a heating layer 2, and the outer surface of the heating layer 2 is provided with a ventilation Hole 3, the front end surface of the heating layer 2 is provided with a zipper 6, the front end surface of the zipper 6 is provided with a slider 7, the upper end surface of the heating layer 2 is provided with a battery box 11, and the upper end surface of the battery box 11 is provided with a button switch 12. The rear end surface of the layer 2 is provided with a sticking part 9, the inner surface of the soft layer 1 is provided with a sliding groove 4, one end of the sliding groove 4 is provided with an elastic band 8, and the front end surface of the sliding groove 4 is provided with an insulator 5, One side is provided with a connecting rod 14 , one end of the connecting rod 14 is provided with a sliding wheel 13 , and a sponge pad 10 is provided on the outer surface of the isolator 5 and the outer surface of the sliding groove 4 .

In this embodiment, the soft layer 1 increases the comfort of the patient using the abdominal belt, the sponge pad 10 prevents the sliding groove 4 from causing injury to the patient's body, and the connecting rod 14 connects the sliding wheel 13 with the isolator 5 .

Specifically, the heating layer 2 is fixedly connected to the outer surface of the soft layer 1 , and the ventilation holes 3 are fixedly connected to the outer surface of the heating layer 2 .

In this embodiment, the heating layer 2 heats the air entering the abdominal belt, and ventilates the air in the abdominal belt through the ventilation holes 3 .

Specifically, the zipper 6 is fixedly connected to the front end surface of the heating layer 2 , and the slider 7 is movably connected to the front end surface of the zipper 6 .

In this embodiment, the zipper 6 connects the upper end and the lower end of the heating layer 2 , and the slider 7 controls the closing and opening of the zipper 6 .

Specifically, the battery box 11 is fixedly connected to the upper end surface of the heating layer 2 , and the push button switch 12 is movably connected to the upper end surface of the battery box 11 .

In this embodiment, the battery box 11 is used for placing batteries, and the button switch 12 controls the operation of the heating layer 2 .

Specifically, the sticking portion 9 is fixedly connected to the rear end surface of the heating layer 2 , and the sliding groove 4 is fixedly connected to the inner surface of the soft layer 1 .

In this embodiment, the sticking portion 9 fixes the position of the elastic band 8 , and the sliding wheel 13 moves through the sliding groove 4 .

Specifically, the elastic band 8 is fixedly connected to one end of the sliding groove 4 , and the isolator 5 is movably connected to the front end surface of the sliding groove 4 .

In this embodiment, the size of the soft layer 1 is controlled by the elastic band 8, and the spacer 5 separates the wound of the patient from the inner side of the abdominal girdle.

Specifically, the connecting rod 14 is fixedly connected to one side of the isolator 5 , and the sliding wheel 13 is fixedly connected to one end of the connecting rod 14 .

In this embodiment, the connecting rod 14 is used to determine the position of the sliding wheel 13 , and the sliding wheel 13 drives the isolator 5 to move above the wound of the patient.

Specifically, the sponge pad 10 is fixedly connected to the outer surface of the insulator 5 and the outer surface of the sliding groove 4 respectively, and the number of the sliding wheels 13 is four groups.

In this embodiment, the sponge pad 10 prevents the insulator 5 from being squeezed to cause damage to the human body, and the sliding wheel 13 can quickly move the insulator 5 to a desired position.

In this embodiment, the battery box 11 , the button switch 12 and the heating layer 2 are known technologies that have been disclosed and widely used in daily life. The model of the battery box 11 is BC8AA, the model of the button switch 12 is XB6ETI522P, and the model of the heating layer 2 is For KANTHAL-D-WIRE.

The working principle and use process of the utility model: take the abdominal belt to the waist of the patient, move the isolation body 5 to the top of the patient's wound by moving the sliding wheel 13, hold the isolation body 5 with one hand, and pull the elastic body with the other hand Belt 8, make the soft layer 1 completely fit on the human body, fix the elastic belt 8 on the sticking part 9, the air in the abdominal belt is exchanged with the outside air through the ventilation hole 3, press the button switch 12 to start the heating layer 2 pair The air entering the abdominal girdle is heated so that the patient can use the girdle better.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (8)

1. The utility model provides a department of general surgery nursing is with binder, includes soft layer (1), its characterized in that: the surface of soft layer (1) is provided with zone of heating (2), the surface of zone of heating (2) is provided with bleeder vent (3), the preceding terminal surface of zone of heating (2) is provided with zip fastener (6), the preceding terminal surface of zip fastener (6) is provided with pull head (7), the up end of zone of heating (2) is provided with battery case (11), the up end of battery case (11) is provided with button switch (12), the rear end face of zone of heating (2) is provided with pastes portion (9), the medial surface of soft layer (1) is provided with sliding tray (4), the one end of sliding tray (4) is provided with elastic webbing (8), the preceding terminal surface of sliding tray (4) is provided with isolator (5), one side of isolator (5) is provided with connecting rod (14), the one end of connecting rod (14) is provided with pulley (13), and sponge cushions (10) are arranged on the outer surfaces of the isolating bodies (5) and the sliding grooves (4).

2. The abdominal belt for general surgical nursing according to claim 1, wherein: zone of heating (2) fixed connection is in the surface of soft layer (1), bleeder vent (3) fixed connection is in the surface of zone of heating (2).

3. The abdominal belt for general surgical nursing according to claim 1, wherein: the zipper (6) is fixedly connected to the front end face of the heating layer (2), and the pull head (7) is movably connected to the front end face of the zipper (6).

4. The abdominal belt for general surgical nursing according to claim 1, wherein: battery case (11) fixed connection is in the up end of zone of heating (2), button switch (12) swing joint is in the up end of battery case (11).

5. The abdominal belt for general surgical nursing according to claim 1, wherein: paste portion (9) fixed connection in the rear end face of zone of heating (2), sliding tray (4) fixed connection is in the medial surface of soft layer (1).

6. The abdominal belt for general surgical nursing according to claim 1, wherein: the elastic belt (8) is fixedly connected to one end of the sliding groove (4), and the isolating body (5) is movably connected to the front end face of the sliding groove (4).

7. The abdominal belt for general surgical nursing according to claim 1, wherein: the connecting rod (14) is fixedly connected to one side of the isolating body (5), and the sliding wheel (13) is fixedly connected to one end of the connecting rod (14).

8. The abdominal belt for general surgical nursing according to claim 1, wherein: the sponge cushions (10) are respectively fixedly connected to the outer surface of the isolating body (5) and the outer surface of the sliding groove (4), and the number of the sliding wheels (13) is four.
