Abstract

The utility model relates to the technical field of control cabinet cabinets, in particular to a high-speed inlet weighing stainless steel control cabinet, which comprises a cabinet main body, a top plate, a base and a fixed bottom plate, wherein the top of the fixed bottom plate is fixedly provided with the base, the top of the base is fixedly provided with a fixed groove, the top inside the fixed groove is fixedly provided with the cabinet main body, the front of the cabinet main body is fixedly provided with a cabinet door, the inner side of the cabinet door is fixedly provided with a radiator, the radiator comprises a fan blade, a fan main body and an electromagnetic shaft, the inner part of the fan main body is fixedly provided with the electromagnetic shaft, the outer side of the electromagnetic shaft is fixedly provided with the fan blade, the upper part of the cabinet door is fixedly provided with a display screen, when the equipment is used, the base is fixedly arranged at the bottom of the, and the waterproof layer is used for sealing the gap, so that the waterproof property of the bottom is enhanced and the device is safer when in use.

Description

High-speed entry weighing stainless steel control cabinet case
Technical Field
The utility model relates to a switch board machine case technical field specifically is a heavy stainless steel switch board machine case of high-speed entry meter.
Background
The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the requirements of electrical wiring, the arrangement of the control cabinet meets the requirements of normal operation of an electric power system, the maintenance is convenient, the safety of people and surrounding equipment is not endangered, a circuit can be switched on or switched off by a manual or automatic switch in normal operation, the circuit is switched off or an alarm is given by the protective electrical appliances in fault or abnormal operation, various parameters in operation can be displayed by the measuring instruments, certain electrical parameters can be adjusted, and the deviation from the normal working state is prompted or a signal is sent. It is commonly used in various power generation, distribution and transformation substations.
The existing control cabinet has a plurality of types, but most of the existing control cabinets are only the changes on the styles, the control cabinet itself is not improved in a plurality of functions, when the control cabinet is used, because the high-speed inlet weighing control cabinet case is under the open air, the water resistance of the bottom is important, the bottom of the existing control cabinet case is not protected, most of the heat inside the existing control cabinet case is naturally radiated when the existing control cabinet case is used, the effective active radiating function is not provided, the internal elements are easily damaged, and therefore the current situation is changed by needing the high-speed inlet weighing stainless steel control cabinet case.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a heavy stainless steel switch board machine case of high-speed entry meter to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a high-speed inlet weighing stainless steel control cabinet case comprises a case main body, a top plate, a base and a fixed bottom plate, wherein the base is fixedly installed at the top of the fixed bottom plate, a fixed groove is fixedly formed in the top of the base, the case main body is fixedly installed at the top end inside the fixed groove, a cabinet door is fixedly installed on the front face of the case main body, a radiator is fixedly installed on the inner side of the cabinet door and comprises fan blades, a fan main body and an electromagnetic shaft, the electromagnetic shaft is fixedly installed inside the fan main body, the fan blades are fixedly installed on the outer side of the electromagnetic shaft, a display screen is fixedly installed above the cabinet door, the top plate is fixedly installed at the top of the case main body, a fixed frame is installed at the bottom of the top plate, a solar panel is fixedly installed at the top of, the novel multifunctional cabinet is characterized in that elements are fixedly mounted on the fixing rods, a fixing plate is fixedly mounted at the top end inside the cabinet body, a controller is fixedly mounted at the top of the fixing plate, an illuminating lamp is fixedly mounted at the bottom of the fixing plate, and filter screens are fixedly mounted on two sides inside the cabinet body.
Preferably, the storage battery is electrically connected with the power-requiring equipment inside the equipment through a lead.
Preferably, air inlets are fixedly formed in two sides of the case main body.
Preferably, the front face of the cabinet door is fixedly provided with a heat dissipation opening at a position corresponding to the heat radiator.
Preferably, the solar panel is electrically connected with the storage battery through a wire.
Preferably, waterproof layers are arranged inside the base and at the bottom of the case body.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses in, through base and the fixed slot that sets up, when equipment uses, through there being the base at case main part bottom fixed mounting, and through the fixed parcel bottom of fixed slot, and use the waterproof layer to fill and seal gap department for when equipment uses, strengthen the waterproof nature of bottom, it is safer.
2. The utility model discloses in, through the radiator and the filter screen that set up, when the equipment uses, take a breath to inside air current through the radiator, reach the initiative heat dissipation purpose, and have the filter screen through fixed mounting in both sides air inlet department, filter the gas that gets into through the filter screen, avoid entering equipment such as dust particulate matter for when the equipment uses, can be better dispel the heat, the protective apparatus internal component.
3. The utility model discloses in, through the solar panel and the battery that set up, when the equipment uses, turn into the electric energy storage with light energy through solar panel inside the battery, supply power for the inside electrical equipment that needs of equipment through the battery for during the equipment uses, can be more energy-concerving and environment-protective.
Drawings

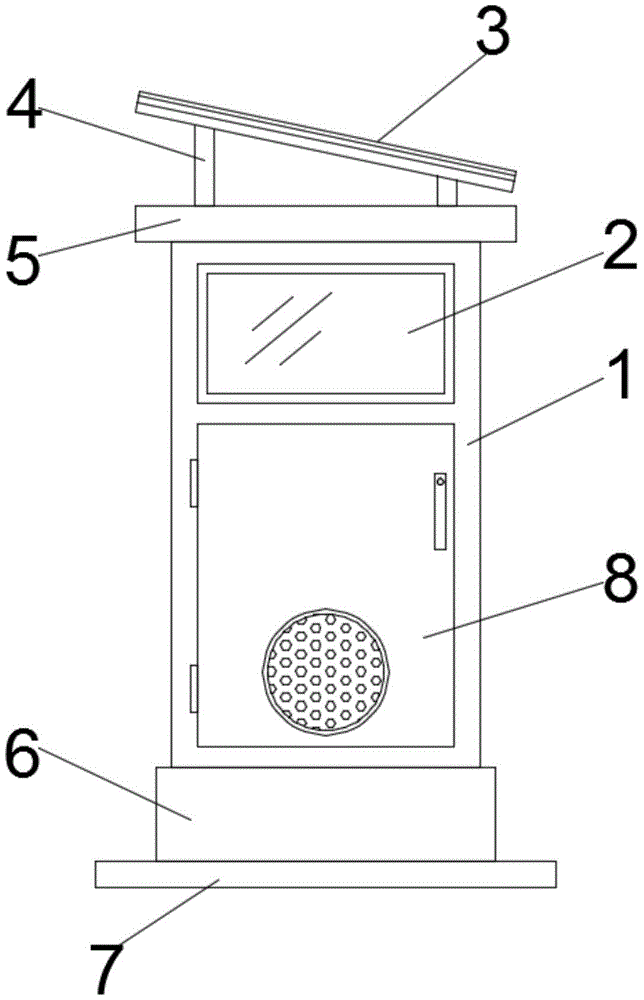

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is an internal structure view of the present invention;
FIG. 3 is a view showing the structure of the heat sink of the present invention;
in the figure: 1-case main body, 2-display screen, 3-solar panel, 4-fixing frame, 5-top plate, 6-base, 7-fixing bottom plate, 8-cabinet door, 9-lighting lamp, 10-filter screen, 11-radiator, 12-fixing groove, 13-storage battery, 14-fixing rod, 15-element, 16-fixing plate, 17-controller, 18-fan blade, 19-fan main body and 20-electromagnetic shaft
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the protection scope of the present invention based on the embodiments of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution:
a high-speed entry weighing stainless steel control cabinet case comprises a case main body 1, a top plate 5, a base 6 and a fixed bottom plate 7, wherein the base 6 is fixedly installed at the top of the fixed bottom plate 7, a waterproof layer is arranged inside the base 6 and at the bottom of the case main body 1, through the arranged base 6 and a fixed groove 12, when the equipment is used, the base 6 is fixedly installed at the bottom of the case main body 1, the bottom is fixedly wrapped through the fixed groove 12, and the gap is sealed by the waterproof layer, so that when the equipment is used, the waterproof property of the bottom is enhanced, the equipment is safer, the fixed groove 12 is fixedly arranged at the top of the base 6, the organic case main body 1 is fixedly installed at the top inside the fixed groove 12, a cabinet door 8 is fixedly installed at the front of the case main body 1, a heat dissipation opening is fixedly arranged at the front of the cabinet door 8 corresponding to, when the equipment is used, the internal air flow is ventilated through the radiator 11 to achieve the purpose of active heat dissipation, the filter screens 10 are fixedly arranged at the air inlets at the two sides, the entered gas is filtered through the filter screens 10 to prevent dust particles from entering the equipment, so that the equipment can better dissipate heat when in use, internal elements of the equipment are protected, the radiator 11 comprises fan blades 18, a fan main body 19 and an electromagnetic shaft 20, the electromagnetic shaft 20 is fixedly arranged in the fan main body 19, the fan blades 18 are fixedly arranged outside the electromagnetic shaft 20, the display screen 2 is fixedly arranged above the cabinet door 8, the top plate 5 is fixedly arranged at the top of the case main body 1, the fixing frame 4 is fixedly arranged at the bottom of the top plate 5, the solar panel 3 is fixedly arranged at the top of the fixing frame 4, the solar panel 3 is electrically connected with the storage battery 13 through a lead, and, when the equipment is used, the light energy is converted into the electric energy through the solar panel 3 and stored in the storage battery 13, the power is supplied to the equipment requiring electricity through the storage battery 13, the equipment is used, energy conservation and environmental protection can be realized, the storage battery 13 is fixedly arranged in the case body 1, the storage battery 13 is electrically connected with the equipment requiring electricity through a wire, a fixing rod 14 is fixedly arranged above the storage battery 13, an element 15 is fixedly arranged on the fixing rod 14, a fixing plate 16 is fixedly arranged at the top end in the case body 1, a controller 17 is fixedly arranged at the top of the fixing plate 16, an illuminating lamp 9 is fixedly arranged at the bottom of the fixing plate 16, filter screens 10 are fixedly arranged on two sides in the case body 1, air inlets are fixedly formed in two.
The utility model discloses work flow: when the device is used, the base 6 is fixedly arranged at the bottom of the machine box main body 1, the bottom is fixedly wrapped by the fixing groove 12, the gap is sealed by the waterproof layer, the waterproof property of the bottom is enhanced and the device is safer when the device is used, the internal airflow is ventilated by the radiator 11 through the arranged radiator 11 and the arranged filter screen 10, the purpose of active heat dissipation is achieved, the filter screen 10 is fixedly arranged at the air inlets at two sides, the entering gas is filtered by the filter screen 10, dust particles and the like are prevented from entering the device, when the device is used, the heat can be better dissipated, the internal elements of the device are protected, when the device is used, the solar panel 3 and the storage battery 13 are arranged, when the device is used, the light energy is converted into electric energy through the solar panel 3 and stored in the storage battery 13, the storage battery 13 supplies power to the equipment with power needed inside the equipment, so that the equipment is more energy-saving and environment-friendly when in use, and has certain popularization value.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides a heavy stainless steel switch board machine case of high-speed entry meter, includes quick-witted case main part (1), roof (5), base (6) and PMKD (7), its characterized in that: the top of the fixed base plate (7) is fixedly provided with a base (6), the top of the base (6) is fixedly provided with a fixed groove (12), the top end inside the fixed groove (12) is fixedly provided with a case main body (1), the front of the case main body (1) is fixedly provided with a cabinet door (8), the inner side of the cabinet door (8) is fixedly provided with a radiator (11), the radiator (11) comprises fan blades (18), a fan main body (19) and electromagnetic shafts (20), the inner part of the fan main body (19) is fixedly provided with the electromagnetic shafts (20), the outer side of the electromagnetic shafts (20) is fixedly provided with the fan blades (18), a display screen (2) is fixedly arranged above the cabinet door (8), the top of the case main body (1) is fixedly provided with a top plate (5), the bottom of the top plate (5) is fixedly provided with a fixed frame (4), and, the novel multifunctional cabinet is characterized in that a storage battery (13) is fixedly mounted inside the cabinet body (1), a fixing rod (14) is fixedly mounted above the storage battery (13), an element (15) is fixedly mounted on the fixing rod (14), a fixing plate (16) is fixedly mounted on the top end inside the cabinet body (1), a controller (17) is fixedly mounted on the top of the fixing plate (16), an illuminating lamp (9) is fixedly mounted on the bottom of the fixing plate (16), and filter screens (10) are fixedly mounted on two sides inside the cabinet body (1).
2. The high-speed entry weighing stainless steel control cabinet of claim 1, wherein: the storage battery (13) is electrically connected with the power-requiring equipment inside the equipment through a lead.
3. The high-speed entry weighing stainless steel control cabinet of claim 1, wherein: air inlets are fixedly formed in the two sides of the case main body (1).
4. The high-speed entry weighing stainless steel control cabinet of claim 1, wherein: the front surface of the cabinet door (8) is fixedly provided with a heat dissipation opening corresponding to the radiator (11).
5. The high-speed entry weighing stainless steel control cabinet of claim 1, wherein: and the solar panel (3) is electrically connected with the storage battery (13) through a wire.
6. The high-speed entry weighing stainless steel control cabinet of claim 1, wherein: waterproof layers are arranged inside the base (6) and at the bottom of the case body (1).
