The utility model discloses a nursing is with ward air purification device, comprising a water tank, the bottom fixedly connected with universal wheel of water tank, fixedly connected with filter plate between the both sides of water tank inner chamber, the right side fixedly connected with purifying box at water tank top, the first fan of left side fixedly connected with of purifying box, the bottom intercommunication of first fan has the gas-supply pipe, the bottom of gas-supply pipe runs through water tank and filter plate in proper order and extends to the bottom of filter plate. The utility model discloses a set up water tank, universal wheel, filter plate, purifying box, first fan, gas-supply pipe, moisture absorption layer, filter layer, sterilamp, outlet pipe, shower nozzle, water pump, raceway, second fan, connecting pipe, outlet duct, third fan, tube cap and suction hood, solved the lower problem of present nursing ward air purification device practicality, this nursing ward air purification device, possess the high advantage of practicality, be worth promoting.
Description
Technical Field
The utility model relates to an air purification device technical field specifically is a ward air purification device is used in nursing.
Background
Air purification means to provide the disinfection of disinfecting to indoor various environmental problems, whole solutions such as dust fall removes haze and peculiar smell, the improvement improves the life, the office conditions, promote physical and mental health, indoor environmental pollutant and pollution sources mainly include radioactive gas, mould, the particulate matter, the fitment is remained, second-hand-smoke etc., in the ward, because patient's health condition is not fine, so more need the clean air of breathing, the air purification device who uses in the present ward is not very ideal to the purification of air, and only through once purify in the combustion gas still there are a lot of dusts etc. still, the practicality of ward air purification device for the nursing has been reduced, be unfavorable for the use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a ward air purification device is used in nursing possesses the high advantage of practicality, has solved the lower problem of current ward air purification device practicality for nursing.
In order to achieve the above object, the utility model provides a following technical scheme: a ward air purification device for nursing comprises a water tank, wherein universal wheels are fixedly connected to the bottom of the water tank, a filter plate is fixedly connected between two sides of an inner cavity of the water tank, a purification box is fixedly connected to the right side of the top of the water tank, a first fan is fixedly connected to the left side of the purification box, the bottom of the first fan is communicated with a gas pipe, the bottom of the gas pipe sequentially penetrates through the water tank and the filter plate and extends to the bottom of the filter plate, a moisture absorption layer, a filter layer, an ultraviolet sterilization lamp and a water outlet pipe are sequentially arranged in the inner cavity of the purification box from top to bottom, a nozzle is communicated with the bottom of the water outlet pipe, a water pump is fixedly connected to the bottom of the inner cavity of the water tank, the top of the water pump is communicated with a water pipe, the top of the water pipe extends to the inner, the bottom intercommunication of second fan has the connecting pipe, the one end that the second fan was kept away from to the connecting pipe communicates with the bottom on water tank right side, the top intercommunication of purifying box has the outlet duct, the top cover of outlet duct is equipped with the tube cap, the inner chamber of outlet duct is provided with the third fan.
Preferably, the number of universal wheels is four, and evenly distributed in the four corners of water tank bottom, the left side intercommunication of first fan has the inlet hood.
Preferably, the moisture absorption layer, the filter layer, the ultraviolet germicidal lamp and the two sides of the water outlet pipe are fixedly connected with the inner wall of the purification box, the moisture absorption layer is sponge, and the filter layer is an activated carbon filter screen.
Preferably, the left bottom intercommunication of water tank has the drain pipe, and the surface cover of drain pipe is equipped with the valve, the equal fixedly connected with water conservancy diversion piece in both sides of purifying box inner chamber bottom, and the water conservancy diversion piece is triangle-shaped.
Preferably, both sides of the third fan are fixedly connected with brackets, and one sides of the two brackets opposite to each other are fixedly connected with the inner wall of the air outlet pipe.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a set up water tank, universal wheel, filter plate, purifying box, first fan, gas-supply pipe, moisture absorption layer, filter layer, sterilamp, outlet pipe, shower nozzle, water pump, raceway, second fan, connecting pipe, outlet duct, third fan, tube cap and suction hood, solved the lower problem of present nursing ward air purification device practicality, this nursing ward air purification device, possess the high advantage of practicality, be worth promoting.
2. The utility model discloses a set up the universal wheel, the removal of whole device of can being convenient for, through setting up filter plate and filter layer, can play filterable effect, through setting up sterilamp, can play the effect of disinfecting, through setting up the moisture absorption layer, can play the effect of moisture absorption, through setting up the shower nozzle, can play the effect of water spray, through setting up the third fan, can accelerate the speed of giving vent to anger, through setting up the suction hood, can increase the scope of admitting air, through setting up the support, the installation of the third fan of can being convenient for, through setting up the water conservancy diversion piece, can play the effect of water conservancy diversion.
Drawings

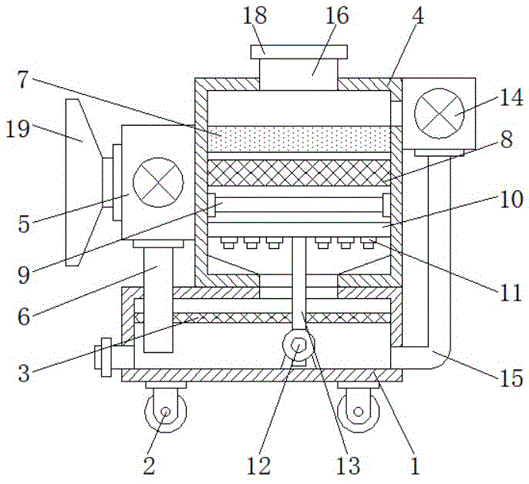

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a front view of the structure of the present invention;
fig. 3 is a sectional view of the outlet pipe of the present invention.
In the figure: 1. a water tank; 2. a universal wheel; 3. filtering the plate; 4. a purification box; 5. a first fan; 6. a gas delivery pipe; 7. a moisture-absorbing layer; 8. a filter layer; 9. an ultraviolet germicidal lamp; 10. a water outlet pipe; 11. a spray head; 12. a water pump; 13. a water delivery pipe; 14. a second fan; 15. a connecting pipe; 16. an air outlet pipe; 17. a third fan; 18. a tube cover; 19. an air intake hood; 20. and (4) a bracket.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, a nursing ward air purification device comprises a water tank 1, a universal wheel 2 is fixedly connected at the bottom of the water tank 1, a filter plate 3 is fixedly connected between two sides of an inner cavity of the water tank 1, a purification tank 4 is fixedly connected at the right side of the top of the water tank 1, a first fan 5 is fixedly connected at the left side of the purification tank 4, a gas pipe 6 is communicated with the bottom of the first fan 5, the bottom of the gas pipe 6 sequentially penetrates through the water tank 1 and the filter plate 3 and extends to the bottom of the filter plate 3, a moisture absorption layer 7, a filter layer 8, an ultraviolet sterilization lamp 9 and a water outlet pipe 10 are sequentially arranged in the inner cavity of the purification tank 4 from top to bottom, a spray head 11 is communicated with the bottom of the water outlet pipe 10, a water pump 12 is fixedly connected with the bottom of the inner cavity of the water tank 1, a water pipe 13 is communicated with the top of the water pump 12, the top, the bottom of the second fan 14 is communicated with a connecting pipe 15, one end of the connecting pipe 15 far away from the second fan 14 is communicated with the bottom of the right side of the water tank 1, the top of the purifying tank 4 is communicated with an air outlet pipe 16, the top of the air outlet pipe 16 is sleeved with a pipe cover 18, the inner cavity of the air outlet pipe 16 is provided with a third fan 17, the number of universal wheels 2 is four, the universal wheels are uniformly distributed at four corners of the bottom of the water tank 1, the left side of the first fan 5 is communicated with an air inlet cover 19, the two sides of the moisture absorption layer 7, the filter layer 8, the ultraviolet germicidal lamp 9 and the water outlet pipe 10 are fixedly connected with the inner wall of the purifying tank 4, the moisture absorption layer 7 is sponge, the filter layer 8 is an activated carbon filter screen, the bottom of the left side of the water tank 1 is communicated with a water outlet pipe, the surface of the water outlet pipe, one side opposite to two supports 20 is fixedly connected with the inner wall of an air outlet pipe 16, through the arrangement of the universal wheel 2, the movement of the whole device can be facilitated, through the arrangement of the filter plate 3 and the filter layer 8, the filtering effect can be achieved, through the arrangement of the ultraviolet germicidal lamp 9, the sterilizing effect can be achieved, through the arrangement of the moisture absorption layer 7, the moisture absorption effect can be achieved, through the arrangement of the spray head 11, the water spraying effect can be achieved, through the arrangement of the third fan 17, the air outlet speed can be accelerated, through the arrangement of the air inlet cover 19, the air inlet range can be increased, through the arrangement of the supports 20, the installation of the third fan 17 can be facilitated, through the arrangement of the flow guide block, the flow guide effect can be achieved, through the arrangement of the water tank 1, the universal wheel 2, the filter plate 3, the purification tank 4, the first fan 5, the air inlet pipe 6, shower nozzle 11, water pump 12, raceway 13, second fan 14, connecting pipe 15, outlet duct 16, third fan 17, tube cap 18 and suction hood 19 have solved the lower problem of present nursing ward air purification device practicality, and this nursing ward air purification device possesses the advantage that the practicality is high, is worth promoting.
During the use, the user controls first fan 5, second fan 14, third fan 17, water pump 12 and sterilamp 9 are opened, first fan 5 injects the ward air into water tank 1 through the cooperation of air inlet cover 19 and gas-supply pipe 6, water pump 12 inputs outlet pipe 10 through the cooperation of raceway 13 with the water in the water tank 1, last water passes through shower nozzle 11 blowout, the air gets into purifying box 4 after the filtration of filter plate 3 and water, shower nozzle 11 sprays the air, sterilamp 9 can carry out germicidal treatment to gas, filter layer 8 plays filterable effect, moisture absorption layer 7 plays the effect of moisture absorption, second fan 14 injects the gas after the primary treatment into water tank 1 again through the cooperation of connecting pipe 15, can carry out cyclic processing, purifying effect is good, exhaust can be accelerated to third fan 17.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a ward air purification device is used in nursing, includes water tank (1), its characterized in that: the water purifier is characterized in that universal wheels (2) are fixedly connected to the bottom of the water tank (1), filter plates (3) are fixedly connected between two sides of an inner cavity of the water tank (1), a purification tank (4) is fixedly connected to the right side of the top of the water tank (1), a first fan (5) is fixedly connected to the left side of the purification tank (4), a gas pipe (6) is communicated with the bottom of the first fan (5), the bottom of the gas pipe (6) sequentially penetrates through the water tank (1) and the filter plates (3) and extends to the bottom of the filter plates (3), a moisture absorption layer (7), a filter layer (8), an ultraviolet sterilization lamp (9) and a water outlet pipe (10) are sequentially arranged in the inner cavity of the purification tank (4) from top to bottom, a spray head (11) is communicated with the bottom of the water outlet pipe (10), a water pump (12) is fixedly connected to the bottom of the inner cavity of the, the top of raceway (13) extends to the inner chamber of purifying box (4) and communicates with outlet pipe (10), the top intercommunication on purifying box (4) right side has second fan (14), the bottom intercommunication of second fan (14) has connecting pipe (15), the one end and the bottom intercommunication on water tank (1) right side that second fan (14) were kept away from in connecting pipe (15), the top intercommunication of purifying box (4) has outlet duct (16), the top cover of outlet duct (16) is equipped with tube cap (18), the inner chamber of outlet duct (16) is provided with third fan (17).
2. A nursing ward air purifying device according to claim 1, characterized in that: the quantity of universal wheel (2) is four, and evenly distributed in the four corners of water tank (1) bottom, the left side intercommunication of first fan (5) has air inlet cover (19).
3. A nursing ward air purifying device according to claim 1, characterized in that: the two sides of the moisture absorption layer (7), the filter layer (8), the ultraviolet germicidal lamp (9) and the water outlet pipe (10) are fixedly connected with the inner wall of the purification box (4), the moisture absorption layer (7) is sponge, and the filter layer (8) is an activated carbon filter screen.
4. A nursing ward air purifying device according to claim 1, characterized in that: the left bottom intercommunication of water tank (1) has the drain pipe, and the surface cover of drain pipe is equipped with the valve, the equal fixedly connected with water conservancy diversion piece in both sides of purifying box (4) inner chamber bottom, and the water conservancy diversion piece is triangle-shaped.
5. A nursing ward air purifying device according to claim 1, characterized in that: the both sides of third fan (17) are equal fixedly connected with support (20), and the opposite one side of two supports (20) all with the inner wall fixed connection of outlet duct (16).
