Abstract

The utility model discloses a windproof type solar street lamp, which comprises a base, a top of the base is fixedly connected with a column, a movable column is movably connected inside the column, and the top of the movable column penetrates to the outside of the base. The surface of the movable column is movably connected with a connecting plate, the right side of the connecting plate is fixedly connected with a lamp frame, the right side of the lamp frame is fixedly connected with a lampshade, and the bottom of the lampshade is fixedly connected with a lighting lamp, A first motor is fixedly connected inside, and a gear is fixedly connected to the outside of the upright column through the right end of the rotating shaft of the first motor. The utility model can adjust the height of the lighting lamp by arranging the upright column, the movable column, the first motor, the gear and the teeth; The height is adjusted according to the wind, so that the lampshade can be prevented from falling, which is beneficial to people's use.

Description

A windproof solar street light

technical field

The utility model relates to the technical field of street lamps, in particular to a windproof solar street lamp.

Background technique

Street lights refer to lamps that provide lighting functions for roads, and generally refer to lamps within the scope of road lighting in traffic lighting. Street lamps are widely used in various places where lighting is required. Solar street lamps are becoming more and more popular, especially in some remote mountainous areas. Wire and cable It is very difficult to erect, so solar street lights must be used for lighting, but for these remote mountainous areas, the wind level is often large, and the lampshade is located at a high place, and there are often some slight shaking, although it will not affect the normal use of street lights, but long-term Down, the stability of the lampshade gradually deteriorates, and sometimes the lampshade even falls directly, affecting the use.

Utility model content

The purpose of the utility model is to provide a windproof solar street lamp, which has the advantages of being easy to use and solves the problem of inconvenient use of the solar street lamp.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a windproof solar street light, comprising a base, a column is fixedly connected to the top of the base, a movable column is movably connected inside the column, and the top of the movable column is connected Passing through to the outside of the base, the surface of the movable column is movably connected with a connecting plate, the right side of the connecting plate is fixedly connected with a lamp frame, the right side of the lamp frame is fixedly connected with a lampshade, and the bottom of the lampshade is fixedly connected There is a lighting lamp, a first motor is fixedly connected inside the column, a gear is fixedly connected to the outside of the column through the right end of the rotating shaft of the first motor, and teeth that mesh with the gear are fixedly connected to the inside of the column. The interior of the base is fixedly connected with a second motor, the top end of the second motor shaft is fixedly connected with a screw, the surface of the screw is threadedly connected with a movable plate, and the surface of the movable plate is movably connected with the inner wall of the base, the Both sides of the movable plate are fixedly connected with brake blocks, both sides inside the base are movably connected with pulleys through pins, and a wind speed sensor is fixedly connected to the top of the light frame, and the wind speed sensor is respectively connected with the first motor. It is electrically connected with the second motor, and a solar panel is arranged on the top of the movable column.

Preferably, the top end of the movable column is fixedly connected with a support rod, the surface of the support rod is threadedly connected with a movable block, the right side of the top of the movable block is fixedly connected with an electric push rod, and the interior of the movable block is connected with a pin The shaft is movably connected with a movable frame, the bottom of the movable frame is movably connected with the top of the movable column, the top of the electric push rod is fixedly connected with a fixed ball, and the top of the fixed ball is fixedly connected with a connecting block, the connecting block The top of the solar panel is fixedly connected.

Preferably, a support block is fixedly connected to the left side of the bottom of the solar cell panel, a movable rod is movably connected inside the support block through a pin, and the surface of the movable rod is movably connected to the inner wall of the movable frame through a pin.

Preferably, a bolt is threadedly connected to the inside of the movable column, and the front end of the bolt penetrates to the outside of the connecting plate.

Preferably, a generator and a battery located at the bottom of the generator are fixedly connected to the top of the left side of the movable column, respectively, and a fan blade is fixedly connected to the left end of the rotating shaft of the generator, and the battery is respectively connected to the solar panel, the generator, The first motor, the second motor, the electric push rod and the wind speed sensor are electrically connected.

Preferably, the brake block is provided with a card slot inside, and the surface of the pulley is fixedly connected with a protrusion adapted to the card slot.

Preferably, a protective casing is provided on the surface of the generator, and the right side of the protective casing is fixedly connected to the left side of the movable column.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model can adjust the height of the lighting lamp by setting upright column, movable column, first motor, gear and teeth, and can fix the pulley by setting the second motor, screw rod, movable plate and brake block. The street lamp can adjust the height according to the wind, avoid the phenomenon of lampshade falling, which is beneficial to people's use.

2. The utility model can adjust the angle of the solar panel by setting the support rod, the movable block, the electric push rod, the movable frame, the fixed ball and the connecting block. By setting the support block and the movable rod, the solar panel can be rotated. more stable.

3. The utility model is convenient to fix the connecting plate by setting the bolts. By setting the generator, the battery and the fan blade, the wind power can be generated. The protective case can protect the generator.

Description of drawings

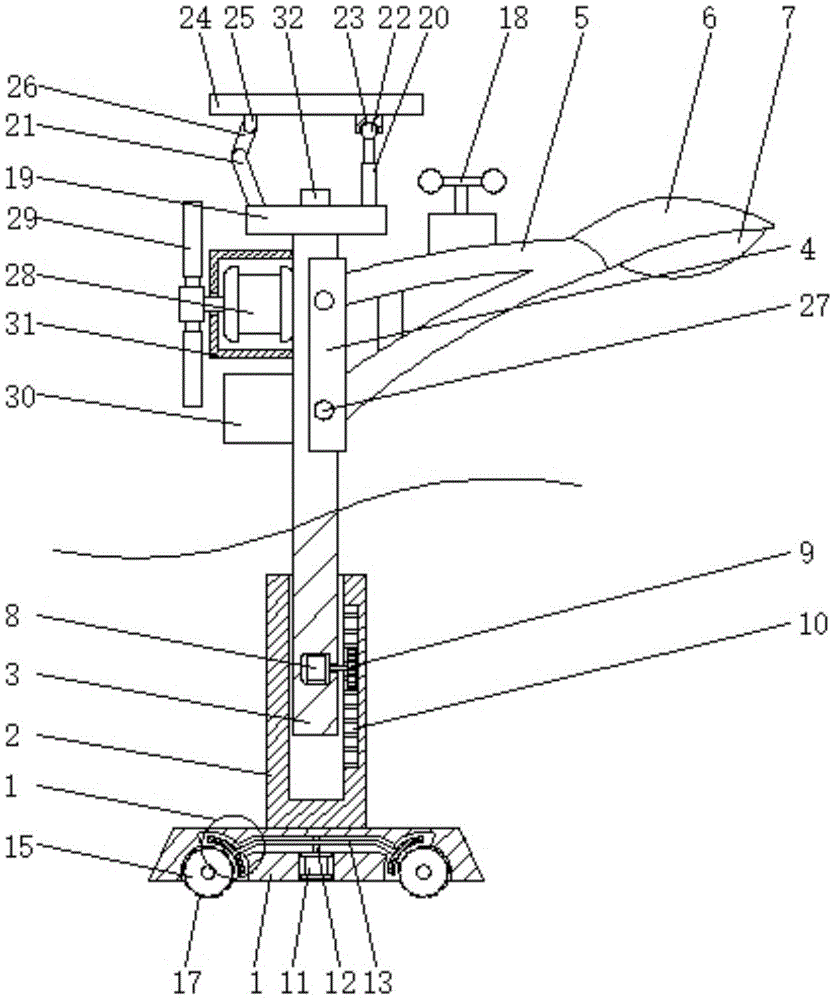

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the enlarged structure diagram of A in Fig. 1 of the utility model;

Fig. 3 is the left side view of the structural movable block of the utility model.

In the figure: 1. Base; 2. Upright column; 3. Active column; 4. Connecting plate; 5. Lamp holder; 6. Lampshade; 7. Lighting lamp; 8. First motor; 9. Gear; 10. Teeth; 11, second motor; 12, screw; 13, movable plate; 14, brake block; 15, pulley; 16, card slot; 17, bump; 18, wind speed sensor; 19, movable block; 20, electric push rod ;21, movable frame; 22, fixed ball; 23, connecting block; 24, solar panel; 25, support block; 26, movable rod; 27, bolt; 28, generator; 29, fan blade; 30, battery; 31. Protective shell; 32. Support rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-3, a windproof solar street light, including a base 1, a column 2 is fixedly connected to the top of the base 1, a movable column 3 is movably connected inside the column 2, and a support rod 32 is fixedly connected to the top of the movable column 3 , the surface of the support rod 32 is screwed with the movable block 19, the right side of the top of the movable block 19 is fixedly connected with the electric push rod 20, the interior of the movable block 19 is movably connected with the movable frame 21 through the pin shaft, and the bottom of the movable frame 21 is connected with the movable frame 21. The top of the column 3 is movably connected, the top of the electric push rod 20 is fixedly connected with a fixed ball 22, the top of the fixed ball 22 is fixedly connected with a connecting block 23, and the top of the connecting block 23 is fixedly connected with the solar cell panel 24. By setting the support rod 32 , the movable block 19, the electric push rod 20, the movable frame 21, the fixed ball 22 and the connecting block 23, which can adjust the angle of the solar cell panel 24. The inner thread of the movable column 3 is connected with a bolt 27, and the front end of the bolt 27 penetrates to the On the outside of the connecting plate 4, bolts 27 are arranged to facilitate the fixing of the connecting plate 4. The generator 28 and the battery 30 located at the bottom of the generator 28 are fixedly connected to the top of the left side of the movable column 3 respectively, and the left end of the rotating shaft of the generator 28 is fixed. The wind blade 29 is connected, and the battery 30 is electrically connected with the solar panel 24, the generator 28, the first motor 8, the second motor 11, the electric push rod 20 and the wind speed sensor 18. By setting the generator 28, the battery 30 and the wind speed sensor 18 The blade 29 can generate electricity by wind. The surface of the generator 28 is provided with a protective shell 31, and the right side of the protective shell 31 is fixedly connected to the left side of the movable column 3. By setting the protective shell 31, the generator 28 can be protected and moved. The top of the column 3 penetrates to the outside of the base 1, the surface of the movable column 3 is movably connected with a connecting plate 4, the right side of the connecting plate 4 is fixedly connected with a lamp frame 5, and the right side of the lamp frame 5 is fixedly connected with a lampshade 6, and the lampshade 6 The bottom of the column 2 is fixedly connected with the lighting lamp 7, the interior of the column 2 is fixedly connected with the first motor 8, the right end of the rotating shaft of the first motor 8 is fixedly connected to the outside of the column 2, and the gear 9 is fixedly connected, and the interior of the column 2 is fixedly connected with the gear 9. The meshed teeth 10, the second motor 11 is fixedly connected to the inside of the base 1, the top end of the rotating shaft of the second motor 11 is fixedly connected to the screw 12, the surface of the screw 12 is screwed with the movable plate 13, and the surface of the movable plate 13 is connected to the base 1. The inner wall of the movable plate 13 is movably connected, the two sides of the movable plate 13 are fixedly connected with the braking block 14, the interior of the braking block 14 is provided with a card slot 16, and the surface of the pulley 15 is fixedly connected with the card slot 16. , by setting the card slot 16 and the bump 17, the connection between the brake block 14 and the pulley 15 is more stable, the two sides of the base 1 are movably connected with the pulley 15 through the pin shaft, and the top of the lamp frame 5 is fixedly connected with the wind speed sensor 18 , the wind speed sensor 18 is electrically connected to the first motor 8 and the second motor 11 respectively, the top of the movable column 3 is provided with a solar panel 24, and the left side of the bottom of the solar panel 24 is fixedly connected with a support block 25. The interior is movably connected with a movable rod 26 through a pin shaft, and the movable rod 26 is The surface is movably connected to the inner wall of the movable frame 21 through the pin shaft. By setting the support block 25 and the movable rod 26, the solar panel 24 can be rotated more stably. The teeth 10 can adjust the height of the lighting lamp 7. By setting the second motor 11, the screw 12, the movable plate 13 and the brake block 14, the pulley 15 can be fixed. The falling phenomenon is beneficial to people's use.

When in use, the wind speed is detected by the 18 wind speed sensor. When the wind force is relatively large, the first motor 8 drives the gear 9 to rotate. The second motor 11 drives the screw 12 to rotate, the screw 12 drives the movable plate 13 to move downward, the movable plate 13 drives the brake block 14 to move downward, and the brake block 14 fixes the position of the pulley 15 .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A windproof solar street lamp, comprising a base (1), characterized in that: a column (2) is fixedly connected to the top of the base (1), and a movable column (3) is movably connected inside the column (2). ), the top of the movable column (3) penetrates to the outside of the base (1), the surface of the movable column (3) is movably connected with a connecting plate (4), and the right side of the connecting plate (4) is fixedly connected There is a lamp holder (5), a lampshade (6) is fixedly connected to the right side of the lamp holder (5), a lighting lamp (7) is fixedly connected to the bottom of the lampshade (6), and the interior of the upright column (2) is A first motor (8) is fixedly connected, the right end of the rotating shaft of the first motor (8) is fixedly connected with a gear (9) through to the outside of the column (2), and the inside of the column (2) is fixedly connected with the gear (9) Meshing teeth (10), a second motor (11) is fixedly connected to the inside of the base (1), and a screw (12) is fixedly connected to the top of the rotating shaft of the second motor (11). A movable plate (13) is threadedly connected to the surface of the screw (12), the surface of the movable plate (13) is movably connected to the inner wall of the base (1), and both sides of the movable plate (13) are fixedly connected with brakes Block (14), both sides inside the base (1) are movably connected with pulleys (15) through pins, and a wind speed sensor (18) is fixedly connected to the top of the light frame (5), and the wind speed sensor ( 18) are respectively electrically connected to the first motor (8) and the second motor (11), and the top of the movable column (3) is provided with a solar cell panel (24). 2 . The windproof solar street light according to claim 1 , wherein a support rod ( 32 ) is fixedly connected to the top of the movable column ( 3 ), and a surface of the support rod ( 32 ) is threadedly connected with a support rod ( 32 ). 3 . A movable block (19), an electric push rod (20) is fixedly connected to the right side of the top of the movable block (19), and a movable frame (21) is movably connected to the interior of the movable block (19) through a pin shaft. The bottom of the movable frame (21) is movably connected with the top of the movable column (3), the top of the electric push rod (20) is fixedly connected with a fixed ball (22), and the top of the fixed ball (22) is fixedly connected with a connection A block (23), the top of the connection block (23) is fixedly connected with the solar cell panel (24). 3 . The windproof solar street light according to claim 1 , wherein a support block ( 25 ) is fixedly connected to the left side of the bottom of the solar cell panel ( 24 ), and the inside of the support block ( 25 ) is 3 . A movable rod (26) is movably connected through the pin shaft, and the surface of the movable rod (26) is movably connected with the inner wall of the movable frame (21) through the pin shaft. 4. A windproof solar street light according to claim 1, characterized in that: the movable column (3) is internally threadedly connected with a bolt (27), and the front end of the bolt (27) penetrates to the connecting plate ( 4) outside. 5. A windproof solar street light according to claim 2, characterized in that: a generator (28) and a battery located at the bottom of the generator (28) are fixedly connected to the top of the left side of the movable column (3) respectively. (30), a fan blade (29) is fixedly connected to the left end of the rotating shaft of the generator (28), and the battery (30) is connected to the solar panel (24), the generator (28), and the first motor (8) respectively. , the second motor (11), the electric push rod (20) and the wind speed sensor (18) are electrically connected. 6 . The windproof solar street light according to claim 1 , characterized in that: the brake block ( 14 ) is provided with a card slot ( 16 ) inside, and the surface of the pulley ( 15 ) is fixedly connected with a A bump (17) adapted to the card slot (16). 7 . The windproof solar street light according to claim 5 , wherein a protective shell ( 31 ) is provided on the surface of the generator ( 28 ), and the right side of the protective shell ( 31 ) is connected to the movable column. 8 . (3) Left side fixed connection.
