Abstract

A computer monitor that is convenient for switching between horizontal and vertical screens, comprising a screen assembly, a press cover is installed in the middle of the back of the screen assembly, a circular groove is arranged in the press cover, and a limit block is installed in the circular groove, and the limit block is a flat cylinder. , a first through hole is opened on the gland on the side of the limit block away from the screen assembly, an elbow bracket is arranged in the first through hole, and the upper end of the elbow bracket is connected with the end face of the limit block, and the screen assembly and the gland can be limited The central axis of the position block rotates relative to the limit block and the elbow bracket as the center of the circle, and two positioning grooves are provided on the side peripheral wall of the limit block. It can lock the horizontal and vertical positions of the display screen assembly, and can conveniently switch the horizontal and vertical screen states of the display at the normal use position in front of the display.

Description

Easy to switch between landscape and portrait computer monitors

technical field

The utility model relates to a computer monitor, in particular to a computer monitor which is convenient for switching between horizontal and vertical screens.

Background technique

At present, most of the computer monitors are used horizontally. The horizontal screen can meet the general home and office usage habits. However, for professionals such as computer program developers, using the monitor vertically can improve the use efficiency. Most of the current vertical screen monitors use special vertical screen brackets, whose function is only to fix the monitor vertically and cannot switch to the horizontal screen state. Running the program on the horizontal screen display for testing can more intuitively reflect the running effect of the program in the state of ordinary people. If the vertical screen display cannot be switched to the horizontal screen state, the program can only be tested on the vertical screen display, or external A horizontal screen monitor is used for testing. Obviously, when testing a program on a vertical screen monitor, it is impossible to intuitively see the horizontal screen effect when the program is running. Therefore, most program developers currently choose to connect an external horizontal screen monitor to program the program. For testing, some developers even configure a separate computer with a horizontal screen monitor to test the program for the test program, which undoubtedly increases the configuration cost of the computer. In order to solve the above problems, those skilled in the art have designed computer monitor products that can switch between horizontal and vertical screens. A rotatable joint is set between the monitor bracket and the display screen assembly of this type of product, and the bracket is set to be able to be raised and lowered to prevent the problem. The display can be switched between horizontal and vertical screens. In order to satisfy the rotation of the display screen and the balance of the load bearing of the bracket, the rotary joint between the display screen assembly and the bracket needs to be set in the middle of the back of the display screen. For example, set buttons and latches on the joint to lock structure, when the user rotates the screen, he needs to reach out to the middle of the rear of the display screen. On the one hand, the distance is too far to reach directly, and on the other hand, the specific position of the locking structure cannot be seen by sight. The display with switchable horizontal and vertical screens on the market uses damping in the rotary joint to achieve the positioning of the display assembly. Although this positioning method is easy to operate, it only exerts resistance to the rotation of the display screen, and cannot completely prevent the display screen from rotating by itself after being subjected to force, especially the power supply and data wires behind the display are usually hard. The wires tend to pull on the display, making it difficult to hold the display in a fully vertical or fully horizontal position.

SUMMARY OF THE INVENTION

The purpose of the invention of the present invention is a computer monitor that is convenient to switch between horizontal and vertical screens, which can lock the horizontal and vertical positions of the display screen assembly, and can easily switch the horizontal and vertical screen states of the display at the normal use position in front of the display.

In order to achieve the above purpose, the utility model is achieved by the following technical solutions: comprising a screen assembly, a press cover is installed in the middle of the back of the screen assembly, a circular groove is arranged in the press cover, a limit block is installed in the circular groove, and the limit block It is a flat cylinder. A first through hole is formed on the gland on the side of the limit block away from the screen assembly. An elbow bracket is arranged in the first through hole. The upper end of the elbow bracket is connected to the end face of the limit block. The cover can rotate relative to the limit block and the elbow bracket with the central axis of the limit block as the center of the circle. Two positioning grooves are set on the side wall of the limit block, and the connection line between the midpoint of the two positioning grooves and the center of the limit block is perpendicular to each other. , a second through hole is opened on one side of the gland, and a positioning block is installed in the second through hole. The shape of the end of the positioning block matches the positioning groove. When the positioning block is inserted into any positioning groove, the gland and the limit block can be connected. Locked so that the screen assembly cannot be rotated, the positioning block is provided with a first guide rod and a second guide rod parallel to each other, the back of the screen assembly is installed with a first guide sleeve and a second guide sleeve, the first guide rod and the second guide rod Pass through the first guide sleeve and the second guide sleeve respectively, and the ends of the first guide rod and the second guide rod away from the positioning block are connected by a transverse tie rod, and the transverse tie rod is located at the edge of the screen assembly. The guide rods are all provided with return springs, the return springs are located between each guide sleeve and the positioning block, the lower part of the elbow bracket is a straight rod, the straight rod is inserted and matched with a sleeve, and the straight rod part of the lower part of the elbow bracket is inserted In the casing, the lower end of the casing is connected with the base, a longitudinal groove is arranged on one side of the straight rod part of the lower part of the elbow bracket, a first stop is arranged at the bottom of the longitudinal groove, a second stop is arranged in the longitudinal groove, and the second stop is connected with the longitudinal groove. The casing is connected, the material of the casing is ferromagnetic metal, a positioning pin hole is set in the middle of the side wall of the casing, a positioning pin is installed in the positioning pin hole, a baffle is arranged on the positioning pin, a permanent magnet block is installed on the baffle, When the block adsorbs the casing, one end of the positioning pin can penetrate into the inner cavity of the casing, and the other end of the positioning pin is provided with a pull handle. A limit tube is arranged at the inner bottom of the sleeve, and a booster spring is installed in the limiter tube, and the maximum elastic force of the booster spring is less than the sum of the weight of the screen assembly and the elbow bracket. The outer wall of the casing on one side of the positioning pin hole is provided with a screw hole, the screw hole is installed in the screw hole, one end of the screw rod is threadedly matched with the screw hole, and the other end of the screw rod is provided with a limit rod, after the end of the positioning pin leaves the inner cavity of the casing , During the process of pulling out from the positioning pin hole, the handle can be in contact with the limit rod.

The utility model has the advantages that the horizontal and vertical positions of the display screen assembly can be locked, and the horizontal and vertical screen states of the display can be conveniently switched at the normal use position in front of the display.

Description of drawings

Fig. 1 is the structural schematic diagram of the present utility model, shown in the figure is the horizontal screen state of the display;

Fig. 2 is the enlarged schematic diagram of part I in Fig. 1;

Fig. 3 is the left side view structure schematic diagram of Fig. 1;

Fig. 4 is the right side view structure schematic diagram of Fig. 1;

5 is a schematic structural diagram of the structure shown in FIG. 1 being switched to a vertical screen state;

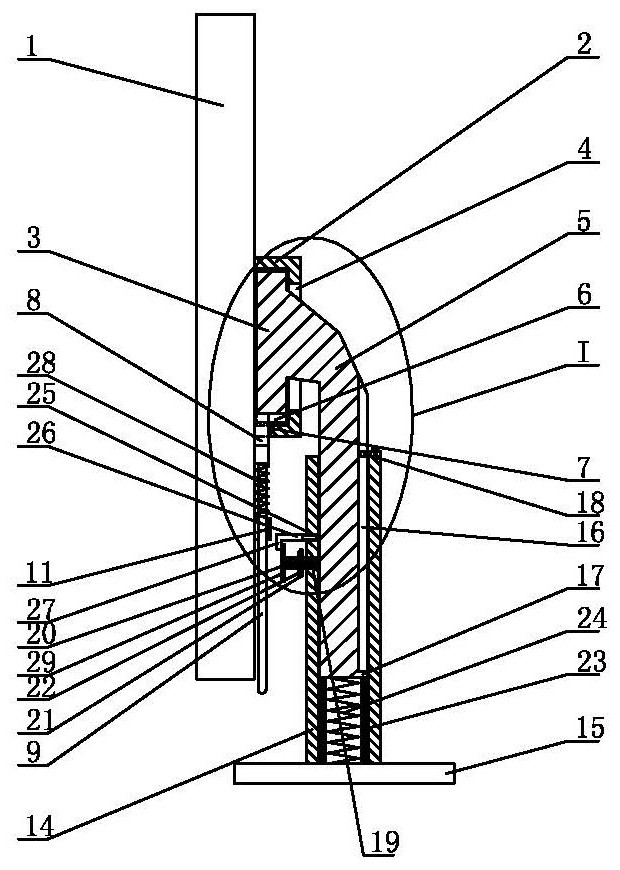

Figure 6 is a schematic diagram of the enlarged structure of part II in Figure 5;

Fig. 7 is the right side view structure schematic diagram of Fig. 5;

FIG. 8 is a left-side structural schematic diagram of FIG. 5 .

Detailed ways

The computer monitor of the utility model that is convenient for switching between horizontal and vertical screens comprises a screen assembly 1, a press cover 2 is installed in the middle of the back of the screen assembly 1, a circular groove is arranged in the press cover 2, and a limit block 3 is installed in the circular groove, so The limiting block 3 is a flat cylindrical body, and a first through hole 4 is formed on the pressure cover 2 on the side of the limiting block 3 away from the screen assembly 1, and an elbow bracket 5 is arranged in the first through hole 4, and the upper end of the elbow bracket 5 is provided. Connected with the end face of the limit block 3, the screen assembly 1 and the cover 2 can rotate relative to the limit block 3 and the elbow bracket 5 with the central axis of the limit block 3 as the center of the circle, and the side wall of the limit block 3 has two positioning positions. Groove 6, the midpoint of the two positioning grooves 6 and the connecting line of the center of the limit block 3 are perpendicular to each other, a second through hole 7 is opened on one side of the gland 2, and a positioning block 8 is installed in the second through hole 7, and the positioning block 8 The shape of the end is matched with the positioning groove 6. When the positioning block 8 is inserted into any positioning groove 6, the cover 2 and the limit block 3 can be locked, so that the screen assembly 1 cannot be rotated. The positioning blocks 8 are arranged parallel to each other. The first guide rod 9 and the second guide rod 10, the first guide sleeve 11 and the second guide sleeve 12 are installed on the back of the screen assembly 1, and the first guide rod 9 and the second guide rod 10 are respectively connected from the first guide sleeve 11 and Passing through the second guide sleeve 12, the ends of the first guide rod 9 and the second guide rod 10 away from the positioning block 8 are connected by a tie rod 13, and the tie rod 13 is located at the edge of the screen assembly. The guide rods 10 are all provided with reset springs 28. The reset springs 28 are located between each guide sleeve and the positioning block 8. The lower part of the elbow bracket 5 is a straight rod, which is inserted and matched with a sleeve 14. The elbow bracket 5. The lower part of the straight rod is inserted into the sleeve 14, the lower end of the sleeve 14 is connected with the base 15, one side of the straight part of the lower part of the elbow bracket 5 is provided with a longitudinal groove 16, and the bottom of the longitudinal groove 16 is provided with a first stop 17, A second stopper 18 is arranged in the longitudinal groove 16, the second stopper 18 is connected with the sleeve 14, the sleeve 14 is made of ferromagnetic metal, and the middle of the side wall of the sleeve 14 is provided with a positioning pin hole 19, and the positioning pin hole A positioning pin 20 is installed in 19, a baffle plate 21 is set on the positioning pin 20, and a permanent magnet block 22 is installed on the baffle plate 21. When the permanent magnet block 22 adsorbs the sleeve 14, one end of the positioning pin 20 can penetrate into the hollow inside the sleeve 14. The other end of the positioning pin 20 is provided with a handle 29. When the display is switched from the horizontal screen state to the vertical screen state, the user first lifts the screen assembly 1 to the top limit position. At this time, the first stopper 17 is in contact with the second stopper 18 to prevent the elbow bracket 5 from slipping from the sleeve. The tube 14 is pulled out, and the permanent magnet block 22 on the positioning pin 20 sucks the sleeve 14, so that one end of the positioning pin 20 penetrates the inner cavity of the sleeve 14; then the user pulls the tie rod 13 outward, and the tie rod 13. Drive the positioning block 8 away from the current corresponding positioning groove 6 through the two guide rods, and release the locking of the screen assembly 1. At this time, each return spring 28 is compressed; after the user rotates the screen assembly 1 by 90°, The positioning block 8 is rotated to the position corresponding to the other positioning groove 6, and at this time the positioning block 8 is inserted into the positioning groove 6 under the elastic force of the return spring 28 to lock the screen assembly 1 to the vertical screen state; When the screen assembly 1 is put down and the screen assembly 1 is lowered, the lower end of the elbow bracket 5 is blocked by the end of the positioning pin 20 which penetrates into the inner cavity of the sleeve 14, and is kept at the current height to prevent the lower end of the screen assembly 1 from being erected. touch the desktop. When the display is switched from the portrait state to the landscape state, the user first lifts the screen assembly 1 up to the top limit position, and then pulls the horizontal tie rod 13 outward to release the lock on the screen assembly 1 until the user removes the screen assembly. 1 After the reverse rotation of 90°, the positioning block 8 locks the screen assembly 1 in the horizontal screen state under the elastic force of the return spring 28; When in contact with the positioning pin 20 , the pull handle 29 on the positioning pin 20 is pulled outward, so that the elbow bracket 5 can return to its original position in the sleeve 14 .

In the present invention, in order to facilitate the user to lift the screen assembly 1, a limit tube 23 can be arranged at the inner bottom of the sleeve 14, and a booster spring 24 is installed in the limiter tube 23, and the maximum elastic force of the booster spring 24 is smaller than that of the screen assembly 1. The sum of the weight of the elbow bracket 5. When the elbow bracket 5 falls to the lowest position in the horizontal screen state, the lower end of the elbow bracket 5 is in contact with the top end of the limiting tube 23 to provide stable support for the elbow bracket 5 . When the user lifts the screen assembly 1, the elastic force of the assist spring 24 bears part of the gravity of the screen assembly 1 and the elbow bracket 5, and the user's operation is more labor-saving.

In order to prevent the positioning pin 20 from being pulled out from the positioning pin hole 19 in the present invention, a screw hole 25 can be provided on the outer wall of the sleeve 14 on one side of the positioning pin hole 19, and a screw 26 is installed in the screw hole 25, and one end of the screw 26 Fitting with the screw hole 25, a limit rod 27 is provided on the other end of the screw rod 26. After the end of the positioning pin 20 leaves the inner cavity of the sleeve 14, the pull handle 29 can be pulled out from the positioning pin hole 19 during the process of pulling out. The limit rod 27 contacts. The limit rod 27 can limit the limit position of the positioning pin 19 , and the limit position can be adjusted by rotating the screw 26 .

Claims (3)

1. Computer display convenient to switch horizontal vertical screen, including screen assembly (1), its characterized in that: a gland (2) is arranged in the middle of the back of a screen assembly (1), a circular groove is formed in the gland (2), a limiting block (3) is arranged in the circular groove, the limiting block (3) is a flat cylinder, a first through hole (4) is formed in the gland (2) on one side, away from the screen assembly (1), of the limiting block (3), an elbow support (5) is arranged in the first through hole (4), the upper end of the elbow support (5) is connected with the end face of the limiting block (3), the screen assembly (1) and the gland (2) can rotate relative to the limiting block (3) and the elbow support (5) by taking the middle shaft of the limiting block (3) as the circle center, two positioning grooves (6) are formed in the peripheral wall on the side of the limiting block (3), the middle point of the two positioning grooves (6) is perpendicular to the connecting line of the circle centers of the limiting block (3), a second through hole (7) is formed, the end shape of the positioning block (8) is matched with the positioning grooves (6), when the positioning block (8) is inserted into any one positioning groove (6), the gland (2) and the limiting block (3) can be locked, the screen assembly (1) cannot rotate, a first guide rod (9) and a second guide rod (10) which are parallel to each other are arranged on the positioning block (8), a first guide sleeve (11) and a second guide sleeve (12) are installed on the back surface of the screen assembly (1), the first guide rod (9) and the second guide rod (10) respectively penetrate through the first guide sleeve (11) and the second guide sleeve (12), one ends, far away from the positioning block (8), of the first guide rod (9) and the second guide rod (10) are connected through a transverse pull rod (13), the transverse pull rod (13) is positioned at the edge of the screen assembly, return springs (28) are arranged on the first guide rod (9) and the second guide rod (10), the reset spring (28) is positioned between each guide sleeve and the positioning block (8), the lower part of the elbow support (5) is a straight rod, the straight rod is in plug fit with one sleeve (14), the straight rod part at the lower part of the elbow support (5) is inserted into the sleeve (14), the lower end of the sleeve (14) is connected with the base (15), one side of the straight rod part at the lower part of the elbow support (5) is provided with a longitudinal groove (16), the bottom of the longitudinal groove (16) is provided with a first stop block (17), a second stop block (18) is arranged in the longitudinal groove (16), the second stop block (18) is connected with the sleeve (14), the sleeve (14) is made of ferromagnetic metal, the middle part of the side wall of the sleeve (14) is provided with a positioning pin hole (19), a positioning pin (20) is arranged in the positioning pin hole (19), a baffle plate (21) is arranged on the positioning pin (20), a permanent magnet (22) is, one end of the positioning pin (20) can penetrate into the inner cavity of the sleeve (14), and the other end of the positioning pin (20) is provided with a pull handle (29).

2. The computer monitor as claimed in claim 1, wherein the computer monitor is capable of switching between horizontal and vertical screens: the screen assembly is characterized in that a limiting pipe (23) is arranged at the bottom of the inner side of the sleeve (14), an assisting spring (24) is installed in the limiting pipe (23), and the maximum elastic force of the assisting spring (24) is smaller than the sum of the weight of the screen assembly (1) and the weight of the elbow support (5).

3. The computer monitor as claimed in claim 1, wherein the computer monitor is capable of switching between horizontal and vertical screens: screw hole (25) are seted up to sleeve pipe (14) outer wall on one side of locating pin hole (19), install screw rod (26) in screw hole (25), screw rod (26) one end and screw hole (25) screw-thread fit, and screw rod (26) other end one side sets up gag lever post (27), and after locating pin (20) tip left sleeve pipe (14) inside cavity, outwards extracted the in-process from locating pin hole (19), pull handle (29) can contact with gag lever post (27).
