Abstract

The utility model relates to the technical field of cleaning utensils, and discloses a portable flask brush with a wide range of applications, comprising a fixing sleeve, an inner wall of the fixing sleeve is fixedly connected with a positioning column, and an outer surface of the positioning column is fixedly connected with an annular distribution The top of the positioning column is fixedly connected with a main shaft, the surface of the main shaft is sleeved with a sliding sleeve, the top of the hairy tenacity steel wire is fixedly connected with the sliding sleeve, and one side of the main shaft is fixedly connected A positioning switch is connected, one side of the sliding sleeve is provided with a positioning hole, and the positioning switch is movably connected with the positioning hole. The utility model solves the problem of incomplete cleaning when cleaning flasks of different sizes because the volume of the brush head is fixed, and because the heights of the flasks are different, when cleaning the flasks with higher heights, it needs to be replaced Brushes of different lengths are inconvenient for staff to use.

Description

A Portable Flask Brush With Wide Applicability

technical field

The utility model relates to the technical field of cleaning appliances, in particular to a portable flask brush with a wide range of applications.

Background technique

Flasks are glassware with necks used in laboratories to hold liquid substances. They are called flasks because they can withstand a certain amount of heat. They are especially suitable for heating and boiling liquids. Flasks usually have flat bottoms and round bottoms. The appearance of a narrow neck, in chemical experiments, a container used when the amount of reagents is large and there are liquid substances involved in the reaction.

During the use of the flask, the inner wall of the flask often adheres to chemicals, so it is necessary to use a brush to clean the flask. Most of the existing flask brushes have bristles attached to the brush head, but in the actual cleaning process, the volume of the brush head is fixed. Therefore, when cleaning flasks of different sizes, it will cause the problem of incomplete cleaning, and due to the different heights of the flasks, when cleaning the flasks with higher heights, it is necessary to replace the brushes of different lengths, which is inconvenient for the staff to use.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a portable flask brush with a wide range of applications, which has the advantages of better cleaning effect on the flask and better applicability, and solves the problem that the volume of the brush head is fixed. When cleaning flasks of different sizes, it will cause the problem of incomplete cleaning, and due to the different heights of the flasks, when cleaning the flasks with higher heights, it is necessary to replace the brushes of different lengths, which is inconvenient for the staff to use.

(2) Technical solutions

In order to achieve the above-mentioned purposes of better cleaning effect on the flask and better applicability, the present utility model provides the following technical solution: a portable flask brush with a wide range of applications, including a fixing sleeve, the inner wall of the fixing sleeve is fixedly connected with a A positioning column, the outer surface of the positioning column is fixedly connected with a ring-shaped distribution of hairy steel wire, the top of the positioning column is fixedly connected with a main shaft, the surface of the main shaft is sleeved with a sliding sleeve, and the hairy steel wire is The top is fixedly connected with the sliding sleeve, a positioning switch is fixedly connected to one side of the main shaft, a positioning hole is opened on one side of the sliding sleeve, the positioning switch is movably connected with the positioning hole, and the surface of the main shaft is sleeved with a positioning hole located on the surface of the main shaft. The extension tube above the sliding sleeve, the inner wall of the extension tube is fixedly connected with a limit ring, the main shaft is movably connected with the limit ring, the surface of the main shaft is fixedly connected with a spacer ring located under the limit ring, the main shaft is The surface is sleeved with a compression spring between the limit ring and the spacer ring, one end of the main shaft is provided with an installation groove located above the limit ring, the inner wall of the installation groove is fixedly connected with a first spring, the first One side of the spring is fixedly connected with a clamping post, one side of the elongated cylinder is provided with a socket, the clamping post is inserted into the socket, and the inner wall of the socket is provided with a start switch.

Preferably, the radius of the lower end face of the positioning column is smaller than the radius of the upper end face.

Preferably, the positioning switch includes a positioning seat, an inner wall of the positioning seat is provided with a positioning spring, and a pressing column is fixedly connected to one side of the positioning spring.

Preferably, the main shaft is a T-shaped shaft, the diameter of the upper end face of the main shaft is larger than the radius of the lower end face, and the installation groove is located on one side of the upper end of the main shaft.

Preferably, the start switch includes a second spring and a start column, the second spring is sleeved with the start column, and a spacer is sleeved on the surface of the start column.

Preferably, a rubber sleeve is sleeved on the surface of the elongated cylinder, and the surface of the rubber sleeve is provided with a resistance-increasing thread.

Preferably, the initial state of the ductile steel wire with wool is an expanded shape.

(3) Beneficial effects

Compared with the prior art, the utility model provides a portable flask brush with a wide range of applications, which has the following beneficial effects:

1. This portable flask brush with a wide range of applications, by setting the ductile steel wire with hair, when cleaning the inner wall of the flask, insert the steel wire with ductility with hair into the inside of the flask, and then press the positioning switch, the steel wire with ductility with hair will pull the sliding sleeve down At this time, the ductile steel wire with wool is in the unfolded state, so that it can fully contact the inner wall of the flask. At this time, the inner wall of the flask can be cleaned by simply rotating the extension cylinder, and the cleaning effect is good, and the bottle mouth needs to be narrower. When cleaning, just pull the sliding sleeve upward to make the bristle tough steel wire in a shrinking state. When the bristle ductile steel wire is located on the inner wall of the bottle mouth, it can be quickly cleaned by rotating the sliding sleeve, which solves the problem of the brush head. The volume is fixed, so when cleaning flasks of different sizes, it will cause incomplete cleaning problems.

2. This portable flask brush with a wide range of applications, by setting the extension tube, only needs to press the start switch when cleaning the flask with a deeper depth. At this time, the clamping post is separated from the jack, and under the elastic force of the compression spring, it passes The spacer pushes the main shaft to move downward, so that the main shaft protrudes from the inside of the extension cylinder, so that the overall length of the brush can be increased, so that it can be used for flasks with deeper depths. At the same time, when the extension cylinder is pressed, the compression spring It can provide a buffer to prevent excessive pressure of the ductile steel wire with hair on the bottom of the flask, avoid the damage of the flask, and solve the problem that due to the different height of the flask, when cleaning the flask with a higher height, it is necessary to replace the brush with different lengths, which is inconvenient for the staff. problem of use.

3. By setting the fixed sleeve, when the cleaning is completed, after cleaning the brush, the sliding sleeve can be pulled to make the positioning switch stuck in the positioning hole, so that the flexible steel wire with hair can be contracted, and at the same time, the extension cylinder can be pressed to make the clamping The post is clipped inside the socket, so that the overall length of the brush can be shortened, so as to reduce the space occupied by it, and it is very convenient to carry.

Description of drawings

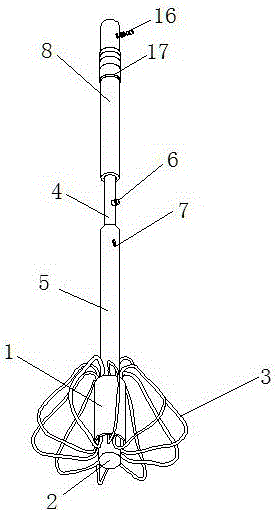

1 is a perspective view of the utility model;

Fig. 2 is the structural representation of the utility model;

Fig. 3 is the structural representation of the utility model structural belt wool toughness steel wire;

Fig. 4 is the enlarged view of the place A in Fig. 3 of the utility model;

Fig. 5 is the enlarged view of the place B in Fig. 2 of the utility model;

FIG. 6 is a schematic structural diagram of a start switch of the present invention.

In the figure: 1. Fixed sleeve; 2. Positioning column; 3. Tough steel wire with wool; 4. Spindle; 5. Sliding sleeve; 6. Positioning switch; 61. Positioning seat; 62. Positioning spring; 63. Pressing column; 7 , positioning hole; 8, extension tube; 9, limit ring; 10, spacer ring; 11, compression spring; 12, installation groove; 13, first spring; 14, snap-on post; 15, jack; 16, start switch; 161, the second spring; 162, the starting column; 163, the spacer; 17, the rubber sleeve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1

1-3, this embodiment provides a portable flask brush with a wide range of applications, including a fixing sleeve 1, the inner wall of the fixing sleeve 1 is fixedly connected with a positioning column 2, and the outer surface of the positioning column 2 is fixedly connected with annular distribution The initial state of the ductile steel wire 3 with hair is unfolded, the top of the positioning column 2 is fixedly connected with the main shaft 4, the surface of the main shaft 4 is sleeved with a sliding sleeve 5, and the top of the steel wire 3 with hair ductility is connected to the sliding sleeve. 5. Fixed connection, one side of the main shaft 4 is fixedly connected with a positioning switch 6, one side of the sliding sleeve 5 is provided with a positioning hole 7, the positioning switch 6 is movably connected with the positioning hole 7, and the surface of the main shaft 4 is sleeved with a position above the sliding sleeve 5. The inner wall of the extension tube 8 is fixedly connected with the limit ring 9, the main shaft 4 is movably connected with the limit ring 9, the surface of the main shaft 4 is fixedly connected with a spacer ring 10 located under the limit ring 9, the surface of the main shaft 4 is sleeved A compression spring 11 is connected between the limit ring 9 and the spacer ring 10. One end of the main shaft 4 is provided with an installation groove 12 located above the limit ring 9. The inner wall of the installation groove 12 is fixedly connected with a first spring 13. One side of the spring 13 is fixedly connected with a clamping post 14 , one side of the elongated cylinder 8 is provided with a socket 15 , the clamping post 14 is inserted into the socket 15 , and the inner wall of the socket 15 is provided with a start switch 16 .

In this embodiment, by setting the ductile steel wire 3 with hair, when cleaning the inner wall of the flask, the steel wire 3 with ductility with hair is extended into the flask, and then the positioning switch 6 is pressed, and the steel wire with ductility with hair 3 will pull the sliding sleeve 5 down. , at this time, the ductile steel wire 3 with hair is in the unfolded state, so that it can be fully contacted with the inner wall of the flask. At this time, only the inner wall of the flask can be cleaned by rotating the elongated cylinder 8, and the cleaning effect is good, and the bottle mouth needs to be relatively clean. When cleaning the narrow part, it is only necessary to pull the sliding sleeve 5 upward, so that the ductile steel wire 3 with hair is in a shrinking state. Because the volume of the brush head is fixed, when cleaning flasks of different sizes, it will cause the problem of incomplete cleaning. When cleaning flasks with a deeper depth, just press the start switch 16, and the clamping column 14 is disengaged at this time. The socket 15, under the elastic force of the compression spring 11, pushes the main shaft 4 to move downward through the spacer ring 10, so that the main shaft 4 protrudes from the inside of the extension cylinder 8, so that the overall length of the brush can be increased, so that it can be deeper At the same time, when the extension cylinder 8 is pressed, the compression spring 11 can provide a buffer to prevent excessive pressure on the bottom of the flask by the ductile steel wire 3, and avoid the damage of the flask. When cleaning flasks with a high height, it is necessary to replace the brushes of different lengths, which is inconvenient for the staff to use. When the cleaning is completed, after cleaning the brushes, the sliding sleeve 5 can be pulled to make the positioning switch 6 stuck in the positioning hole 7 In this way, the ductile steel wire 3 with hair can be contracted, and at the same time, the extension cylinder 8 can be pressed, so that the clamping post 14 is stuck inside the insertion hole 15, so that the overall length of the brush can be shortened, so as to reduce the space occupied by it, and it is very convenient to carry. .

Example 2

Please refer to Figures 1-4, and further improvements have been made on the basis of Embodiment 1: the radius of the lower end face of the positioning post 2 is smaller than the radius of the upper end face, which facilitates the installation of the ductile steel wire 3 with hair so that it is located on the inner wall of the fixing sleeve 1 , the positioning switch 6 includes a positioning seat 61, the inner wall of the positioning seat 61 is provided with a positioning spring 62, and one side of the positioning spring 62 is fixedly connected with a pressing column 63. When unfolding the ductile steel wire 3 with hair, just press the pressing column 63 , the pressing post 63 can be separated from the positioning hole 7 . When shrinking, only the sliding sleeve 5 needs to be pulled, and the pressing post 63 can be stuck on the inner wall of the positioning hole 7 under the push of the positioning spring 62 .

The main shaft 4 is a T-shaped shaft, the diameter of the upper end face of the main shaft 4 is larger than the radius of the lower end face, and the installation groove 12 is located on the upper end side of the main shaft 4. Setting the main shaft 4 into a T-shaped shaft can make the main shaft 4 extend from the inside of the extension cylinder 8. When it comes out, it can be blocked by the limit ring 9 to prevent its extended position from being too long, resulting in the phenomenon that the reset is not smooth.

Example 3

Please refer to FIG. 1, 2, 3, 5 or 6, and further improvements are made on the basis of Embodiment 1: the start switch 16 includes a second spring 161 and a start column 162, and the second spring 161 is socketed with the start column 162, And the surface of the starting column 162 is sleeved with a spacer 163. When adjusting the length, you only need to press the starting column 162, and the starting column 162 pushes the clamping column 14 out of the insertion hole 15. The function of adjusting the length, when shrinking, is pushed by the first spring 13, the clamping post 14 is clamped inside the socket 15, and at the same time, under the pushing of the second spring 161, it can prevent the activation post 162 and the clamping post 14 Contacts.

The surface of the extension cylinder 8 is sleeved with a rubber sleeve 17, and the surface of the rubber sleeve 17 is provided with a resistance increasing thread. The rubber sleeve 17 is more convenient for the staff to hold the brush, and the resistance increasing thread makes the grip more comfortable.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a wide portable flask brush of application scope, includes fixed cover (1), its characterized in that: the inner wall fixedly connected with reference column (2) of fixed cover (1), the surface fixedly connected with area hair toughness steel wire (3) that the annular distributes of reference column (2), the top fixedly connected with main shaft (4) of reference column (2), sliding sleeve (5) have been cup jointed on the surface of main shaft (4), the top and the sliding sleeve (5) fixed connection of area hair toughness steel wire (3), one side fixedly connected with positioning switch (6) of main shaft (4), locating hole (7) have been seted up to one side of sliding sleeve (5), positioning switch (6) and locating hole (7) swing joint, the surface of main shaft (4) has been cup jointed and has been located the extension section of thick bamboo (8) of sliding sleeve (5) top, the inner wall fixedly connected with spacing ring (9) of extension section of thick bamboo (8), main shaft (4) and spacing ring (9) swing joint, the utility model discloses a quick-witted, including main shaft (4), pressure spring (13), jack (15), the fixed surface of main shaft (4) is connected with spacer ring (10) that is located spacer ring (9) below, pressure spring (11) that are located between spacer ring (9) and spacer ring (10) have been cup jointed on the surface of main shaft (4), mounting groove (12) that are located spacer ring (9) top are seted up to the one end of main shaft (4), the first spring (13) of inner wall fixedly connected with of mounting groove (12), one side fixedly connected with joint post (14) of first spring (13), jack (15) have been seted up to one side of extension section of thick bamboo (8), joint post (14) are pegged graft with jack (15), the inner wall of jack (15) is provided.

2. The wide-application portable flask brush of claim 1, characterized in that: the radius of the lower end face of the positioning column (2) is smaller than that of the upper end face.

3. The wide-application portable flask brush of claim 1, characterized in that: the positioning switch (6) comprises a positioning seat (61), a positioning spring (62) is arranged on the inner wall of the positioning seat (61), and a pressing column (63) is fixedly connected to one side of the positioning spring (62).

4. The wide-application portable flask brush of claim 1, characterized in that: the main shaft (4) is a T-shaped shaft, the diameter of the upper end face of the main shaft (4) is larger than the radius of the lower end face, and the mounting groove (12) is located on one side of the upper end of the main shaft (4).

5. The wide-application portable flask brush of claim 1, characterized in that: the starting switch (16) comprises a second spring (161) and a starting column (162), the second spring (161) is sleeved with the starting column (162), and a spacer sleeve (163) is sleeved on the surface of the starting column (162).

6. The wide-application portable flask brush of claim 1, characterized in that: the surface of the lengthened cylinder (8) is sleeved with a rubber sleeve (17), and the surface of the rubber sleeve (17) is provided with resistance-increasing threads.

7. The wide-application portable flask brush of claim 1, characterized in that: the initial state of the steel wire (3) with the hair toughness is a spreading shape.
