Abstract

The utility model discloses an open display cabinet, which belongs to the field of commodity display devices. The open display cabinet comprises a display table and a storage cabinet. The display table is installed on the storage cabinet, and a door is hinged on the display table. A chute is provided inside, a smoke storage drawer is installed in the chute through a pulley, a card slot is arranged at the bottom of the display stand, and a handle is arranged on the outer side wall of the smoke storage drawer; the utility model proposes an open type The display cabinet stores neatly arranged cigarettes in the lower part of the display cabinet through the storage drawer. After the customer chooses, it is convenient for the salesman to directly take the cigarettes from the corresponding storage drawer, which avoids rearranging the cigarettes, and can be used in multiple Quickly find cigarettes in cigarettes.

Description

an open display cabinet

technical field

The utility model relates to the field of commodity display devices, in particular to an open display cabinet.

Background technique

The display cabinet is a protective display stand provided for the display of goods. At present, shopping malls, supermarkets, and canteens have set up cigarette retail points, and cigarettes are placed in the display cabinets in an orderly manner for customers to choose. Cigarette display cabinets are essential for cigarette retail outlets. The cigarettes should be neatly placed in the cabinet to facilitate customers' selection; it should also be convenient for the salesperson to take the cigarettes.

At present, the existing cigarette display cabinets are mainly flat counter type and wall vertical cabinet type. It is more troublesome to take cigarettes from the flat counter type display cabinet, and the cigarettes need to be rearranged after being taken out, which is time-consuming and labor-intensive.

SUMMARY OF THE INVENTION

In view of the problems existing in the background technology, the utility model proposes an open display cabinet, which stores neatly arranged cigarettes in the lower part of the display cabinet through a storage drawer. Take cigarettes in the drawer, avoid rearranging cigarettes, and can quickly find cigarettes in a variety of cigarettes.

In order to achieve the above purpose, the utility model is achieved through the following technical solutions: the open display cabinet includes a display table and a storage cabinet, the display table is installed on the storage cabinet, a door is hinged on the display table, and the storage cabinet is provided with a door. There is a chute, a cigarette storage drawer is installed in the chute through a pulley, a handle is arranged on the outer side wall of the cigarette storage drawer, and a groove is arranged on the side wall of the cigarette storage drawer.

Preferably, the bottom of the display stand is provided with a card slot.

The beneficial effects of the present utility model:

The open display cabinet proposed by the utility model stores neatly arranged cigarettes in the lower part of the display cabinet through the storage drawer. After the customer chooses, it is convenient for the salesman to directly take the cigarettes from the corresponding storage drawer, thereby avoiding the need for re-arranging the cigarettes. Holds cigarettes and can quickly find cigarettes in a variety of cigarettes.

Description of drawings

Fig. 1 is the side view of the utility model;

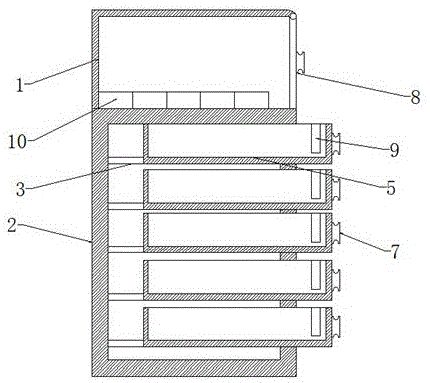

Fig. 2 is the sectional view of the utility model;

Fig. 3 is the enlarged view of A part of the utility model;

In the picture, 1-display stand, 2-locker, 3-chute, 4-pulley, 5-storage drawer, 6-card slot, 7-handle, 8-door, 9-groove, 10-cigarette .

Detailed ways

In order to make the purpose, technical solutions and technical effects of the present utility model clearer, the preferred embodiments of the present utility model will be described in detail below with reference to the accompanying drawings, so as to facilitate the understanding of technical personnel.

As shown in Figures 1-3, the open display cabinet includes a display table 1 and a locker 2. The display table 1 is installed on the locker 2, and a door 8 is hinged on the display table 1 to facilitate the replacement of the display table. For cigarettes, the locker 2 is provided with a chute 3, and a cigarette storage drawer 5 is installed in the chute 3 through the pulley 4, corresponding to the positions where different types of cigarettes are placed on the display stand 1, and the corresponding cigarette storage drawer 5 in the locker 2 Corresponding cigarettes are stored inside, so that the five types of cigarettes can be stored in sequence in the cigarette storage drawer 5 under the display table of five types of cigarettes. The outer side wall of the cigarette storage drawer 5 is provided with a handle 7, which is convenient for pulling and placing the cigarette storage drawer 5 and taking out cigarettes quickly. cigarettes.

The bottom of the display stand 1 is provided with a card slot 6, so that the cigarettes on the display stand 1 do not slide, and there is a certain distance between the displayed cigarettes.

The utility model proposes an open display cabinet, which stores neatly arranged cigarettes in the lower part of the display cabinet through a storage drawer. After the customer selects, it is convenient for the salesman to directly take the cigarettes from the corresponding storage drawer, thereby avoiding the need for Rearrange cigarettes and quickly find cigarettes in a variety of cigarettes.

Finally, it should be noted that the above preferred embodiments are only used to illustrate the technical solutions of the present invention and not to limit them. Although the present invention has been described in detail through the above preferred embodiments, those skilled in the art should Various changes can be made in the above and in the details without departing from the scope of the invention as defined in the claims of the present invention.

Claims (2)

1. An open showcase, characterized in that: open show cupboard includes show stand (1), locker (2), and install on locker (2) show stand (1), and it has a door to articulate on show stand (1), is equipped with spout (3) in locker (2), installs through pulley (4) in spout (3) and stores up cigarette drawer (5), be equipped with on the outer wall of storing up cigarette drawer (5) handle (7), be equipped with slot (9) on the lateral wall of storing up cigarette drawer (5).

2. The open display case of claim 1, wherein: the bottom of the display stand (1) is provided with a clamping groove (6).
