Multifunctional wardrobe
Technical Field
The utility model relates to the technical field of furniture, especially, relate to a multifunctional wardrobe.
Background
The wardrobe is a cabinet for storing clothes, generally takes stainless steel, solid wood, toughened glass and hardware accessories as materials, generally takes a wardrobe body, a door panel, silent wheels and a door curtain as components, is internally provided with clothes hanging rods, a trousers rack, a pull basket, a disinfection lamp and other accessories, adopts the processes of punching, assembling, press riveting, welding and the like, has the functions of flame retardance, rat resistance, dust prevention, moth prevention, moisture prevention, cleanness, beauty, convenience in moving and the like, and has the functions of a large-capacity intelligent disinfection wardrobe, a power-free through glass cabinet, a stainless steel wardrobe, an ultraviolet disinfection cleaning wardrobe, a moisture-proof multifunctional wardrobe, a male and female wardrobe, a drying wardrobe and a folding wardrobe. The common types of the wardrobe are a vertical hinged door, an inner and outer sliding doors of the wardrobe and the like, and the plates used by the wardrobe generally comprise stainless steel, metal, wood and the like, and are one of furniture commonly used in families.
Most of the wardrobes in the current stage are simple in structure and single in function, clothes can be stored mostly, when the wardrobes are hung and taken, a very trouble is undoubtedly caused for people with inconvenient actions, when the clothes are hung on the airing rods, the clothes need to be moved to be unfolded one by one, and when the clothes are taken, the clothes need to be moved to be taken one by one from the airing rods, so that the clothes are troublesome.
Therefore, it is necessary to provide a multifunctional wardrobe to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a multifunctional wardrobe solves the problem of inconvenience when hanging and taking clothes.
In order to solve the technical problem, the utility model provides a multifunctional wardrobe includes:
a box body;
the partition plate is arranged in the box body, and a clothes drying area is formed above the partition plate and positioned in the box body;
the driving assembly is arranged on the box body.
Preferably, the drive assembly includes the motor case, the motor case set up in the top of box one side, the bottom fixed mounting of the inner wall of box has first motor, the output of first motor passes through shaft coupling fixedly connected with connecting rod, run through one side of the one end of connecting rod the motor case and box and with one side of box inner wall is rotated and is connected, the connecting rod is located the top of baffle.
Preferably, the connecting rod is provided with a spiral groove, lantern rings are sleeved on the spiral groove at equal intervals, and the bottom of each lantern ring is fixedly connected with a fixing ring.
Preferably, a small refrigerator, a clothes drawer and a safe are respectively arranged on the front face of the box body and below the partition plate, and a small sound box is arranged on the top of the inner wall of the box body.
Preferably, a transmission assembly is arranged on the inner wall of the box body, a moving assembly is arranged on the transmission assembly, and a hot air blower is fixedly connected to the moving assembly.
Preferably, the transmission assembly comprises a second motor, the second motor is installed on one side of the inner wall of the box body, an output shaft of the second motor is fixedly connected with a first gear through a coupler, the first gear is connected with a second gear through a transmission belt, and the transmission belt is provided with clamping teeth meshed with the first gear and the second gear.
Preferably, the moving assembly comprises a moving plate, a through groove is formed in the moving plate, two fixing rods are fixedly connected to the back face of the moving plate, and the two fixing rods are respectively connected with the inner wall of the box body in a sliding mode through two sliding grooves.
Preferably, the surface of the moving plate is connected with a limiting block in a sliding mode, one side of the limiting block is fixedly connected with the transmission belt through a fixing rod, the top of the moving plate is fixedly connected with a supporting plate, and the top of the supporting plate is fixedly connected with a hot air blower.
Preferably, the top of the partition board is longitudinally provided with water outlet grooves at equal intervals, a communicating groove is communicated between the two water outlet grooves, one side of each water outlet groove is communicated with a water storage groove, one side of each water storage groove is communicated with a water outlet pipe, and the top of the box body is provided with a through hole.
At plum rain season, the clothing is comparatively moist, and is difficult for the drying, dries to the clothing through increasing the hot blow in the box, makes the clothing dry faster, and the transmission subassembly and the removal subassembly that simultaneously through setting up conveniently dry to the hot blow realize being horizontal reciprocating motion in the box, dries the clothing, makes the clothing be heated evenly, and drying efficiency is high.
Compared with the prior art, the utility model provides a multifunctional wardrobe has following beneficial effect:
the utility model provides a multifunctional wardrobe is convenient for carry out automatic stay and concentrate to the clothing that dries in the air on the connecting rod through control panel to the inconvenient people of removal through the drive assembly who sets up, is convenient for hang and gets the clothing, convenient operation is simple.
The intelligent refrigerator is unlocked through the face unlocking device arranged on the refrigerator door, the fingerprint unlocking device and the password unlocking device arranged on the safe and the intelligent machine voice arranged on the small refrigerator, and the intelligent refrigerator is convenient, simple and rapid to use, diversified in function and high in practicability.
Drawings
FIG. 1 is a schematic structural view of a preferred embodiment of the multifunctional wardrobe provided by the present invention;
FIG. 2 is a schematic view of the external structure shown in FIG. 1;
FIG. 3 is an enlarged view of portion A of FIG. 1;
FIG. 4 is a schematic view of the internal structure shown in FIG. 1;
FIG. 5 is a schematic structural view of the moving assembly shown in FIG. 4;

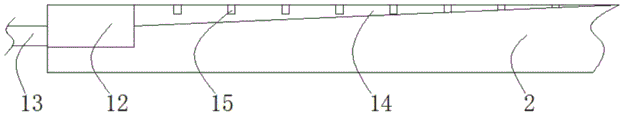

FIG. 6 is a schematic top view of the separator shown in FIG. 4;
FIG. 7 is a schematic cross-sectional side view of the separator of FIG. 4.
Reference numbers in the figures: 1. the box body, 2, a partition board, 3, a driving component, 31, a motor box, 32, a first motor, 33, a connecting rod, 34, a spiral groove, 35, a lantern ring, 36, a fixing ring, 4, a small-sized sound box, 5, a clothes drying area, 6, a small-sized refrigerator, 7, a clothes drawer, 8, a safe box, 9, a transmission component, 91, a second motor, 92, a first gear, 93, a transmission belt, 94, a clamping tooth, 95, a second gear, 10, a moving component, 101, a moving plate, 102, a through groove, 103, a fixing plate, 104, a fixing rod, 105, a limiting block, 106, a supporting plate, 11, hot air blowing, 12, a water storage groove, 13, a water outlet pipe, 14, a water outlet groove, 15, a communication groove, 16, a sliding groove, 17 and.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
First embodiment of the invention
Please refer to fig. 1, fig. 2 and fig. 3, wherein fig. 1 is a schematic structural diagram of a preferred embodiment of the multifunctional wardrobe provided by the present invention;
FIG. 2 is a schematic view of the external structure shown in FIG. 1; fig. 3 is an enlarged schematic view of a portion a shown in fig. 1.
The multifunctional wardrobe includes:
a box body 1;
the partition plate 2 is arranged in the box body 1, and a clothes drying area 5 is formed above the partition plate 2 and positioned in the box body 1;
and the driving assembly 3 is arranged on the box body 1.
Drive assembly 3 includes motor case 31, motor case 31 set up in the top of box 1 one side, the bottom fixed mounting of the inner wall of box 1 has first motor 32, shaft coupling fixedly connected with connecting rod 33 is passed through to first motor 32's output, run through on one side of the one end of connecting rod 33 motor case 31 and box 1 and with one side of box 1 inner wall is rotated and is connected, connecting rod 33 is located the top of baffle 2.
The forward and reverse rotation of the first motor 32 can drive the connecting rod 33 to move forward and reverse.
A spiral groove 34 is formed in the connecting rod 33, a sleeve ring 35 is sleeved on the spiral groove 34 at equal intervals, and a fixing ring 36 is fixedly connected to the bottom of the sleeve ring 35.
One side of box 1 is provided with control panel, box 1 is external to have the power, and external power supply and control panel and motor electric connection, clothes hanger has been hung to solid fixed ring 36's bottom, corotation or the reversal of starting first motor 32 through control panel, drive connecting rod 33 corotation or reversal, make the lantern ring 35 of cover on helicla flute 34 at connecting rod 33 upper level reciprocating motion, lantern ring 35 drives clothes hanger through solid fixed ring 36 and is horizontal reciprocating motion, be convenient for to remove inconvenient people and carry out automatic opening and concentrate through control panel to the clothing that dries in the air on connecting rod 33, and convenient operation is simple.
The front of the box body 1 and the lower part of the partition plate are respectively provided with a small refrigerator 6, a clothes drawer 7 and a safe 8, and the top of the inner wall of the box body 1 is provided with a small sound 4.
Be provided with intelligent machine pronunciation on the small-size refrigerator 6, through voice command, the small-size refrigerator 6 execution is opened and is closed, and the simple operation is provided with fingerprint unblock and password unlocking device on the safe deposit box 8, opens safe deposit box 8 through fingerprint unblock and password unblock, and the simple operation is simultaneously through hinge hinged door on the clothing district 5 that dries in the air, is provided with panel unlocking device on the door, unloads the facial discernment unblock through facial unlocking device, opens the door.
The utility model provides a multifunctional wardrobe's theory of operation as follows:
the first motor 32 is started through the control panel to rotate forward and backward, the first motor 32 drives the connecting rod 33 to rotate forward or backward, and the lantern ring 35 is driven through the spiral groove 34 arranged on the connecting rod 33 to drive the clothes hanger to move forward or backward in the horizontal direction.
Compared with the prior art, the utility model provides a multifunctional wardrobe has following beneficial effect:
the driving assembly 3 is convenient for automatically opening and concentrating the clothes aired on the connecting rod 33 by a person who is inconvenient to move through the control panel, the clothes can be conveniently hung and taken, and the operation is convenient and simple.
The face unlocking device arranged on the box door, the fingerprint unlocking device and the password unlocking device arranged on the safety box 8 and the intelligent machine voice arranged on the small refrigerator 6 are used for unlocking, so that the refrigerator is convenient, simple and rapid to use, has diversified functions and is high in practicability.
Second embodiment
Referring to fig. 4, 5, 6 and 7, a second embodiment of the present application provides another multifunctional wardrobe based on the multifunctional wardrobe provided in the first embodiment of the present application. The second embodiment is only the preferred mode of the first embodiment, and the implementation of the second embodiment does not affect the implementation of the first embodiment alone.
Specifically, the multifunctional wardrobe provided by the second embodiment of the present application is different in that a transmission assembly 9 is arranged on the inner wall of the box body 1, a moving assembly 10 is arranged on the transmission assembly 9, and a hot air blower 11 is fixedly connected to the moving assembly 10.
The transmission assembly 9 comprises a second motor 91, the second motor 91 is installed on one side of the inner wall of the box body 1, an output shaft of the second motor 91 is fixedly connected with a first gear 92 through a coupler, the first gear 92 is connected with a second gear 95 through a transmission belt 93 in a transmission manner, and the transmission belt 93 is provided with a clamping tooth 94 meshed with the first gear 92 and the second gear 95.
One side of box 1 is provided with control panel, and box 1 external power supply, control panel and second motor 91 electric connection, and the back fixedly connected with connecting axle of second gear 95, second gear 95 rotate with the inner wall of box 1 through the connecting axle to be connected, start second motor 91, and second motor 91 drives drive belt 93 through first gear 92 and carries out the transmission.
The moving assembly 10 includes a moving plate 101, a through groove 102 is formed in the moving plate 101, two fixing rods 103 are fixedly connected to the back of the moving plate 101, and the two fixing rods 103 are respectively connected to the inner wall of the box body 1 through two sliding grooves 16 in a sliding manner.
The two fixing bars 103 serve to fixedly support the moving plate 101, and the moving plate 101 can be slid on the inner wall of the case 1 by the fixing bars 103.
The surface of the moving plate 101 is slidably connected with a limiting block 105, one side of the limiting block 105 is fixedly connected with the transmission belt 93 through a fixing rod 104, the top of the moving plate 101 is fixedly connected with a supporting plate 106, and the top of the supporting plate 106 is fixedly connected with the hot air blower 11.
The width of the limiting block 105 is greater than the width of the through groove 102, the movable plate 101 sleeved on the fixed rod 104 is limited, the movable plate 101 is prevented from falling off, the fixed rod 104 is driven to move horizontally by the transmission belt 93, the fixed rod 104 pushes the movable plate 101 to move horizontally by the through groove 102, when the movable plate 101 passes through the joint of the transmission belt 93 and the first gear 92 and the second gear 95, the fixed rod 104 vertically slides on the inner wall of the through groove 102 and drives the movable plate 101 to move horizontally in the opposite direction, and the hot air blowing fixed on the supporting plate 106 is enabled to do reciprocating motion in the horizontal direction.
The water outlet grooves 14 are longitudinally and equidistantly arranged at the top of the partition board 2, a communicating groove 15 is communicated between the two water outlet grooves 14, one side of each water outlet groove 14 is communicated with a water storage groove 12, one side of each water storage groove 12 is communicated with a water outlet pipe 13, and the top of the box body 1 is provided with a through hole 17.
When the through hole 17 facilitates the heating of the hot blast blower 11, the hot blast blower is discharged with water vapor, the drying is accelerated, the temperature of the hot blast blower is constant at forty degrees, the water outlet grooves 14 are provided with grooves which are gradually deepened longitudinally, the depth of each water outlet groove 14 is deeper, and meanwhile, the communication grooves 15 are communicated between the adjacent water outlet grooves 14, so that the water on the partition plate 2 is discharged to the water outlet grooves 12 through the water outlet pipe.
The second motor 91 is started to drive the transmission belt 93 to transmit, the fixed rod 104 pushes the movable plate 101 to do reciprocating motion in the horizontal direction, the hot air blower 11 fixed on the supporting plate 106 performs reciprocating motion in the horizontal direction, clothes are heated and dried in a plum rain season, the clothes are heated uniformly, the drying efficiency is high, and meanwhile the water outlet groove 14 and the communication groove 15 arranged on the partition plate 2 are convenient for discharging moisture out of the outside of the box body 1.
