CN211832728U - Fountain brush apple cleaning machine - Google Patents
Fountain brush apple cleaning machine Download PDFInfo
- Publication number
- CN211832728U CN211832728U CN201922445662.0U CN201922445662U CN211832728U CN 211832728 U CN211832728 U CN 211832728U CN 201922445662 U CN201922445662 U CN 201922445662U CN 211832728 U CN211832728 U CN 211832728U
- Authority
- CN
- China
- Prior art keywords
- spray
- brush
- left end
- apple
- water
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Apparatuses For Bulk Treatment Of Fruits And Vegetables And Apparatuses For Preparing Feeds (AREA)
- Cleaning By Liquid Or Steam (AREA)
- Cleaning In General (AREA)
Abstract
The utility model discloses a spray type brush apple cleaning machine, which comprises a hollow cleaning pool (15); a hollow feeding bin (1) which is arranged downwards is arranged at the top opening of the left end of the cleaning pool (15) in a downward inclining way; the right end of the feeding bin is lower than the left end; the left end of the feeding bin is provided with an opening and is used for placing apples; the right end opening of the feeding bin is connected with the left end inlet of the brush roller group which is arranged in a downward inclination manner; the outlet at the right end of the brush roller group is connected with the top of the left end of the first metal mesh belt conveyor (6); the right end of the first metal mesh belt conveyor (6) transversely penetrates through the right side wall of the cleaning pool (15) and is positioned right above the top opening of the hollow containing box (8); a plurality of spray heads (5) are arranged right above the brush roller group; the spray head is connected with a spraying device. The utility model discloses can effectively combine through the mode that liquid sprayed and brush mechanical contact, effectively wash vegetables such as apples, get rid of the filth on vegetables such as apples surface, reach clean state.
Description
Technical Field
The utility model relates to a fruit vegetables deep-processing preliminary treatment technical field especially relates to a fountain brush apple cleaning machine.
Background
At present, the fruits and vegetables need to be cleaned before deep processing so as to smoothly carry out subsequent operation, and after the fruits and vegetables are classified, manual or automatic cleaning equipment can be adopted for cleaning.
However, the labor intensity of manual cleaning of fruits and vegetables is high, and the cleanliness of the fruits and vegetables is inconsistent.
Therefore, at present, there is an urgent need to develop a device which can effectively clean fruits and vegetables such as apples, remove dirt on the surfaces of the fruits and vegetables such as apples, and achieve a clean state.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a fountain brush apple cleaning machine to the technical defect that prior art exists.
Therefore, the utility model provides a spray type brush apple cleaning machine which is characterized by comprising a hollow cleaning pool;
a hollow feeding bin which is arranged downwards and downwards is arranged at an opening at the top of the left end of the cleaning pool;
the right end of the feeding bin is lower than the left end;
the left end of the feeding bin is provided with an opening and is used for placing apples;
the right end opening of the feeding bin is connected with the left end inlet of the brush roller group which is arranged in a downward inclination manner;
the outlet at the right end of the brush roller group is connected with the top of the left end of the first metal mesh belt conveyor;
the right end of the first metal mesh belt conveyor transversely penetrates through the right side wall of the cleaning pool and is positioned right above the top opening of the hollow containing box;
a plurality of spray heads are arranged right above the brush roller group;
the spray head is connected with a spraying device, and the spraying device is used for providing water required by spraying for the spray head.
Wherein, the spraying equipment comprises a circulating water pipe;
the right inlet of the circulating water pipe is inserted into the lower part of the inner side of the cleaning pool;
the left end outlet of the circulating water pipe is connected with the right end of the electric circulating water valve bank;
the left end of the electric circulating water valve bank is connected with a water inlet on the right side of the water pump;
the water outlet at the top of the water pump is connected with the lower end of the left side of the connecting pipe;
the right end of the connecting pipe is connected with the left end of the transversely arranged spray pipe;
a plurality of spray heads are arranged at the bottom of the spray pipe at equal intervals;
the water inlet of each spray head is communicated with the spray pipe.
For the spraying equipment, a connecting pipeline between the electric circulating water valve group and the water pump is also connected with the lower end of an electric water inlet valve group;
the top of the electric water inlet valve group is a clean cleaning water inlet, and the top of the electric water inlet valve group is connected with an external water supply pipeline.
Wherein, for the spraying equipment, the spraying equipment also comprises a liquid level transmitter;
the liquid level transmitter is connected with the inner side of the cleaning pool and is arranged right above the circulating water pipe in the cleaning pool.
Wherein, wash pond right side bottom, still link to each other with electronic discharge valve group.
The brush roller group comprises a plurality of upper brush rollers and a plurality of lower brush rollers which are vertically and symmetrically distributed;
the upper roller group consisting of a plurality of upper brush rollers and the lower roller group consisting of a plurality of lower brush rollers are parallel to each other and are provided with reserved clearance channels.
Wherein, the spray pipe and the spray head are positioned right above the upper brush roller.
By the above the technical scheme the utility model provides a it is visible, compare with prior art, the utility model provides a fountain brush apple cleaning machine, it can effectively combine through the mode that liquid sprayed and brush mechanical contact, effectively washs fruit vegetables such as apple, gets rid of the filth on fruit vegetables surfaces such as apple, reaches clean state, has great production practice meaning.
Drawings

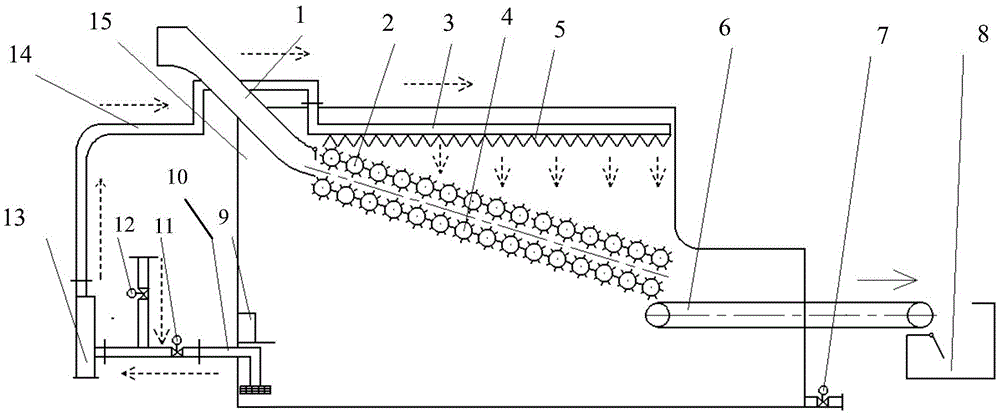

Fig. 1 is a schematic structural view of a spray type brush apple cleaning machine provided by the present invention;
1 is a feeding bin, 2 is an upper brush roller, 3 is a spray pipe, 4 is a lower brush roller and 5 is a spray head;
6 is a first metal mesh belt conveyor, 7 is an electric drainage valve group, 8 is a storage box, 9 is a liquid level transmitter, and 10 is a circulating water pipe;
an electric circulating water valve group 11, an electric water inlet valve group 12, a water pump 13, a connecting pipe 14 and a cleaning pool 15;
Detailed Description
In order to make the technical field of the present invention better understand, the present invention is further described in detail with reference to the accompanying drawings and embodiments.
Referring to fig. 1, the utility model provides a spray type brush apple cleaning machine, which is specifically used for cleaning apples by spray cleaning and brush cleaning, and comprises a hollow cleaning pool 15;
a hollow feeding bin 1 which is arranged downwards and downwards is arranged at the top opening of the left end of the cleaning pool 15;
the right end of the feeding bin 1 is lower than the left end;
the left end of the feeding bin 1 is provided with an opening and is used for placing apples;
the right end opening of the feeding bin 1 is connected with the left end inlet of the brush roller group which is arranged in a downward inclination manner;
the outlet at the right end of the brush roller group is connected with the top of the left end of the first metal mesh belt conveyor 6;
the right end of the first metal mesh belt conveyor 6 transversely penetrates through the right side wall of the cleaning pool 15 and is positioned right above the top opening of the hollow containing box 8;
a plurality of spray heads 5 are arranged right above the brush roller group;
the spray head 5 is connected with a spraying device, and the spraying device is used for providing water required by spraying for the spray head 5.
In the utility model, the spraying equipment comprises a circulating water pipe 10;
the right inlet of the circulating water pipe 10 is inserted into the lower part of the inner side of the cleaning pool 15 (a filter screen can be arranged on the upper part);
the left end outlet of the circulating water pipe 10 is connected with the right end of the electric circulating water valve group 11;
the left end of the electric circulating water valve group 11 is connected with a water inlet on the right side of the water pump 13;
a water outlet at the top of the water pump 13 is connected with the lower end of the left side of the connecting pipe 14;
the right end of the connecting pipe 14 is connected with the left end of the transversely arranged spray pipe 3;
a plurality of spray heads 5 are arranged at the bottom of the spray pipe 3 at equal intervals;
the water inlet of each spray head 5 is communicated with the spray pipe 3,
in the concrete implementation, for spraying equipment, a connecting pipeline between the electric circulating water valve group 11 and the water pump 13 is also connected with the lower end of an electric water inlet valve group 12;
the top of valve block 12 is a clean wash water inlet, and valve block 12 is connected to an external water supply line (e.g., a tap water line).
In particular, the spraying equipment also comprises a liquid level transmitter 9;
the liquid level transmitter 9 is connected with the inner side of the cleaning pool 15 and is arranged right above the circulating water pipe 10 in the cleaning pool 15.
In the concrete realization, the bottom of the right side of the cleaning pool 15 is also connected with the electric drainage valve group 7.
Specifically, the brush roller group comprises a plurality of upper brush rollers 2 and a plurality of lower brush rollers 4 which are distributed in an up-and-down symmetrical manner (specifically, in an axisymmetric manner);
the upper roller group consisting of the upper brush rollers 2 and the lower roller group consisting of the lower brush rollers 4 are parallel to each other and are provided with reserved clearance channels, and the size of the reserved clearance channels is larger than the preset maximum size of fruits (such as apples) to be cleaned.
It should be noted that each upper brush roller rotates counterclockwise, and each lower brush roller rotates clockwise, which may be specifically driven by an external motor, and a specific driving structure is well known in the art and will not be described herein again.
In the concrete realization, the spray pipe 3 and the spray head 5 are positioned right above the upper brush roller 2.
It should be noted that the cleaning tank 15 is a hollow casing, and the upper end, the lower end and the periphery of the cleaning tank are provided with protective casings.
According to the technical scheme provided by the utility model, the utility model provides a pair of fountain brush apple cleaning machine, including feeding storehouse 1, upper portion brush roller 2, shower 3, lower part brush roller 4, shower nozzle 5, first metal mesh belt conveyor 6, electronic drainage valves 7, containing box 8, liquid level transmitter 9, circulating pipe 10, electronic circulating water valves 11, electronic intake valves 12, water pump 13, connecting pipe 14 and wash a plurality of parts such as pond 15.
To the utility model provides a pair of fountain brush apple cleaning machine, its working process as follows:
the apples are manually placed at a left inlet of a feeding bin 1, the apples obliquely roll downwards along the feeding bin to a channel between an upper brush roller 2 and the left side of a lower brush roller 4, because the upper brush roller 2 rotates anticlockwise, the lower brush roller 4 rotates clockwise, the apples roll along the channel between the upper brush roller and the lower brush roller under the combined action of the upper brush roller and the lower brush roller, meanwhile, clean tap water enters a pipeline of an electric circulating water valve group 11 from an upper inlet of an electric water inlet valve group 12 through an electromagnetic valve through a lower outlet, enters a water pump 13 through an inlet of the water pump 13, enters a connecting pipe 14 from an outlet of the water pump 13, enters a spray head 5 through a spray pipe 3, water is changed into water drop fog under the combined action of a pump pressure and the spray head, and is sprayed on the upper brush roller 2 right below, the surface of the apples is under the combined action of the brushes of the upper brush roller 2 and the lower brush roller 4 and spray water, and performing mechanical contact type cleaning and spray cleaning. The cleaned apples enter the left end metal mesh belt of the first metal mesh belt conveyor 6 through the left and right ends of the upper brush roller 2 and the lower brush roller 4, are conveyed to the right end of the first metal mesh belt conveyor 6, then slide into the storage box 8 to be collected, and the cleaned apples are obtained.
Wherein, the water after cleaning the apple is filtered by the inlet at the bottom of the circulating water pipe 10, enters the inlet of the electric circulating water valve group 11 from the outlet, and then enters the inlet of the water pump 13 from the outlet, and the circulation from clean tap water to the filtered spray water is completed. The water level height of 15 in the cleaning pool can be started and closed through the solenoid valve of the liquid level transmitter 9 control electric drainage valve group 7, and the purpose of discharging redundant water is achieved, so that the liquid level height of the cleaning pool 15 is guaranteed, the liquid level is prevented from being too high, and the net belt adhesion of the first metal net belt conveyor 6 is not provided with filtered spray water, and the cleanliness of the surface of the apple is guaranteed.
It should be noted that, the fruit vegetables need wash before the deep-processing to go on smoothly of follow-up operation, after grading fruit vegetables, can adopt the utility model provides a cleaning machine washs, can effectively productivity gain, reduce intensity of labour, and can the using water wisely, reduce mechanical damage.
To the utility model discloses a cleaning machine sprays and brush mechanical contact's mode through liquid, can effectively combine to get rid of the filth on apple surface, reaches clean state. The cleaning mode has the characteristics of high cleaning cleanliness, no mechanical damage and water conservation, and has good universality for blocky fruits and vegetables.
To sum up, compare with prior art, the utility model provides a pair of spray brush apple cleaning machine, it can effectively combine through the mode that liquid sprayed and brush mechanical contact, effectively washs fruit vegetables such as apple, gets rid of the filth on fruit vegetables surfaces such as apple, reaches clean state, has the meaning of great production practice.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (7)
1. A spray type brush apple cleaning machine is characterized by comprising a hollow cleaning pool (15);
a hollow feeding bin (1) which is arranged downwards is arranged at the top opening of the left end of the cleaning pool (15) in a downward inclining way;
the right end of the feeding bin (1) is lower than the left end;
the left end of the feeding bin (1) is opened and is used for placing apples;
the right end opening of the feeding bin (1) is connected with the left end inlet of the brush roller group which is arranged in a downward inclination manner;
the outlet at the right end of the brush roller group is connected with the top of the left end of the first metal mesh belt conveyor (6);
the right end of the first metal mesh belt conveyor (6) transversely penetrates through the right side wall of the cleaning pool (15) and is positioned right above the top opening of the hollow containing box (8);
a plurality of spray heads (5) are arranged right above the brush roller group;
the spray head (5) is connected with a spraying device, and the spraying device is used for providing water required by spraying for the spray head (5).
2. The spray brush apple washer according to claim 1, wherein the spray means comprises a circulating water pipe (10);
the inlet at the right end of the circulating water pipe (10) is inserted into the lower part of the inner side of the cleaning pool (15);
the left end outlet of the circulating water pipe (10) is connected with the right end of the electric circulating water valve group (11);
the left end of the electric circulating water valve group (11) is connected with a water inlet on the right side of the water pump (13);
a water outlet at the top of the water pump (13) is connected with the lower end of the left side of the connecting pipe (14);
the right end of the connecting pipe (14) is connected with the left end of the transversely arranged spray pipe (3);
a plurality of spray heads (5) are arranged at the bottom of the spray pipe (3) at equal intervals;
the water inlet of each spray head (5) is communicated with the spray pipe (3).
3. The spray type brush apple cleaning machine according to claim 2, wherein for the spraying equipment, the connecting pipeline between the electric circulating water valve group (11) and the water pump (13) is also connected with the lower end of an electric water inlet valve group (12);
the top of the electric water inlet valve group (12) is a clean cleaning water inlet, and the top of the electric water inlet valve group (12) is connected with an external water supply pipeline.
4. The spray brush apple washer according to claim 2, further comprising a liquid level transmitter (9) for the spray equipment;
the liquid level transmitter (9) is connected with the inner side of the cleaning pool (15) and is arranged right above the circulating water pipe (10) in the cleaning pool (15).
5. The spray brush apple washer according to claim 1, wherein the bottom of the right side of the washing tank (15) is further connected to an electric discharge valve bank (7).
6. The spray-type brush apple washing machine according to claim 1, wherein the brush roller group comprises a plurality of upper brush rollers (2) and a plurality of lower brush rollers (4) which are symmetrically distributed up and down;
the upper roller set consisting of a plurality of upper brush rollers (2) and the lower roller set consisting of a plurality of lower brush rollers (4) are parallel to each other and are provided with reserved clearance channels.
7. The spray-type brush apple cleaning machine according to claim 6, wherein the spray pipe (3) and the spray head (5) are located directly above the upper brush roller (2).
