CN211813913U - A new type of ozone disinfection device - Google Patents

Abstract

The utility model discloses a novel ozone disinfection device, which comprises an installation shell, a filter plate is installed inside the installation shell, an ozone generator is installed on the left side wall of the installation shell, and the right side of the ozone generator communicates with each other There is a connecting pipe, the connecting pipe penetrates the outer wall of the installation shell and extends to the inside of the installation shell, a motor is installed on the right side of the installation shell, and a main rod is fixedly connected to the output end of the motor, and the main rod is installed through the installation. The outer wall of the shell extends to the inside of the installation shell, and the outer wall of the main rod is fixedly connected with a plurality of stirring rods, which effectively improves the disinfection efficiency and effect of the equipment. The resulting sewage will not cause secondary pollution, which solves the problem that most of the existing ozone disinfection devices cannot control the pH of the sewage, causing the sewage to be acidic or alkaline after disinfection, and the disinfection effect is not good, the disinfection efficiency is low, and the use is affected. .

Description

A new type of ozone disinfection device

technical field

The utility model relates to the technical field of sterilization and disinfection, in particular to a novel ozone disinfection device.

Background technique

Ozone destroys the structure of microbial membranes by the oxidation of oxygen atoms to achieve bactericidal effect. The inactivation reaction of ozone to bacteria is always very rapid. Unlike other fungicides, ozone can react with the double bond of bacterial cell wall lipids, penetrate into the interior of the bacteria, act on proteins and lipopolysaccharides, and change the cell's permeability, leading to bacterial death.

Most of the existing ozone disinfection devices cannot control the acidity and alkalinity of sewage, resulting in that the sewage is still acidic or alkaline after disinfection, and the disinfection effect is not good, and the disinfection efficiency is low, which affects the use.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a new type of ozone disinfection device, which solves the problem that most of the existing ozone disinfection devices cannot control the acidity and alkalinity of sewage, resulting in that the sewage is still acidic or alkaline after disinfection, and the disinfection effect is not good , Disinfection efficiency is low, affecting the use of the problem.

(2) Technical solutions

In order to achieve the above purpose, the present invention provides the following technical solutions: a novel ozone disinfection device, comprising an installation shell, a filter plate is installed inside the installation shell, and an ozone generator is installed on the left side wall of the installation shell, so The right side of the ozone generator is communicated with a connecting pipe, the connecting pipe penetrates the outer wall of the installation shell and extends to the inside of the installation shell, the right side of the installation shell is installed with a motor, and the output end of the motor is fixedly connected with a main motor. rod, the main rod penetrates the outer wall of the installation shell and extends to the inside of the installation shell, the outer wall of the main rod is fixedly connected with a plurality of stirring rods, and the left and right sides of the installation shell are respectively installed with symmetrically distributed acid dosing The acidic dosing device and the alkaline dosing device are respectively located above the ozone generator and the motor.

In order to preliminarily filter impurities in water, it is preferable as a novel ozone disinfection device in this embodiment: a filter layer is installed inside the installation shell, the filter layer includes an activated carbon layer, and the lower end surface of the activated carbon layer is attached and connected with a A quartz sand layer, the lower end surface of the quartz sand layer is attached and connected with biological cotton.

In order to discharge the impurity sludge, it is preferable as a new type of ozone disinfection device in this embodiment: a sludge pump is installed on the right side of the installation shell, and the bottom of the sludge pump and the upper end surface of the filter plate are in a horizontal line, The left side of the sludge pump is connected with a sewage pipe, the end of the sewage pipe away from the sludge pump penetrates the outer wall of the installation shell and extends to the inside of the installation shell, and the right side of the sludge pump is installed with a sewage outlet.

In order to facilitate the water intake and drainage of the equipment, it is preferable as a novel ozone disinfection device in this embodiment: a water inlet is installed on the upper end face of the installation shell, and a water outlet is installed on the right side wall of the installation shell, and the water outlet is located at Below the motor, solenoid valves are arranged inside the water inlet and the water outlet.

In order to filter impurities with larger particles, it is preferable as a novel ozone disinfection device of this embodiment: the upper end face of the filter plate is provided with a plurality of evenly distributed filter holes.

In order to use ultraviolet sterilization and disinfection, as a novel ozone disinfection device of the present embodiment, it is preferable that a plurality of ultraviolet lamps are installed at the inner bottom of the installation shell, and a pH detector is installed on the left side of the inside of the installation shell.

In order to facilitate the control of equipment, it is preferred as a novel ozone disinfection device in this embodiment: a control panel is installed on the left side of the installation shell, the control panel is located above the acid dosing device, and the control panel is connected to the motor, The ozone generator, pH detector, UV lamp and sludge pump are electrically connected.

In order to improve the stability and safety of the equipment, it is preferable as a novel ozone disinfection device of this embodiment: the lower end surface of the installation shell is installed with legs, and the outer wall of the installation shell is installed with a monitoring window.

(3) Beneficial effects

The utility model provides a novel ozone disinfection device, which has the following beneficial effects:

(1) The ozone generator is connected with a discharge pipe, which is connected with the inside of the installation shell, and ozone is introduced to sterilize the sewage. Thus, the acidity and alkalinity of sewage can be flexibly controlled. By setting the stirring rod, starting the motor, the rotation of the motor drives the main rod and the stirring rod to rotate, and the raw water is stirred, so that the acid and alkali medicines are mixed with the sewage more uniformly.

(2) The device effectively improves the disinfection efficiency and effect of the equipment through various disinfection methods such as ultraviolet light, ozone disinfection and filter layer. secondary pollution.

Description of drawings

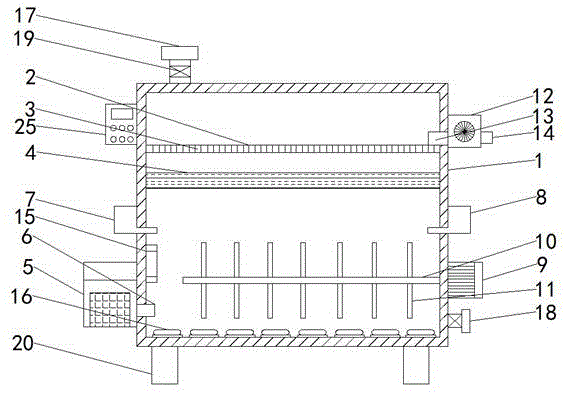

Fig. 1 is the overall internal structure diagram of the utility model;

Fig. 2 is the overall external structure diagram of the utility model;

Fig. 3 is the filter layer structure schematic diagram of the present utility model;

In the figure: 1. Installation shell; 2. Filter plate; 3. Filter hole; 4. Filter layer; 5. Ozone generator; 6. Connecting pipe; 7. Acid dosing device; 8. Alkaline dosing device; 9 , motor; 10, main rod; 11, stirring rod; 12, sludge pump; 13, sewage pipe; 14, sewage outlet; 15, PH detector; 16, ultraviolet lamp; 17, water inlet; 18, water outlet; 19. Solenoid valve; 20. Outrigger; 21. Monitoring window; 22. Activated carbon layer; 23. Quartz sand layer; 24. Bio-cotton; 25. Control panel.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-3, the present utility model provides a technical solution: a novel ozone disinfection device, comprising a mounting shell 1, a filter plate 2 is mounted inside the mounting shell 1, and ozone is mounted on the left side wall of the mounting shell 1 The generator 5, the right side of the ozone generator 5 is connected with a connecting pipe 6, the connecting pipe 6 penetrates the outer wall of the installation shell 1 and extends to the interior of the installation shell 1, the right side of the installation shell 1 is installed with a motor 9, and the output of the motor 9 The end is fixedly connected with a main rod 10, the main rod 10 penetrates the outer wall of the installation shell 1 and extends to the interior of the installation shell 1, the outer wall of the main rod 10 is fixedly connected with a plurality of stirring rods 11, and the left and right sides of the installation shell 1 are respectively installed with Symmetrically distributed acid dosing device 7 and alkaline dosing device 8 are located above ozone generator 5 and motor 9 respectively.

In this embodiment, by setting the filter plate 2, the raw water enters the installation shell 1 through the water inlet 17. When the raw water passes through the filter plate 2, impurities with larger particles in the raw water are filtered above the filter plate 2, and other raw water passes through the filter plate 2. The filter hole 3 on the upper end surface flows into the bottom, and the external pipeline is connected with the sewage outlet 14, and the sludge pump 12 is started. The raw water is filtered once, by setting the ozone generator 5, the ozone generator 5 is connected with a discharge pipe, and the discharge pipe is communicated with the inside of the installation shell 1, and the ozone is introduced to sterilize the sewage, and the acidic dosing device 7 and the alkaline dosing device are installed. 8. It is convenient to add acid and alkali chemicals to the raw water, so as to flexibly control the pH of the sewage. By setting the stirring rod 11, start the motor 9, and the rotation of the motor 9 drives the main rod 10 and the stirring rod 11 to rotate to stir the raw water, so that the acid Alkaline drugs are more evenly mixed with sewage.

In order to use a new technical optimization scheme of the present invention, a filter layer 4 is installed inside the installation shell 1, and the filter layer 4 includes an activated carbon layer 22. The lower end surface of the activated carbon layer 22 is attached and connected with a quartz sand layer 23. The lower end face is attached and connected with the biological cotton 24 .

In this embodiment, the activated carbon layer 22 , the quartz sand layer 23 , and the biological cotton 24 have the functions of adsorbing, filtering, and buffering the water flow to the water body, thereby improving the sewage filtering effect.

In order to use a new technical optimization scheme of the present invention, a sludge pump 12 is installed on the right side of the installation shell 1, the bottom of the sludge pump 12 and the upper end surface of the filter plate 2 are on a horizontal line, and the left side of the sludge pump 12 is connected with a The sewage pipe 13, one end of the sewage pipe 13 away from the sludge pump 12 penetrates the outer wall of the installation casing 1 and extends to the interior of the installation casing 1, and a sewage outlet 14 is installed on the right side of the sludge pump 12.

In this embodiment, the external pipe is connected to the sewage outlet 14, the sludge pump 12 is activated, and the sludge pump pulls the impurity sludge out of the installation shell 1 through the sewage pipe 13, so as to prevent clogging of the filter plate 2 and facilitate the next filtration of raw water .

In order to use a new technical optimization scheme of the present invention, the upper end surface of the installation shell 1 is installed with a water inlet 17, and the right side wall of the installation shell 1 is installed with a water outlet 18. The water outlet 18 is located below the motor 9. The water inlet 17 and the outlet Solenoid valves 19 are provided inside the nozzles 18 .

In this embodiment, it is convenient to control the opening and closing of the water inlet 17 and the water outlet 18 by setting the solenoid valve 19, which is flexible and convenient to use.

In order to use a new technical optimization solution of the present invention, the upper end surface of the filter plate 2 is provided with a plurality of evenly distributed filter holes 3 .

In this embodiment, when the raw water passes through the filter plate 2 , impurities with larger particles in the raw water are filtered above the filter plate 2 , and other raw water flows downward through the filter holes 3 on the upper end surface of the filter plate 2 .

In order to use a new technical optimization solution of the present invention, a plurality of ultraviolet lamps 16 are installed at the inner bottom of the installation case 1 , and a pH detector 15 is installed in the left side of the installation case 1 .

In this embodiment, the ultraviolet lamp 16 is used for ultraviolet sterilization and disinfection of the sewage, and the pH detector is used to detect the acidity and alkalinity of the sewage inside the equipment.

In order to use a new type of technical optimization solution, a control panel 25 is installed on the left side of the installation shell 1. The control panel 25 is located above the acid dosing device 7. The control panel 25 is connected with the motor 9, the ozone generator 5, and the pH detection The device 15 , the ultraviolet lamp 16 and the sludge pump 12 are electrically connected.

In this embodiment, the opening and closing of the motor 9 and the sludge pump 12 are controlled by the control panel 25 , which is convenient to control, and the value detected by the pH detector 15 can be observed through the display on the control panel 25 .

In order to use a new technical optimization solution of the present invention, a leg 20 is installed on the lower end surface of the installation shell 1 , and a monitoring window 21 is installed on the outer wall of the installation shell 1 .

In this embodiment, the equipment is supported by the outriggers 20 to improve the stability and safety of the equipment, and the monitoring window 21 is used to facilitate the user to observe the working conditions inside the equipment.

When in use, the sewage to be disinfected is introduced into the installation shell 1 through the water inlet 17. When the raw water passes through the filter plate 2, the impurities with larger particles in the raw water are filtered above the filter plate 2, and other raw water passes through the filter plate 2. The filter hole 3 flows into the bottom, and the external pipeline is connected to the sewage outlet 14, and the sludge pump 12 is started. Raw water, then, the raw water passes through the filter layer 4, the activated carbon layer 22, the quartz sand layer 23, and the biological cotton 24 to absorb and filter the water body and buffer the water flow, which improves the sewage filtration effect. The ozone generator 5 is connected with a discharge pipe to discharge The pipe is communicated with the interior of the installation shell 1, and ozone is introduced to sterilize the sewage, and then the acid dosing device 7 and the alkaline dosing device 8 are added to add acid and alkali drugs to the raw water, and then the motor 9 is started. The rod 10 and the stirring rod 11 are rotated to stir the raw water, so that the acid and alkali medicines are mixed with the sewage more evenly. The control panel 25 turns on the ultraviolet lamp 16 to sterilize the raw water, and turns on the PH detector 15 to facilitate the detection of the pH of the raw water inside the equipment. , to facilitate the disinfection work.

It should be noted that, herein, the terms "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion, such that a process, method, article or device comprising a series of elements includes not only those elements, It also includes other elements not expressly listed or inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A novel ozone disinfection device, comprising a mounting shell (1), characterized in that: a filter plate (2) is mounted inside the mounting shell (1), and a left side wall of the mounting shell (1) is mounted with a an ozone generator (5), the right side of the ozone generator (5) is communicated with a connecting pipe (6), the connecting pipe (6) penetrates the outer wall of the mounting shell (1) and extends to the outer wall of the mounting shell (1) Inside, a motor (9) is installed on the right side of the mounting shell (1), and a main rod (10) is fixedly connected to the output end of the motor (9), and the main rod (10) penetrates the mounting shell (1) The outer wall of the main rod (10) extends to the inside of the installation shell (1), a plurality of stirring rods (11) are fixedly connected to the outer wall of the main rod (10), and symmetrically distributed An acid dosing device (7) and an alkaline dosing device (8), the acid dosing device (7) and the alkaline dosing device (8) are respectively located above the ozone generator (5) and the motor (9) . 2. A novel ozone disinfection device according to claim 1, characterized in that: a filter layer (4) is installed inside the installation shell (1), and the filter layer (4) comprises an activated carbon layer (22) A quartz sand layer (23) is attached and connected to the lower end surface of the activated carbon layer (22), and biological cotton (24) is attached and attached to the lower end surface of the quartz sand layer (23). 3. A new type of ozone disinfection device according to claim 1, characterized in that: a sludge pump (12) is installed on the right side of the installation shell (1), and the bottom of the sludge pump (12) is connected to the The upper end surface of the filter plate (2) is on a horizontal line, the left side of the sludge pump (12) is connected with a sewage pipe (13), and the end of the sewage pipe (13) away from the sludge pump (12) penetrates the installation shell The outer wall of (1) extends to the inside of the installation shell (1), and a sewage outlet (14) is installed on the right side of the sludge pump (12). 4. A new type of ozone disinfection device according to claim 1, characterized in that: a water inlet (17) is installed on the upper end surface of the installation shell (1), and a right side wall of the installation shell (1) is installed There is a water outlet (18), the water outlet (18) is located below the motor (9), and a solenoid valve (19) is provided inside the water inlet (17) and the water outlet (18). 5 . The novel ozone disinfection device according to claim 1 , wherein a plurality of evenly distributed filter holes ( 3 ) are opened on the upper end surface of the filter plate ( 2 ). 6 . 6. A new type of ozone disinfection device according to claim 1, characterized in that: a plurality of ultraviolet lamps (16) are installed at the inner bottom of the installation shell (1), and the inner left of the installation shell (1) A pH detector (15) is installed on the side. 7. A new type of ozone disinfection device according to claim 6, characterized in that: a control panel (25) is installed on the left side of the installation shell (1), and the control panel (25) is located in the acid dosing device Above (7), the control panel (25) is electrically connected with the motor (9), the ozone generator (5), the pH detector (15), the ultraviolet lamp (16) and the sludge pump (12). 8. A new type of ozone disinfection device according to claim 1, characterized in that: the lower end surface of the installation shell (1) is installed with legs (20), and the outer wall of the installation shell (1) is installed with monitoring Windows (21).
