CN211805339U

CN211805339U - Grinding device is used in production of fluorite ore deposit handicraft with sewage treatment structure

Info

Publication number: CN211805339U
Application number: CN202020274033.6U
Authority: CN
Inventors: 吴美华
Original assignee: Jinhua Jinying Mining Co Ltd
Current assignee: Jinhua Jinying Mining Co Ltd
Priority date: 2020-03-09
Filing date: 2020-03-09
Publication date: 2020-10-30
Anticipated expiration: 2030-03-09

Abstract

The utility model discloses a grinding device is used in production of fluorite ore deposit handicraft with sewage treatment structure, including support, driving motor and water pump, the storage water tank is installed to the below of support, and the bottom vertical fixation of storage water tank has the support column, the mid-mounting of filter screen has the dead lever, the fixed plate is installed to the top of support, and installs driving motor in the left side of fixed plate, first fluting has been seted up to the side of fixed plate, and the second fluting has been seted up at the upper surface middle part of fixed plate. This grinding device is used in production of fluorite ore deposit handicraft with sewage treatment structure is provided with the slider of support column, filter screen and "mouth" font structure, conveniently drenches the lime sewage that drops through the filter screen and filters, and the filter screen constitutes sliding structure through the slider of its avris and storage water tank simultaneously, conveniently takes out the filter screen, and then makes things convenient for the processing of its surface dirt, improves the device's result of use.

Description

Grinding device is used in production of fluorite ore deposit handicraft with sewage treatment structure

Technical Field

The utility model relates to a fluorite ore related art field specifically is a grinding device is used in fluorite ore deposit handicraft production with sewage treatment structure.

Background

The fluorite ore is used for manufacturing the cryolite and in the aluminum smelting industry, the fluorite ore handicraft is very popular with people due to the special material and exquisite appearance, and the grinding device is subjected to dust fall by a water spraying method in the production process of the fluorite ore handicraft;

the prior polishing device has the advantages that during production, the treatment of sewage formed by inconvenient moisture and dust is realized, the replacement of the polishing block is inconvenient, the polishing operation is not convenient enough, and the practicability is poor.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a grinding device is used in fluorite ore deposit handicraft production with sewage treatment structure to solve above-mentioned background art and propose current grinding device when production, the processing of the sewage that inconvenient moisture and dust constitute, and the change of inconvenient sanding block, and the operation of just polishing is convenient inadequately, the relatively poor problem of practicality.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a grinding device is used in production of fluorite ore deposit handicraft with sewage treatment structure, includes support, driving motor and water pump, the storage water tank is installed to the below of support, and the bottom vertical fixation of storage water tank has the support column to the top of support column is provided with the filter screen, the mid-mounting of filter screen has the dead lever, the fixed plate is installed to the top of support, and the left side of fixed plate installs driving motor, and driving motor's output is connected with first splint, the right side threaded connection of fixed plate has the threaded rod, and the left end of threaded rod rotates and is connected with the second splint, the right side fixed mounting of support has the water pump, and the one end of water pump is put through with the bottom of storage water tank to the upper end and the aqueduct of water pump are put through, aqueduct rigid connection is on the right side of fixed plate, the movable telescopic rod is installed above the fixed plate, the polishing block is connected below the movable telescopic rod, a limiting rod is fixed to the side face of the upper rod body of the movable telescopic rod, a first groove is formed in the side face of the fixed plate, and a second groove is formed in the middle of the upper surface of the fixed plate.

Preferably, the outer end face of the filter screen is fixed with a sliding block in a structure like a Chinese character 'kou', the filter screen is located in the middle of the water storage tank, the filter screen and the water storage tank form a sliding structure through the sliding block, and meanwhile, the upper portion of the water storage tank is in an opening structure.

Preferably, the first clamping plate and the second clamping plate have the same structure, and both of the first clamping plate and the second clamping plate have a concave structure, and the first clamping plate and the second clamping plate are arranged correspondingly.

Preferably, the water collecting plate is of a frame-shaped structure, the water outlet plate is integrally arranged below the water collecting plate and is of an inclined structure, and the water outlet plate is symmetrically arranged about the central axis of the water collecting plate.

Preferably, the lower part of the movable telescopic rod is of a Y-shaped structure, and the lower part of the movable telescopic rod and the polishing block form a disassembly and assembly structure through a fastening bolt.

Preferably, the limiting rod and the movable telescopic rod form a cross-shaped structure, and the movable telescopic rod and the first open slot and the second open slot on the surface of the fixed plate form a slidable rotating structure through the limiting rod.

Compared with the prior art, the beneficial effects of the utility model are that: the polishing device for producing the fluorite ore artware with the sewage treatment structure;

(1) the lime sewage falling from the water tank is conveniently filtered through the filter screen, the lime sewage is convenient to reuse after water is filtered, meanwhile, the filter screen is supported through the support column, and the filter screen and the water tank form a sliding structure through the slide block on the side of the filter screen, so that the filter screen is convenient to take out, further, the treatment of dust and dirt on the surface of the filter screen is convenient, and the using effect of the device is improved;

(2) the movable telescopic rod and the fastening bolt with the lower ends in the Y-shaped structures are arranged, so that the fixed installation of the polishing block can be facilitated through the fastening bolt, the replacement operation of the polishing block is facilitated, and the use convenience of the device is improved;

(3) be provided with gag lever post, first fluting and second fluting, can conveniently slide on first fluting through removing movable telescopic link, make things convenient for the regulation of position about the sanding block under the spacing of gag lever post, rotatable activity telescopic link simultaneously makes things convenient for the regulation of sanding block angle, improves the convenience of the device operation.

Drawings

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic view of the top view structure of the water storage tank of the present invention;

FIG. 3 is a schematic side view of the movable telescopic rod of the present invention;

FIG. 4 is a schematic view of the water collecting plate according to the present invention;

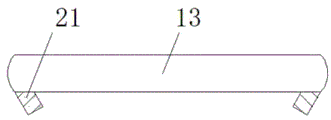

fig. 5 is a schematic sectional view of the water collecting plate of the present invention.

In the figure: 1. a support; 2. a water storage tank; 3. a support pillar; 4. a filter screen; 5. fixing the rod; 6. a fixing plate; 7. a drive motor; 8. a first splint; 9. a threaded rod; 10. a second splint; 11. a water pump; 12. a water conduit; 13. a water collection plate; 14. a movable telescopic rod; 15. grinding blocks; 16. a limiting rod; 17. a first slot; 18. fastening a bolt; 19. a slider; 20. a water outlet plate; 21. and a second slot.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: a polishing device with a sewage treatment structure for producing fluorite mine artware comprises a support 1, a water storage tank 2, a support column 3, a filter screen 4, a fixing rod 5, a fixing plate 6, a driving motor 7, a first clamping plate 8, a threaded rod 9, a second clamping plate 10, a water pump 11, a water guide pipe 12, a water collecting plate 13, a movable telescopic rod 14, a polishing block 15, a limiting rod 16, a first slot 17, a fastening bolt 18, a sliding block 19, a water outlet plate 20 and a second slot 21, wherein the water storage tank 2 is arranged below the support 1, the support column 3 is vertically fixed at the bottom of the water storage tank 2, the filter screen 4 is arranged above the support column 3, the fixing rod 5 is arranged in the middle of the filter screen 4, the fixing plate 6 is arranged above the support 1, the driving motor 7 is arranged on the left side of the fixing plate 6, the output end of the driving motor 7 is connected with the first clamping plate 8, and the left end of threaded rod 9 rotates and is connected with second splint 10, the right side fixed mounting of support 1 has water pump 11, and the bottom of one end and storage water tank 2 of water pump 11 is put through, and the upper end and the aqueduct 12 of water pump 11 are put through mutually, aqueduct 12 rigid connection is on the right side of fixed plate 6, and the end and the water-collecting plate 13 of aqueduct 12 are put through mutually, movable telescopic link 14 is installed to the top of fixed plate 6, and the below of movable telescopic link 14 is connected with sanding block 15, and the last body of rod side of movable telescopic link 14 is fixed with stopper rod 16, first fluting 17 has been seted up to the side of fixed plate 6, and the second fluting 21 has been seted up in the.

As shown in fig. 1 and 2, a sliding block 19 in a shape like a Chinese character 'kou' is fixed on the outer end surface of the filter screen 4, the filter screen 4 is located in the middle of the water storage tank 2, the filter screen 4 and the water storage tank 2 form a sliding structure through the sliding block 19, meanwhile, the upper portion of the water storage tank 2 is in an opening-shaped structure, so that sewage can be conveniently filtered and dirt can be conveniently discharged, as shown in fig. 1, the first clamping plate 8 and the second clamping plate 10 are in the same structure, and both are in a 'concave' structure, and the first clamping plate 8 and the second clamping plate 10 are correspondingly arranged, so that the fluorite mineral artware can be conveniently limited and fixed, as shown in fig. 1, 4 and 5, the water collection plate 13 is in a frame-shaped structure, and the water outlet plate 20 is integrally arranged below the water collection plate 13, and the water outlet plate 20 is in an inclined structure, and meanwhile, the water outlet plate 20 is symmetrically arranged about.

Like the below of the movable telescopic rod 14 in fig. 1 and fig. 3 be "Y" font structure, and the below of the movable telescopic rod 14 constitutes through fastening bolt 18 and sanding block 15 and dismantles the mounting structure, make things convenient for the change of sanding block 15, gag lever post 16 constitutes "ten" font structure with movable telescopic rod 14, and movable telescopic rod 14 passes through gag lever post 16 and fixed plate 6 surperficial first fluting 17 and second fluting 21 constitution slidable rotating-structure, make things convenient for the regulation of sanding block 15 position and angle.

The working principle is as follows: firstly, when in use, the fluorite mineral handicraft to be polished is placed between a first clamping plate 8 and a second clamping plate 10, the threaded rod 9 is rotated to drive the second clamping plate 10 to move leftwards to extrude the fluorite mineral handicraft, the position limitation of the fluorite mineral handicraft is facilitated, then the water pump 11 is started to discharge the water at the bottom of the water storage tank 2 into the water collection plate 13 through the water guide pipe 12 by the water pump 11, the water is conveniently discharged onto the fluorite mineral handicraft through the inclined water outlet plate 20 on the surface of the water collection plate 13, when in polishing, the dust is discharged into the water storage tank 2 below through the water spray, the dust is conveniently isolated through the filter screen 4 inside the water storage tank 2, the sliding structure is formed by the slide block 19 on the surface of the filter screen 4 and the water storage tank 2, the filter screen 4 is conveniently slid to drive the dust, the sewage treatment is further facilitated, the water recycling is facilitated, when polishing, the accessible slides movable telescopic link 14, make the 14 surperficial gag lever post 16 of movable telescopic link slide on the first fluting 17 in fixed plate 6 surface, make things convenient for the regulation of position about movable telescopic link 14, movable telescopic link 14 passes through gag lever post 16 and constitutes revolution mechanic with the second fluting 21 on fixed plate 6 surface simultaneously, the fine setting of 14 angles of movable telescopic link has been made things convenient for, the convenience of the device operation is improved, fastening bolt 18 and polishing piece 15 constitution are passed through to the bottom of movable telescopic link 14 and are dismantled the mounting structure, the change of polishing piece 15 has been made things convenient for, this is this the fluorspar mineral handicraft production with sewage treatment structure uses the theory of grinding device, the content that does not make detailed description in this specification belongs to the prior art that technical personnel know in the field.

The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connected mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt among the prior art, and conventional model, including the conventional connected mode among the circuit connection adoption prior art, and the details are not repeated here, and the content that does not make detailed description in this description belongs to the prior art that skilled person in the art knows.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a grinding device is used in production of fluorite ore deposit handicraft with sewage treatment structure, includes support (1), driving motor (7) and water pump (11), its characterized in that: the water storage tank (2) is installed below the support (1), the support column (3) is vertically fixed to the bottom of the water storage tank (2), the filter screen (4) is arranged above the support column (3), the fixing rod (5) is installed in the middle of the filter screen (4), the fixing plate (6) is installed above the support (1), the driving motor (7) is installed on the left side of the fixing plate (6), the output end of the driving motor (7) is connected with the first clamping plate (8), the threaded rod (9) is connected to the right side of the fixing plate (6) in a threaded mode, the second clamping plate (10) is connected to the left end of the threaded rod (9) in a rotating mode, the water pump (11) is fixedly installed on the right side of the support (1), one end of the water pump (11) is communicated with the bottom of the water storage tank (2), and the upper end of the, aqueduct (12) rigid connection is on the right side of fixed plate (6), and the end of aqueduct (12) is put through with water-collecting plate (13) mutually, movable telescopic link (14) is installed to the top of fixed plate (6), and the below of movable telescopic link (14) is connected with sanding block (15) to the last body of rod side of movable telescopic link (14) is fixed with spacing pole (16), first fluting (17) have been seted up to the side of fixed plate (6), and second fluting (21) have been seted up at the upper surface middle part of fixed plate (6).

2. The polishing device for producing fluorite mineral handicraft with sewage treatment structure as set forth in claim 1, wherein: the outer end face of filter screen (4) is fixed with slider (19) that is "mouth" font structure, and filter screen (4) are located the middle part of storage water tank (2) to filter screen (4) constitute sliding construction through slider (19) and storage water tank (2), and the top of storage water tank (2) is opening column structure simultaneously.

3. The polishing device for producing fluorite mineral handicraft with sewage treatment structure as set forth in claim 1, wherein: the structure of the first clamping plate (8) is the same as that of the second clamping plate (10), the first clamping plate and the second clamping plate are both in a concave structure, and the first clamping plate (8) and the second clamping plate (10) are correspondingly arranged.

4. The polishing device for producing fluorite mineral handicraft with sewage treatment structure as set forth in claim 1, wherein: the water collecting plate (13) is of a frame-shaped structure, the water outlet plate (20) is integrally arranged below the water collecting plate (13), the water outlet plate (20) is of an inclined structure, and the water outlet plate (20) is symmetrically arranged relative to the central axis of the water collecting plate (13).

5. The polishing device for producing fluorite mineral handicraft with sewage treatment structure as set forth in claim 1, wherein: the lower part of the movable telescopic rod (14) is of a Y-shaped structure, and the lower part of the movable telescopic rod (14) and the polishing block (15) form a disassembly and assembly structure through a fastening bolt (18).

6. The polishing device for producing fluorite mineral handicraft with sewage treatment structure as set forth in claim 1, wherein: the limiting rod (16) and the movable telescopic rod (14) form a cross-shaped structure, and the movable telescopic rod (14) and the first open slot (17) and the second open slot (21) on the surface of the fixing plate (6) form a slidable rotating structure through the limiting rod (16).
