CN211801825U - Paint spraying device for plastic-wood floor - Google Patents

Abstract

The utility model relates to the technical field of mechanical equipment, and discloses a paint spraying device for plastic wood floors, which comprises a base, a bracket is fixedly connected to the top surface of the base, and a chassis is fixedly connected to the right side of the top surface of the bracket, the chassis is The right side of the bottom surface of the inner cavity is fixedly connected with the first motor, and the output shaft of the first motor is fixedly sleeved with an oval plate, the left side of the inner cavity of the case is fixedly connected with an elastic piece, and one end of the elastic piece is fixedly connected with a Connector. The utility model uses the interaction between the elliptical plate and the pulley to drive the pulley to move by moving the spraying point of the spraying equipment, and the moving pulley drives the spray head to move through the transmission structure to spray the wood, so as to avoid the spraying of the equipment. The point is fixed and cannot be moved, resulting in a relatively slow speed of painting, resulting in low painting efficiency and time wasting. It saves time while improving painting efficiency.

Description

A paint spraying device for plastic wood floor

technical field

The utility model relates to the technical field of mechanical equipment, in particular to a paint spraying device for plastic wood floors.

Background technique

The plastic wood floor is made of plastic as raw material, by adding wood powder, rice husk, straw and other waste plant fibers and mixing it into a new wood material, and then through extrusion, molding, injection molding and other plastic processing processes, the board or profile produced, The plastic wood floor has good moisture and water resistance, acid and alkali resistance, anti-fungal, anti-static, anti-moth-eaten and other properties, and can be recycled again. It can be called an environmentally friendly and energy-saving product in the true sense. It is necessary to use a paint sprayer to protect the surface of the board with paint.

In the process of spraying the wood with the spraying device, because the spraying point of the conventional spraying equipment is fixed and cannot be moved, the speed of spraying is relatively slow, resulting in low spraying efficiency and time waste. In the process of painting, the equipment often does not fix the wood board, which causes the wood board to move at will in the process of painting, resulting in the problem of inability to guarantee the quality of painting and waste of cost. Now a painting device for plastic wood floors is introduced.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a paint spraying device for plastic wood floors, which has the advantages of high efficiency, time saving, guaranteed paint quality and cost savings, and solves the problems raised in the above background art.

The utility model provides the following technical solutions: a paint spraying device for plastic wood floor, comprising a base, a bracket is fixedly connected to the top surface of the base, and a chassis is fixedly connected to the right side of the top surface of the bracket, and a bottom surface of the inner cavity of the chassis is fixedly connected. The right side is fixedly connected with the first motor, and the output shaft of the first motor is fixedly sleeved with an elliptical plate, the left side of the inner cavity of the case is fixedly connected with an elastic piece, and one end of the elastic piece is fixedly connected with a connector, so A pulley is movably connected to the connecting head, a telescopic rod is fixedly connected to the side of the connecting head, a sliding rail is fixedly connected to the inner cavity of the bracket, and a sliding block is slidably connected to the sliding rail, and the bottom surface of the sliding block is fixed There is a nozzle attached to the socket.

Selected, the top surface of the base is fixedly connected to the limit plate, and the front of the limit plate is fixedly connected with a screw, the inside of the screw is screwed with a screw, and one end of the screw extends to the back of the limit plate. A knob is fixedly connected, a moving plate is fixedly connected to the other end of the screw, and a guide rail is slidably connected to the bottom surface of the moving plate, and the guide rail is fixedly connected to the top surface of the base.

Selected, the top surface of the base is fixedly connected with a fixed plate located on the front of the moving plate, the right side of the top surface of the fixed plate is fixedly connected with a fixed frame, and the bottom surface of the fixed frame is fixedly connected with a second motor, and the first The output shaft of the second motor is fixedly sleeved with a driving wheel, the bottom surface of the driving wheel is fixedly connected with a transmission rod, and one end of the transmission rod is fixedly connected with a roller.

Selected, a compressor is fixedly connected to the left side of the top surface of the bracket, and a paint box is fixedly connected to the output end of the compressor, the paint box is fixedly connected to the bracket, and the bottom end of the paint box is fixedly connected to a paint box. A conduit, one end of the conduit extends into the slider and is fixedly connected to the spray head.

Optionally, the pulley is provided with anti-skid lines, and the pulley is slidably connected to the elliptical plate.

Selected, a driven wheel is movably sleeved on the left side of the top surface of the fixed plate, and a belt is movably sleeved on the driven wheel, the driven wheel is connected with the driving wheel through the belt, and the bottom surface of the driven wheel is driven by The rod is connected with the roller drive.

Compared with the prior art, the utility model has the following beneficial effects:

1. The utility model uses the interaction between the elliptical plate and the pulley to move the pulley by moving the spraying point of the spraying equipment, and the moving pulley drives the nozzle to move through the transmission structure. The spraying point is fixed and cannot be moved, resulting in a relatively slow spraying speed, resulting in low spraying efficiency and waste of time. It saves time while improving spraying efficiency.

2. The utility model uses the interaction between the screw and the screw to drive the screw to move by fixing the wooden board that needs to be painted, and the moving screw drives the moving plate to move and the fixed board to fix the wooden board, so as to avoid equipment failure. Fixing the wooden board causes the wooden board to move at will during the painting process, resulting in the inability to guarantee the quality of the painting and the problem of wasting costs. The quality of the painting is guaranteed and the cost is saved.

Description of drawings

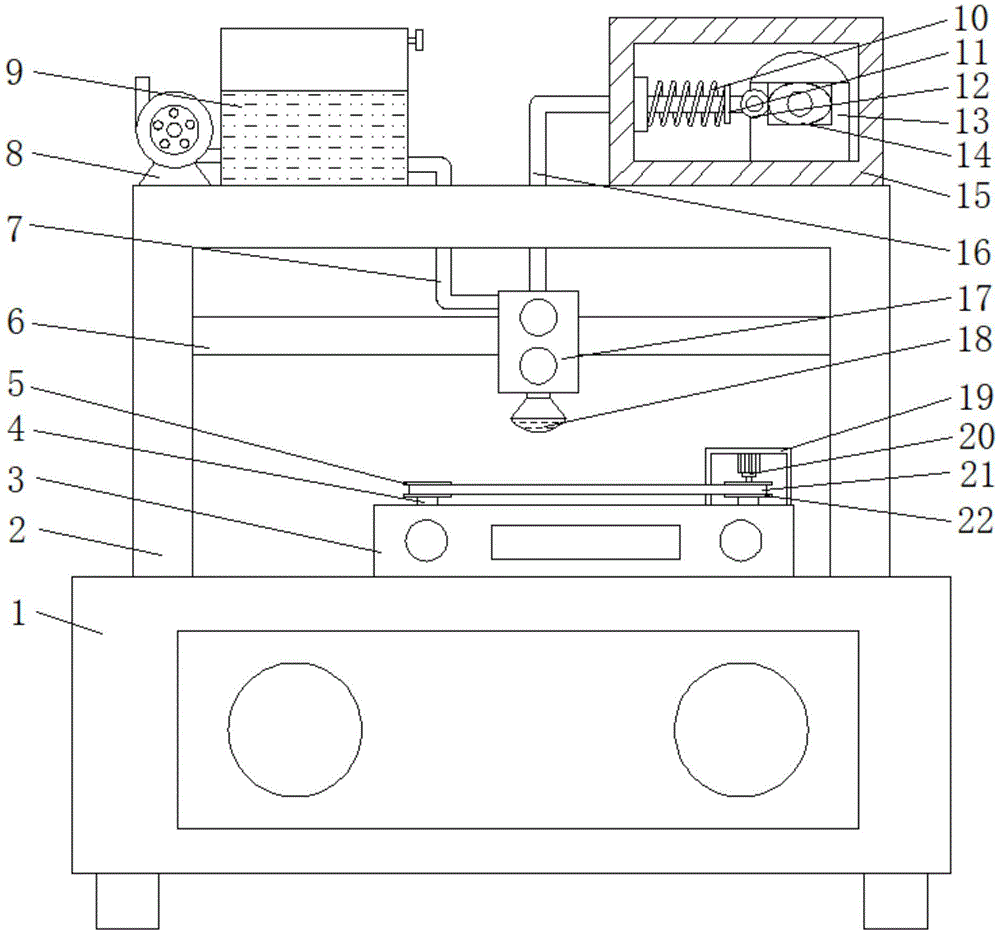

Fig. 1 is the structural representation of the utility model;

Figure 2 is a schematic side view of a structural base of the present invention.

In the figure: 1. Base; 2. Bracket; 3. Fixed plate; 4. Transmission rod; 5. Driven wheel; 6. Slide rail; 7. Conduit; 8. Compressor; 9. Paint box; 10. Elastic part; 11, connector; 12, pulley; 13, first motor; 14, oval plate; 15, chassis; 16, telescopic rod; 17, slider; 18, nozzle; 19, fixed frame; 20, second motor; 21 , belt; 22, driving wheel; 23, roller; 24, guide rail; 25, moving plate; 26, screw; 27, screw; 28, limit plate; 29, knob.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-2, a paint spraying device for plastic wood floor, including a base 1, a bracket 2 is fixedly connected to the top surface of the base 1, and a chassis 15 is fixedly connected to the right side of the top surface of the bracket 2, and the bottom surface of the inner cavity of the chassis 15 The right side of the casing 15 is fixedly connected with the first motor 13, and the output shaft of the first motor 13 is fixedly sleeved with an elliptical plate 14, the left side of the inner cavity of the chassis 15 is fixedly connected with an elastic member 10, and one end of the elastic member 10 is fixedly connected There is a connecting head 11, a pulley 12 is movably connected to the connecting head 11, the pulley 12 is provided with anti-skid lines, the pulley 12 is slidably connected with the elliptical plate 14, and the interaction between the elliptical plate 14 and the pulley 12 is used to drive the pulley 12 to move, The moving pulley 12 drives the spray head 18 to move and paint the wood board through the transmission structure, which avoids the problem that the spray point of the equipment is fixed and cannot be moved, resulting in a relatively slow painting speed, low painting efficiency and time waste. The painting efficiency saves time at the same time, the side of the connecting head 11 is fixedly connected with a telescopic rod 16, the inner cavity of the bracket 2 is fixedly connected with a slide rail 6, and the slide rail 6 is slidably connected with a slider 17. The bottom surface is fixedly sleeved with the spray head 18, the top surface of the base 1 is fixedly connected to the limit plate 28, and the front surface of the limit plate 28 is fixedly connected with a screw 27, and the inner screw 27 is screwed with a screw 26, using the screw 26 and the screw 27 The interaction between them drives the screw 26 to move, and the moving screw 26 drives the moving plate 25 to move and the fixed plate 3 to fix the wooden board, which prevents the equipment from not fixing the wooden board, causing the wooden board to move at will during the painting process, resulting in The quality of spray paint cannot be guaranteed, and the cost is wasted. The quality of spray paint is guaranteed and the cost is saved. One end of the screw 27 extends to the back of the limit plate 28 and is fixedly connected with the knob 29, and the other end of the screw 27 is fixedly connected with the moving plate 25. , and the bottom surface of the moving plate 25 is slidably connected with a guide rail 24, the guide rail 24 is fixedly connected to the top surface of the base 1, and the number of the guide rails 24 is two. The problem that the plate 25 is skewed reflects the stability of the structure. The top surface of the base 1 is fixedly connected to the fixed plate 3 located on the front of the moving plate 25, and the right side of the top surface of the fixed plate 3 is fixedly connected to the fixed frame 19. The bottom surface is fixedly connected with the second motor 20, and the output shaft of the second motor 20 is fixedly sleeved with a driving wheel 22, the bottom surface of the driving wheel 22 is fixedly connected with a transmission rod 4, and one end of the transmission rod 4 is fixedly connected with a roller 23, The number of rollers 23 is two, and the surface is provided with anti-skid patterns, so that the rollers 23 can be rotated to transport the wooden board, so that the wooden board can be moved forward for painting, which reflects the rationality of the structure. A driven wheel 5 is connected, and a belt 21 is movably connected to the driven wheel 5. The driven wheel 5 is connected with the driving wheel 22 through the belt 21, and the bottom surface of the driven wheel 5 is connected with the roller 23 through the transmission rod 4. The driving wheel 22 is provided with a groove that is adapted to the belt 21, and the groove is provided with anti-skid lines , so that the driving wheel 22 can drive the driven wheel 5 to rotate through the belt 21, thereby driving the roller 23 to rotate to paint the wooden board forward. The left side of the top surface of the bracket 2 is fixedly connected with the compressor 8, and the output end of the compressor 8 is fixed A paint box 9 is connected, the paint box 9 is fixedly connected to the bracket 2 , the bottom end of the paint box 9 is fixedly connected with a conduit 7 , and one end of the conduit 7 extends into the slider 17 and is fixedly connected to the spray head 18 .

Working principle: When using, place the wooden board between the fixed plate 3 and the moving plate 25, and then rotate the knob 29, the knob 29 drives the screw 26 to rotate, the screw 26 and the screw 27 act by the screw to move the screw 26, and the screw 26 drives the moving plate 25 moves on the guide rail 24, and the wooden board is fixed by the moving plate 25 and the fixed plate 3, and then the first motor 13 and the second motor 20 are started, and the compressor 8 presses air into the paint box 9, so that the paint box 9 is filled with air. The paint is sprayed from the nozzle 18 through the conduit 7, and the first motor 13 drives the elliptical plate 14 to rotate. When the long axis of the elliptical plate 14 is in contact with the pulley 12, it drives the pulley 12 to move left, and the pulley 12 drives the telescopic rod 16 to move left at the same time. The elastic member 10 is compressed to generate elastic force, the telescopic rod 16 drives the slider 17 to move left on the slide rail 6, and the slider 17 drives the spray head 18 to move left to spray paint. When the short axis of the elliptical plate 14 contacts the pulley 12, the elastic member 10 recovers. The elastic force drives the telescopic rod 16 to move to the right, and the telescopic rod 16 drives the spray head 18 to move to the right to spray paint, so as to spray the wood board in a cycle. At the same time, the second motor 20 drives the driving wheel 22 to rotate, and the driving wheel 22 drives the driven wheel through the belt 21. 5 rotates, the driving wheel 22 and the driven wheel 5 drive the roller 23 to rotate through the transmission rod 4, and the roller 23 rotates to drive the wooden board to move, so that the wooden board can be painted while moving forward.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Meanwhile, in the drawings of the present invention, the filling pattern is only for distinguishing the layers, and does not make any other limitation.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a mould wooden floor and use paint spraying apparatus, includes base (1), its characterized in that: the utility model discloses a portable electronic device, including base (1), top surface fixedly connected with support (2), and the right side fixedly connected with machine case (15) of support (2) top surface, the first motor (13) of right side fixedly connected with of machine case (15) inner chamber bottom surface, and fixed cover on the output shaft of first motor (13) has connect elliptical plate (14), the left side fixedly connected with elastic component (10) of machine case (15) inner chamber, and the one end fixedly connected with connector (11) of elastic component (10), swing joint has pulley (12) on connector (11), the side fixedly connected with telescopic link (16) of connector (11), the inner chamber fixedly connected with slide rail (6) of support (2), and slide rail (6) go up the sliding connection have slider (17), the fixed cover in bottom surface of slider (17) has connect shower nozzle (18).

2. The paint spraying apparatus for plastic wood flooring according to claim 1, wherein: the utility model discloses a portable computer, including base (1), top surface fixedly connected with limiting plate (28), and the front fixedly connected with screw (27) of limiting plate (28), the inside spiral of screw (27) has cup jointed screw rod (26), the one end of screw (27) extends to the back and fixedly connected with knob (29) of limiting plate (28), the other end fixedly connected with movable plate (25) of screw (27), and the bottom surface sliding connection of movable plate (25) has guide rail (24), guide rail (24) fixed connection is at the top surface of base (1).

3. The paint spraying apparatus for plastic wood flooring according to claim 1, wherein: the utility model discloses a movable plate, including base (1), movable plate (25), right side fixedly connected with mount (19) of fixed plate (3) top surface, and the bottom surface fixedly connected with second motor (20) of mount (19), and the fixed cover has been cup jointed on the output shaft of second motor (20) action wheel (22), the bottom surface fixedly connected with transfer line (4) of action wheel (22), and the one end fixedly connected with gyro wheel (23) of transfer line (4).

4. The paint spraying apparatus for plastic wood flooring according to claim 1, wherein: the left side fixedly connected with compressor (8) of support (2) top surface, and the output fixedly connected with paint box (9) of compressor (8), paint box (9) fixed connection is on support (2), the bottom fixedly connected with pipe (7) of paint box (9), the one end of pipe (7) extends to in slider (17) and fixed connection on shower nozzle (18).

5. The paint spraying apparatus for plastic wood flooring according to claim 1, wherein: the anti-skidding type road roller is characterized in that anti-skidding threads are formed in the pulley (12), and the pulley (12) is connected with the elliptical plate (14) in a sliding mode.

6. The paint spraying apparatus for plastic wood flooring according to claim 3, wherein: driven wheel (5) is movably sleeved on the left side of the top surface of the fixing plate (3), a belt (21) is movably sleeved on the driven wheel (5), the driven wheel (5) is in transmission connection with a driving wheel (22) through the belt (21), and the bottom surface of the driven wheel (5) is in transmission connection with a roller (23) through a transmission rod (4).
