Abstract

The utility model discloses a waste recycling equipment, comprising a box body, a first motor is fixedly connected to the bottom of the right side of the box body, and the left side of the output end of the first motor penetrates into the inner cavity of the box body and is fixed A pulverizing rod is connected, the surface of the pulverizing rod is fixedly sleeved with a pulverizing knife, and the pulverizing rod is movably connected to the left side of the inner cavity of the box. The utility model adopts a pulverizing rod, a pulverizing knife, a pulverizing tooth, a guide pipe, a feeding hopper, a dust inlet pipe, a rotating rod, a pulverizing roller, a first motor, a solenoid valve, a discharging pipe, a second motor, a fan, a vertical pipe, The combined use of the dust outlet pipe, the water inlet pipe, the dust collecting box and the ash outlet pipe can smash the concrete waste twice, and at the same time, it can collect the dust generated during the smashing process, which solves the smashing effect of the existing concrete waste recycling equipment. Not good, it is easy to cause incomplete crushing of concrete, and at the same time, a lot of dust will be generated during the crushing process.

Description

A waste recycling equipment

technical field

The utility model relates to the technical field of construction engineering, in particular to a waste recycling equipment.

Background technique

Construction engineering refers to the engineering entity formed through the construction of various housing buildings and their ancillary facilities and the installation of their supporting lines, pipelines, and equipment. And can form an internal space to meet the needs of people's production, living, learning, and public activities. Concrete needs to be used in the construction process. If the concrete waste is not recycled, it will cause waste of resources and cause pollution to the environment. The existing concrete waste recycling equipment has poor crushing effect, which is easy to cause incomplete crushing of concrete, and at the same time, a large amount of dust will be generated during the crushing process. Therefore, we provide a waste recycling equipment.

Utility model content

The purpose of the utility model is to provide a waste recycling equipment, which has the advantages of good recycling effect and dust removal, and solves the problem that the existing concrete waste recycling equipment has poor crushing effect, which is easy to cause incomplete crushing of concrete. There will be a lot of dust in the process.

In order to achieve the above purpose, the present invention provides the following technical solutions: a waste recycling equipment, comprising a box body, a first motor is fixedly connected to the bottom of the right side of the box body, and the left side of the output end of the first motor penetrates through A crushing rod is fixedly connected to the inner cavity of the box body, the surface of the crushing rod is fixedly sleeved with a crushing knife, the crushing rod is movably connected to the left side of the inner cavity of the box body, and the center of the bottom of the box body communicates with A discharge pipe, the middle end of the inner cavity of the box is horizontally fixedly connected with a guide plate, the center of the bottom of the guide plate is connected with a material guide pipe, the tops of both sides of the inner cavity of the box are fixedly connected with crushing teeth, the box Both sides of the top of the rear side of the body are fixedly connected with a second motor, the front side of the output end of the second motor penetrates into the inner cavity of the box body and is fixedly connected with a rotating rod, and the front side of the rotating rod is movably connected in the box body On the front side of the cavity, the surface of the rotating rod is fixedly sleeved with a pulverizing roller, the top of the box is connected with a feeding hopper, and the bottom of the rear side of the box is fixedly connected with a dust collecting box. The bottom of the dust collecting box is connected with an ash outlet pipe, the top of the rear side of the dust collecting box is connected with a water inlet pipe, the top of the dust collecting box is fixedly connected with a fan, and the air outlet end of the fan is connected with a dust outlet pipe. The end of the dust pipe away from the fan runs through to the bottom of the inner cavity of the dust collecting box, the air inlet end of the fan is connected with a vertical pipe, the top of the vertical pipe is connected with a guide pipe, and both ends of the guide pipe extend to the box Both ends of the body are connected with a dust inlet pipe, and the opposite side of the dust inlet pipe penetrates into the inner cavity of the box body.

Preferably, the bottom of the box body is fixedly connected with support legs, the number of the support legs is four, and they are respectively located at the four corners of the bottom of the box body.

Preferably, the left side of the crushing rod is movably connected with the left side of the inner cavity of the box through a bearing, and the inner cavity of the discharge pipe, the material guide pipe and the ash discharge pipe are all fixedly installed with solenoid valves.

Preferably, the number of the crushing knives is five groups, the number of each group of crushing knives is two, and the crushing knives are evenly sleeved on the surface of the crushing rod.

Preferably, two sides of the bottom of the inner cavity of the box and both sides of the bottom of the inner cavity of the dust collecting box are fixedly connected with guide plates, and the guide pipe is of a "U"-shaped structure.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model adopts the crushing rod, crushing knife, crushing teeth, guide pipe, feeding hopper, dust inlet pipe, rotating rod, crushing roller, first motor, solenoid valve, discharge pipe, second motor, fan, vertical The combined use of the pipe, the dust outlet pipe, the water inlet pipe, the dust collecting box and the ash outlet pipe can be used for secondary crushing of concrete waste, and at the same time, the dust generated during the crushing process can be collected, which solves the problem of the existing concrete waste recycling equipment. If the crushing effect is not good, it is easy to cause incomplete crushing of concrete, and at the same time, a large amount of dust will be generated during the crushing process.

2. The utility model can pulverize concrete waste once by using the pulverizing teeth and pulverizing rollers, and through the use of the guide plate, it can block and buffer the once pulverized waste, so as to prevent the concrete from falling directly into the box due to gravity. The bottom of the body affects the secondary crushing. By using the crushing knife, the concrete waste can be crushed twice. By using the water inlet pipe, it is convenient to add water to the dust box and to discharge the gas drawn by the fan.

Description of drawings

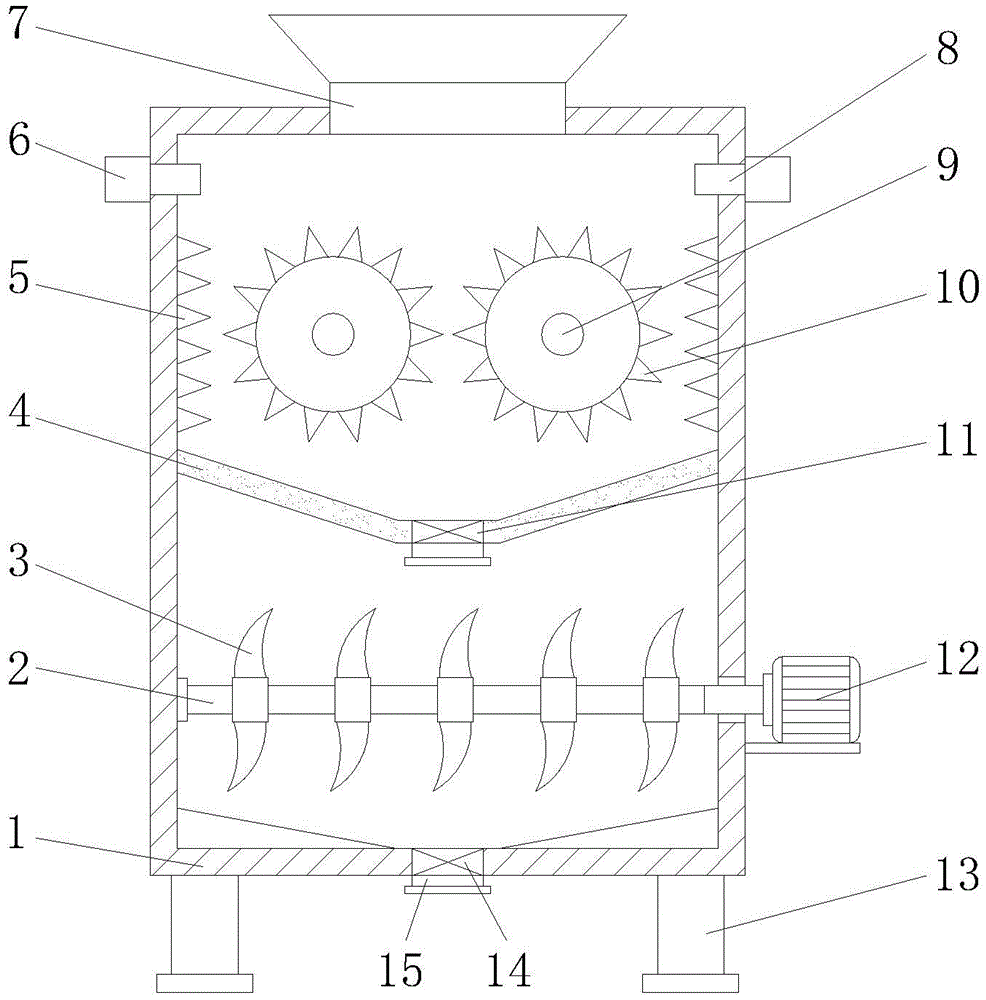

Fig. 1 is the structural representation of the utility model;

Figure 2 is a top view of the pulverizing roller of the utility model;

Fig. 3 is a partial left side structural view of the utility model;

FIG. 4 is a top plan view of the guide tube of the present invention.

In the picture: 1 box, 2 crushing rod, 3 crushing knife, 4 guide plate, 5 crushing teeth, 6 guide pipe, 7 feeding hopper, 8 dust feeding pipe, 9 rotating rod, 10 crushing roller, 11 material guide pipe, 12 First motor, 13 support legs, 14 solenoid valve, 15 discharge pipe, 16 second motor, 17 blower, 18 vertical pipe, 19 dust outlet pipe, 20 water inlet pipe, 21 dust collection box, 22 ash outlet pipe.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The utility model has a box 1, a pulverizing rod 2, a pulverizing knife 3, a guide plate 4, a pulverizing tooth 5, a guide pipe 6, a feeding hopper 7, a dust feeding pipe 8, a rotating rod 9, a pulverizing roller 10, a material guiding pipe 11, The first motor 12, the support leg 13, the solenoid valve 14, the discharge pipe 15, the second motor 16, the fan 17, the vertical pipe 18, the dust outlet pipe 19, the water inlet pipe 20, the dust collection box 21 and the ash outlet pipe 22 are all parts. It is a general standard part or a component known to those skilled in the art, and its structure and principle are known to those skilled in the art through technical manuals or through routine experimental methods.

Please refer to Fig. 1-3, a waste recycling equipment, including a box 1, the bottom of the box 1 is fixedly connected with support legs 13, the number of the support legs 13 is four, and they are respectively located at the four corners of the bottom of the box 1 , the bottom of the right side of the box body 1 is fixedly connected with the first motor 12, the left side of the output end of the first motor 12 penetrates into the inner cavity of the box body 1 and is fixedly connected with a crushing rod 2, and the surface of the crushing rod 2 is fixedly sleeved with a crushing rod 2. Knives 3, the number of pulverizing knives 3 is five groups, and the number of each group of pulverizing knives 3 is two, and the pulverizing knives 3 are evenly sleeved on the surface of the pulverizing rod 2, and the pulverizing teeth 5 and the pulverizing rollers 10 are used together, The concrete waste can be crushed once, and the concrete waste can be crushed twice by the use of the crushing knife 3. The crushing rod 2 is movably connected to the left side of the inner cavity of the box body 1, and the center of the bottom of the box body 1 is connected with the discharge material. Pipe 15, the middle end of the inner cavity of the box body 1 is horizontally fixedly connected with the guide plate 4, and the center of the bottom of the guide plate 4 is connected with the material guide pipe 11. The use of the guide plate 4 can block and buffer the waste after primary crushing to avoid The concrete directly falls to the bottom of the box 1 due to gravity, which affects the secondary crushing. The tops of both sides of the inner cavity of the box 1 are fixedly connected with crushing teeth 5, and the two sides of the top of the rear side of the box 1 are fixedly connected. The front side of the output end of the motor 16 and the second motor 16 penetrates into the inner cavity of the box body 1 and is fixedly connected with a rotating rod 9. The front side of the rotating rod 9 is movably connected to the front side of the inner cavity of the box body 1. The surface of the rotating rod 9 The fixed sleeve is provided with a crushing roller 10, the top of the box body 1 is connected with a feeding hopper 7, the bottom of the rear side of the box body 1 is fixedly connected with a dust collecting box 21, and the bottom of the dust collecting box 21 is connected with an ash outlet pipe 22, a crushing rod A solenoid valve 14 is fixedly installed in the inner cavity of the discharge pipe 15, the material guide pipe 11 and the ash discharge pipe 22 between the left side of the box 2 and the left side of the inner cavity of the box 1 through bearings. The top of the dust collector is connected with a water inlet pipe 20. Through the use of the water inlet pipe 20, it is convenient to add water to the dust collecting box 21, and at the same time, it is convenient to discharge the gas drawn by the fan 17. The top of the dust collecting box 21 is fixedly connected with the fan 17. The air outlet end of the fan 17 is connected with a dust outlet pipe 19. The end of the dust outlet pipe 19 away from the fan 17 penetrates to the bottom of the inner cavity of the dust collecting box 21. The air inlet end of the fan 17 is connected to a vertical pipe 18, and the top of the vertical pipe 18 is connected to each other. There is a guide pipe 6. Both ends of the guide pipe 6 extend to both ends of the box body 1 and are connected with a dust inlet pipe 8. The opposite side of the dust inlet pipe 8 penetrates into the inner cavity of the box body 1, and the inner cavity of the box body 1 is connected. The two sides of the bottom and the two sides of the bottom of the inner cavity of the dust collecting box 21 are fixedly connected with baffle plates, and the guide pipe 6 is a "U"-shaped structure. Feed hopper 7, dust feed pipe 8, rotating rod 9, crushing roller 10, first motor 12, solenoid valve 14, discharge pipe 15, second motor 16, fan 17, vertical pipe 18, dust discharge pipe 19, feed pipe The combined use of the water pipe 20, the dust collecting box 21 and the ash discharge pipe 22 can perform secondary crushing of the concrete waste, and at the same time, the dust generated during the crushing process can be collected, which solves the problem that the crushing effect of the existing concrete waste recycling equipment is insufficient. Well, it is easy to cause incomplete crushing of concrete, and at the same time, a lot of dust will be generated during the crushing process.

When in use, the first motor 12, the second motor 16, the fan 17 and the solenoid valve 14 are respectively controlled by the peripheral controller to work, and the output end of the second motor 16 drives the rotating rod 9 to rotate, thereby driving the crushing roller 10 to rotate, and the two second motors 16 rotate. The directions of the two motors 16 are opposite, and the two pulverizing rollers 10 rotate oppositely inwardly, and the concrete waste is put into the box 1 through the feeding hopper 7, and the concrete waste falls on the pulverizing roller 10 to be squeezed and pulverized, while the pulverizing teeth 5 It can also be squeezed and pulverized with the pulverizing roller 10. The concrete after primary pulverization falls on the guide plate 4, and is collected from the concrete. After opening the solenoid valve 14 on the material guide pipe 11, it is released, and then passes through the output end of the first motor 12. Drive the crushing rod 2 to rotate, thereby driving the crushing knife 3 to smash the concrete waste after primary crushing. After the crushing is completed, the solenoid valve 14 on the discharge pipe 15 is opened to release it for recycling, and it is started during the crushing process. Fan 17, through which the dust generated in the crushing process is pumped into the water in the dust collecting box 21 through the dust inlet pipe 8, the guide pipe 6, the vertical pipe 18 and the dust outlet pipe 19 in sequence, and the gas is discharged from the water inlet pipe 20. , by opening the solenoid valve 14 on the ash discharge pipe 22 to release it for collection, so as to achieve the dust removal effect.

To sum up: the waste recycling equipment, through the crushing rod 2, the crushing knife 3, the crushing teeth 5, the guide pipe 6, the feeding hopper 7, the dust feeding pipe 8, the rotating rod 9, the crushing roller 10, the first motor 12. The solenoid valve 14, the discharge pipe 15, the second motor 16, the fan 17, the vertical pipe 18, the dust discharge pipe 19, the water inlet pipe 20, the dust collecting box 21 and the dust discharge pipe 22 are used together to solve the existing problems. The crushing effect of concrete waste recycling equipment is not good, which is easy to cause incomplete crushing of concrete, and at the same time, a large amount of dust will be generated during the crushing process.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A waste recycling equipment, comprising a box body (1), characterized in that: a first motor (12) is fixedly connected to the bottom of the right side of the box body (1), and the first motor (12) The left side of the output end penetrates into the inner cavity of the box body (1) and is fixedly connected with a pulverizing rod (2). The surface of the pulverizing rod (2) is fixedly sleeved with a pulverizing knife (3). It is movably connected to the left side of the inner cavity of the box body (1), the center of the bottom of the box body (1) is connected with a discharge pipe (15), and the middle end of the inner cavity of the box body (1) is horizontally fixedly connected with a discharge pipe (15). A guide plate (4), a material guide pipe (11) is communicated with the center of the bottom of the guide plate (4), and crushing teeth (5) are fixedly connected to the tops of both sides of the inner cavity of the box body (1). Both sides of the top of the rear side of the body (1) are fixedly connected with a second motor (16). 9), the front side of the rotating rod (9) is movably connected to the front side of the inner cavity of the box body (1), the surface of the rotating rod (9) is fixedly sleeved with a crushing roller (10), and the box body A feeding hopper (7) is connected to the top of (1), a dust collecting box (21) is fixedly connected to the bottom of the rear side of the box body (1), and an ash outlet pipe is connected to the bottom of the dust collecting box (21). (22), a water inlet pipe (20) is communicated with the top of the rear side of the dust collecting box (21), a fan (17) is fixedly connected to the top of the dust collecting box (21), and the outlet of the fan (17) The air end is connected with a dust outlet pipe (19), the end of the dust outlet pipe (19) away from the fan (17) penetrates to the bottom of the inner cavity of the dust collecting box (21), and the air inlet end of the fan (17) is communicated with There is a vertical pipe (18), the top of the vertical pipe (18) is connected with a guide pipe (6), both ends of the guide pipe (6) extend to the two ends of the box body (1) and are connected with dust intake A pipe (8), the opposite side of the dust inlet pipe (8) penetrates to the inner cavity of the box body (1). 2. The waste recycling equipment according to claim 1, wherein the bottom of the box body (1) is fixedly connected with support legs (13), and the number of the support legs (13) is four. Each of them is located at the four corners of the bottom of the box body (1). 3. A waste recycling equipment according to claim 1, characterized in that: the left side of the crushing rod (2) and the left side of the inner cavity of the box body (1) are movably connected by bearings, so A solenoid valve (14) is fixedly installed in the inner cavity of the material discharge pipe (15), the material guide pipe (11) and the ash discharge pipe (22). 4. A waste recycling device according to claim 1, characterized in that: the number of the crushing knives (3) is five groups, and the number of each group of crushing knives (3) is two, and the number of crushing knives (3) is two. The knife (3) is evenly sleeved on the surface of the crushing rod (2). 5. A waste recycling equipment according to claim 1, characterized in that: both sides of the bottom of the inner cavity of the box (1) are fixedly connected to both sides of the bottom of the inner cavity of the dust collecting box (21). There is a deflector, and the guide tube (6) is a "U"-shaped structure.
