Abstract
The embodiment of the application discloses test-tube rack is placed to outpatient service nursing blood sampling appearance pipe, including rack one, the bottom surface fixedly connected with base of rack one, the spout has been seted up to the below at rack one openly middle part, and the inner chamber joint of spout has the movable rod that stretches out to a rack outside, the one end fixed connection that the movable rod is located rack inner chamber is at the middle part of bottom plate, fixedly connected with evenly distributed's stopper on the top surface of bottom plate, the below fixedly connected with locating plate one of rack inner chamber. This outpatient service nursing blood sampling appearance pipe places test-tube rack, through the design that adopts the circular slot respectively on two racks, cooperates the common use of two locating plates simultaneously for when blood sampling appearance pipe leaves on the rack, not only can realize the isolation between the blood sampling appearance pipe, can also save the inside space of device, avoid the problem of collision each other and taking place to rock between the appearance pipe.
Description
Technical Field
The application relates to the field of medical equipment, more specifically relates to a test-tube rack is placed to outpatient service nursing blood sampling appearance pipe.
Background
Blood sampling is a process of taking blood samples through veins and arteries by medical staff due to inspection or related requirements, is common inspection work in hospitals, clinics and the like, and can accurately and intuitively inspect the state of a human body through blood detection. Whether the individual is physical examination or obligate blood donation, blood collection is one of the indispensable detection steps.
Among the placing and the management of current blood sampling appearance pipe, in order to save the parking space of blood sampling appearance pipe, the placing of its appearance pipe is all inseparabler, this just leads to the inconvenient condition of taking between the appearance pipe easily to in the appearance pipe places the in-process, can appear fixed inadequately or place inadequately very likely, thereby lead to the condition of appearance pipe slope and collision each other, make the condition of depositing of appearance pipe stable inadequately. In view of the above, a blood sampling tube rack for outpatient care is proposed to solve the above problems.
SUMMERY OF THE UTILITY MODEL
In view of the above problems, the application provides a rack for placing a test tube for a blood sampling sample tube for outpatient service nursing, which comprises a first placing rack, wherein a base is fixedly connected to the bottom surface of the first placing rack, a sliding groove is formed below the middle part of the front surface of the first placing rack, a movable rod extending out of the first placing rack is clamped in an inner cavity of the sliding groove, the movable rod is positioned at one end of an inner cavity of the first placing rack and is fixedly connected to the middle part of a bottom plate, evenly distributed limiting blocks are fixedly connected to the top surface of the bottom plate, a first positioning plate is fixedly connected to the lower part of the inner cavity of the first placing rack, a second placing rack extending out to the right side is clamped in the inner cavity of the first placing rack, a second positioning plate is fixedly connected to the upper part of the inner cavity of the second placing rack, evenly distributed circular grooves are respectively formed in the top surfaces of the, and the middle part and two sides of the bottom surfaces of the two placing racks are respectively and fixedly connected with rollers.
Preferably, the surface of the first positioning plate is provided with uniformly distributed slotted holes, the diameter values of the slotted holes are equal to the diameter values of the circular grooves, and the middle parts of the slotted holes and the middle parts of the circular grooves are on the same vertical line.
Preferably, fifty circular grooves are formed in the second placing frame and the first placing frame respectively, and the number of the circular grooves in the first placing frame and the number of the circular grooves in the second placing frame are five and ten respectively in the horizontal direction and the vertical direction.
Preferably, the left side and the right side of the inner cavity of the first placing frame are respectively provided with a second sliding groove, the left end and the right end of the bottom plate are respectively fixedly connected with a clamping block, and the clamping blocks on the two sides are respectively clamped on the second sliding grooves.
Preferably, the number of the bases is four, the four bases are respectively and fixedly connected to the periphery of one bottom surface of the placing frame, and the bottom surfaces of the four bases are on the same horizontal plane.
Preferably, the length value of the rollers on the right side of the second placing frame is greater than the length values of the rollers on the left side and the middle side of the second placing frame, and the bottom surfaces of the rollers on the right side and the bottom surface of the base are on the same horizontal plane.
The application provides a pair of outpatient service nursing blood sampling appearance pipe places test-tube rack.
1. This outpatient service nursing blood sampling appearance pipe places test-tube rack, through the design that adopts the circular slot respectively on two racks, cooperates the common use of two locating plates simultaneously for when blood sampling appearance pipe leaves on the rack, not only can realize the isolation between the blood sampling appearance pipe, can also save the inside space of device, avoid the problem of collision each other and taking place to rock between the appearance pipe.
2. This outpatient service nursing blood sampling appearance pipe places test-tube rack, through the design of joint rack two in rack one, the joint use of activity bottom plate about the cooperation simultaneously for when taking out appearance pipe, can take out appearance pipe alone with appearance pipe jack-up or pull out rack two under the effect of bottom plate, avoided appearance pipe too closely and lead to taking out inconvenient problem, embodied the portable of device.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present application, the drawings needed to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present application, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without creative efforts.

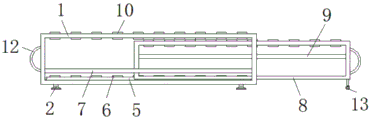

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic sectional view of the present invention;
fig. 3 is a schematic structural view of the positioning plate of the present invention.
Detailed Description
The technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only a part of the embodiments of the present application, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
A test tube rack for placing a blood sampling tube for outpatient care comprises a first placing rack 1, wherein the left side and the right side of an inner cavity of the first placing rack 1 are respectively provided with a second sliding groove, the left end and the right end of a bottom plate 5 are respectively and fixedly connected with a clamping block, the clamping blocks on the two sides are respectively clamped on the second sliding grooves, when the bottom plate 5 moves upwards to lift the sample tube, the bottom plate 5 is in a movable state, in order to ensure the stability of the movement of the bottom plate 5, the clamping blocks are designed on the two sides of the bottom plate 5, the clamping blocks can move up and down along the second sliding grooves on the two sides of the first placing rack 1, the bottom surface of the first placing rack 1 is fixedly connected with four bases 2, the four bases 2 are respectively and fixedly connected around the bottom surface of the first placing rack 1, the bottom surfaces of the four bases 2 are on the same horizontal plane, the device can be ensured to be always in a stable state and is also the necessity requirement of stable storage of the sample tube, the lower part of the middle part of the front surface of the first placing frame 1 is provided with a chute 3, the inner cavity of the chute 3 is clamped with a movable rod 4 extending out of the first placing frame 1, one end of the movable rod 4, which is positioned in the inner cavity of the first placing frame 1, is fixedly connected to the middle part of the bottom plate 5, the top surface of the bottom plate 5 is fixedly connected with a stopper 6 which is uniformly distributed, the lower part of the inner cavity of the first placing frame 1 is fixedly connected with a first positioning plate 7, the surface of the first positioning plate 7 is provided with uniformly distributed slotted holes, the diameter values of the slotted holes are equal to the diameter value of the circular groove 10, the middle parts of the slotted holes and the middle parts of the circular grooves 10 are on the same vertical line, when the sample tube is placed in the inner cavities of the first placing frame, the position of the middle part or the bottom of the sample tube is limited, the sample tube is prevented from shaking, the middle part of the slotted hole and the middle part of the circular groove 10 are designed in the same vertical line, the sample tube can be ensured to be in a vertically downward state, a placing rack II 8 extending towards the right side is clamped in an inner cavity of the placing rack I1, fifty circular grooves 10 are respectively arranged on the placing rack II 8 and the placing rack I1, the number of the circular grooves 10 in the placing rack I1 is five and ten, the sample tube can be counted very conveniently after the sample tube is placed, the problems that the sample tube is too tight and is not convenient to count are avoided, the length value of the roller 13 on the right side of the placing rack II 8 is larger than that of the roller 13 on the left side and the middle side of the placing rack II 8, and the horizontal plane of the roller 13 on the right side and the bottom plane of the base 2 are the same, when the second placing frame 8 is pulled out to the outer side of the first placing frame 1, the bottom surface on the right side of the second placing frame 8 is in a suspended state, the bottom surface on the right side of the second placing frame 8 adopts the design of the rollers 13, the rollers 13 and the bottom surface of the base 2 are on the same horizontal plane, and can provide supporting acting force for the pulled second placing frame 8, so that the state which is as balanced as that of the first placing frame 1 is kept, the positioning plate two 9 is fixedly connected above the inner cavity of the second placing frame 8, the top surfaces of the first placing frame 1 and the second placing frame 8 are respectively provided with uniformly distributed circular grooves 10, the inner cavity of each circular groove 10 is fixedly sleeved with a sponge ring 11, the middle part on the left side of the first placing frame 1 and the middle part on the right side of the second placing frame 8 are respectively and fixedly connected with pull rings 12, the middle part and two, because the second placing frame 8 is in a movable state in the inner cavity of the first placing frame 1, the second placing frame 8 on the left side and the middle part mainly provides acting force capable of sliding left and right for the second placing frame 8.
In conclusion, when in use, the sample tube for sampling blood is placed in the inner cavity of the circular groove 10 and pressed downwards, so that the sample tube can pass through the first positioning plate 7 to be fixed, when the first placing rack 1 and the second placing rack 8 are filled with sample tubes, the device achieves the maximum storage effect, when the sample tube needs to be taken out independently, the pull rings 12 on the two sides are held by hands and pulled outwards, at the moment, the second placing frame 8 slides outwards in the inner cavity of the first placing frame 1, and as the height value of the second placing frame 8 is lower than that of the first placing frame 1, so that the top end of the sample loading tube of the second placing frame 8 can extend out of the outer side of the second placing frame 8, the sample loading tube can be taken out conveniently, when the sample tube on the first placing frame 1 needs to be taken out, the movable rod 4 needs to be held by hand and lifted upwards, and at the moment, the bottom plate 5 can move synchronously along with the movable rod 4 to jack up the sample tube in the first placing frame 1, so that the sample tube in the first placing frame 1 can be taken out conveniently.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solutions of the present application, and not to limit the same; although the present application has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not necessarily depart from the spirit and scope of the corresponding technical solutions in the embodiments of the present application.
Claims (6)
1. A test tube rack for placing a blood sampling tube for outpatient nursing comprises a first placing rack (1) and is characterized in that a base (2) is fixedly connected to the bottom surface of the first placing rack (1), a sliding groove (3) is formed in the lower portion of the middle of the front surface of the first placing rack (1), a movable rod (4) extending out of the first placing rack (1) is clamped in an inner cavity of the sliding groove (3), one end, located in the inner cavity of the first placing rack (1), of the movable rod (4) is fixedly connected to the middle of a bottom plate (5), limiting blocks (6) which are uniformly distributed are fixedly connected to the top surface of the bottom plate (5), a first positioning plate (7) is fixedly connected to the lower portion of the inner cavity of the first placing rack (1), a second placing rack (8) extending out of the right side is clamped in the inner cavity of the first placing rack (1), and a, circular slot (10) of even subsection are seted up respectively to the top surface of rack one (1) and rack two (8), every the inner chamber of circular slot (10) is fixed and has been cup jointed sponge circle (11), middle part difference fixedly connected with pull ring (12) on rack one (1) left middle part and rack two (8) right side, the middle part and the both sides difference fixedly connected with gyro wheel (13) of rack two (8) bottom surface.
2. The outpatient nursing blood sampling tube placing test tube rack as claimed in claim 1, wherein the first positioning plate (7) is provided with uniformly distributed slotted holes on the surface, the diameter value of the slotted holes is equal to that of the circular grooves (10), and the middle parts of the slotted holes and the middle parts of the circular grooves (10) are on the same vertical line.
3. The outpatient nursing blood sampling tube placing test tube rack according to claim 1, wherein fifty circular grooves (10) are formed in the second placing rack (8) and the first placing rack (1), and the number of the circular grooves (10) in the first placing rack (1) and the second placing rack (8) in the horizontal direction and the vertical direction is five and ten respectively.
4. The outpatient nursing blood sampling tube placing test tube rack according to claim 1, wherein the left side and the right side of the inner cavity of the first placing rack (1) are respectively provided with a second sliding groove, the left end and the right end of the bottom plate (5) are respectively and fixedly connected with clamping blocks, and the clamping blocks on the two sides are respectively clamped on the second sliding grooves.
5. The outpatient nursing blood sampling tube placing test tube rack as claimed in claim 1, wherein the number of the bases (2) is four, the four bases (2) are respectively and fixedly connected to the periphery of the bottom surface of the first placing rack (1), and the bottom surfaces of the four bases (2) are on the same horizontal plane.
6. The outpatient nursing blood sampling tube placing test tube rack as claimed in claim 1, wherein the length of the right roller (13) of the second placing rack (8) is greater than the length of the left and middle rollers (13) of the second placing rack (8), and the bottom surface of the right roller (13) and the bottom surface of the base (2) are on the same horizontal plane.
