Abstract

The utility model discloses a food mixing device for pet feeding, which comprises a support plate and a rotating box. Both side walls of the support plate are fixedly connected with legs, and the side walls of the legs are fixedly connected with a motor. The output end of the motor is fixedly connected with a second rotating shaft, the end of the second rotating shaft away from the motor is fixedly connected with the left side wall of the rotating box, and the right side wall of the rotating box is fixedly connected with a first rotating shaft, the first rotating shaft One end away from the rotating box is fixedly connected to the other leg through a bearing, the inner top of the rotating box is fixedly connected with an electric telescopic rod, the bottom of the electric telescopic rod is fixedly connected with a pressure block, and the two side walls of the rotating box are fixedly connected. Both are fixedly connected with a placement plate. The utility model has the simple structure of the whole device, realizes automatic food mixing, reduces the labor intensity of manual labor, and greatly improves the efficiency.

Description

A kind of food mixing device for pet feeding

technical field

The utility model relates to the field of pet feeding, in particular to a food mixing device for pet feeding.

Background technique

Pets used to refer only to animals kept by people to eliminate loneliness or for entertainment purposes. Pets are now defined as animals and plants kept for non-economic purposes. Pets are animals and plants kept for spiritual purposes.

Generally, animal pets need to be fed on time when they are raised. In order to ensure the nutritional balance of pets during the feeding process, the keepers often mix a variety of foods to ensure a healthy diet for pets. However, in the past, manual stirring and mixing were used in the mixing process of food, which not only increased labor, but also slowed down the efficiency.

Utility model content

The purpose of the utility model is to propose a food mixing device for pet feeding in order to solve the shortcomings existing in the prior art.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a food mixing device for pet feeding, comprising a support plate and a rotating box, the two side walls of the support plate are fixedly connected with legs, and the legs of the legs are fixedly connected. The side wall is fixedly connected with a motor, the output end of the motor is fixedly connected with a second rotating shaft, the end of the second rotating shaft away from the motor is fixedly connected with the left side wall of the rotating box, and the right side wall of the rotating box is fixedly connected with a A first rotating shaft, one end of the first rotating shaft away from the rotating box is fixedly connected to the other leg through a bearing, the inner top of the rotating box is fixedly connected with an electric telescopic rod, and the bottom of the electric telescopic rod is fixedly connected with a pressure block , the two side walls of the rotating box are fixedly connected with placing plates, the interior of the rotating box is provided with an upper warehouse door and a lower warehouse door, the upper warehouse door and the lower warehouse door are hinged, and the upper warehouse door is hinged. An ear plate is fixedly connected with the two side walls of the lower warehouse door and at the corresponding positions, and one end of the ear plate away from the upper warehouse door and the lower warehouse door is attached to the upper surface of the placing plate.

As a further description of the above technical solution:

The upper surface of the support plate is fixedly connected with a plurality of food storage slots, the position of the support plate is located directly below the rotating box, the front hinge of the rotating box is connected with a box door, and the front side of the box door is specified to be connected with a box door. Pull rod.

As a further description of the above technical solution:

The bottom of the outrigger is fixedly connected with a foot, and the lower surface of the foot is provided with a non-slip pad.

As a further description of the above technical solution:

The number of the electric telescopic rods is two, and the positions of the two electric telescopic rods correspond one-to-one with the positions of the placing plates.

As a further description of the above technical solution:

The lower surface of the pressing block and the upper surface of the placing plate are provided with protective gaskets, and the protective gaskets are made of rubber.

As a further description of the above technical solution:

The fronts of the upper and lower warehouse doors are specified to be connected with handles, the open ends of the upper and lower warehouse doors are provided with sealing gaskets at the surrounding edges, and the bottom of the lower warehouse door is provided with a discharge port. .

The utility model has the following beneficial effects:

1. Compared with the prior art, the pet feeding food mixing device opens the box door of the rotating box, then takes the upper warehouse door and the lower warehouse door out of the rotating box, and then opens the upper warehouse door through the handle. , place the food to be mixed inside the lower compartment door, then close the upper compartment door and the lower compartment door tightly, and then put it into the interior of the rotating box, so that the lugs on both sides are placed on the upper surface of the placing plate, Then start the electric telescopic rod, the electric telescopic rod is extended, so that the pressing block moves to the side of the placing plate, and then compresses the ear plate, then closes the box door, starts the motor, and the motor controls the rotating box through the second shaft to rotate at a constant speed Rotate, the upper and lower warehouse doors placed inside the rotating box rotate together to achieve efficient mixing of the internal food. After the mixing is completed, the motor is stopped, the box door is opened, and the electric telescopic rod is retracted, and then the upper warehouse is taken out. The door and the lower warehouse door open the discharge port at the bottom of the lower warehouse door, and the food inside can be poured into the food bowl. The whole device has a simple structure, realizes automatic food mixing, reduces the labor intensity of manual labor, and achieves high efficiency. big improvement.

2. Compared with the prior art, the food mixing device for pet feeding can be used to store food through the provided food storage tank, which is convenient for taking during use. of leakage.

Description of drawings

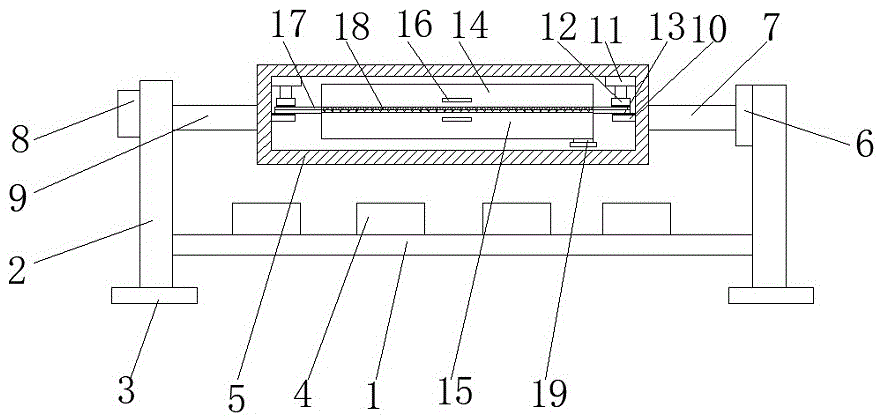

1 is a schematic diagram of the internal structure of a food mixing device for pet feeding proposed by the utility model;

2 is a front view of the overall structure of a food mixing device for pet feeding proposed by the utility model;

3 is a side view of the structure of the upper warehouse door and the lower warehouse door of a food mixing device for pet feeding proposed by the utility model.

illustration:

1. Supporting plate; 2. Outrigger; 3. Foot; 4. Food storage tank; 5. Rotating box; 6. Bearing; 7. First shaft; 8. Motor; 9. Second shaft; 10. Placing plate; 11. Electric telescopic rod; 12. Press block; 13. Protective gasket; 14. Upper warehouse door; 15. Lower warehouse door; 16. Handle; 17. Ear plate; 18. Gasket; 19. Discharge port; 20 , Box door; 21. Pull rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation to the present invention; the terms "first", "second" and "third" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance. In addition, Unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, an indirect connection through an intermediate medium, or an internal connection between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

1-3, the utility model provides a food mixing device for pet feeding: including a support plate 1 and a rotating box 5, the two side walls of the support plate 1 are fixedly connected with outriggers 2, and the side walls of the outriggers 2 are fixedly connected. A motor 8 is fixedly connected to provide power for the rotation of the rotating box 5. The output end of the motor 8 is fixedly connected with a second rotating shaft 9, and one end of the second rotating shaft 9 away from the motor 8 is fixedly connected to the left side wall of the rotating box 5. The rotating box A first rotating shaft 7 is fixedly connected to the right side wall of An electric telescopic rod 11 is connected, the bottom of the electric telescopic rod 11 is fixedly connected with a pressing block 12, which is convenient for pressing and fixing the ear plate 17, and the two side walls of the rotating box 5 are fixedly connected with a placing plate 10, which is used for the upper warehouse door. 14 and the placement of the lower warehouse door 15, the interior of the rotating box 5 is provided with an upper warehouse door 14 and a lower warehouse door 15, the upper warehouse door 14 and the lower warehouse door 15 are hinged and connected, and the two parts of the upper warehouse door 14 and the lower warehouse door 15 are arranged. The side walls and corresponding positions are fixedly connected with lugs 17 , and one end of the lugs 17 away from the upper warehouse door 14 and the lower warehouse door 15 is abutted with the upper surface of the placing plate 10 .

The upper surface of the support plate 1 is fixedly connected with a plurality of food storage slots 4, which is convenient for taking food during mixing. The position of the support plate 1 is located directly below the rotating box 5, and the front hinge of the rotating box 5 is connected with a box door 20. The front of the box door 20 is provided with a tie rod 21, the bottom of the outrigger 2 is fixedly connected with a foot 3, and the lower surface of the foot 3 is provided with a non-slip pad, which plays an anti-slip effect. The number of electric telescopic rods 11 is two, two electric The position of the telescopic rod 11 corresponds to the position of the placing plate 10 one by one, which is convenient for fixing the lug plate. The lower surface of the pressing block 12 and the upper surface of the placing plate 10 are provided with protective gaskets 13 to buffer the effect on the lug plate 17 when fixed. The protective gasket 13 is made of rubber material, the front sides of the upper warehouse door 14 and the lower warehouse door 15 are specified to be connected with a handle 16, and the open ends of the upper warehouse door 14 and the lower warehouse door 15 are provided with sealing gaskets on the surrounding edges. 18. When the food is placed and mixed, the bottom of the lower bin door 15 is provided with a discharge port 19, which is convenient for the food to be poured out.

Working principle: when in use, open the box door 20 of the rotating box 5, then take the upper warehouse door 14 and the lower warehouse door 15 out of the rotating box 5, and then open the upper warehouse door 14 through the handle to remove the The food is placed inside the lower compartment door 14, and then the upper compartment door 14 and the lower compartment door 15 are tightly closed, and then put into the interior of the rotating box 5, so that the lugs 17 on both sides are placed on the top of the placing plate 10. surface, then start the electric telescopic rod 11, the electric telescopic rod 11 is extended, so that the pressing block 12 moves to the side of the placing plate 10, and then presses the lug plate 17, and then closes the box door 20, starts the motor 8, the motor 8. The rotating box 5 is controlled to rotate at a constant speed through the second rotating shaft 9, and the upper warehouse door 14 and the lower warehouse door 15 placed inside the rotating box 5 are rotated together, thereby realizing efficient mixing of the food inside. After the mixing is completed, the motor 8 Stop, open the box door 20, make the electric telescopic rod 11 shrink, then take out the upper warehouse door 14 and the lower warehouse door 15, open the outlet 19 at the bottom of the lower warehouse door 14, and then pour the food inside into the food bowl.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model, All should be included within the protection scope of the present invention.

Claims (6)

1. The utility model provides a pet is raised and is used food mixing arrangement, includes backup pad (1) and rotatory case (5), its characterized in that: the supporting legs (2) are fixedly connected to two side walls of the supporting plate (1), a motor (8) is fixedly connected to the side walls of the supporting legs (2), a second rotating shaft (9) is fixedly connected to the output end of the motor (8), one end, far away from the motor (8), of the second rotating shaft (9) is fixedly connected to the left side wall of the rotating box (5), a first rotating shaft (7) is fixedly connected to the right side wall of the rotating box (5), one end, far away from the rotating box (5), of the first rotating shaft (7) is fixedly connected to another supporting leg (2) through a bearing (6), an electric telescopic rod (11) is fixedly connected to the inner top of the rotating box (5), a pressing block (12) is fixedly connected to the bottom of the electric telescopic rod (11), placing plates (10) are fixedly connected to two side walls of the rotating box (5), an upper bin door (14) and a lower bin door (15) are arranged inside the rotating box (5, go up door (14) and lower door (15) hinge connection, go up the equal fixedly connected with otic placode (17) in both sides wall and the corresponding position of door (15) down in door (14), last door (14) and lower door (15) one end are kept away from in otic placode (17) and are laminated with the upper surface of placing board (10) mutually.

2. The pet food mixing device according to claim 1, wherein: the food storage box is characterized in that a plurality of food storage grooves (4) are fixedly connected to the upper surface of the supporting plate (1), the supporting plate (1) is located under the rotary box (5), the front face of the rotary box (5) is hinged to a box door (20), and the front face of the box door (20) is connected with a pull rod (21) in a specified mode.

3. The pet food mixing device according to claim 1, wherein: the bottom of the supporting leg (2) is fixedly connected with a foot pad (3), and the lower surface of the foot pad (3) is provided with an anti-skid pad.

4. The pet food mixing device according to claim 1, wherein: the number of the electric telescopic rods (11) is two, and the positions of the two electric telescopic rods (11) correspond to the positions of the placing plates (10) one by one.

5. The pet food mixing device according to claim 1, wherein: the lower surface of briquetting (12) and the upper surface of placing board (10) all are provided with protection gasket (13), protection gasket (13) are made for the rubber material.

6. The pet food mixing device according to claim 1, wherein: the front surfaces of the upper bin door (14) and the lower bin door (15) are connected with handles (16) in a specified mode, sealing gaskets (18) are arranged at the opening ends of the upper bin door (14) and the lower bin door (15) and are located on the peripheral edges of the opening ends, and a discharge hole (19) is formed in the bottom of the lower bin door (15).
