Abstract

The purpose of this utility model is to provide a movable purification box for primary effect pretreatment of pure water, which is characterized in that: it consists of a box body, a box cover, two filter screens, two cleaning rollers, a leakage plate support ring, a leakage Plate, dirt collection barrel holder, dirt collection bucket, output pipe, output valve, support frame, four rollers and electric control device, each cleaning roller is equipped with a motor, and the leakage plate is equipped with multiple leakage holes; the whole The structure of the device is simple, easy to move, easy to disassemble, clean, maintain and replace later, the connection is more free and flexible, and the controllability in the water treatment operation is improved. The double-layer slope structure filter is used to filter the water that generates pure water. And use the cleaning roller at the lowest position of each layer of slope structure filter screen to clean and discharge the filtered impurities to avoid the accumulation of impurities, and then complete the pretreatment to improve the filtration quality of water treatment. The seepage clapboard structure The filtration and storage can be separated to ensure that the filtered water is stored separately.

Description

A portable pure water initial effect pretreatment purification box

technical field

The utility model relates to the field of pure water purification and generation, in particular to a movable pure water initial effect pretreatment purification box.

Background technique

Pure water is a very important water source in urban water resources. It can remove harmful substances such as microorganisms through multi-layer filtration, and further filter harmful substances such as chloride and bacteria in the water to achieve the effect of sterilization and disinfection; The generation of water requires many purification processes, and most water treatment equipment directly treats liquid water. Before multi-stage purification treatment, a pretreatment mechanism is usually used, which is to filter and purify the Liquid water is subjected to primary filtration treatment, and the previous primary filtration devices are all connected with subsequent processing equipment to form a whole. When some liquid water does not need to undergo primary filtration treatment, it is impossible to achieve jump Purification treatment is not particularly convenient to use, and it also reduces work efficiency, so a free and flexible equipment is needed to complete the primary filtration treatment of liquid water.

Utility model content

The purpose of the utility model is to provide a filter screen with a double-layer inclined surface structure to filter the water used to generate pure water, and use the cleaning roller at the lowest position of the filter screen with each layer of inclined surface structure to clean and discharge the filtered impurities. , avoid the accumulation of impurities, and then achieve the pretreatment of the water used to generate pure water, to achieve the primary effect of subsequent purification treatment, and to improve the filtration quality of water treatment. The filtered water is stored separately for output use, and it is also a portable pure water pretreatment purification box that can be easily moved and transported.

The technical scheme of the utility model is: a movable pure water initial effect pretreatment purification box, which is characterized in that: a box body, a box cover, two filter screens, two cleaning rollers, a leakage plate support ring, a seepage plate It is composed of a leakage plate, a dirt collecting barrel accommodating frame, a dirt collecting barrel, an output pipe, an output valve, a support frame, four rollers and an electric control device. The top position of the box body is an inclined structure, and the box cover is located in the box body At the top position of the box cover, the box cover is movably connected with the box body by means of hinges, the box cover is also provided with a handle, the handle is located on the upper part of the box cover, and the handle and the box cover are fixedly connected, There is a distance between the two filter screens and they are superimposed and placed inside the box close to the box cover. The two filter screens are both inclined surface structures, and the two filter screens are fixedly connected to the box body. The two cleaning rollers are respectively located at the low end positions of the two filter screen inclined surfaces, the two cleaning rollers are fixedly connected with the box body, and the leakage plate support ring and the leakage plate are all located inside the box body, And the seepage plate support ring is located at the lower part of the two filter screens, the seepage plate support ring is fixedly connected with the inner wall of the box, and the seepage plate is located between the seepage plate support ring and the two filter screens. , the leakage plate and the leakage plate support ring are movably connected, the dirt collection bucket accommodating frame is located on the outside of the box, and the dirt collection barrel accommodating frame is located at the lower part of the two cleaning roller positions, the The dirt bucket accommodating frame is fixedly connected to the box body, the dirt collection bucket is located inside the dirt collection bucket accommodating frame, the dirt collection bucket and the dirt collection bucket accommodating frame are movably connected, and the output pipe is located at the bottom of the box body, One end of the output pipe is fixedly connected to the box body, the output valve is located at the other end of the output pipe, the output valve is fixedly connected to the output pipe, the support frame is located at the lower part of the box body, and the support frame is connected to the output pipe. The box body is fixedly connected, the four rollers are located at the four corners of the bottom of the support frame, the four rollers are all fixedly connected to the support frame, the electric control device is located on one side of the box body, the electric control The device and the box are fixedly connected.

Further, the bottom of the box body is a funnel-shaped structure.

Further, the box cover is a box cover with a rubber pad at the inner edge position.

Further, the two filter meshes are both fiber meshes or cotton meshes.

Further, the two cleaning rollers are brush rollers.

Further, any of the cleaning rollers is also provided with a motor, the motor is located on one side of the cleaning roller, and the motor is located outside the box body, and the motor and the cleaning roller are fixedly connected.

Further, the seepage plate is also provided with a plurality of seepage holes, the plurality of seepage holes are evenly distributed in the middle of the seepage plate at the same distance, and the plurality of seepage holes are all the same as the leakage holes. The board is a fixed connection.

Further, a baffle plate is also provided on the sewage collecting bucket, the baffle plate is located on the upper part of the sewage collecting bucket, the baffle plate is fixedly connected with the sewage collecting bucket, and the baffle plate is an arc structure.

Further, the output valve is a rotary ball valve.

Further, the four rollers are all lock-type universal wheels.

The beneficial effects of the utility model are as follows: the device adopts a double-layer inclined surface structure filter screen to filter the water used to generate pure water, and uses the cleaning roller at the lowest position of each layer of the inclined surface structure filter screen to filter the filtered impurities. Clean up and discharge to avoid the accumulation of impurities, and then achieve the pretreatment of the water used to generate pure water to achieve the primary effect of subsequent purification treatment, which is used to improve the filtration quality of water treatment. The leaky baffle structure can filter and store It is separated to ensure that the filtered water is stored separately for output use, and it is also a portable pure water pretreatment purification box that can be easily moved and transported; the top of the box is designed with a sloped structure, which is convenient for operators to observe For the internal situation of the box, the box cover adopts a box cover with a rubber pad at the inner edge position, which improves the sealing performance of the box body; the two filters are superimposed at a distance from each other, and the two filters are inclined. Structure, each filter is a fiber mesh or cotton mesh, which can filter out impurities and particles in the water used to generate pure water, each cleaning roller adopts a brush roller, and the brush on the outer layer of the cleaning roller can Remove the impurities that have slipped to the lowest end of the filter screen. There are also a plurality of leakage holes in the middle of the leakage plate. The leakage holes are evenly distributed on the surface of the leakage plate at the same distance. After filtering The filtered water will enter the bottom of the box through these leakage holes. This decentralized structure can avoid the impact of the filtered water on the box, and also play a certain role in protecting the entire box. At the same time, the overall filtration It will not be shaken by the flow of water, and the filtration operation is more stable; the whole box is supported by a support frame, and a roller is installed at each of the four corners of the bottom of the support frame. The movement and positioning of the entire equipment are more comfortable to use. The entire device has a simple structure and convenient operation, which is convenient for disassembly, cleaning, maintenance and replacement in the later stage. It is used in the purification treatment, the connection is more free and flexible, and the controllability in the water treatment operation is improved.

Description of drawings

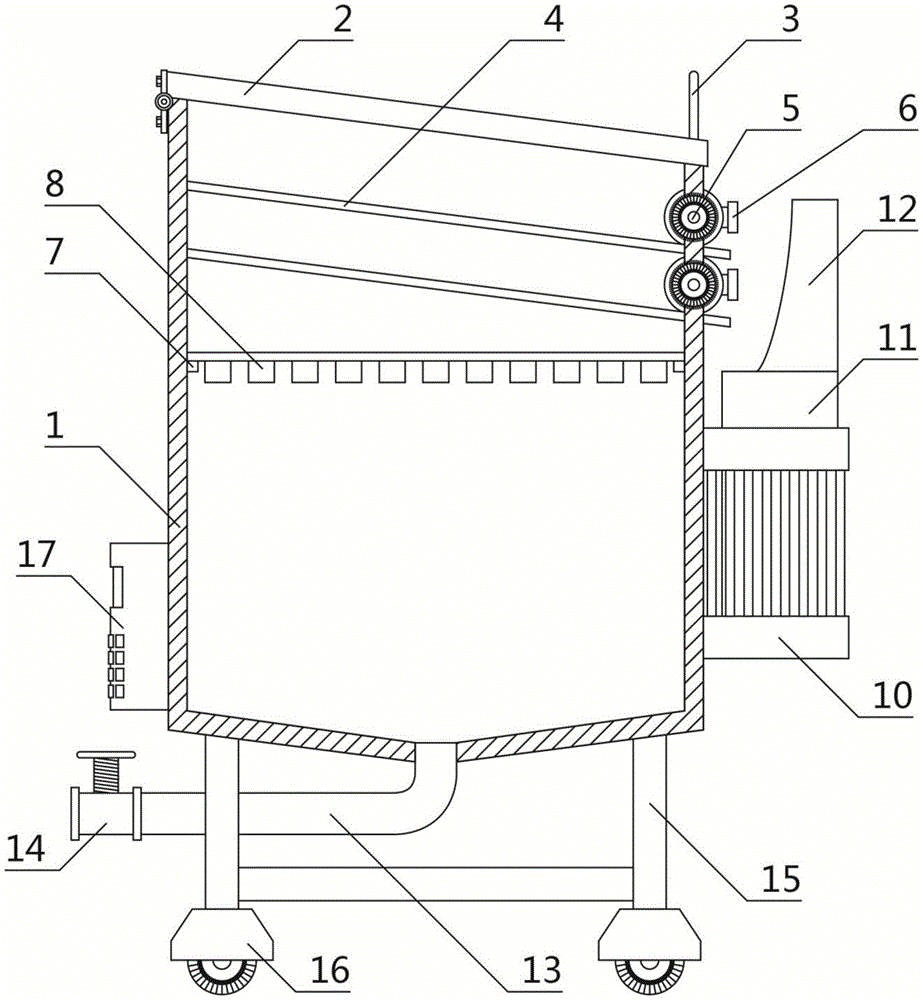

Fig. 1 is the front view of the utility model.

FIG. 2 is a schematic diagram of the opening and separating structure of the utility model.

FIG. 3 is a schematic structural diagram of the leakage plate of the present invention.

Among them: 1. Box body 2. Box cover 3. Carrying handle

4. Filter 5. Cleaning roller 6. Motor

7. Leakage plate support ring 8. Leakage plate 9. Leakage hole

10. Sewage collection bucket holding frame 11. Sewage collection bucket 12. Baffle plate

13. Output pipe 14. Output valve 15. Support frame

16. Roller 17. Electric control device

Detailed ways

The specific embodiments of the present invention will be briefly described below with reference to the accompanying drawings.

As shown in Fig. 1, Fig. 2, Fig. 3, a movable type pure water initial effect pretreatment purification box is characterized in that: a box body 1, a box cover 2, two filter screens 4, two cleaning rollers 5, The leakage plate support ring 7, the leakage plate 8, the dirt collection barrel accommodating frame 10, the dirt collection barrel 11, the output pipe 13, the output valve 14, the support frame 15, the four rollers 16 and the electric control device 17 are composed. The top position of the body 1 is an inclined surface structure, the box cover 2 is located at the top position of the box body 1, the box cover 2 is movably connected with the box body 1 by means of hinges, and a handle is also provided on the box cover 2 3. The handle 3 is located on the upper part of the box cover 2, the handle 3 is fixedly connected to the box cover 2, and the two filter screens 4 are superimposed and placed inside the box body 1 near the box cover 2 at a distance. The two filter screens 4 are both inclined surface structures, the two filter screens 4 are fixedly connected to the box body 1, and the two cleaning rollers 5 are located at the lower ends of the inclined surfaces of the two filter screens 4 respectively. At the position, the two cleaning rollers 5 are fixedly connected to the box 1, and any of the cleaning rollers 5 is also provided with a motor 6, the motor 6 is located on one side of the cleaning roller 5, and the motor 6 is located at Outside the box body 1, the motor 6 and the cleaning roller 5 are fixedly connected, the seepage plate support ring 7 and the seepage plate 8 are all located inside the box body 1, and the seepage plate support ring 7 is located on the two sides. At the lower part of each filter screen 4, the leakage plate support ring 7 is fixedly connected with the inner wall of the box body 1, and the leakage plate 8 is located between the leakage plate support ring 7 and the two filter screens 4. The leakage plate 8 and the leakage plate support ring 7 are movably connected, and the leakage plate 8 is also provided with a plurality of leakage holes 9, and the leakage holes 9 are evenly distributed at the same distance between the leakage holes. In the middle of the plate 8, the plurality of leakage holes 9 are fixedly connected to the leakage plate 8, the dirt collection bucket accommodating frame 10 is located on the outer side of the box 1, and the dirt collection bucket accommodating frame 10 is located in two In the lower part of the position of the cleaning roller 5, the dirt collection bucket accommodating frame 10 is fixedly connected with the box body 1, the dirt collection bucket 11 is located inside the dirt collection bucket accommodating frame 10, and the dirt collection bucket 11 is connected to the dirt collection bucket. The accommodating frame 10 is movably connected, and a baffle 12 is also provided on the dirt collecting bucket 11 . The output pipe 13 is located at the bottom of the box body 1 , one end of the output pipe 13 is fixedly connected to the box body 1 , the output valve 14 is located at the other end of the output pipe 13 , and the output valve 14 is fixedly connected to the output pipe 13 , the support frame 15 is located at the lower part of the box body 1, the support frame 15 is fixedly connected to the box body 1, the four rollers 16 are located at the four corners of the bottom of the support frame 15, and the four rollers 16 are It is fixedly connected with the support frame 15 , the electric control device 17 is located on one side of the box body 1 , and the electric control device 17 is fixedly connected with the box body 1 . The bottom of the box body 1 is a funnel-shaped structure. The box cover 2 is a box cover with a rubber pad at the inner edge position. The two filter meshes 4 are both fiber meshes or cotton meshes. The two cleaning rollers 5 are brush rollers. The baffle 12 has an arc structure. The output valve 14 is a rotary ball valve. The four rollers 16 are all lock-type universal wheels.

Working method: The device is a kind of filter that uses a double-layer inclined structure filter screen to filter the water used to generate pure water, and uses the cleaning roller at the lowest position of each layer of the inclined surface structure filter screen to clean and discharge the filtered impurities to avoid Impurities accumulate, and then the water used to generate pure water can be pretreated to achieve the primary effect of subsequent purification treatment, which is used to improve the filtration quality of water treatment. The water is stored separately for output use, and can also be easily moved and transported. It is a portable pure water pretreatment purification box; it is mainly composed of box body 1, box cover 2, two filters 4, two cleaning The roller 5, the leakage plate support ring 7, the leakage plate 8, the dirt collection barrel accommodating frame 10, the dirt collection barrel 11, the output pipe 13, the output valve 14, the support frame 15, the four rollers 16 and the electric control device 17 are composed of When in use, first, the operator opens the box cover 2 on the top of the box body 1. The top position of the box body 1 is designed with a sloped structure, which is convenient for the operator to observe the internal situation of the box body 1. The box cover 2 is provided with A carrying handle 3, so that the operator can easily open the box cover 2, and the box cover 2 adopts a box cover with a rubber pad at the inner edge position, which improves the sealing performance of the box body 1; then, it will be used to generate pure water. The water is injected from the opening in the upper part of the box body 1, and two filter screens 4 are installed inside the box body 1 near the box cover 2. Each filter screen 4 adopts an inclined surface structure, and each filter screen 4 is a fiber mesh or cotton mesh, which can filter out impurities and particles in the water used to generate pure water. Due to the inclined surface design, these filtered impurities are It will slide down the slope of each filter screen 4 to the lowest end of the slope. A cleaning roller 5 is installed at the position where the lowest end of each filter screen 4 is connected to the box 1. Each cleaning roller 5 uses a motor. 6 is used as a drive, and the electric control device 17 can control the rotation speed of the two motors 6. In addition, each cleaning roller 5 adopts a brush roller, and the brush on the outer layer of the cleaning roller 5 can slide down to the lowest position of the filter screen 4. The impurities are removed, and the removed impurities and dirt will fall into the sewage collection bucket 11. In order to prevent the discharged impurities and dirt from splashing around, a baffle 12 is provided on the upper part of the sewage collection bucket 11. The baffle 12 adopts an arc structure, which can block impurities and dirt, and prevent the cleaning roller 5 from polluting the surrounding environment during operation; then, the filtered water will pass through the leakage plate 8, and the leakage plate 8 is installed On the seepage plate support ring 7 inside the box body 1 , the seepage plate support ring 7 is used to support the seepage plate 8 , and a plurality of seepage holes 9 are also provided in the middle of the seepage plate 8 , the leakage holes 9 are evenly distributed on the surface of the leakage plate 8 at the same distance, and the filtered water will enter the bottom of the box 1 through the leakage holes 9. This decentralized structure can avoid the The water used in the filter has a certain impact on the box 1, and also has a certain protective effect on the entire box 1. At the same time, the overall filtration will not be shaken due to the flow of water, and the filtration operation will be more efficient. Finally, the output pipe 13 installed along the bottom of the box body 1 is output from the position of the output valve 14 to complete the filtration and purification; in addition, the entire box body 1 is supported by the support frame 15 at the bottom of the support frame Each of the four corners is equipped with a roller 16, and each roller 16 adopts a lock-type universal wheel, which can facilitate the movement and positioning of the entire equipment, and is more comfortable to use. It can be installed, cleaned, maintained and replaced, and the filtration effect is obvious. It is suitable for the pretreatment of water used to generate pure water or the purification treatment of intermediate links. The connection is more free and flexible, and the controllability of water treatment operations is improved.

In the description of the present invention, it should be noted that the terms "center", "longitudinal", "horizontal", "upper", "lower", "front", "rear", "left", "right", The orientation or positional relationship indicated by "vertical", "horizontal", "inner", "outer", "top", "bottom", "end", etc. is based on the orientation or positional relationship shown in the drawings, only In order to facilitate the description of the present invention and simplify the description, it is not indicated or implied that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention. Furthermore, the terms "first", "second", and "third" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

An embodiment of the present invention has been described in detail above, but the content is only a preferred embodiment of the present invention, and cannot be considered to limit the scope of implementation of the present invention. All equivalent changes and improvements made according to the scope of the application of the present utility model should still belong to the scope of the patent of the present utility model.

Claims (10)

1. a movable type pure water initial effect pretreatment purification box, it is characterized in that: by box body, box cover, two filter screens, two cleaning rollers, seepage plate support ring, seepage plate, sewage collecting bucket The accommodating frame, the dirt collecting bucket, the output pipe, the output valve, the supporting frame, four rollers and the electric control device are composed of the top position of the box body is an inclined surface structure, and the box cover is located at the top position of the box body, so the The box cover is movably connected with the box body by means of hinges. The box cover is also provided with a handle. The handle is located on the upper part of the box cover. The handle and the box cover are fixedly connected. There is a distance between them and they are superimposed and placed inside the box close to the box cover. The two filter screens are both inclined surface structures, and the two filter screens are fixedly connected to the box body. The two cleaning rollers are respectively Located at the low end positions of the two filter screen slopes, the two cleaning rollers are fixedly connected to the box body, the leakage plate support ring and the leakage plate are all located inside the box body, and the leakage plate The support ring is located at the lower part of the two filter screens. The leakage plate support ring is fixedly connected to the inner wall of the box. The leakage plate is located between the leakage plate support ring and the two filter screens. It is movably connected with the support ring of the leakage plate, the dirt collection bucket accommodating frame is located on the outside of the box body, and the dirt collection bucket accommodating frame is located at the lower part of the positions of the two cleaning rollers, and the dirt collection bucket accommodating frame is connected to the box. The body is fixedly connected, the sewage collecting bucket is located inside the sewage collecting bucket accommodating frame, the sewage collecting bucket and the sewage collecting bucket accommodating frame are movably connected, the output pipe is located at the bottom of the box body, and one end of the output pipe is located at the bottom of the box body. It is fixedly connected to the box body, the output valve is located at the other end of the output pipe, the output valve is fixedly connected to the output pipe, the support frame is located at the lower part of the box body, and the support frame is fixedly connected to the box body, The four rollers are located at the four corners of the bottom of the support frame, and the four rollers are fixedly connected to the support frame. The electric control device is located on one side of the box body, and the electric control device is fixed to the box body. connect. 2 . The movable pure water initial effect pretreatment purification box according to claim 1 , wherein the bottom of the box body is a funnel-shaped structure. 3 . 3 . The portable pure water initial effect pretreatment purification box according to claim 1 , wherein the box cover is a box cover with a rubber pad at the inner edge position. 4 . 4 . The portable pure water initial effect pretreatment purification box according to claim 1 , wherein the two filter screens are both fiber nets or cotton nets. 5 . 5 . The portable pure water initial effect pretreatment purification box according to claim 1 , wherein the two cleaning rollers are brush rollers. 6 . 6. A movable pure water initial effect pretreatment purification box according to claim 1, characterized in that: any of the cleaning rollers is also provided with a motor, the motor is located on one side of the cleaning roller, and the The motor is located outside the box, and the motor is fixedly connected to the cleaning roller. 7 . The portable pure water initial effect pretreatment purification box according to claim 1 , wherein the seepage plate is further provided with a plurality of seepage holes, and between the plurality of seepage holes. 8 . The same distances are evenly distributed in the middle of the leakage plate, and the plurality of leakage holes are fixedly connected to the leakage plate. 8. A movable pure water initial effect pretreatment purification box according to claim 1, characterized in that: a baffle plate is further provided on the sewage collecting bucket, and the baffle plate is located on the upper part of the sewage collecting bucket, so that the The baffle is fixedly connected with the dirt collecting bucket, and the baffle is an arc structure. 9 . The portable pure water initial effect pretreatment purification box according to claim 1 , wherein the output valve is a rotary spherical valve. 10 . 10 . The portable pure water initial effect pretreatment purification box according to claim 1 , wherein the four rollers are all locking universal wheels. 11 .
