CN211797870U - Champignon removes flavor machine - Google Patents

Champignon removes flavor machine Download PDF

Info

Publication number
CN211797870U
CN211797870U CN201922400555.6U CN201922400555U CN211797870U CN 211797870 U CN211797870 U CN 211797870U CN 201922400555 U CN201922400555 U CN 201922400555U CN 211797870 U CN211797870 U CN 211797870U
Authority
CN
China
Prior art keywords
champignon
odor removal
fragrance
flavor
fixedly connected
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN201922400555.6U
Other languages
Chinese (zh)
Inventor
刘保和
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Shenzhen Yohe Technology Co ltd
Original Assignee
Shenzhen Yohe Technology Co ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Shenzhen Yohe Technology Co ltd filed Critical Shenzhen Yohe Technology Co ltd
Priority to CN201922400555.6U priority Critical patent/CN211797870U/en
Application granted granted Critical
Publication of CN211797870U publication Critical patent/CN211797870U/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Landscapes

  • Disinfection, Sterilisation Or Deodorisation Of Air (AREA)

Abstract

The utility model discloses an champignon removes flavor machine, including champignon organism, rotation chassis and base, the champignon organism links to each other through rotation chassis and base, champignon organism is inside to be provided with removes flavor room and fragrance room down, and goes up to remove and link to each other through the baffle between flavor room and the fragrance room down, go up the first slide rail of the indoor wall top both sides fixedly connected with of removing flavor, sliding connection has the odor removal box between the first slide rail, it is provided with the odor removal adsorption material to remove the inside odor removal box, go up and remove flavor room inner wall below and install the bactericidal lamp, the air exhauster is installed to the baffle top, the air outlet has been seted up to baffle one side, air outlet below fixedly connected with champignon passageway, the utility model relates to a. This champignon removes flavor machine can remove flavor again for the air earlier, very big promotion champignon quality and effect, promotes the functional of champignon machine, and convenient operation easily changes champignon box and removes flavor material simultaneously.

Description

Champignon removes flavor machine
Technical Field
The utility model relates to an champignon machine technical field specifically is a champignon removes flavor machine.
Background
The aromatherapy machine decomposes water molecules and dissolved plant essential oil into nanometer-scale cold mist with the diameter of 0.1-5 microns and emits the nanometer-scale cold mist into surrounding air through high-frequency oscillation generated by ultrasonic oscillation equipment, so that the air is filled with a fragrant device. The device is suitable for various places such as families, hotel rooms, halls, passageways, guest rooms and the like.
Current champignon machine is direct directly spraying in the air to plant essential oil atomizing usually in the use, and when having a large amount of peculiar smell in the air, direct atomizing is directly spouted fragrance and can be made fragrance and peculiar smell mix and produce more unpleasant taste, and the champignon effect is relatively poor, does not have the function of removing flavor champignon again earlier to the peculiar smell, and the general champignon area of current champignon machine is less in addition, inconvenient change material, and the operation is comparatively inconvenient.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a champignon removes flavor machine has solved that the champignon of champignon machine champignon effect is poor, the champignon area is less and inconvenient change champignon removes the problem of flavor material.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an aroma deodorizing machine comprises an aroma machine body, a rotating chassis and a base, wherein the aroma machine body is connected with the base through the rotating chassis, an upper aroma deodorizing chamber and a lower aroma chamber are arranged inside the aroma machine body and are connected with each other through a partition plate, first sliding rails are fixedly connected to two sides above the inner wall of the upper aroma deodorizing chamber, an aroma removing box is connected between the first sliding rails in a sliding manner, an aroma removing adsorption material is arranged inside the aroma removing box, a sterilizing lamp is arranged below the inner wall of the upper aroma deodorizing chamber, an exhaust fan is arranged above the partition plate, an air outlet is formed in one side of the partition plate, an aroma channel is fixedly connected below the air outlet, one end of the aroma channel penetrates through the aroma machine body and extends to one side of the outer wall of the aroma machine body, a low-power air blower is arranged at the other end of the aroma channel, and an, the aromatherapy device comprises a heating groove, an ultrasonic atomization sheet is fixedly connected to the bottom of the heating groove, second sliding rails are fixedly connected to the two sides of the upper portion of the heating groove, and an aromatherapy film box is connected between the second sliding rails in a sliding mode.
Preferably, go up and remove the indoor wall surface of flavor chamber and champignon room down and all fixedly connected with sound insulation and fall the chamber of making an uproar, the intracavity portion of making an uproar is filled with porous sound absorption fiber material that falls in sound insulation.
Preferably, odor removal air inlets are formed in the upper surface and the periphery of the upper side of the aromatherapy machine body, and a coarse filter screen is fixedly connected inside the odor removal air inlets.
Preferably, the odor removal adsorption material comprises a HEPA filter screen, an activated carbon filter screen, a plant odor removal agent layer and a nano-silver filter screen.
Preferably, the bottom end in the fragrance box is provided with a through hole.
Preferably, the base is internally provided with a motor, and the motor is connected with the rotating chassis through a rotating shaft.
Preferably, a water injection port is formed in the lower portion of one side of the outer wall of the aromatherapy machine body, and a sealing plug is detachably connected to the upper portion of one end of the water injection port.
Preferably, base top is provided with removes flavor switch, champignon switch and rotation switch, remove flavor switch all with air exhauster and bactericidal lamp electric connection, champignon switch all with miniwatt air-blower and ultrasonic atomization piece electric connection, rotation switch and motor electric connection.
Advantageous effects
The utility model provides a champignon removes flavor machine. The method has the following beneficial effects:
(1) this champignon removes flavor machine, remove the flavor room through last removing that sets up, utilize last remove flavor box that removes the indoor portion setting, remove flavor adsorbing material, bactericidal lamp and air exhauster, remove flavor indoor portion through opening the air exhauster earlier with the peculiar smell head through the flavor organism top surface and all set up all around with the top remove flavor air intake take out, through removing flavor box, remove flavor adsorbing material, the peculiar smell in the bactericidal lamp can effectively adsorb filtered air, and can disinfect the disinfection to the peculiar smell in the air, promote the circulation of air, gas after removing the flavor passes through air outlet automatic discharge, simultaneously through the first sliding rail that sets up, utilize remove flavor box and first sliding rail sliding connection can conveniently change and remove the inside flavor adsorbing material that removes of flavor box, promote and remove the flavor quality.
(2) The fragrance odor removing machine is characterized in that a fragrance channel is arranged above the inner part of a lower fragrance chamber, a low-power air blower is arranged at the other end of the fragrance channel, a fragrance device is fixedly connected below the fragrance channel through a pipeline, fragrance can be conveyed into the fragrance channel through the fragrance device by opening the fragrance device, and the fragrance is blown out through the low-power air blower, so that the fragrance area of the fragrance device is increased, and a fragrance film box is fixedly connected to two sides above a heating groove and is connected between the second sliding rails in a sliding manner, so that the material in the fragrance film box can be conveniently replaced; through last room and the champignon room inner wall surface equal fixedly connected with that removes makes an uproar and fall the chamber and fall the intracavity portion packing and have porous sound-absorbing fiber material that makes an uproar at giving sound insulation, can guarantee that the champignon removes the silence work of flavor machine.
Drawings

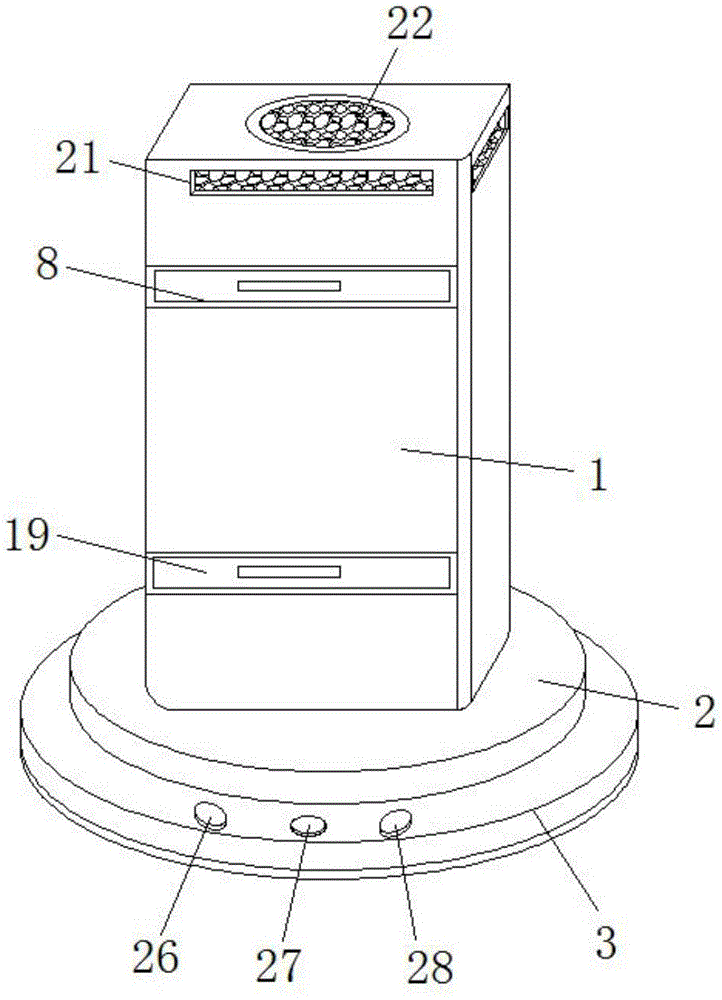

FIG. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a cross-sectional view of the overall structure of the present invention.
In the figure: 1. an aromatherapy body; 2. rotating the chassis; 3. a base; 4. an upper odor removal chamber; 5. a lower aroma chamber; 6. a partition plate; 7. a first sliding rail; 8. a deodorizing box; 9. deodorizing and adsorbing materials; 10. a germicidal lamp; 11. An exhaust fan; 12. an air outlet; 13. an aroma channel; 14. a low power blower; 15. a fragrance diffuser; 16. A heating tank; 17. an ultrasonic atomization sheet; 18. a second sliding rail; 19. a fragrance box; 20. a sound insulation and noise reduction cavity; 21. an air inlet for removing odor; 22. a coarse filter screen; 23. a motor; 24. a water injection port; 25. a sealing plug; 26. a deodorizing switch; 27. an aromatherapy switch; 28. the switch is rotated.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: an aroma deodorizing machine comprises an aroma machine body 1, a rotating chassis 2 and a base 3, wherein the aroma machine body 1 is connected with the base 3 through the rotating chassis 2, an upper deodorizing chamber 4 and a lower aroma chamber 5 are arranged inside the aroma machine body 1, the upper deodorizing chamber 4 is connected with the lower aroma chamber 5 through a partition plate 6, first sliding rails 7 are fixedly connected to two sides above the inner wall of the upper deodorizing chamber 4, a deodorizing box 8 is connected between the first sliding rails 7 in a sliding manner, deodorizing adsorbing materials inside the deodorizing box can be conveniently replaced, deodorizing quality is improved, deodorizing adsorbing materials 9 are arranged inside the deodorizing box 8, the deodorizing adsorbing materials 9 comprise HEPA (high efficiency particulate air) filter screens, active carbon filter screens, plant deodorizing layers and nano-silver filter screens, a sterilizing lamp 10 is arranged below the inner wall of the upper deodorizing chamber 4, an exhaust fan 11 is arranged above the partition plate 6, an air outlet 12 is formed in one side of the partition plate 6, and, and can sterilize and disinfect peculiar smell in the air, promote the circulation of air, fixedly connect with champignon channel 13 below the air outlet 12, champignon channel 13 one end runs through champignon body 1 and extends to one side of champignon body 1 outer wall, champignon channel 13 another end installs the low power blower 14, fixedly connect with champignon device 15 below champignon channel 13 through the pipeline, champignon device 15 includes heating tank 16, heating tank 16 bottom end fixedly connects with ultrasonic atomization piece 17, heating tank 16 upper both sides fixedly connect with the second slide rail 18, sliding connect with champignon box 19 between the second slide rail 18, can convey fragrance to champignon channel 13 inside through the pipeline through champignon device 15, and blow out fragrance through the low power blower 14, promote the champignon area of the champignon device, and champignon material inside the champignon box 19 is changed comparatively simply and, the surfaces of the inner walls of the upper odor removing chamber 4 and the lower fragrance removing chamber 5 are fixedly connected with a sound insulation and noise reduction cavity 20, the sound insulation and noise reduction cavity 20 is filled with porous sound absorption fiber materials, the silent work of the fragrance odor removing machine can be ensured, odor removing air inlets 21 are respectively arranged on the upper surface and the periphery of the fragrance machine body 1, a coarse filter screen 22 is fixedly connected inside the odor removing air inlets 21, the air inlet work of odor removing can be facilitated, the odor removing effect is prompted, the bottom end inside the fragrance box 19 is provided with a through hole, a motor 23 is arranged inside the base 3, the motor 23 is connected with the rotating chassis 2 through a rotating shaft, the rotating chassis 2 can be driven to rotate through the work of the motor 23, the fragrance machine body 1 can be driven to rotate, the odor removing area and the fragrance area are increased, a water injection port 24 is arranged below one side of, base 3 top is provided with removes flavor switch 26, champignon switch 27 and rotating switch 28, removes flavor switch 26 all with air exhauster 11 and 10 electric connection of bactericidal lamp, champignon switch 27 all with low-power air-blower 14 and the 17 electric connection of ultrasonic atomization piece, rotating switch 28 and motor 23 electric connection, can make things convenient for the champignon to remove flavor work, and is easy and simple to handle.
During operation, when there is the peculiar smell indoor, earlier open air exhauster 11 and sterilamp 10 through utilizing removing flavor switch 26 and carry out work, remove flavor room 4 inside through utilizing air exhauster 11 to take in peculiar smell through 1 top surface of champignon organism and top all around removal flavor air intake 21, through utilizing removing flavor box 8 inside HEPA filter screen, the active carbon filter screen, the peculiar smell in the filtered air is adsorbed to the peculiar smell adsorbing material 9 that removes flavor layer of plant and nano silver filter screen and make, simultaneously and disinfect the disinfection through sterilamp 10 to the peculiar smell in the air, promote the circulation of air, gas after removing the flavor passes through air outlet 12 and fragrance passageway 13 automatic discharge, it carries out champignon work through utilizing switch 27 to open miniwatt air-blower 14 and ultrasonic atomization piece 17 after keeping off indoor peculiar smell absorption and purifying for a certain time, ultrasonic atomization piece 17 can atomize the water of heating tank 16 inside and carry the fragrance in the material of champignon 19 through the pipeline in champignon passageway 13 The portion, the low power air-blower 14 can be blown off automatically by the inside fragrant smell of champignon passageway 13, promotes the champignon area of champignon ware 15, opens motor 23 through utilizing rotation switch 28 and can drive rotation chassis 2 and rotate when needs promote except that 8 champignon areas of flavor box, and then can drive champignon organism 1 and rotate, promotes to remove flavor area and champignon area.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (8)

1. The utility model provides a champignon removes flavor machine, includes champignon organism (1), rotating chassis (2) and base (3), champignon organism (1) links to each other its characterized in that through rotating chassis (2) and base (3): the fragrance machine body (1) is internally provided with an upper odor removal chamber (4) and a lower fragrance chamber (5), the upper odor removal chamber (4) is connected with the lower fragrance chamber (5) through a partition plate (6), two sides of the upper inner wall of the upper odor removal chamber (4) are fixedly connected with first sliding rails (7), an odor removal box (8) is connected between the first sliding rails (7) in a sliding manner, an odor removal adsorption material (9) is arranged inside the odor removal box (8), a sterilizing lamp (10) is installed below the inner wall of the upper odor removal chamber (4), an exhaust fan (11) is installed above the partition plate (6), an air outlet (12) is formed in one side of the partition plate (6), an fragrance channel (13) is fixedly connected below the air outlet (12), one end of the fragrance channel (13) penetrates through the fragrance machine body (1) and extends to one side of the outer wall of the fragrance machine body (1), and a low-power air blower (14) is, champignon passageway (13) below is through pipeline fixedly connected with champignon ware (15), champignon ware (15) are including heating groove (16), heating groove (16) bottom fixedly connected with ultrasonic atomization piece (17), heating groove (16) top both sides fixedly connected with second slide rail (18), sliding connection has champignon piece box (19) between second slide rail (18).
2. The aromatherapy odor removal machine according to claim 1, wherein: go up and remove the equal fixedly connected with in room (4) and champignon room (5) inner wall surface and fall the chamber (20) of making an uproar, it has porous sound absorption fiber material to fall the inside packing in chamber (20) of making an uproar to give sound insulation.
3. The aromatherapy odor removal machine according to claim 1, wherein: odor removal air inlets (21) are formed in the upper surface and the periphery of the upper side of the champignon body (1), and coarse filter screens (22) are fixedly connected inside the odor removal air inlets (21).
4. The aromatherapy odor removal machine according to claim 1, wherein: the odor removing and adsorbing material (9) comprises a HEPA filter screen, an activated carbon filter screen, a plant odor removing agent layer and a nano-silver filter screen.
5. The aromatherapy odor removal machine according to claim 1, wherein: the bottom end in the fragrance box (19) is provided with a through hole.
6. The aromatherapy odor removal machine according to claim 1, wherein: the base (3) is internally provided with a motor (23), and the motor (23) is connected with the rotating chassis (2) through a rotating shaft.
7. The aromatherapy odor removal machine according to claim 1, wherein: a water injection port (24) is formed in the lower portion of one side of the outer wall of the aromatherapy machine body (1), and a sealing plug (25) is detachably connected to the upper portion of one end of the water injection port (24).
8. The aromatherapy odor removal machine according to claim 1, wherein: base (3) top is provided with removes flavor switch (26), champignon switch (27) and rotation switch (28), remove flavor switch (26) all with air exhauster (11) and sterilamp (10) electric connection, champignon switch (27) all with miniwatt air-blower (14) and ultrasonic atomization piece (17) electric connection, rotation switch (28) and motor (23) electric connection.
